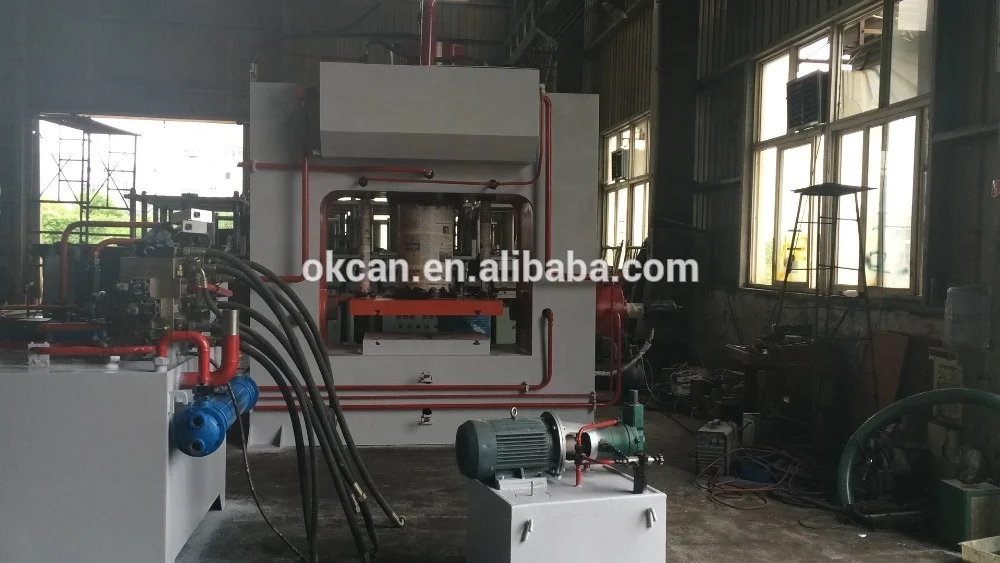

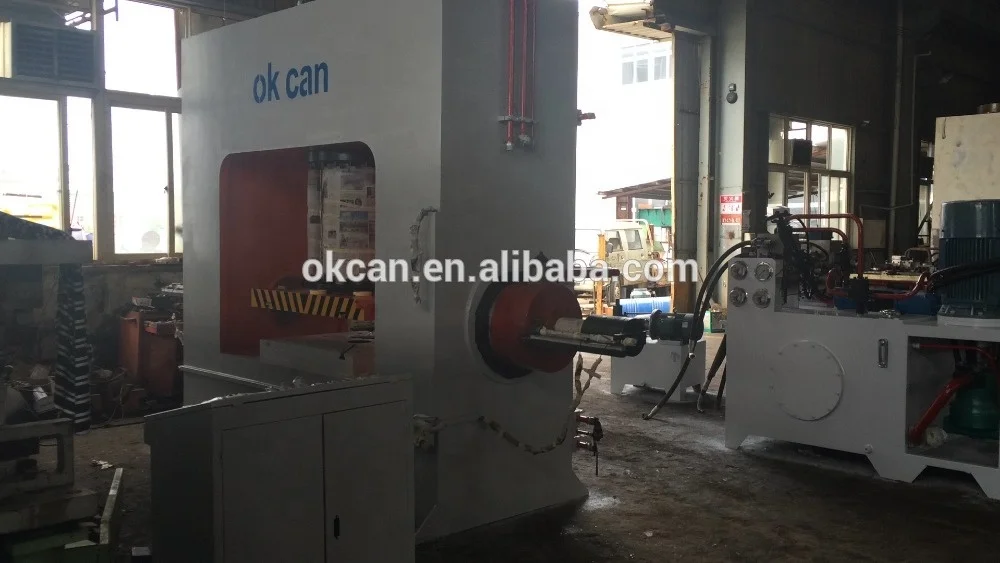

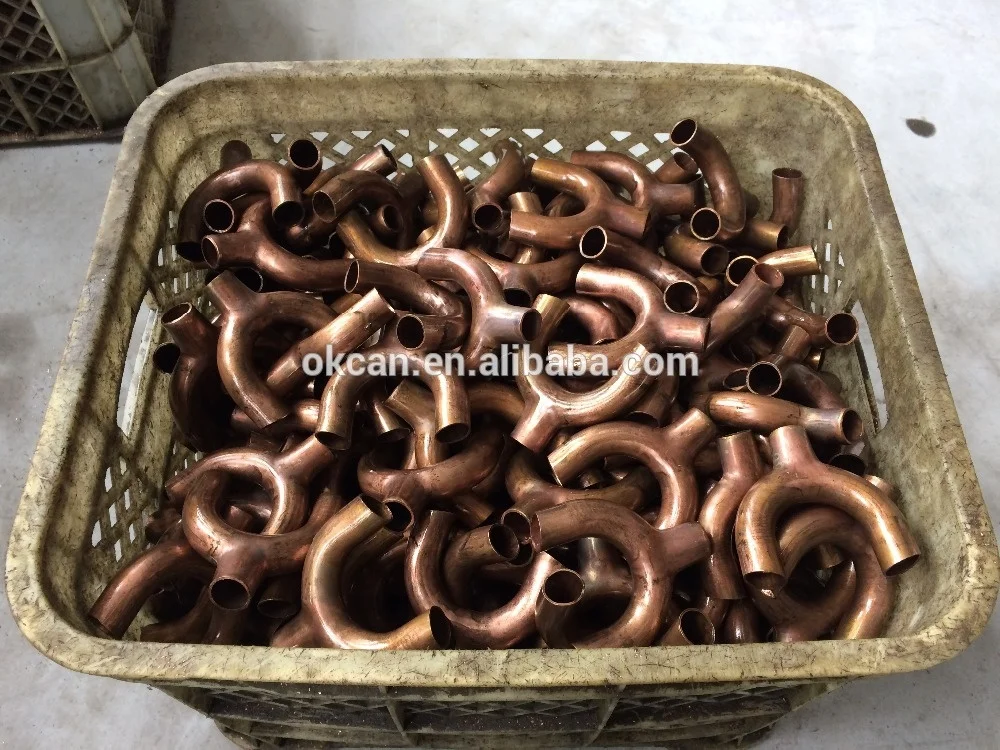

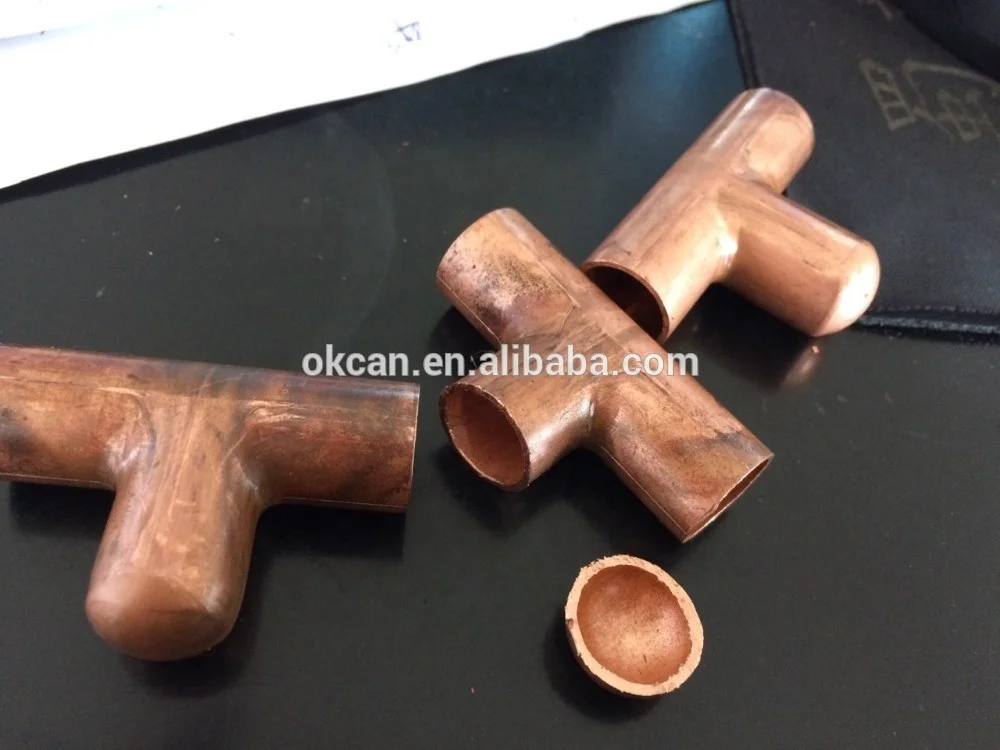

The machine extrusion medium is with water,instead of traditional lead extruding,no environmental pollution.Reasonable mechanical structure, strong rigidity,master cylinder clamping force is big,more fitting extrusion can effectively guarantee the stability of the pipe forming.The use of advanced internal high pressure forming technology,through industrial programmable controller for the pressure in the process of extrusion and speed for dynamic control,in order to realize the optimization of extrusion forming,ensure the shape stability of the product. Can be out of shape Y and T.
Machine modle
YCT-120
YCT-160
YCT-250
YCT-350
Clamping force of master cylinder (KN)
1200
1600
2500
3500
Extrusion force(KN)
400
500
800
1500
Max Hydraulic pressure
20Mpa
20Mpa
20Mpa
20Mpa
Max water pressure
150Mpa
150Mpa
150Mpa
150Mpa
Processing range (mm)
∅18
∅28
∅70.5
∅110
Working efficiency
10-15 seconds/cycle
10-15 seconds/cycle
10-18 seconds/cycle
10-20
seconds/cycle
Machine weight
THK
OD OF PIPE
ID OF PIPE
0.70
7.80
6.40
0.70
9.40
8.00
0.70
10.98
9.58
0.80
14.35
12.75
0.90
17.73
15.93
1.00
21.10
19.10
1.00
24.28
22.28
1.10
27.66
25.46
1.20
31.05
28.65
1.30
34.41
31.81
1.30
37.60
35.00
1.30
40.77
38.17
1.40
44.15
41.35
1.60
54.08
50.88
1.70
57.45
54.05
1.90
70.55
66.75
2.00
80.30
76.30
2.20
83.82
79.42
2.40
96.92
92.12
2.60
110.02
104.82
