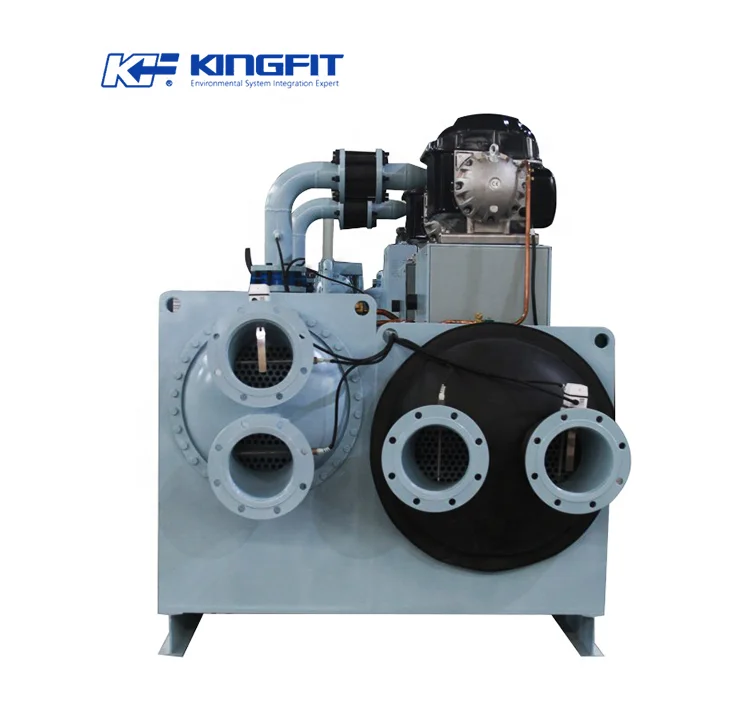

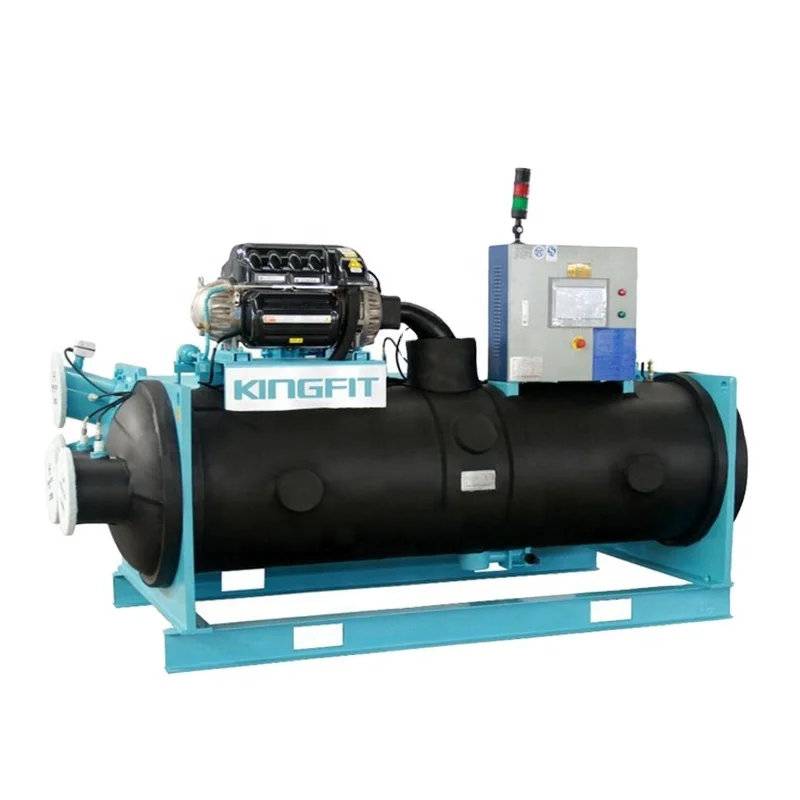

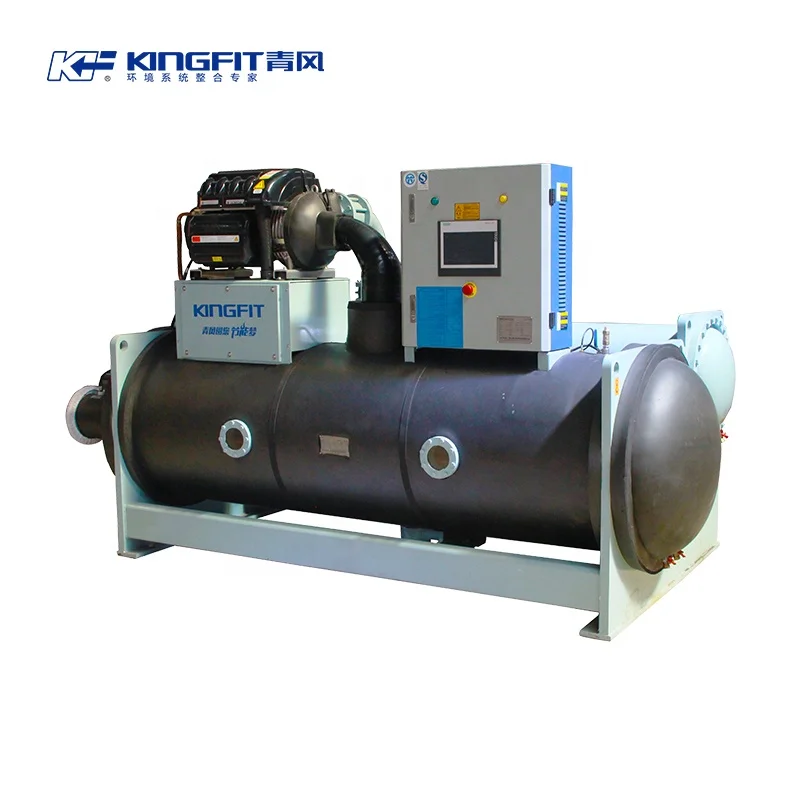

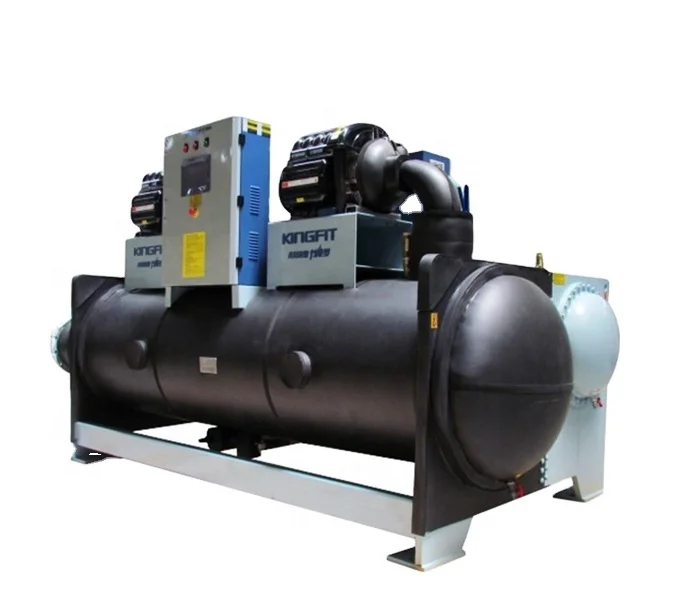

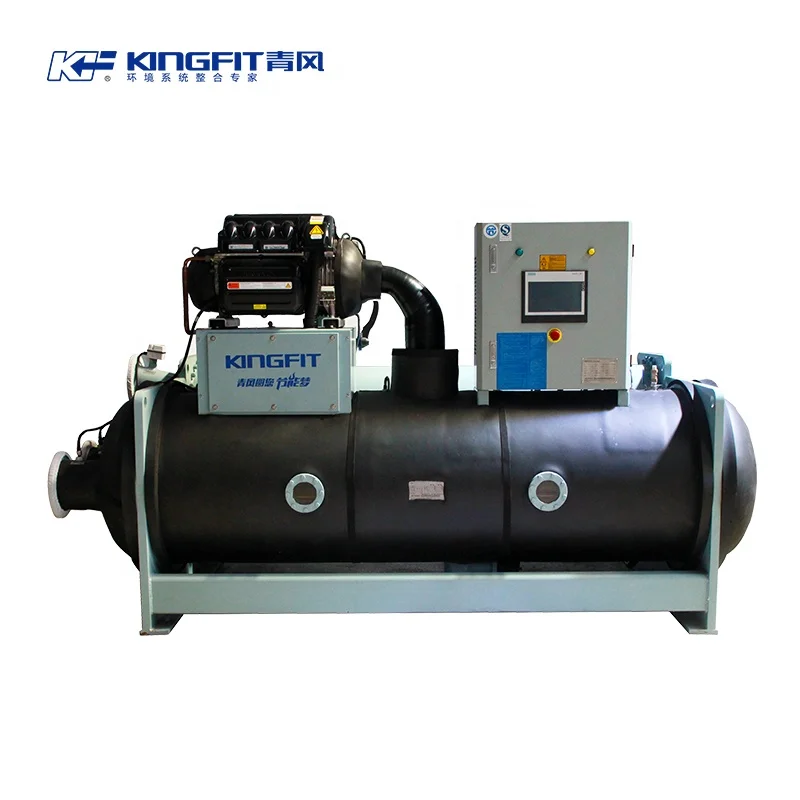

R134a Frequency Conversion Magnetic Levitation (Maglev) Oil free Centrifugal Chiller
- Category: >>>
- Supplier: Zhejiang Kingfit Enviroment Co. Ltd.
Share on (1863048068):
Product Overview
Description
Product Description
Oif-free Magnetic Bearing Centrifugal Chiller:
Quiet operation with ultra low noise magnetic bearing technology is used in compressors. Main shafts of the compressors rotate at high speed without any mechanical contact.Oil-free design to reduce costs. Oil-free operation eliminates complicated oil system, reducing operational and maintenance costs.
Redundancy design and efficient operation. Multiple compressors are installed on a shared evaporator and condenser, providing redundancy to ensure efficient operation of the equipment.
High energy efficiency and short payback period. Compared to conventional chillers, KINGFIT oil-free chillers can save 42% or even more operational costs with a payback period of just 2-3 years.
Environmental friendly, clean and safe. Use environmental friendly refrigerant R134a with zero ODP.
Intelligent control and high efficiency management. Unique PLC features adaptive control logic enables real-time optimization of the system to maintain best efficiency. Control panel has functions of capacity control, status display, fault diagnosis and other automatic control feature to ensure high efficiency management.
Specification
Model | QLC530SJAC | QLC1060SJAC | QLC1750SJAC | QLC2100SJAC | ||||
Cooling Capacity | 530KW | 1060KW | 1732KW | 2120KW | ||||
Max. Input Power | 100KW | 200KW | 288KW | 400KW | ||||
IPLV | 10.7 | 10.7 | 10.7 | 10.7 | ||||
Power supply | 3Phase 400V/50HZ | |||||||
Refrigerant: | R134a | |||||||
Condenser | High efficient external screwed shell and tube. | |||||||
Cooling water temperature | Inlet 30℃, outlet 35℃ | |||||||
Cooling water flow rate | 114m3/h | 228m3/h | 338m3/h | 455m3/h | ||||
Evaproator | High efficient falling film type. | |||||||
Chilled water flow rate | 91.2m3/h | 182m3/h | 271m3/h | 365m3/h | ||||
Chilled water temperature | Inlet 12℃, outlet 7℃ | |||||||
For more details, please leave messages! | ||||||||
Customer Photos
Why Choose Us
Experienced In Chiller
Over 20 years of rich experience in chiller manufacturing and our professional engineer team is offering the complete chiller designs and models to meet all your requirements.
All Industries Served
With rich experience of different kings of chillers/chiller systems for various industrial applications can help to work out the correct chiller suitable for your needs.
Global Chiller Shipment
No matter which country you are from, just tell your nearest seaport or airport, we can arrange your chiller order at the fastest shipping even can do door to door delivery.
OEM/ODM Available
Kingfit can provide customers’ OEM/ODM service and using your company brand & logo. Besides our standard configuration chillers, we can also design and customize chillers based on your requirements.
Over 20 years of rich experience in chiller manufacturing and our professional engineer team is offering the complete chiller designs and models to meet all your requirements.
All Industries Served
With rich experience of different kings of chillers/chiller systems for various industrial applications can help to work out the correct chiller suitable for your needs.
Global Chiller Shipment
No matter which country you are from, just tell your nearest seaport or airport, we can arrange your chiller order at the fastest shipping even can do door to door delivery.
OEM/ODM Available
Kingfit can provide customers’ OEM/ODM service and using your company brand & logo. Besides our standard configuration chillers, we can also design and customize chillers based on your requirements.
Full Solutions Provider
Our services including: chiller requirement communication, analysis, designing, manufacturing, quality control, chiller delivery.
We always keep advising not just chiller manufacturing.
Top Quality Chiller
Always take good care of your chiller order from design, raw material purchasing, manufactured, testing & delivery to make sure all chiller making processes are under controlled.
No Worries Service
World business trip/chiller related exhibitions and fairs 2-3times yearly can settle face to face meeting, 24*7*365 online service with fast feedback.
12 Months Warranty
All Kingfit chillers cover 12 months of standard warranty time s after shipment. This makes all customers use our chillers freely without worries about the after-sales service.
Our services including: chiller requirement communication, analysis, designing, manufacturing, quality control, chiller delivery.
We always keep advising not just chiller manufacturing.
Top Quality Chiller
Always take good care of your chiller order from design, raw material purchasing, manufactured, testing & delivery to make sure all chiller making processes are under controlled.
No Worries Service
World business trip/chiller related exhibitions and fairs 2-3times yearly can settle face to face meeting, 24*7*365 online service with fast feedback.
12 Months Warranty
All Kingfit chillers cover 12 months of standard warranty time s after shipment. This makes all customers use our chillers freely without worries about the after-sales service.
Company Profile
Zhejiang Kingfit Environmental Co., Ltd. is a national high-tech enterprise that has been committed to
the one-stop solution for modern industrial and agricultural intelligent environmental systems for many years. Kingfit is located in Shuige Industrial Zone, Lishui City, Zhejiang Province, and covers an area of 80000m2. It has standard cooling equipment, water cooling and cold water test equipment, test benches, enthalpy difference laboratories, and other advanced testing equipment.
The scale of production can reach an annual output of 20,000 sets of industrial air conditioners.
Since its establishment, Kingfit has actively promoted technological innovation. Now it has 12 invention patents, 10 utility model patents, and 8 computer software copyrights.
Kingfit has established a comprehensive quality management system compatible with ISO9001 quality management system, ISO14001 environmental management system, OHS18001 occupational health and safety management system, pressure vessel production license, and "6S" site management and CE approved. The theory of improvement was integrated and an integrated continuous improvement model was established, which greatly improved the operational efficiency and effectiveness of corporate management.
Kingfit understands the needs of customers, customizes the products for customers, and customizes the requirements. At present, the products are exported to more than 60 countries and regions all over the world and have received unanimous recognition and praise from customers.
the one-stop solution for modern industrial and agricultural intelligent environmental systems for many years. Kingfit is located in Shuige Industrial Zone, Lishui City, Zhejiang Province, and covers an area of 80000m2. It has standard cooling equipment, water cooling and cold water test equipment, test benches, enthalpy difference laboratories, and other advanced testing equipment.
The scale of production can reach an annual output of 20,000 sets of industrial air conditioners.
Since its establishment, Kingfit has actively promoted technological innovation. Now it has 12 invention patents, 10 utility model patents, and 8 computer software copyrights.
Kingfit has established a comprehensive quality management system compatible with ISO9001 quality management system, ISO14001 environmental management system, OHS18001 occupational health and safety management system, pressure vessel production license, and "6S" site management and CE approved. The theory of improvement was integrated and an integrated continuous improvement model was established, which greatly improved the operational efficiency and effectiveness of corporate management.
Kingfit understands the needs of customers, customizes the products for customers, and customizes the requirements. At present, the products are exported to more than 60 countries and regions all over the world and have received unanimous recognition and praise from customers.
Testing Center:
100% Test before delivery
100% Test before delivery
Certifications
CE Certificate, ISO9001 Certificate, CQC Energy Saving Certificate.
12 invention patents, 10 utility model patents, and 8 computer software copyrights.
Exhibition
Packing & Delivery
Wooden package with Air bubble film, Wrapping Film, Big part will be nude packing in container, steel wire fixed so that it's
stable for shipping.
stable for shipping.
FAQ:
1. Are you manufacturer or Trade Company?We are professional factory, founded in 1998. OEM available!
2. What's the order process?
Inquiry---provide us all clear requirements.
Quotation---official quotation form with all detail specifications.
Contract confirmation---provide correct contract details.
Terms of payment--- By T/T 40% downpayment, balance before shipment.
Production---mass production.
Testing---8hours, to ensure the quality of the machine.
Shipping--- by sea, train. Detailed picture of package will be provided.
Installation---install video/install manual.
3.What terms of payment you use?
T/T, L/C, etc.
4. How to get a prompt quotation?
When you send the inquiry to us, please kindly send it with below technical information.
1). Application:
2). Cooling capacity: _____KW or _____ Kcal/hr or _____RT.
3). Outlet temperature:
4). Power supply: 3PH 380V/50HZ or 3PH 230V/60HZ or 3PH 440V/60HZ.
5). Location of your factory, we have to know the weather condition.
6). Any other special requirements:
5. Any technical support need or purchase need please contact to us!
