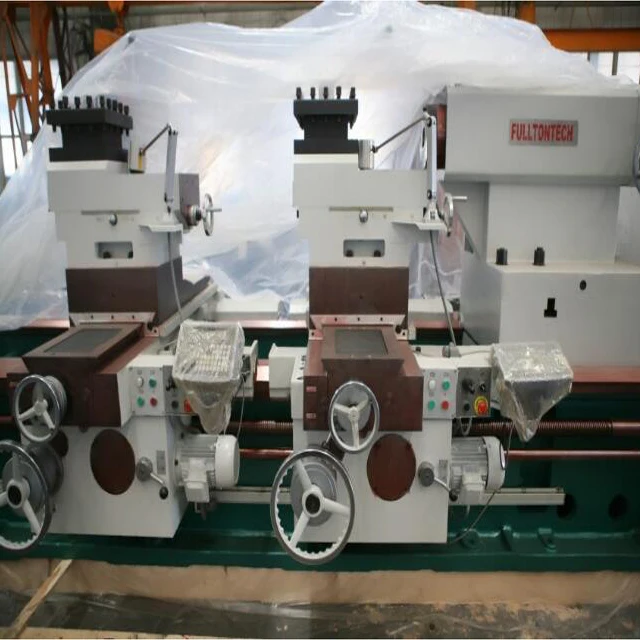

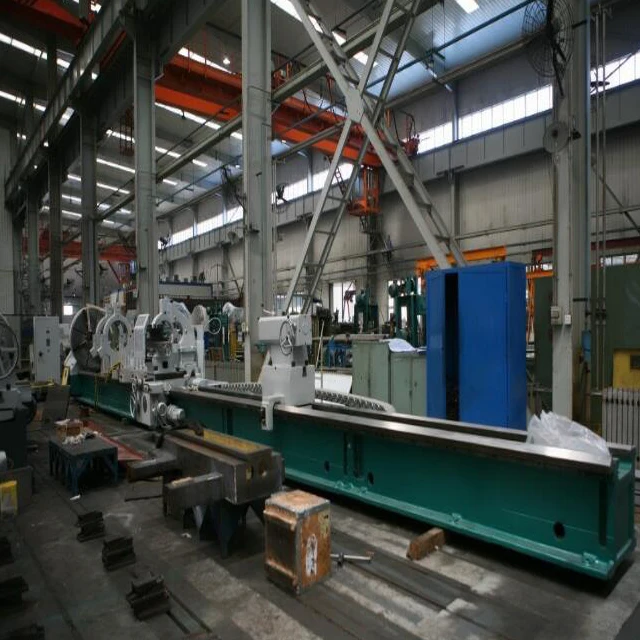

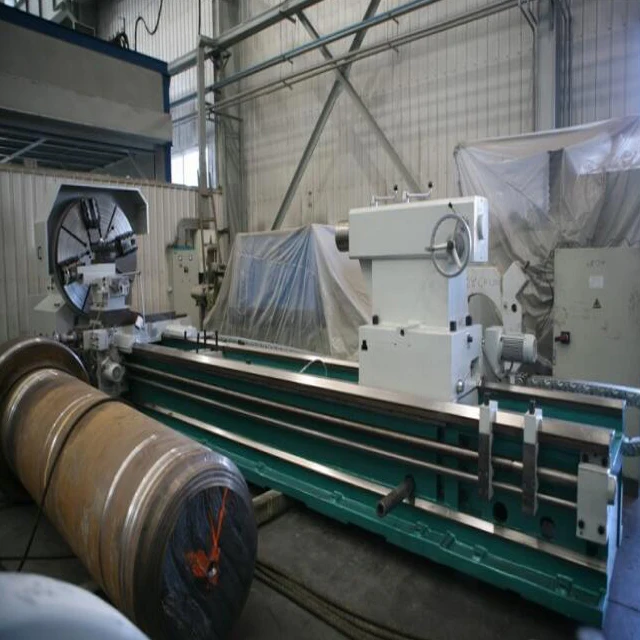

Hot Sale CF61180H Big Swing Over Bed Cast Iron China Engine Lathe

Name: Hot Sale CF61180H Big Swing Over Bed Cast Iron China Engine Lathe
SKU: 1863180606
Price: $50,000.00 USD
Availability: InStock

Price:$50,000.00

Quantity:

PRODUCT SPECIFICATIONS

SPECIFICATIONS	UNIT	CF61125M	CF61140M	CF61160M	CF61180M
Max.Swing diameter over bed	MM	1250	1400	1600	1800
Max.Swing diameter over toolpost	MM	880	1050	1250	1450
Max.Weight of workpiece between two centers	TON	10-12
Max. length of workpiece between two centers	MM	1500 to 1800（Tailstock sleeve extend out 250mm）
Width of machine bed	MM	970
Spindle speed	R/MIN	4.25-192 total 12 steps
Section of tool shank	MM	45*45
Spindle diameter	MM	200 front
Taper hole of spindle		1:20
Diameter od spindle hole	MM	100
Stroke of top toolpost	MM	300
Longitudinal rapid travel speed	MM/MIN	3800
Cross rapid moving speed	MM/MIN	1900				37.5KW
Feed species of toolpost		48				2.8 M3
Feed range of toolpost	MM/R	Longitudinal 0.057~12.726 Cross 0.027~6.096				125Ton
Diameter of tailstock center	MM	Φ200				96kN
Taper hole of tailstock center		Morse No.6				6750ml
Storke of tailstock sleeve	MM	250				500N.m
Species number of threads	MM	Metric 46 Range 1-224
	Main motor power	TOOTH/INCHI	BSP 46 Range 28-1
		MM	Module 37 Range 0.25-56
Main motor paramters		22KW 380V 50HZ 970RPM
Total power of the machine	KW	24.85
Steady rest standard	MM	Φ200~550					φ500~850
Steady rest optional	MM		φ500~850					Φ200~550
