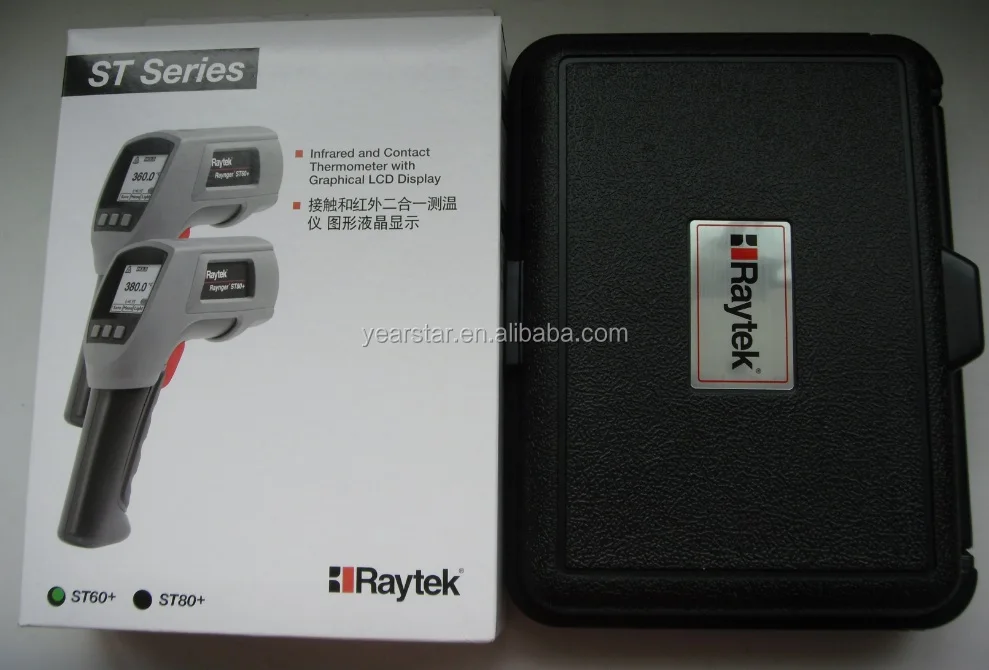

Raytek ST60 Contact temperature gauge with Graphical LCD Display

Product Overview

Description

Raytek ST60+  Infrared and Contact Thermometer with Graphical LCD Display :



• Precise non-contact measurements

• Measurement range: -32°C~600°C(-25°F~1100°F)
• Accuracy: ±1.0% of reading ±1°C (±2 °F)
• Resolution : 0.1°C(0.1F)
• Distance to Spot Ratio: 30 : 1
• Emissivity : 0.1~1
• Response Time: less than 500ms
• Repeatability: ±0.5% of reading or ±1 °C (±2 °F)
• Spectral Response : 8μm~ 14μm
• °C/°F display selection
• with Thermocouple Probe
• Display Back light LCD display
• Auto power off after 7 Seconds,
• Operating Environment: temperature: 0~50 ºC(32~122F),Humidity:10% to 90% RH

• Power: Battery 2 AA /LR6
• Weight: 200g
• Dimensions : 152*102*38mm (6*4*1.5 in)





------------------------------------------



Technical Specification:



Specification	Parameter
Temperature	-32°C~600°C (-25 F~1100 F)
Resolution	0.1°C (0.1F)
Accuracy	±1.5% of reading or ±1°C (±2 °F)
Repeat Accuracy	±0.5% of reading or ±1 °C (±2 °F)
D:S	30 : 1
Response Time	less than 500ms
Spectral Response	8μm~ 14μm
Emissivity	0.1 ~ 1 digitally adjustable by 0.01









---------------------------------------------------------------------





























-------------------------------------------
