Portable X Ray Flaw Detector XXHA 1605

Product Overview

Description

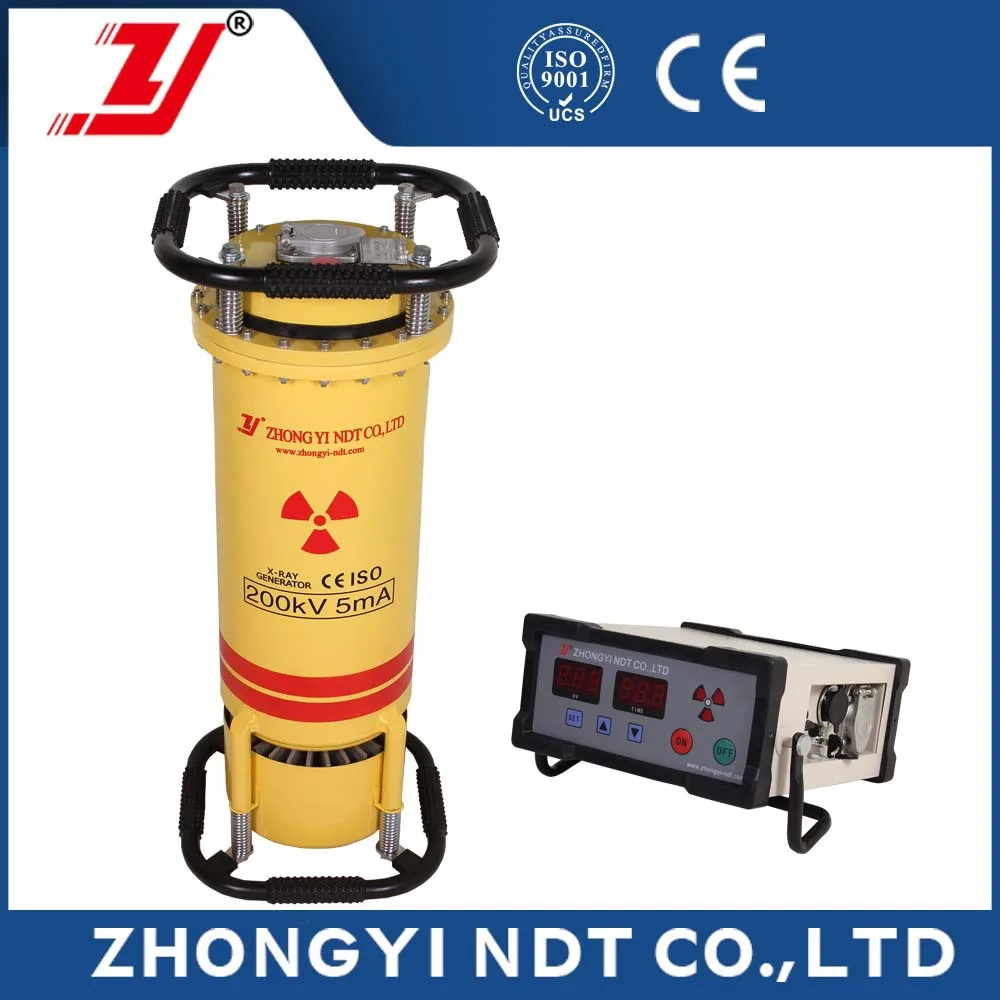

portable x-ray machine XXHA-1605



Introduction



The XXHA-1605 model portable x-ray machine can be widely used in shipbuilding, machinery manufacturing, aviation, pressure vessels, boilers, oil pipe, chemical, defense industry and other departments for non-destructive testing. Portable x-ray machine XXHA-1605 model is suitable to construction site operation and factory lab operation.



x-ray generator



1.Adopt high temperature installation technology to improve 30% heat radiation. The aluminium radiator has features as high stretch, high density and high purity.

2.Small volume, light weight ,easy to take and simplicity of operation.

3.More safe and reliable design of SF6 gas insulator, grounded-anode.

4.Strictly followed with 1:1 working/ resting radio, eliminating the disoperation.

5.The HV coils made by imported enamel wire are applied in the x-ray generator, so as to make the quality of the complete equipment improved a great deal.



controller



1.It can still work by applying special design of high frequency technology what can avoid the interference by power grid change.

2.All the signal wires in the controller are imported from South Korea to make sure the controller’s quality.

3.We are using highpower electronic components,such as capacitance and power module with wide capability to greatly ensure the quality of the products.

4.Apply the isolation technology of low voltage and high voltage to ensure the controller working stablely.

5.Posses the reliable “time-delayed” function, suitable to operate in the open field.

6.It has functions of troubleshooting automatically and pressure indication to guarantee the stability of working.



Parameters



Product Name : X-Ray Flaw Detector XXHA-1605 With Glass Tube



portable x-ray machine XXHA-1605



Model	XXHA-1605
Tube	glass tube
Beam angle	panoramic 360°x40°
Tube voltage	60-160kv
Tube current	5mA
Capacity	>1.5
Focus size	1.0 x 3.5mm
Max. penetration	A3 steel 15mm
X-ray generator size	210x 210x 620mm
X-ray generator weight	15kg
Power supply	AC220V±10%,50HZ
Controller size	367x320x164mm
Controller weight	13kg
Insulating material	SF6 gas
Cooling way	air fan cooling





portable x-ray machine XXHA-1605















Zhongyi NDT Testing X-ray Flaw Detector/X-ray Generator
Model	Tube Voltage (KV)	Capacity (KW)	Focus Size (mm)	Max. Penetrate (mm)
XXQ-1005	40-100	>1.0	1.0*1.0	8
XXQ-1605	60-160	>1.5	1.5*1.5	20
XXQ-2005	80-200	>2.0	1.5*1.5	29
XXQ-2505	130-250	>2.5	2.0*2.0	39
XXQ-3005	150-300	>3.0	2.5*2.5	49
XXQ-3505	250-350	>3.5	2.5*2.5	59
XXH-1605	60-160	>1.5	1.0*2.0	18
XXH-2005	80-200	>2.0	1.0*2.4	26
XXH-2505	130-250	>2.5	1.0*2.4	36
XXH-3005	150-300	>3.0	1.0*3.4	46
XXH-3505	250-350	>3.5	1.0*3.4	56
XXHA-1005	40-100	>1.0	1.0*2.0	4
XXHA-1605	60-160	>1.5	1.0*2.5	15
XXHA-2005	80-200	>2.0	1.0*2.5	24
XXHA-2505	130-250	>2.5	1.0*2.5	34
XXHA-3005	150-300	>3.0	1.0*3.5	40
XXHA-3505	250-350	>3.5	1.0*3.5	50
XXG-1605	60-160	>1.5	1.5*1.5	20
XXG-2005	80-200	>2.0	1.5*1.5	29
XXG-2505	130-250	>2.5	2.0*2.0	39
XXG-3005	150-300	>3.0	2.5*2.5	49
XXG-3505	250-350	>3.5	2.5*2.5	70



portable x-ray machine XXHA-1605





FAQ:



Q 1:Is your Company the Manufacturer or a Trading Company?

A 1 : We are a manufacturer of NDT x ray equipment in China with experience engineer working over 20 years.



Q 2 : What are the payment options?

A 2 : We accept the following payment methods: T/T, L/C, Western Union, Paypal, Alibaba Trade Assurance.





Q 3 : Do you have any products that approved by ISO or CE?

A 3 : Yes, all of our products were strictly approved by ISO and CE, and our Zhongyi products can be imported to the overseas market.







Our portable x-ray machine XXHA-1605 , Your best choose.





We will provide the operation video of portable x-ray machine XXHA-1605 for you.





Welcome to our portable x-ray machine XXHA-1605 Factory.
