SD/MicroSD memory card duplicator /copier, tf card duplicator 1 to 47 ports

Share on (1865248361):


Price:RUB 136,592.28

Quantity:


Product Overview

Description

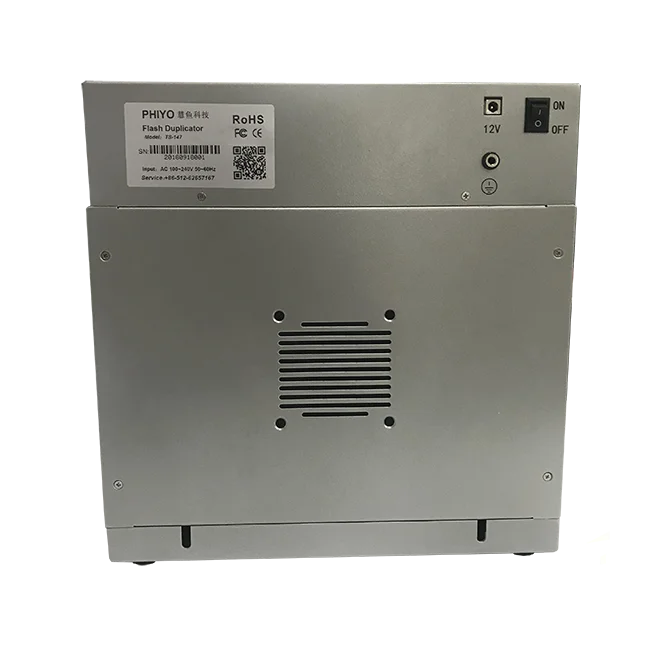

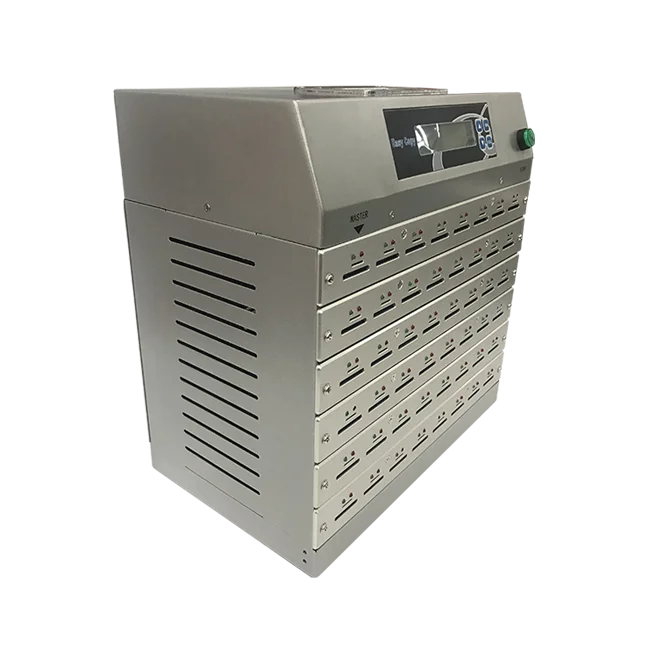

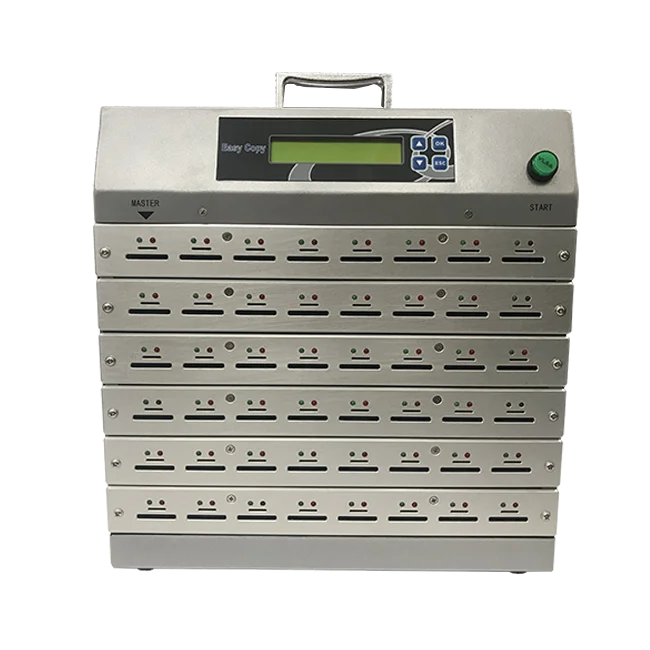

SD/micro SD card duplicator 1 master to 47 targets TS-147








The TS-147 is a professional SD/TF Flash Duplicator that duplicates SD, MicroSD with a speed of up to 1.5 GB/s and is ideal for simple mass duplication. Offering the abilty to verify bit for bit and providing a checksum of your data, SD/TF duplicators help you to get more done in less time!












Complete Standalone Operation,no PC required to operate the SD/MicroSD duplicator.

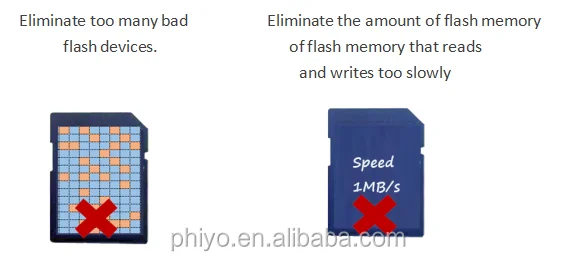

Supports all currently available SD/MicroSD drive



QQ20181213145741



Support all copy functions including full and quick data copy, and also provide strictly bit to bit comparing.



QQ20181212115855

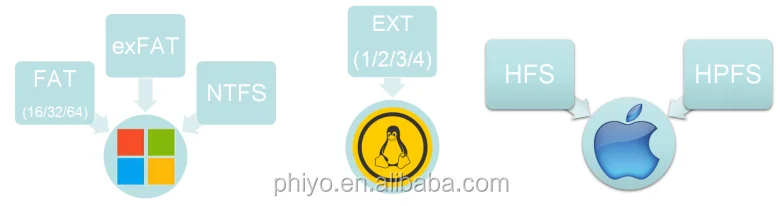

Support“quick copyfor Linux (ext1/ext2/ext3/ext4) and NTFS, FAT16/32.



1



l 1.5GB/m for all devices synchronously without any speed decline.

11

   Reference copy data:

e.g:
2G Class 10 Ultra micro SD card; data capacity 2G;
8G Class 10 Ultra micro SD card; data capacity 7.2G;
 Brief Copy+Compare

Model

class 2
(2G)

class 10
(7.2G)

duplicator
(7.2G)

Write speed

2M/s

10M/s

25M/S

Copy time around

3’25”

12’20”

4’55”

Compare time around

1’54”

6’49”

4’55”

Total time around

5’19”

19’9”

9’50”

The theoretical time should be different from real time, it is only for reference.



.png





   SD&TF Connector Swap SOP








Model

TS-147



Display

Single color LCD display

Ports

Source slots

Traget slots



Operation buttor

ESC,START

1SD&TF slot

47SD&TF slots



Duplicator

QUICK Copy,FULL Copy

Maximum
speed

1.5GB/Min



Comparison

“Bit to Bit”Comparison

Operation mode

Single Machine



Erase

QUICK ERASE,FULL ERASE,DoD ERASE

Lauguage

Chinese & English



PC Connection

Monitor machine working status with record




   7







 4



         Q: How long is the warranty?

         A: 1) Duplicator/Programmer: One-years warranty for hardware, and lifetime to update software (normal              firmware, customized software excluded). Cable and interface board is consumable, no warranty.

2) Adapter/riser card: normal use is 6 months warranty, if use for test, no warranty.

3) Test products: no warranty. If verdict is product self quality problem, we would repair free for customer.

 Q: How to process a customized order?

A: 1) we need to evaluate if we could do it for customer according to the requirement, and if we could, how long would it takes and how much is the cost.

2) we need to confirm that customer could offer us the needed information in the process.

 3)we would make a SO (sales order), and if customer confirm the order and pay first (deposit according to the SO), we would start the case.

4) ship the products to customer/ send the customized software to customer.

5)after products received, pay the balance, if there is no problem. If problem exists, we would solve it and then pay the balance.

Q: Do you have agents or distributors?

 A: Until now, we only have agents in China, but we have the import-export operation right, so we can trade with customer directly. If you want to be an agent, please feel free to contact us.
