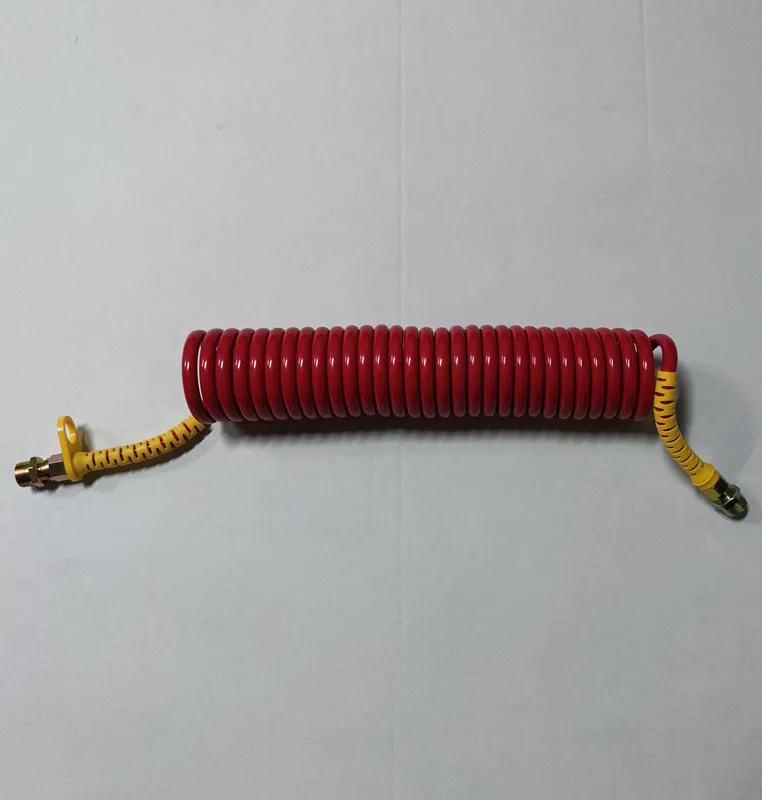

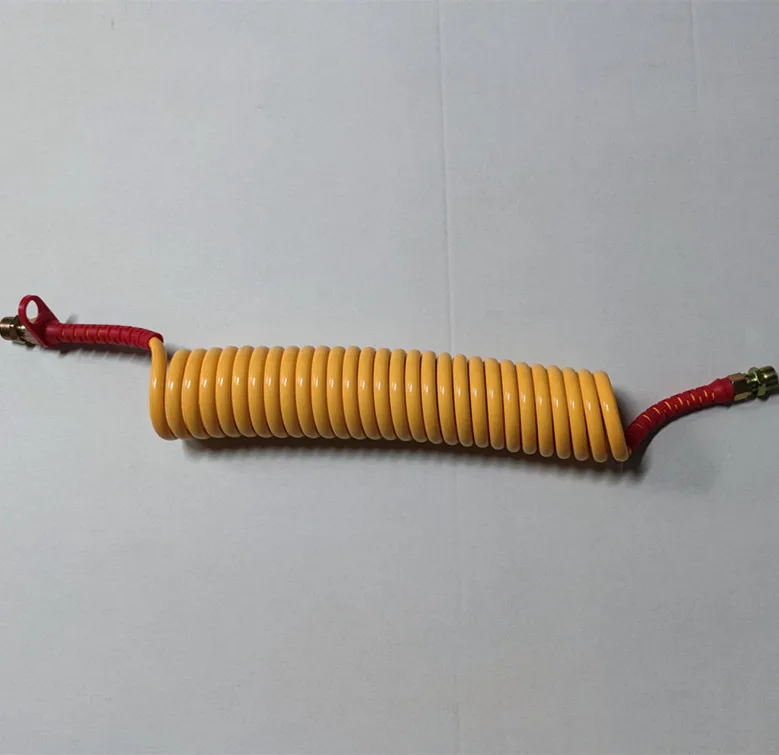

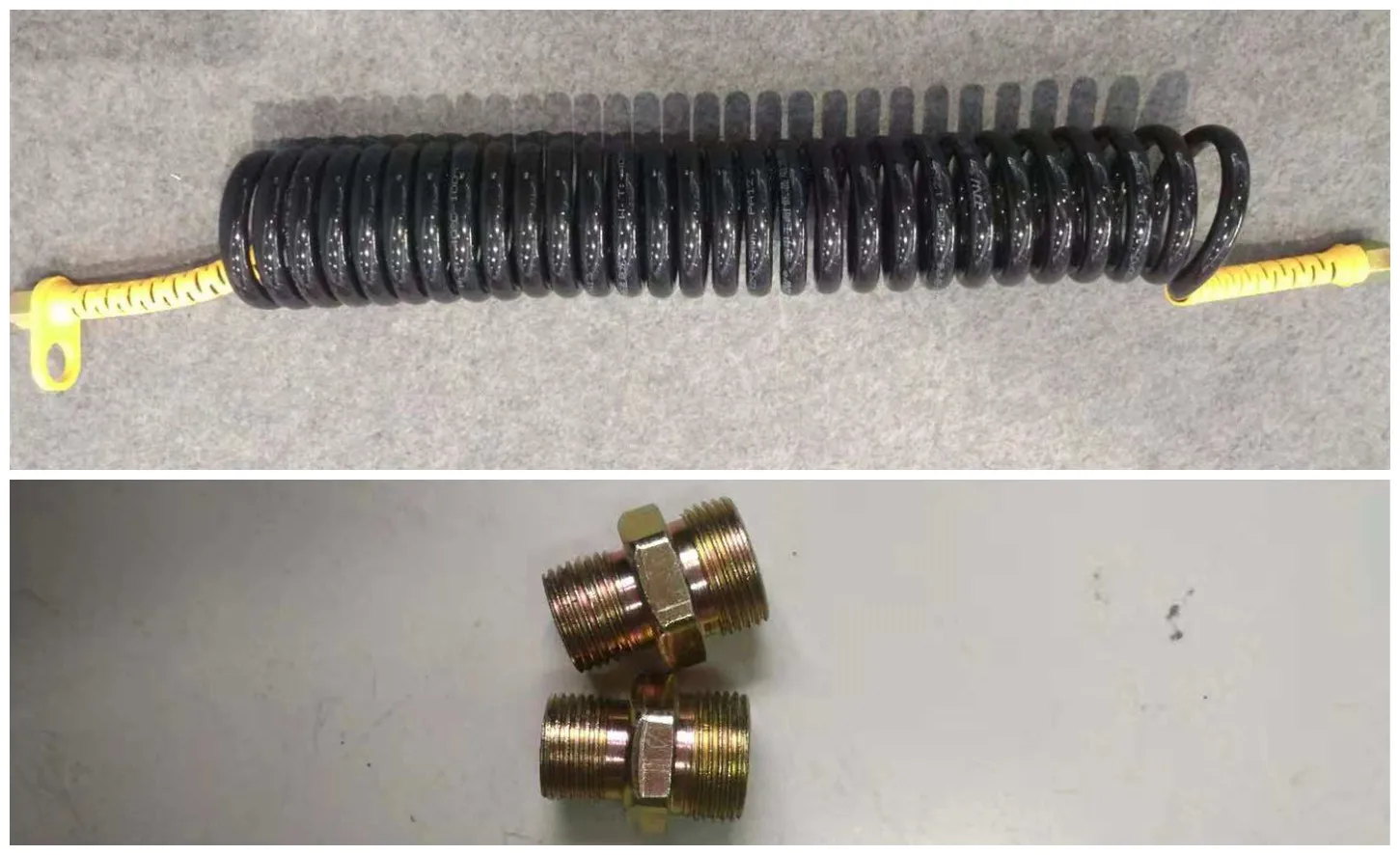

Small diameter plastic/nylon air brake coils/PA hose nylon recoil air tubing

Product Overview

Description

PA air brake hose has features of smooth inner wall,quick air breaking , less pressure lost, wear-proof,anti-aging and good flexible,etc. It is widely used in large scale on pipeline connections on various tractor trucks, semi-trailers, trailers and all kinds of air brake system,etc.   The suitable temperature ranges from--40°C~120°C. According to DIN74324.

Mode No.	Turns No.	Mandrel(mm)	Woking Length(m)	End Fitings
QS-15	15	110	2.50
QS-18	18	85	2.00	Tube-linking nut M18×15
		110	3.00
QS-20	20	85	2.50
		110	3.25
QS-22	22	85	2.50
		110	3.50
QS-24	24	85	3.00
		110	3.75	Female fittting ZG1/2 M22×1.5
QS-26	26	85	3.50
		110	4.00
QS-28	28	110	4.10
QS-30	30	110	4.30
