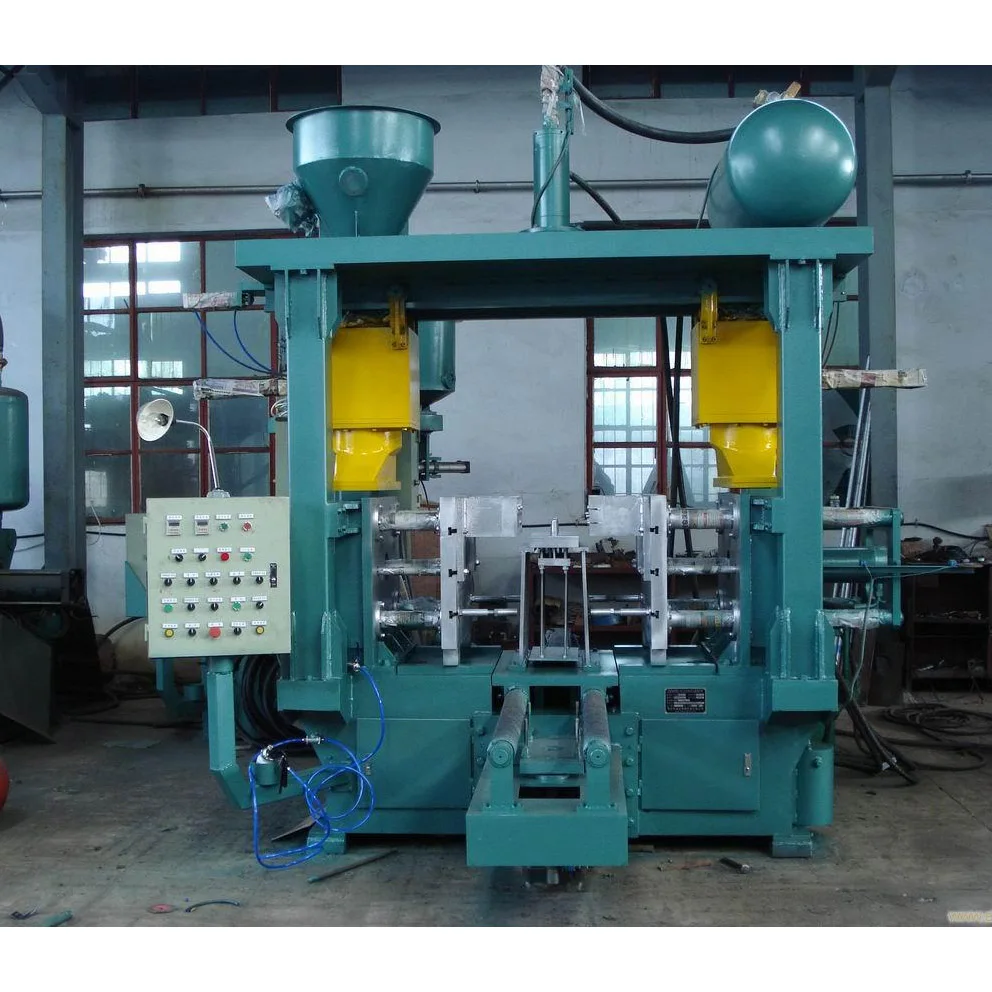

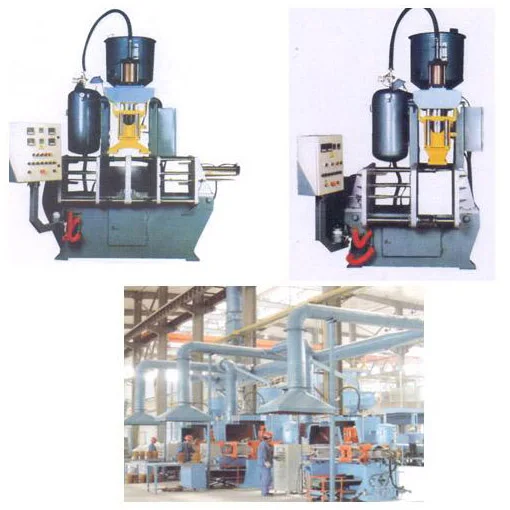

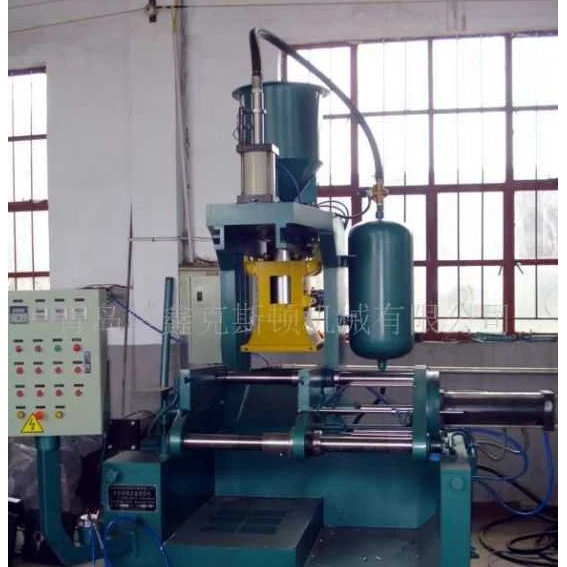

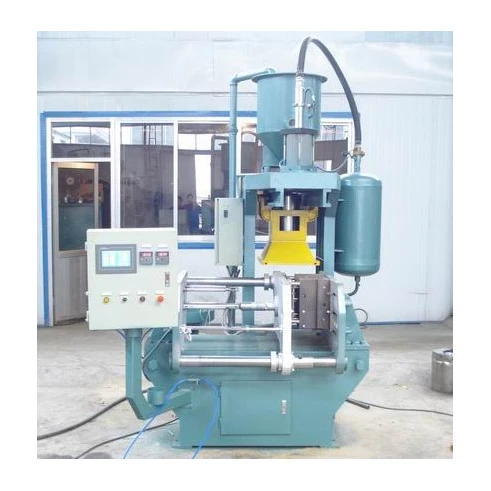

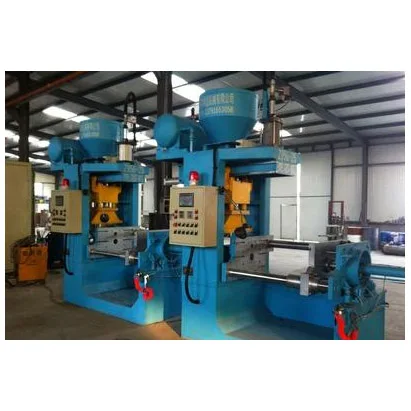

core shooting machine

Product Overview

Description



Technical characteristics:

PLC can be made available for process control;

Adjustable process parameters;

Out of the sand core decices(including the top of core);

The-box templates can be the flutuate move;

Suitable for four-cylinder,six-cylinder,water jacket sand core core system;human operator.



The technical parameters of the Z95 series full automatic shell core machine:

Meet the needs of shell mould, shell core

PLC programmable control

Adjustable about the technical parameters

Adopt the permanent baffle board



Technical parameter



Item          mode	ZH9406	ZH9407	ZH9408
Moulding board maximum dimension	780*400	780*400	780*400
Cover die thick	200	200	180
Movable mould minimum thick	150	150	150
Install core box number	1	1	2
Mould assembly process	400	400	400
Maximum sand core weight	20	25	30
Sand hopper capacity	200	200	200
Heating mode	Elcetric heating/triethylandmine	Elcetric heating/triethylandmine	Elcetric heating/triethylandmine
Electric heating power	35	35	45
System pressure	0.58mpa	058mpa	0.58mpa
Operation mode	Semi-automatic/automatic	Semi-automatic/automatic	Semi-automatic/automatic
