Electric tricycle conversion DC motor kit
- Category: >>>
- Supplier: Guangfeng Xiaoni Trading Im. & Ex. Co. Ltd.
Share on (1865500783):
Product Overview
Description
Electric tricycle conversion DC motor kit
Product Description
| Tel:0086-793-8166931 Mobile:18079364371 | ||||||
| Rated voltage | Power | Speed | torque | Maximum load | Eff | Climbing degree |
| 48V | 500W | 3000rpm | 40N.m | 1000KG | 83% | 20-30 |
| 48V | 650W | 3000rpm | 40N.m | 1000KG | 83% | 20-30 |
| 48V | 800W | 3000rpm | 40N.m | 1000KG | 83% | 20-30 |
| 48V | 1000W | 3000rpm | 45N.m | 1200KG | 83% | 20-30 |
| 60V | 800W | 3000rpm | 40N.m | 1100KG | 83% | 20-30 |
| 60V | 1000W | 3500rpm | 45N.m | 1300KG | 83% | 20-30 |
| 60V | 1200W | 3500rpm | 50N.m | 1400KG | 83% | 20-30 |
| 60V | 1500W | 3500rpm | 60N.m | 1500KG | 83% | 20-30 |
| 72V | 1000W | 3500rpm | 50N.m | 1400KG | 83% | 20-30 |
| 72V | 1200W | 3500rpm | 60N.m | 1500KG | 83% | 20-30 |
| 72V | 1500W | 3500rpm | 70N.m | 1600KG | 83% | 20-30 |

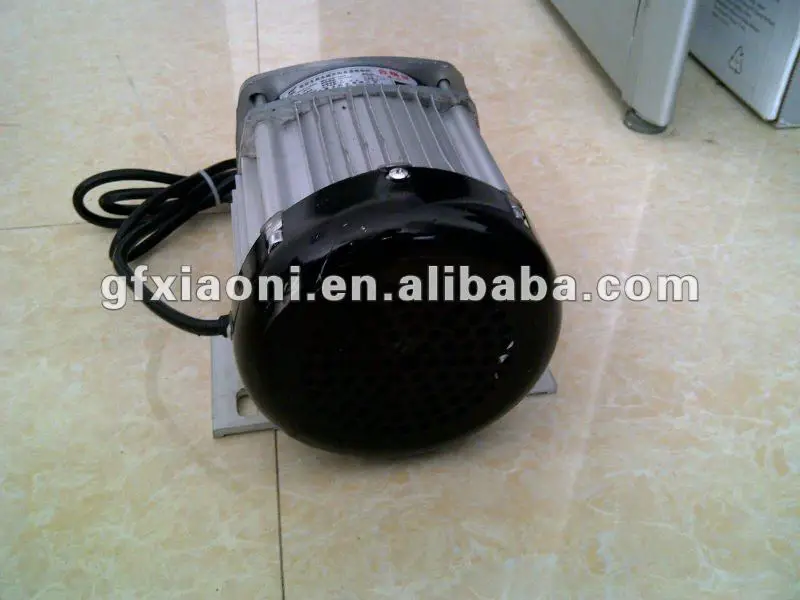

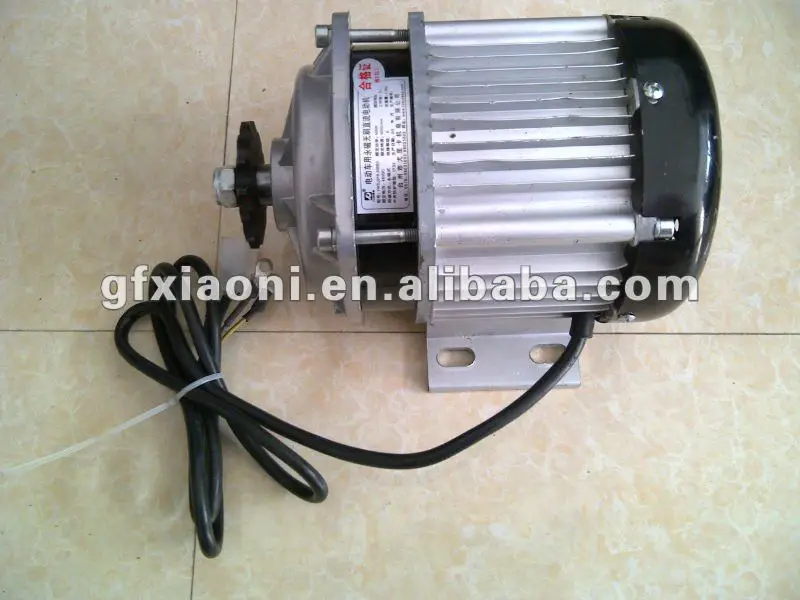

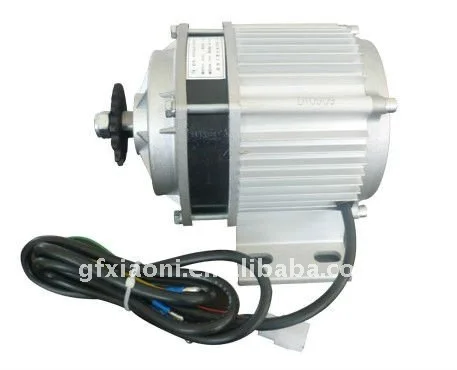

rickshaw motor picture
