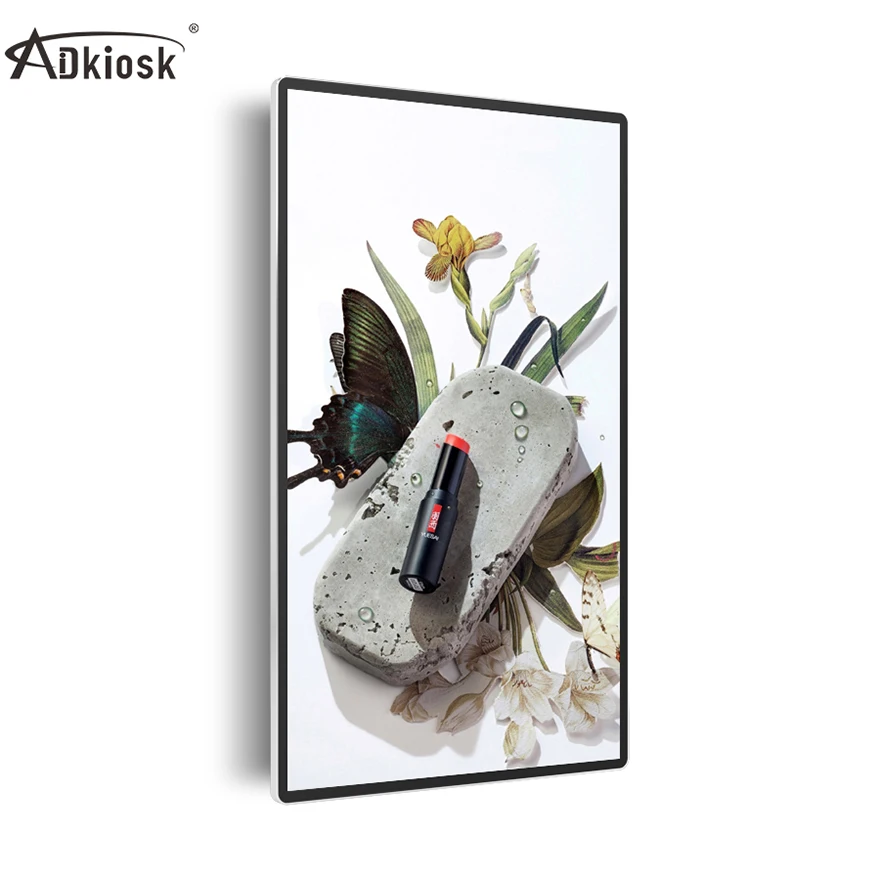

43 inch Model 08 wall mount restaurant lcd menu board android network advertising player
* With our software,customer can manage and control all the players the ads by the software installed in the PC server. *Based on Android OS, network and wifi function are available, 3g/4g module is optional. How to use our Anroid network advertising player: 1.Insert the USB dongle to PC to authorize this PC to install this software.Please close the firewall and some anti-virus software before installing the signage software. 2.Connect the mouse with the player, to roll down the mouse to find register, then you can input the IP address of your server. If all players in one narrow network, you can just use any PCs to be server If players in different place, you need use the server with public IP, and all players can be connected with the server via public IP address 3.Then you control the players by the software on PC
Remark:
All our products can be with the following four versions: ***USB version ad player: update advertisement by USB (Single Version) ***Network version advertising player: update advertisement through internet, support both Android OS and UCOS OS (Network Version) ***PC version kiosk(touch screen optional): its function is the same as computer, support OS of Windows7,windows8,windows XP,Linux,Apple etc. (Built-in PC Version，touch screen optional) ***Andorid OS4.2.2 kiosk(touch screen optional): kiosks using Android OS system.

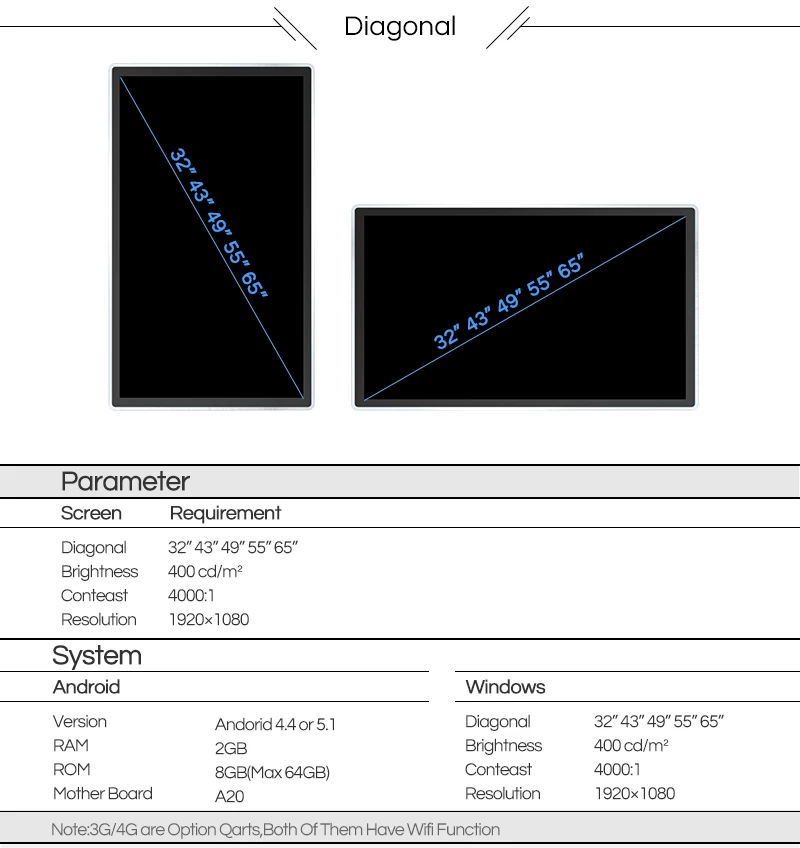

Specification
Product Name
Android Network advertising player
Size
43inch/49inch/55inch optional
CPU
A20
Mainboard
A20
RAM
1GB
ROM
8GB
OS
Android 4.2.2
Network
Wifi
Support
Network version advertising player: update advertisement through internet, OS: Android4.2.2(M158)
Perfect support for video / picture / caption / logo / Date Time Day / weather, etc. regional free split-screen combinations; support background images
Play Mode
Receiving media content over the network, stored in the local loop after, commercials, broadcast regularly, gaskets playback; By U-import; U disk playback.
Multimedia Support
Supports MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, flv and other mainstream video formats; supports MP3 and other audio formats; Support JPG, JPEG, BMP, PNG, GIF and other image formats
X 2,CLASS-D stereo amplifier output can directly drive 2 x 10W / 8Ω speakers, 2 core 2.0mm jack
Ethernet Interface
X 1,10 / 100M Ethernet
WiFi interface
X 1，WIFI(150Mbps)
3G module interface
PCIE slot (supporting a phone deck) x 1 ; USB interface x 1
USB2.0 interface
USB OTG x 1;USB HOST x 1
Backlight interface
X 1, 6 core 2.0mm jack
RTC Real-Time Clock
Time synchronization
Watchdog reset
Using an internal watchdog, abnormal automatic recovery
Other solutions:
If you need more higher configuration,RK3288 QUAD core /A83T Eight core/PC version is optional.
Solution A. Single version
Suitable for few qty of advertising player,need manually update the ads by inserting USB/SD card. simple to use and cheap
Solution B. Anroid 5.1 RK3288
Suitbable for many players to control to play the ads. Can install the apps,scan the webpage,etc. and add touch function.
Solution C. PC version
Acts like a PC.Can be installed the software and add touch function
