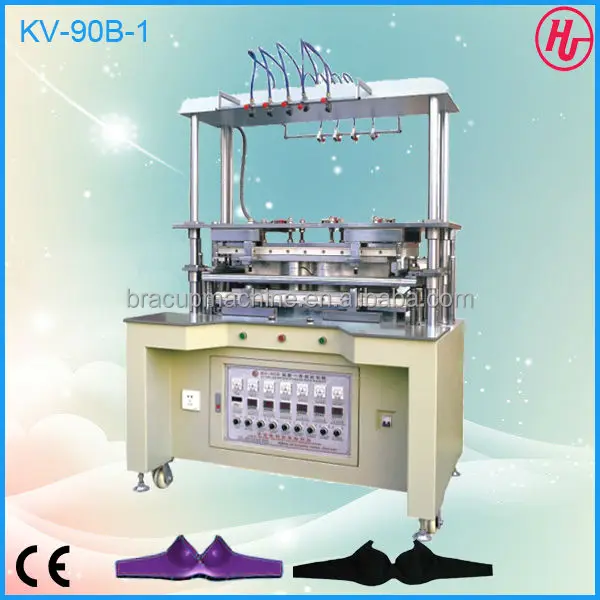

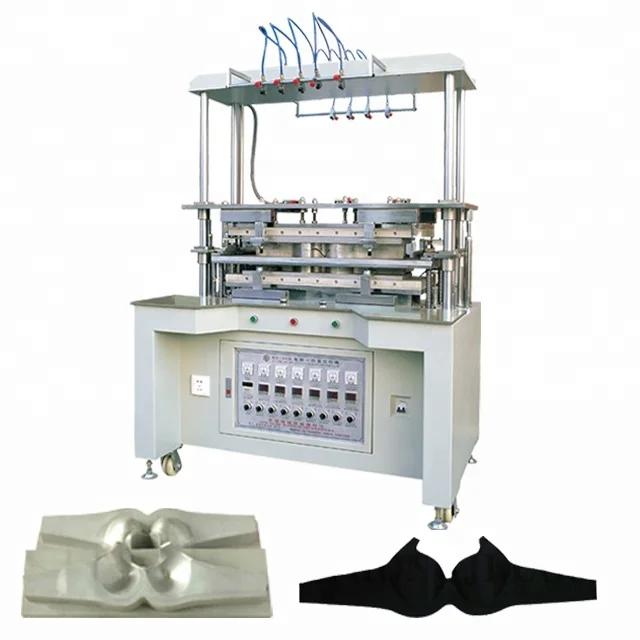

KV 90B Hongji Brand New Seamless Bra Molding Machine

Product Overview

Description



Usage of machine:

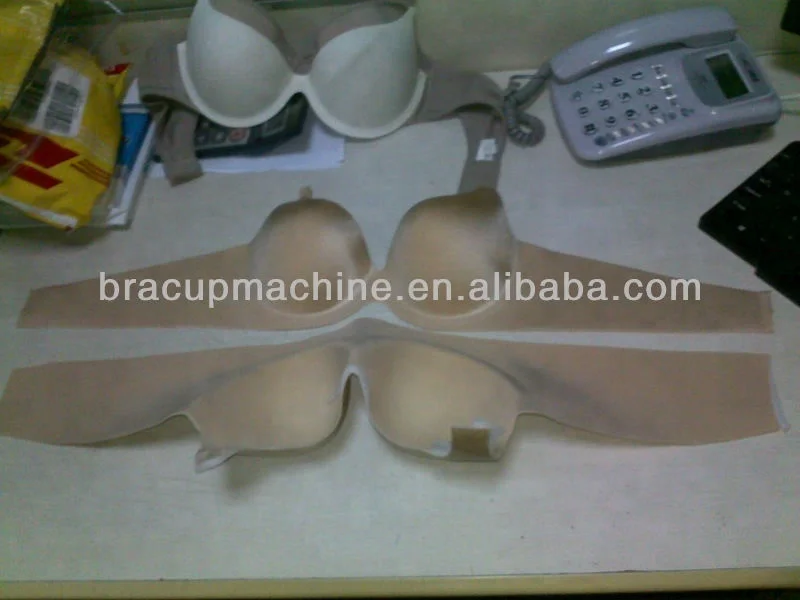

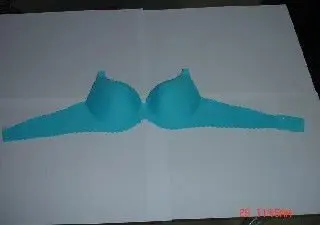

It is used to mold one piece foam bra, it can load one set of mold.



Equipped with cylinder and pressing plates to prevent the raw material from wrinkling, deviating and pulling during molding and with laser marking or say infrared rays to guide the material loading.

Capacity: Per cycle about 1 to 1.5 minutes/one piece of garment bra.


Features:

(1) This kind of machine adopts the fuselage design with high strength, which is delicate and exquisite in structure and lifts steadily.



(2) Using the spring-actuated pressing frame and no less than 9 infrared searching lights for positioning, it can adjust freely and bears the features such as high molding rate and good positioning.



(3) To direct at the specific temperature control system in the development of bra cups production, we utilize silicon controlled phase shifting triggering current to control heating.



So, it can make the temperature more even and steady with remarkable energy-saving efficiency and it will prolong the heating tube's service life.



Technical parameter:

Power supply / power	220V/9KW
Heating tube	Φ 12×280mm×500W-220V
Moulding table size	900mm×280mm
Machine size	1300mm×815mm×1800mm
Applicable materials	materials for bra cups
Moulds	one piece bra mould
Weight	1000KG

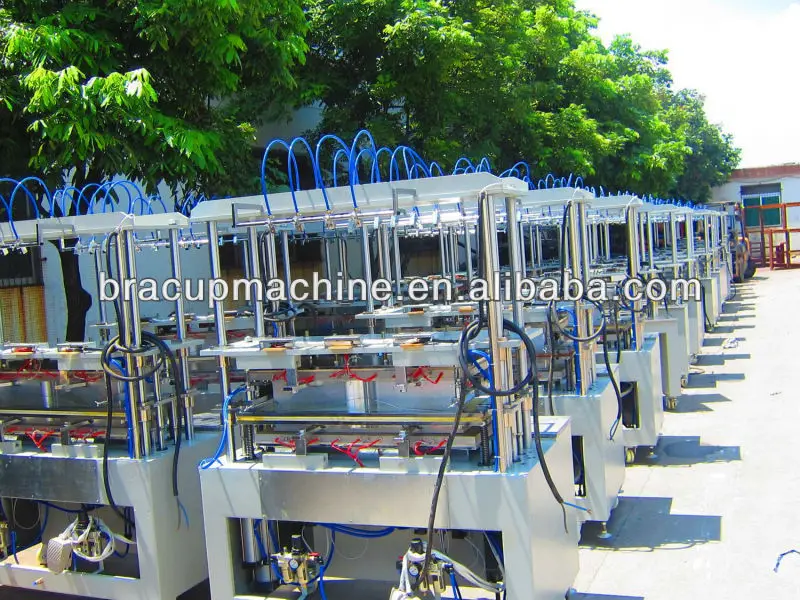

We are the 1st professional manufacturer & supplier of underwear machinery in Shantou, China Mainland.  Besides, we also have own bra cup factories located in Xiamen City and Dong Guan City. We can supply 400~500 sets of machinery monthly, and 1.5~2.0 million pairs of bra cups/ bra pads in each factory.







1.  MOQ: 1 set



2.  OEM & ODM can be acceptable.



3.  We own all the original R & D Technology and Proficient Experience in this field over 13 years.



4.  All the Moulds can be customized according to your supplied samples.

     CNC Made or Manual Made to be Optical.



5.  The Molding Table Size can be bigger customized if required.



6.  The Molding time and temperature can be preset and adjusted freely through the timers and temperature controllers when we mold / press different materials.



7.  All the digital meters are easy to operate.



8.  All the spare parts can be matched to supply.



9.  All the electric fittings and pneumatic parts used in our machinery are with high-quality.



10. All the raw materials (machine frame, machine fittings and etc) are processed by our own factory.



11. We guarantee there is absolutely without jerry-built.



12. Good & Timely After-Sale Services.

If above details are still not clear for you, kindly please contact me without delay!



Looking forward to cooperating with you for long term!
