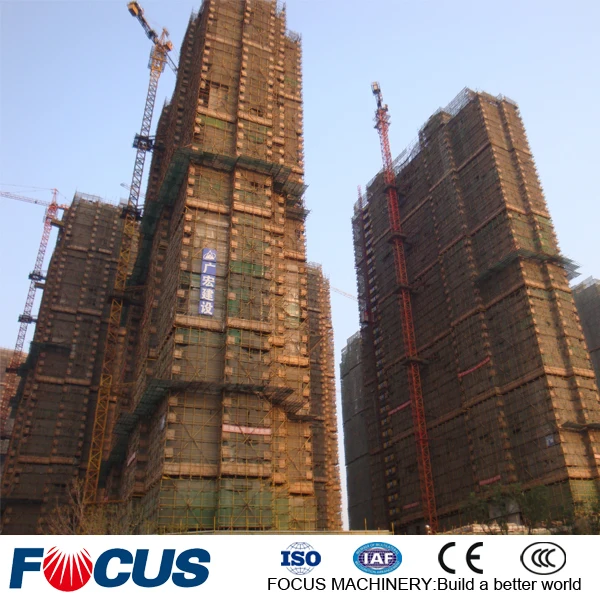

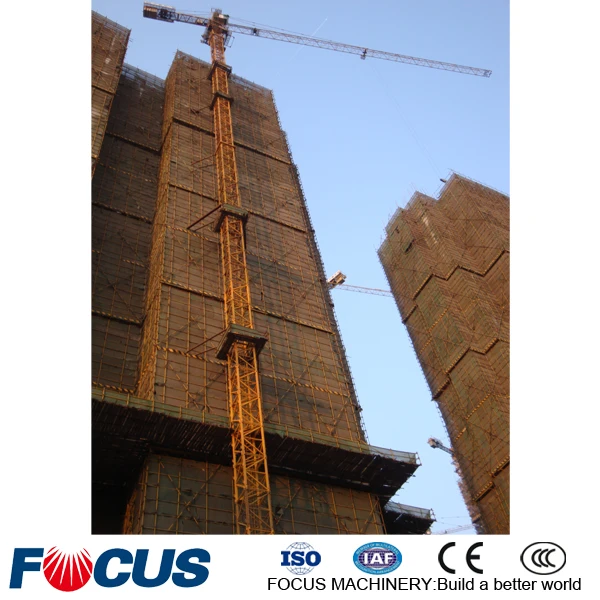

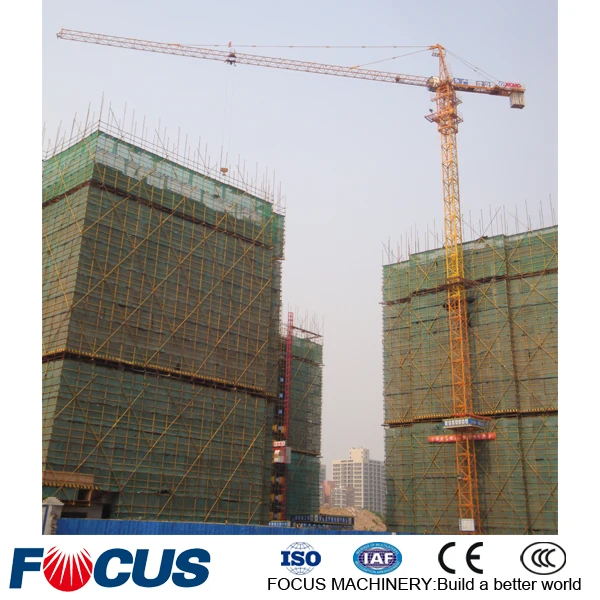

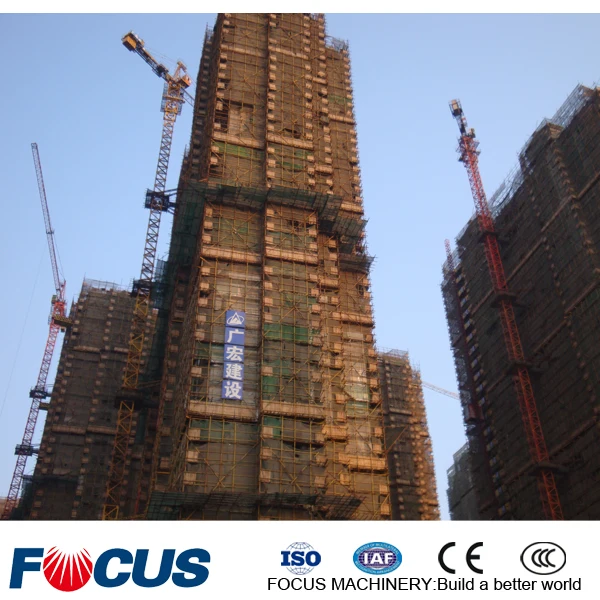

grue a tour qtz 40 (4808) with external climbing
grue a tour qtz 40 (4808) with external climbing
grue a tour qtz 40 (4808) with external climbing
grue a tour qtz 40 (4808) with external climbing
grue a tour qtz 40 (4808) with external climbing
grue a tour qtz 40 (4808) with external climbing
grue a tour qtz 40 (4808) with external climbing

grue a tour qtz 40 (4808) with external climbing

Share on (1865749581):


Price:$45,000.00-55,000.00

Quantity:


Product Overview

Description


Characteristics of grue a tour qtz 40 :


1.Tower Crane steel directly purchased from BAOGANG and WUGANG, high quality raw material;


2.SCHNEIDER electrical components ensures reliable and safe mechanism of FOCUS tower crane;


3.Cast steel brake wheel, hoisting mechanism is tested in multi-ways;


4.Stable and powering slewing mechanism adopts winding motor and hydraulic transmission;


5.Robot automatic welding system, automatic impeller blasting and spraying assembly line, ensures FOCUS tower crane top technology;


Advantages of FOCUS grue a tour qtz 40 :


1. AC contactor,thermprl protector adopt Schneider which is high quality product,stable and reliable in performance


2.The mechanisms adopt the product the products of professional manufacturer,stable and reliable in operation.


3.The first domestic robot welding production line has achieved the main welding quality and reached the international advanced level.


4.Steel structure parts all achieve impeller blasting,improve the surface hardness of steel,enhance the coating adhension,extend equipment useful life.

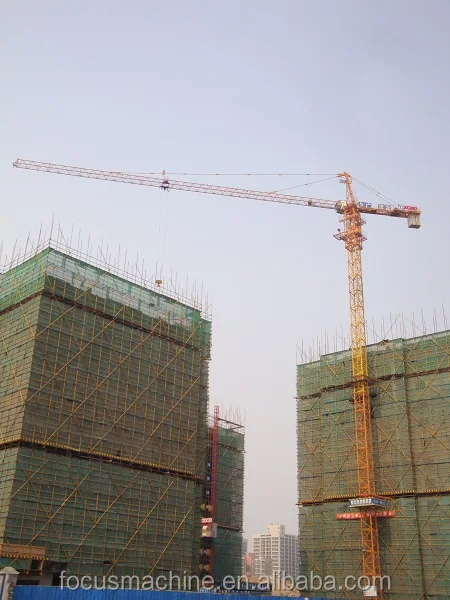

 tower crane-1

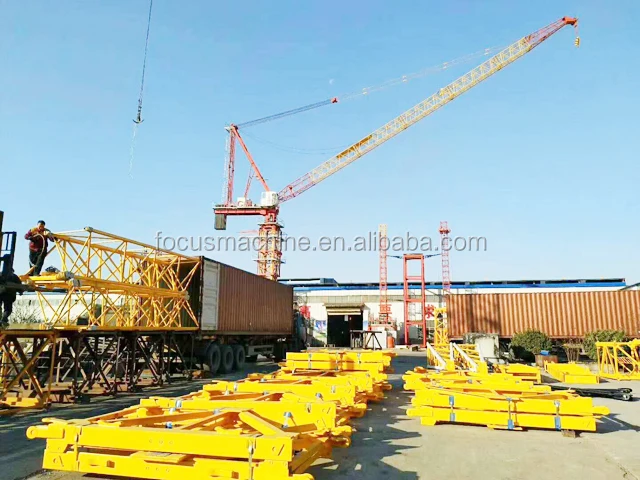

_20171211151903_20171211151906

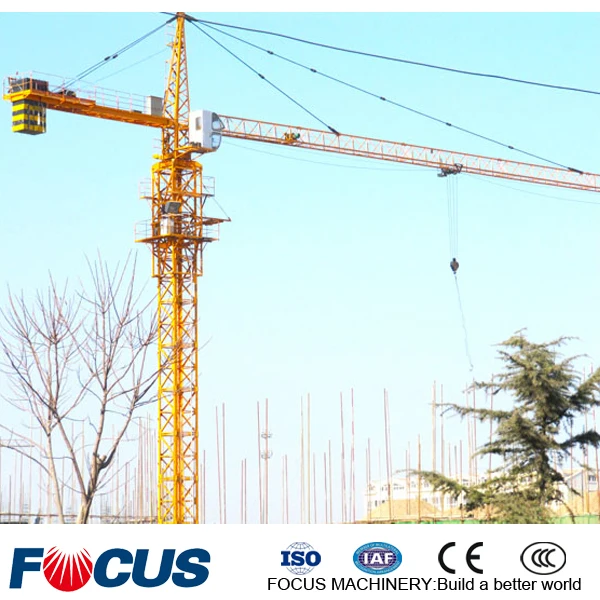

QTZ40 small Tower Crane













































































































































































































Tower crane technical parameters table



Name of parameter



Unit



Value



Rated load moment



kN.m



400



Rated Max,load



t



4.0



Working radius



m



3~47



Rated load at Max.radius



t



0.8



Height



Freestanding



m



28




Attaching



Fall two



m



100




Fall four



m



55




Hoisting


Mechanism



Hoisting speed



Fall



/



α=2



α=4




Speed


m/min



m/min



10.8



35



70



5.4



17.5



35




Load



t



2



2



0.8



4



4



1.6




Motor type



/



YZTD200L2-4/8/24




Power



kW



15/15/4




Speed


r/min



r/min



1440/720/220




Slewing


mechanism



Slewing speed



r/min



0.62




Motor type



/



YZR132M2-6




Power



kW



3.7




Speed


r/min



r/min



908




Derricking


Mechanism



Derricking speed



m/min



38.6/25.2




Motor type



/



YD100L2-6/4




Power



kW



1.5/2.2




Speed


r/min



r/min



960/1440




Jacking


Mechanism



Jacking speed



m/min



0.4




Rated working pressure of Hydraulic



MPa



20




Motor type



/



Y100L2-4-B5




Power



kW



3




Speed



r/min



1430




Slewing



m



10.8



Counter weight



t



7.35






Weight of tower crane(not including counter weight /ballasting )



t



19.8



Total power



kW



24.9




































































































Radius (m)



3~11.3



13



15



17



19



20



21



22



Hoisting load(t)



4.00



3.45



2.96



2.58



2.28



2.15



2.04



1.94



radius (m)



23



24



25



26



27



28



29



30



Hoisting load(t)



1.84



1.75



1.67



1.6



1.53



1.47



1.41



1.35



Radius (m)



31



32



33



34



35



36



37



38



Hoisting load(t)



1.3



1.25



1.21



1.16



1.12



1.09



1.05



1.02



Radius (m)



39



40



41



42



43



44



45



47



Hoisting load(t)



0.98



0.95



0.92



0.9



0.87



0.84



0.82



0.80
