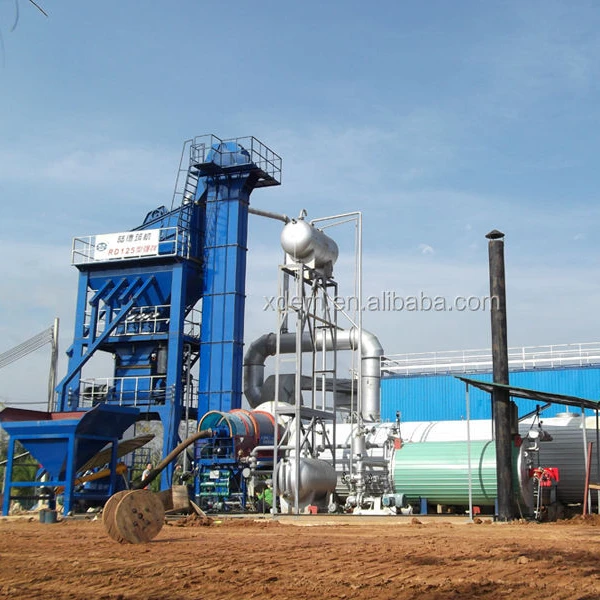

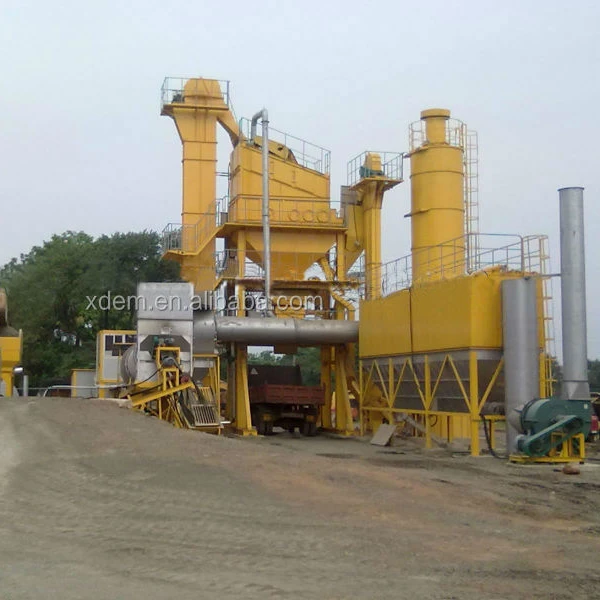

Стационарная асфальтосмесительная установка XDEM LBQ1500 120 тонн, асфальтосмеситель
- Category: >>>
- Supplier: Nanyang Xinda Electro-Mechanical Co. Ltd.
Share on (1866132992):
Product Overview
Description
XDEM LBQ1500 125TPH Stationary Asphalt Mixing Plant, Asphalt Plant Mixer
1.Coal burning system, and oil burner system as optionation
The quick and high efficient coal crusher can integrate with timing coal powder supply, crushing coal pieces and high pressure conveying coal powder; it can provide the coal power that its size is under 50 micron for the burner. The burner takes oil supply device and wind supply device along with itself, oil for ignition, wind for combustion-supporting, which can provide sufficient heat energy for the mixing plant.
2. Control system
Use heat overload protect breaker, safe and reliable; every part control is integrated on one operation platform, convenient and shortcut; the equipment has inter-lock operation and single-machine operation two modes, convenient for equipment debugging and work according to required technics.
3.Mixing mainframe
Integrated with drying, heating and mixing, the stone material formed in-adequacy material waterfall in the drying section and go ahead promptly for preheating; and formed sufficient material waterfall and heat quickly in heating section; in mixing section spraying into asphalt, it makes the stone material and asphalt mixed equably.
4.Material supply system
It can make four different grain sizes stone material mixed well according to the construction required proportion, through middle filter that can separate the oversize grain out, the qualified stone material will be conveyed into drying drum by tilted belt conveyer.
| model | platn capacity(t/h) | mixer capacity(kg) | aggregates | fillers | bitumen | installed power(kw) | fuel consumption(kg/t) |
| LBQ1500 | 125 | 1500 | ±0.5% | ± 0.5% | ±0.25% | 352.69 | 5.5-7 |
About our company
Our company is one of the leading companies in asphalt and concrete equipment technology, support and service in China.
Our complete product lines include:
Stationary asphalt mixing plant / mobile asphalt mixing plant / continuous asphalt mixing plant/ concrete mixing plant / mobile concrete mixing plant / concrete mixer / coal burner / other accessories.
Our factory is located in the center of Henan Province, covering an area of more than 106,000 square meters of the office space.
Founded in 2002, we have become one of the most reliable partners of construction projects at home thorough ongoing technical investment. Our asphalt mixing plants and concrete mixing plants have been used in highways, high-grade highways, urban roads and airport construction and got a high reputation for their excellent performance.
Today we hold 18 patents, which owns to the concerted efforts of our employees including R&D team, marketing team and production & procurement team.
Our asphalt plants and concrete plants have got CE, GOST and ISO9001 certifications.
Along with the high-quality products and genuine spare parts, we focus on providing better services. Now, we have a professional service group for our global customers. We dispatch our service personnel all over the world to help set-up asphalt or concrete plants and train operators.
We will continue to strive for new technology and better solutions, while serving our customers with first-class products and excellent services.

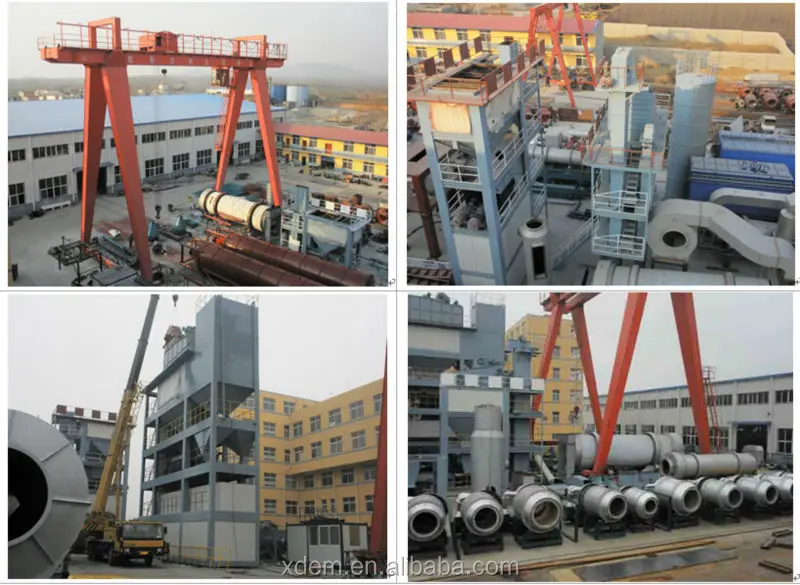

Factory
