Neofibo FB5600 Ftth 1310/1550 Singlemode Fiber Optic Optical OTDR Optical Time Domain Reflectometer
- Category: >>>
- Supplier: Shenzhen Neofibo Technology Limited
Share on (1867140302):
Product Overview
Description
Ftth 1310/1550 Singlemode Fiber Optic Optical OTDR Optical Time Domain Reflectometer
Neofibo : Your Reliable Supplier
① Can provide you with reliable polishing solution；
② 13-year Manufacturing Experience for OEM/ODM polishing program；
③ Independent research and development patent - Neoholder®；
④ Products have CE, ROHS certification；
⑤ Support online video synchronization inspection machine；
⑥ Equipment test report and operation guide can be provided；
⑦ SGS certified factory, delivery speed and secure,50 units in stock；
⑧ 30 days quality problems can be returned；
⑨ Free polishing film sample.
Products Description
Key Feature:
1,The blind area of ultra-short event less than 0.8m, the test of optical fiber jumper is easy and free;
2,Integrated 5.7-inch color TFT LCD display, button/touch dual operation.
3,Built-in stable light source function 1310/1550nm;
4,Built-in optical power meter test function;
5.Built-in visual red light fault location (VFL)
6.Has the unique test result self-diagnosis function;
7,With an independent and convenient one-button automatic operation mode, real-time test function button;
8,With multi-wavelength synchronization testing function;
9,Multi-waveform viewing function;
10,Link optical nondestructive testing (on-line testing module);
11,With communication light automatic monitoring function;
12,With the test file wireless transmission function;
13,Battery low voltage alarm function;
14,WinCE Windows operating system, Chinese operation interface; Other languages are optional
2,Integrated 5.7-inch color TFT LCD display, button/touch dual operation.
3,Built-in stable light source function 1310/1550nm;
4,Built-in optical power meter test function;
5.Built-in visual red light fault location (VFL)
6.Has the unique test result self-diagnosis function;
7,With an independent and convenient one-button automatic operation mode, real-time test function button;
8,With multi-wavelength synchronization testing function;
9,Multi-waveform viewing function;
10,Link optical nondestructive testing (on-line testing module);
11,With communication light automatic monitoring function;
12,With the test file wireless transmission function;
13,Battery low voltage alarm function;
14,WinCE Windows operating system, Chinese operation interface; Other languages are optional
Specification
Specification:
FB5600 optical time domain reflector is a high performance multifunctional test instrument designed for FTTx network.The product has a range resolution of up to 0.05m and a test blind area of up to 0.8m.
This product integrates OTDR/ light source, optical power meter, VFL function in one, using touch and button dual operation mode, the product has a rich external interface, not only through the Ethernet interface to achieve remote control, but also through two different USB interface, to achieve external USB disk, printer and PC data communication.
This product integrates OTDR/ light source, optical power meter, VFL function in one, using touch and button dual operation mode, the product has a rich external interface, not only through the Ethernet interface to achieve remote control, but also through two different USB interface, to achieve external USB disk, printer and PC data communication.
Technical Parameter:
Part Number | FB5600 |
Dynamic Range | 32/30dB |
Ranging Accuracy | ±(1 m+Sample Interval+0.005%×Distance)(Index Placement Error is not Included) |
Highest Range Resolution | 0.05m |
Test Range | 0.4,0.8,1.6,3.2,6.4,16,32,64,128,256,512km |
The test pulse width | 5,10,30,100,275,500,1000,5000,10000,20000ns |
Loss threshold | 0.01dB |
Number of Samples | 128k |
Degree of Linearity | 0.05dB/dB |
Loss Resolution | 0.001dB |
Waveform Storage Capacity | ≥1000 |

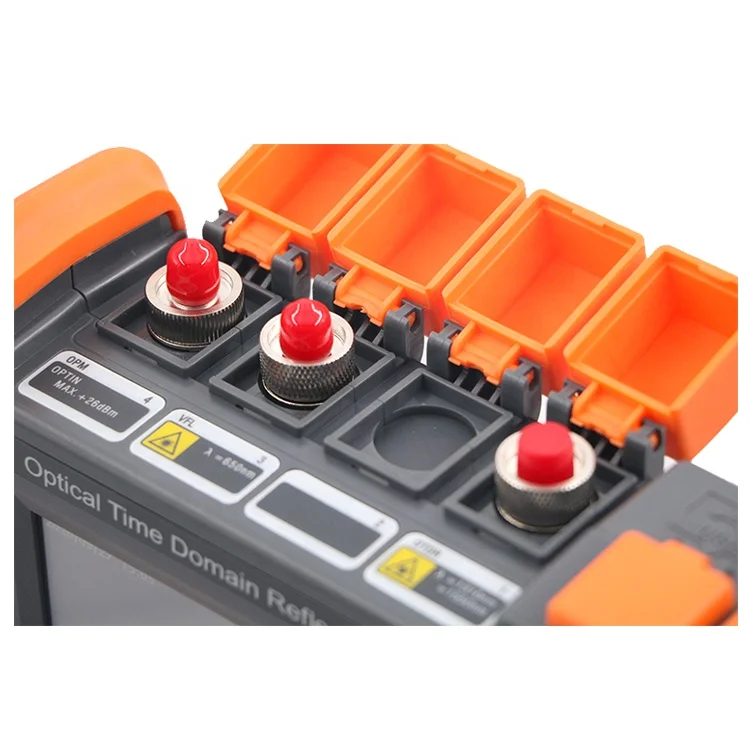

External Interface | USB,Min-USB,RJ-45 |
Output Optical Interface | FC/SC/ST(Changeable) |
VFL | 650nm±10nm,≥5mW(Typical) |
Power Meter | Wavelength Range:1200nm ~ 1650nm,Power Range:-50 ~ +26dBm |
Stable Light Source Function | 1310/1550nm:-5dBm, CW(270Hz,1K270Hz,2K270Hz) |
Display Screen | 5.7-inch Color TFT LCD Touch Screen |
Battery | 7.4v/6300mAh Lithium Battery Pack, Support Maximum 12 Consecutive Hours of Work |
Power Supply | Output:19V. 1.31A |
Acclimatization | Working temperature:-5 ~ +50℃, Storage Temperature:-20 ~ +70℃, Relative humidity: 0 ~ 95% no condensation |
Size | 215mm*150mm*70mm |
Weight(Battery included) | <1.5kg |
Language | Chinese, Other Languages (Optional) |
Accessory | CD/Power Cord/Operation Manual/Calibration Report |
