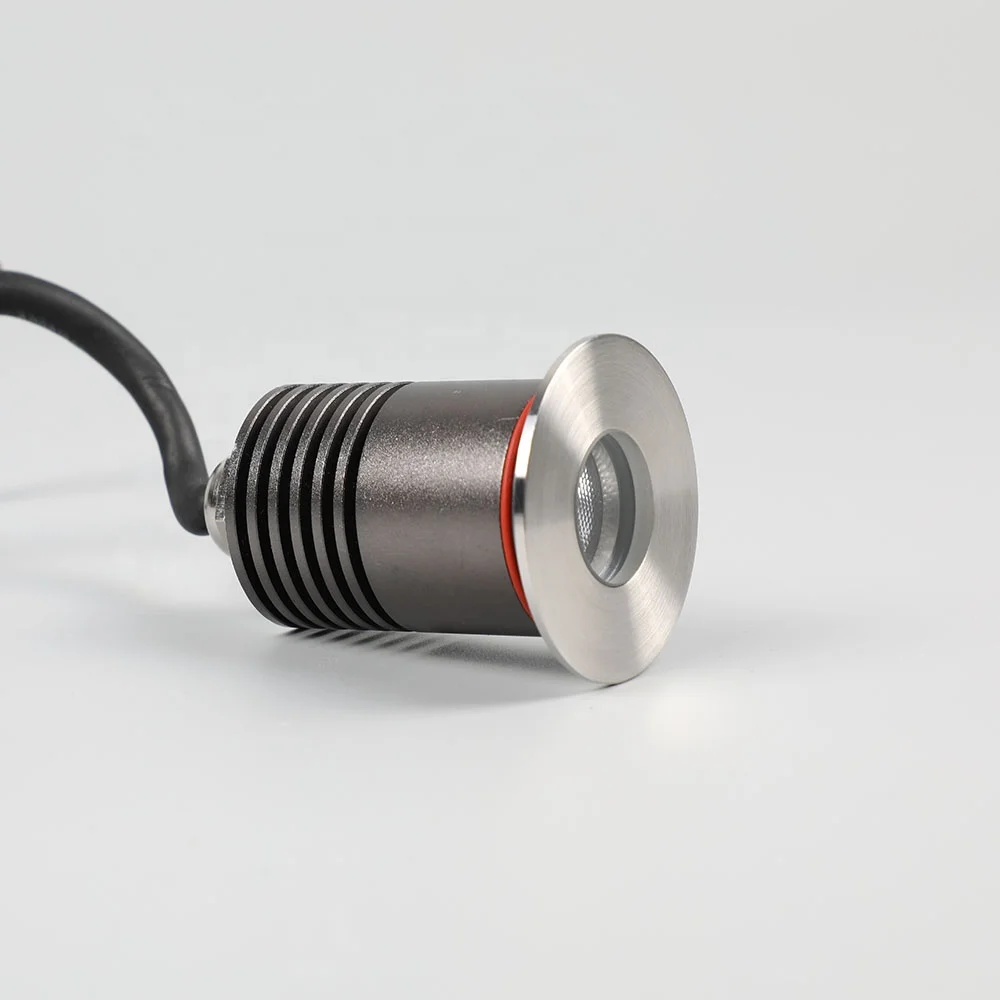

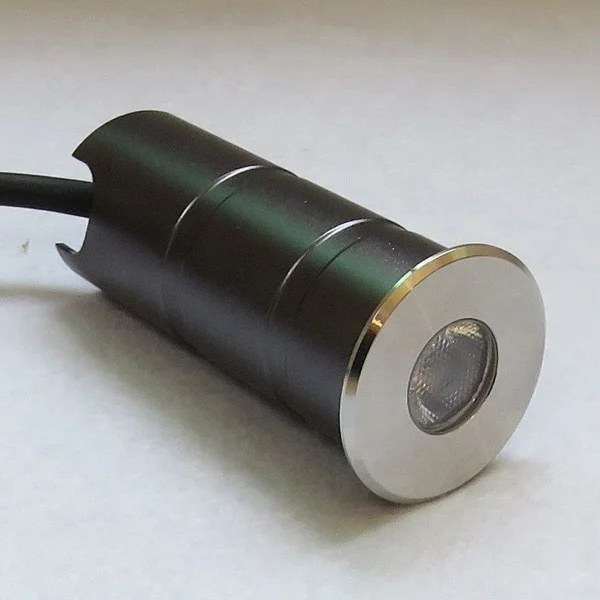

3w IP67 floor outdoor deck lighting portable driveway stainless steel 316 buried led ground light path led underground lights
- Category: >>>
- Supplier: Puyuan Electronic Illumination Co. Ltd.
Share on (1867328414):
Product Overview
Description
Led Deck Light Series
Detailed pictures
Please "CLICK" the one of pictures to The Other of our LED series.
Product Features
INGROUND LIGHTS SERIES

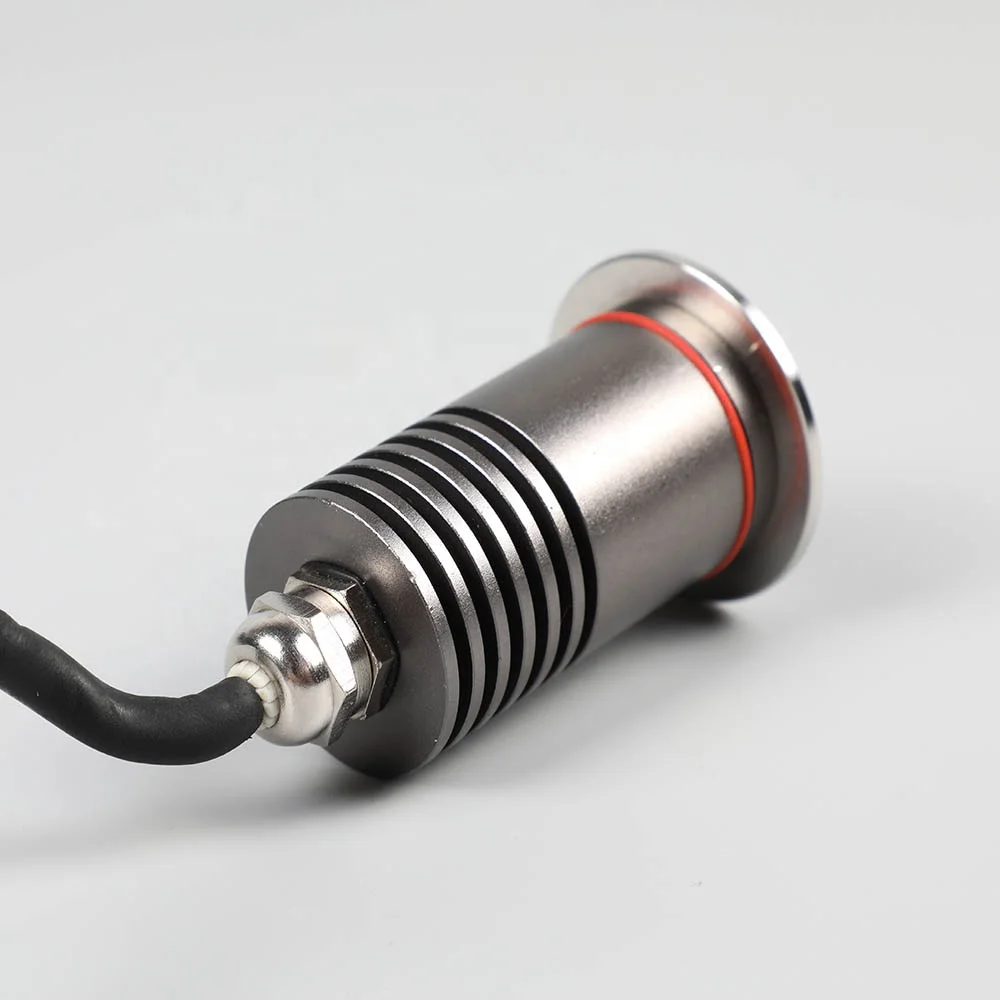

(a), Anodizing 6063 Aluminum housing made by our own CNC machine(not by mold,not die-casting Aluminium).
It is better for cooling and more anticorrosive than the die-casting Aluminum housing.
It's solid,and Its density is much higher than the die-casting housing which has lots of small holes inside.
(b), Special designed 20~25 um thickness of protective passivated film for housing which is more anti-corrosive. (The general die-casting Aluminium housing is only with about 5 μm epoxy powder paint finish film which is easier to be corrosive,and the water can seep into the small holes inside.)
(c), Stainless steel 316L (not 304) front cover.Round or Square cover optional.
(d), Aluminium mounting sleeve made by CNC machine.
(e), Excellent Tempered glass with high loading capacity.
(f), H05RN-F waterproof, anti-corrosion and anti-anging cable and PG7 PA IP67 connector.
(g), High quality with 3 years warranty or 5 years warranty as options.
(h), Easy and convenient for installation.
(i), Waterproof IP67.
（j）,anti-glare design,such as honeycomb, asymmetrical optics as options.
It is better for cooling and more anticorrosive than the die-casting Aluminum housing.
It's solid,and Its density is much higher than the die-casting housing which has lots of small holes inside.
(b), Special designed 20~25 um thickness of protective passivated film for housing which is more anti-corrosive. (The general die-casting Aluminium housing is only with about 5 μm epoxy powder paint finish film which is easier to be corrosive,and the water can seep into the small holes inside.)
(c), Stainless steel 316L (not 304) front cover.Round or Square cover optional.
(d), Aluminium mounting sleeve made by CNC machine.
(e), Excellent Tempered glass with high loading capacity.
(f), H05RN-F waterproof, anti-corrosion and anti-anging cable and PG7 PA IP67 connector.
(g), High quality with 3 years warranty or 5 years warranty as options.
(h), Easy and convenient for installation.
(i), Waterproof IP67.
（j）,anti-glare design,such as honeycomb, asymmetrical optics as options.
Data sheet
General Data | ||||||||
Item No. | UL-1003-0300-A | |||||||
Power | 3 Watts | |||||||
LED type | 1 PC 3W CREE XPE LED | |||||||
Luminous flux | 110-130 lm | |||||||
CCT | 2700K, 3000K, 4000K, 6000K, R/G/Y/B | |||||||
CRI | 80+ | |||||||
Beam angle | Symmetric: 6°, 11°, 17°, 23°, 28°, 43°, 58° Asymmetric: 15°x25°, 15°x30°, 15°x45°, 15°x60° | |||||||

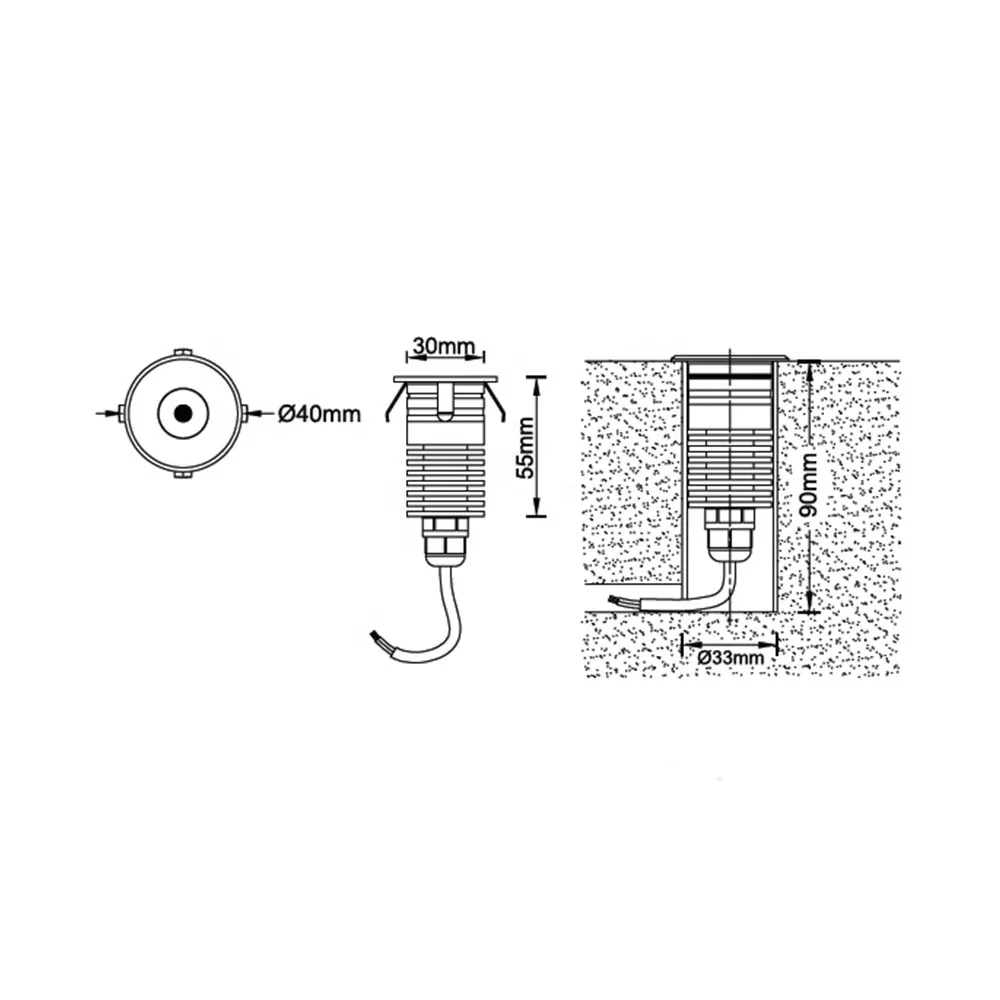

Dimension | Ø40x55 (mm) Diameter x length | |||||||
Cut out | 33 mm | |||||||
Net weight | 0.23 kgs | |||||||
Electrical Data | ||||||||
Input voltage | DC12V-24V | |||||||
Construction Data | ||||||||
IP rating | IP67 Waterproof | |||||||
IK rating | IK09 | |||||||
Related products

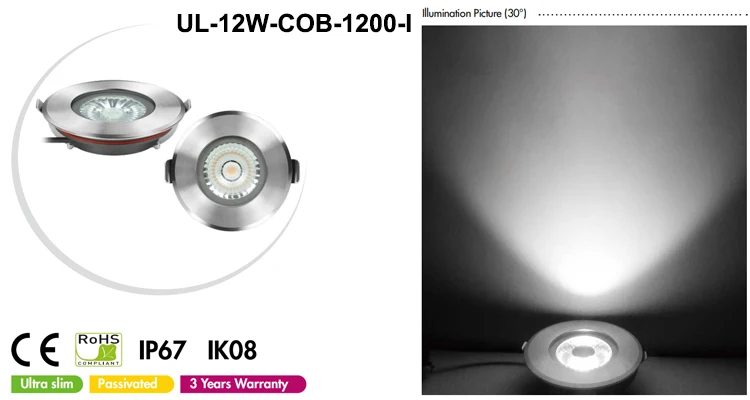

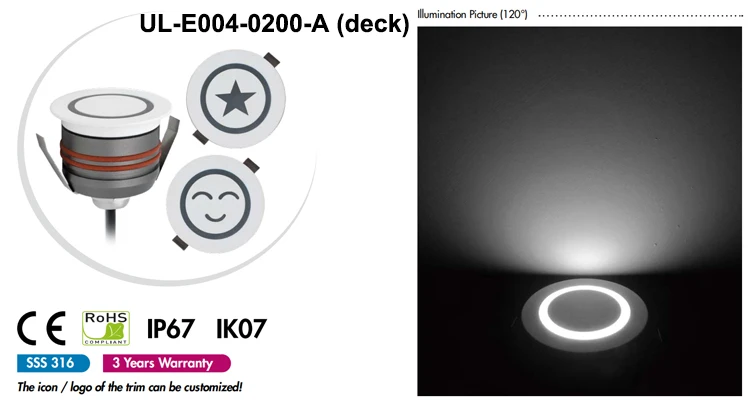

Please " Click " the below picture to check our main products series OR Contect my store for the PDF file E-catalogue to check our whole range products . (Pls remove "()")
Company introduction
VR
Puyuan Electronic Illumination Co., Ltd. with registed brand PLAYLITE is a professional LED lighting manufacturer in China,established in 2007 years.
It is specialized in producing Exterior LED lights, such as LED inground light, LED deck lights, Spike spot lights, step lights,underwater pool lights,LED flood lights,wall washer etc.. We not only pay much attention on quality but also on the details such as design ,finishing optics etc..
We adhere to quality standards of operation and is compliant with ISO9001:2008 for quality management operations system and ISO14001:2004 for environmental system certification.Our products have varying quality certifications such as CE,RoHS,TUV and CUL assure reliability,particularly those which are exported to Europe, North America,South America,Australia,Iceland,Malaysia,Indonesia and Philippines,UAE,Saudi Arabia etc.
It is specialized in producing Exterior LED lights, such as LED inground light, LED deck lights, Spike spot lights, step lights,underwater pool lights,LED flood lights,wall washer etc.. We not only pay much attention on quality but also on the details such as design ,finishing optics etc..
We adhere to quality standards of operation and is compliant with ISO9001:2008 for quality management operations system and ISO14001:2004 for environmental system certification.Our products have varying quality certifications such as CE,RoHS,TUV and CUL assure reliability,particularly those which are exported to Europe, North America,South America,Australia,Iceland,Malaysia,Indonesia and Philippines,UAE,Saudi Arabia etc.
We usually attended Guangzhou Fair, HongKong International Lighting Fair ( Autumn Edition),HongKong International Lighting Fair (Spring Edition),Japan Light Fair,LED Expo Thailand,Light Middle East in DUBAI etc.
1.Are you a trade company or a manufacturer?
We are an ISO approved manufacturer that's specialized in exterior LED lighting Products. OEM & ODM service are available.
3.What is your payment terms?
For samples: 100% deposit.
For regular order:30% deposit in advance and 70% balance before shipment.
The payment method can be Paypal,western union bank, bank for TT .
The payment method can be Paypal,western union bank, bank for TT .
4.What's your delivery terms ?
We can provide EX-WORKS ,CIF or FOB JIANGMEN,FOB HESHAN,FOB SHENZHEN delivery terms.
5.What's your warranty ?
We are confident on our quality of design,and the warranty is 3 years.
6.Can I buy the quantity below MOQ ?
Yes,please contact us for the detailed prices based on your detailed quantity requirement.
Please "CLICK" picture to return The HOME PAFE to view more of our LED lighting fixtures series. Thanks Looking!
