Product Overview
Description
Product Description
SFT3536S is a professional high integration device which includes encoding, multiplexing, and modulation. It supports 8/16/24 HD inputs, 1 ASI input, 1 USB payer input and 128 IP inputs via the GE port.
It also supports DVB-C RF out with 12 non-adjacent carries or DVB-T/ATSC RF out with 8 non-adjacent carriers, or ISDB-T RF out with 6/16 non-adjacent carriers, and supports 12/8/6/16 MPTS as mirror of 12/8/6/16 carriers through the GE port and 1 ASI out as mirror of one of the carriers.
This full function device makes it ideal for small CATV head end system, and it’s a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment…
Features
* 8/16/24 HD inputs, MPEG-4 AVC/H.264 Videoencoding
* 1 ASI input forre-mux
* 1 USB Player (Insert the USB Flash drive with “xxx.ts” videos in SFT3536S and playback the content in an easy way; file system FAT )
* 128 IPinput over UDP and RTP via GE port
* Eachcarrier out channel process maximum 32 IP from the GE port(UDP&RTP protocol)
* MPEG1Layer II, LC-AAC and HE-AAC Audio encoding, AC3 Pass Through and audio gain adjustment
* Support 12 groups multiplexing/DVB-Cmodulating
* Support 8 groups multiplexing/DVB-T/ATSCmodulating---Optional
* Support 6 (or 16) groups multiplexing/ISDB-Tmodulating---Optional
* Support 1 ASI out as mirror of one of RF outputcarriers---Optional
* Support 12 MPTS IP output over UDP, RTP/RTSP –DVB-C RFout
* Support 8 MPTS IP output over UDP, RTP/RTSP-- DVB-T/ATSC RFout
* Support 6 (or 16) MPTS IP output over UDP, RTP/RTSP-- ISDB-T RFout
* SupportLOGO, Caption and QR code insertion(Language Supported: 中文, English, ية عرب ال, ไทย, , р у с с к и й , اردو, for more languages please consult us…)
* Support PID remapping/ accurate PCR adjusting/PSI/SI editing andinserting
* Control via web management, and easy updates viaweb
* 1 ASI input forre-mux
* 1 USB Player (Insert the USB Flash drive with “xxx.ts” videos in SFT3536S and playback the content in an easy way; file system FAT )
* 128 IPinput over UDP and RTP via GE port
* Eachcarrier out channel process maximum 32 IP from the GE port(UDP&RTP protocol)
* MPEG1Layer II, LC-AAC and HE-AAC Audio encoding, AC3 Pass Through and audio gain adjustment
* Support 12 groups multiplexing/DVB-Cmodulating
* Support 8 groups multiplexing/DVB-T/ATSCmodulating---Optional
* Support 6 (or 16) groups multiplexing/ISDB-Tmodulating---Optional
* Support 1 ASI out as mirror of one of RF outputcarriers---Optional
* Support 12 MPTS IP output over UDP, RTP/RTSP –DVB-C RFout
* Support 8 MPTS IP output over UDP, RTP/RTSP-- DVB-T/ATSC RFout
* Support 6 (or 16) MPTS IP output over UDP, RTP/RTSP-- ISDB-T RFout
* SupportLOGO, Caption and QR code insertion(Language Supported: 中文, English, ية عرب ال, ไทย, , р у с с к и й , اردو, for more languages please consult us…)
* Support PID remapping/ accurate PCR adjusting/PSI/SI editing andinserting
* Control via web management, and easy updates viaweb

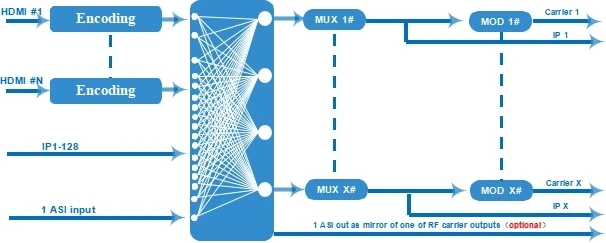

Principle Chart

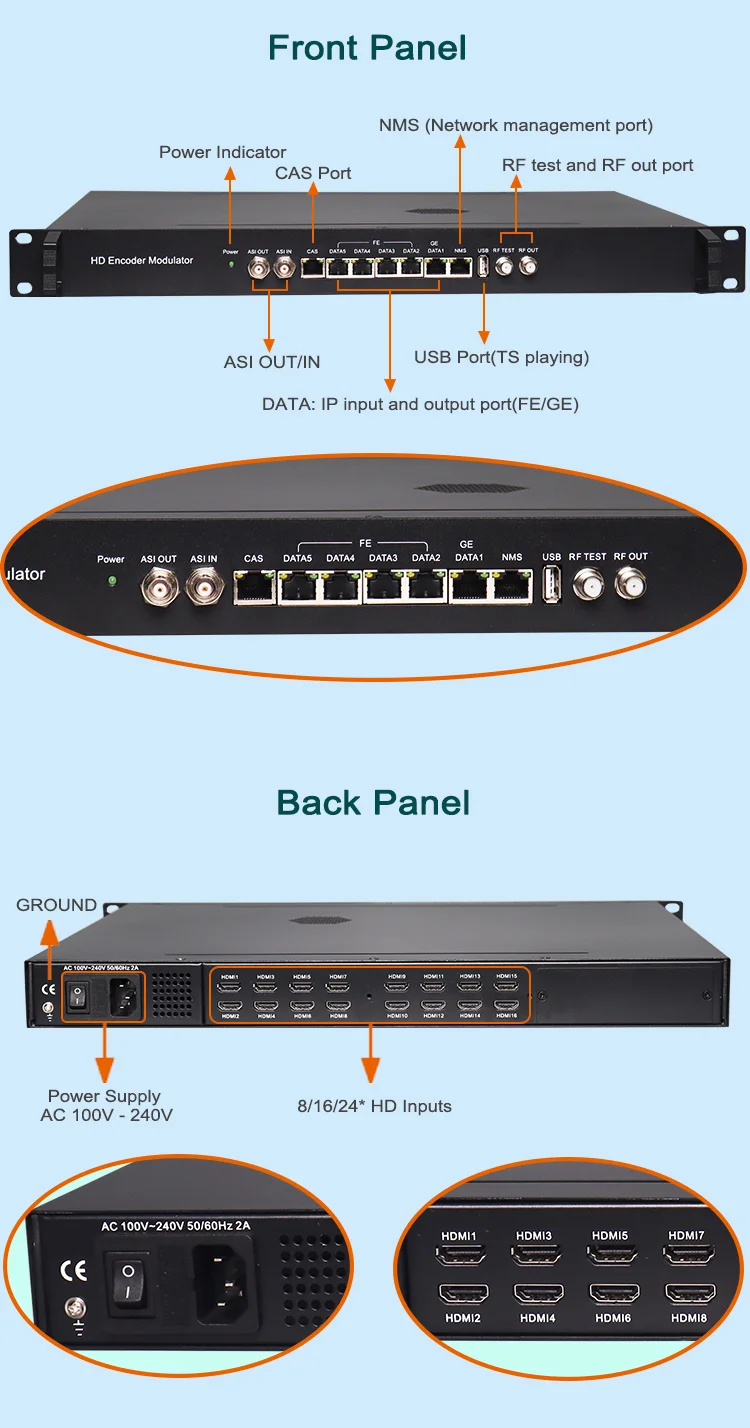

Details Images
Specification
Input | 8/16/24 HD inputs for option 1 ASI in for re-mux 1 USB Player input for re-mux 128 IP input over UDP and RTP, GE port, RJ45—DVB-C RF out 128 IP input over UDP and RTP, GE port, RJ45—DVB-T/ATSC RF out 128 IP input over UDP and RTP, GE port, RJ45—ISDBT RF out | ||||||
Video | Resolution | Input | 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i, | ||||
Output | 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P, | ||||||
Encoding | MPEG-4 AVC/H.264 | ||||||
Bit-rate | 1Mbps~13Mbps each channel | ||||||
Rate Control | CBR/VBR | ||||||
GOP Structure | IP…P (P Frame adjustment, without B Frame ) | ||||||
Audio | Encoding | MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through | |||||
Sampling rate | 48KHz | ||||||
Resolution | 24-bit | ||||||
Audio Gain | 0-255 Adjustable | ||||||
MPEG-1 Layer 2 Bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps | ||||||
LC-AAC Bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps | ||||||
HE-AAC Bit-rate | 48/56/64/80/96/112/128 kbps | ||||||
Multiplexing | Maximum PID Remapping | 255 input per channel | |||||
Function | PID remapping ( automatically or manually) | ||||||
Accurate PCR adjusting | |||||||
Generate PSI/ SI table automatically | |||||||
Modulation | DVB-C | QAM Channel | 12 non-adjacent carriers output (maximum bandwidth 192MHz) | ||||
Standard | EN300 429/ITU-T J.83A/B | ||||||
MER | ≥40db | ||||||
RF frequency | 50~960MHz, 1KHz step | ||||||
RF output level | -20~+3dbm, 0.1db step | ||||||
Symbol Rate | 5.0Msps~7.0Msps, 1ksps stepping | ||||||
J.83A | J.83B | ||||||
Constellation | 16/32/64/128/256QAM | 64/256 QAM | |||||
Bandwidth | 8M | 6M | |||||
DVB-T | Standard | EN300744 | |||||
FFT mode | 2K,4K, 8K | ||||||
Bandwidth | 6M, 7M, 8M | ||||||
Constellation | QPSK, 16QAM, 64QAM | ||||||
Guard Interval | 1/4, 1/8, 1/16, 1/32 | ||||||
FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | ||||||
MER | ≥42 dB | ||||||
RF frequency | 50~960MHz, 1KHz step | ||||||
RF out | 8 non-adjacent carriers output (maximum bandwidth 192MHz) | ||||||
RF output level | -20~ +3dBm, 0.1db step | ||||||
ATSC | Standard | ATSC A/53 | |||||
Bandwidth | 6M | ||||||
Constellation | 8VSB | ||||||
FEC | RS(208 188)+Trellis | ||||||
MER | ≥40dB | ||||||
ACL | -55 dBc | ||||||
RF frequency | 50~960MHz, 1KHz step | ||||||
RF out | 8 non-adjacent carriers output (maximum bandwidth 192MHz) | ||||||
RF output level | -20~+3dbm (for all carriers), 0.5db stepping | ||||||
ISDB-T | Standard | ARIB STD-B31 | |||||
Bandwidth | 6M | ||||||
Constellation | QPSK, 16QAM, 64QAM | ||||||
Guard Interval | 1/32, 1/16, 1/8, 1/4 | ||||||
Transmission Mode | 2K, 4K, 8K | ||||||
Code rate | 1/2, 2/3, 3/4, 5/6, 7/8 | ||||||
MER | ≥40dB | ||||||
RF frequency | 50~960MHz, 1KHz step | ||||||
RF out | 6 (or 16) non-adjacent carriers output (maximum bandwidth 192MHz) | ||||||
RF output level | -20dBm~+3dBm, 0.1dB stepping | ||||||
Stream output | 1 ASI output as mirror of one of RF output carriers(Optional) 12 MPTS output over UDP and RTP/RTSP as mirror of 12 DVB-C carriers, 8 MPTS output over UDP and RTP/RTSP as mirror of 8 DVB-T/ATSC carriers(Optional) 6 MPTS output over UDP and RTP/RTSP as mirror of 6 ISDB-T carriers(Optional) 16 MPTS output over UDP and RTP/RTSP as mirror of 16 ISDB-T carriers(Optional) 1*1000M Base-T Ethernet interface, GE port | ||||||
System function | Network management (WEB) | ||||||
Chinese and English language | |||||||
Ethernet software upgrade | |||||||

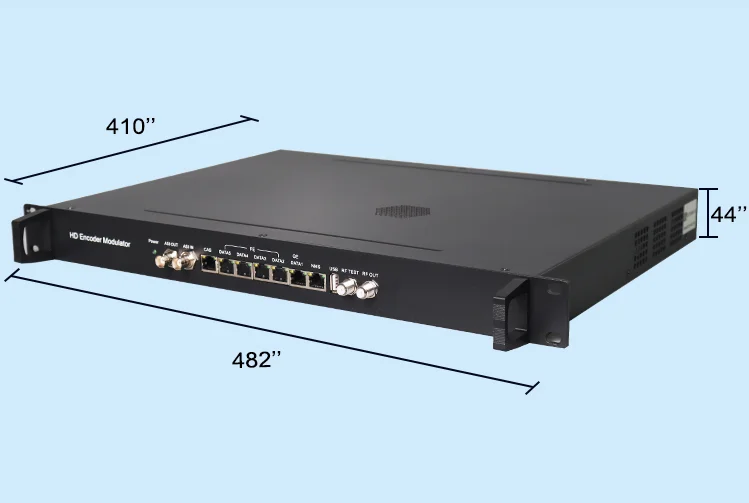

Miscellaneous | Dimension (W×L×H) | 482mm×328mm×44mm | |||||
Environment | 0~45℃(work)；-20~80℃（Storage） | ||||||
Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz | ||||||
