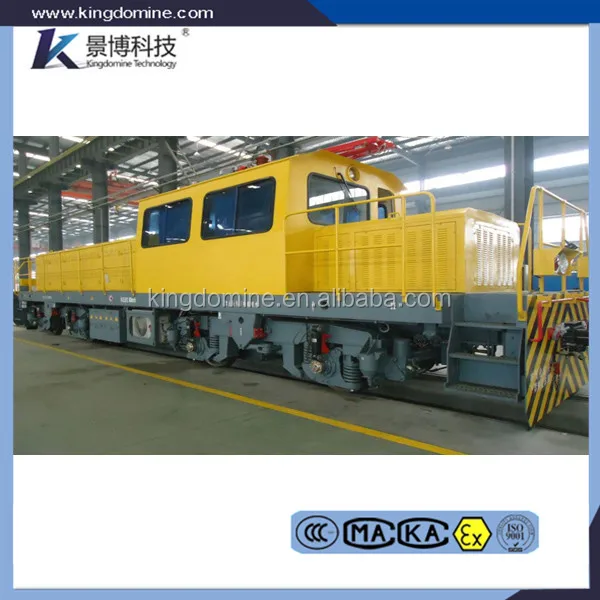

Tunnel Railway Diesel Mine Locomotive



Product Description


35T Diesel Locomotive Parameters

























































































































Whole Locomotive
ParametersValue
Gauge900mm
Axle arrangementB
Total weight35t
Wheel diameter840mm
Minimal radius of curvature on gauge30m
Height of coupler centre line420mm
Max speed35km/h
Starting tractive effort97kN
Continuous tractive effort38kN
Dimension7000mm*1700mm*2400mm
Diesel Motor
ModelBF6M1013FC
Cooling SystemWater-cooling, Turbo Charging with Inter-cooling
Cylinder*cylinder diameter*stroke6mm*108mm*130mm
Displacement7.15L
Rated Power223kW/2300rpm
Max Torque1050 N·m/1700rpm
Lowest Idling Speed650rpm
Starting Mode24V electric starting
Net Weight572kg
Hydrodynamic Transmisson
Model of Torque ConverterCL8642
Pattern of Torque ConverterDirectly Coupling With Motor
Model of Transmission CaseCL5422
Pattern of Transmission CaseSingle stage and connected with torque
converter by transmission shaft
Shift GearsManual
Gear RangeForward 2/ backward 2




Main Products


Professional Solution Provider For Mining Locomotive


















2.5t locomotive__5T battery locomotive8T underground mine locomotive.jpg

3.5T trolley 455314465416.jpg


7T trolley locomotive.jpgdiesel locomotive




























































Locomotive Type



Model



PRICE (USD)/PC



1.5T trolley



CJY1.5/5, 6,7,9G(B)



  6066--12057



3.5T trolley



CJY3.5/5, 6,7,9G(B)



  8567--14507



    7T trolley



CJY7/6,7,9G(B)



12987--18099



2.5T battery



CTY2.5/5, 6,7,9G(B)



12076--16997



    5T battery



CTY5/5,6,7,9G(B)



22976--26987



    8T battery



CTY8/6,7,9G



27690--30885



2.5T diesel



KT-SQY2.5



  8200--12200



    3T diesel



 KT-SQY3



 8568--12568



   3.5 diesel



KT-SQY3.5



  9000--12223






Detailed Images


Detail Images

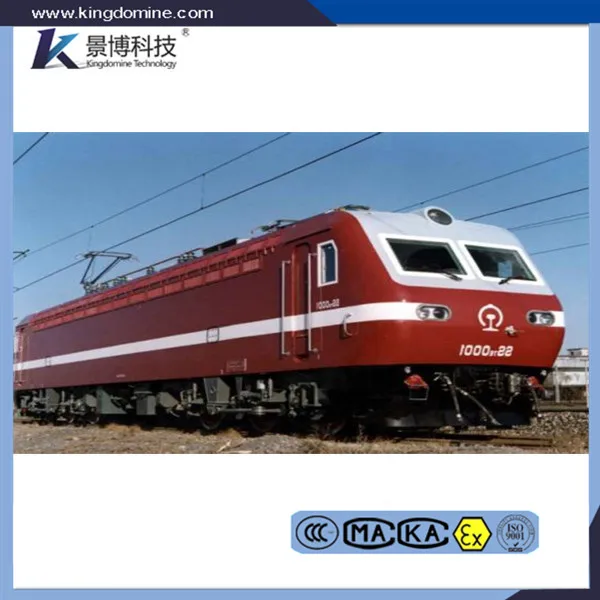

1395374038238_hz-fileserver-upload-02_65795841395377571096_hz-fileserver-upload-02_6624182Underground mining locomotive92





Packaging & Shipping


mining locomotive.jpg





Production Flow







Certifications







Our Services


Pre-sales Service:


The wide product range enables us to provide our customers with individual machines or complete processing plants.Based on our customers'request and budget, our experts make efficient and reliable solutions, and we produce strictly follow customers' order. What's more, every customer has the chance to visit the working machine in the site before placing the order.
After-sales Service:
Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the quarry site to help install the customers'plants.Necessary training about machine daily maintenance to local workers is provided also.


Methods of Payment:

 T/T (Telegraphic Transfer) or Western Union or L/C at sight
Handling time for an order:
Within 10 days supplied from stock
Shipping method:
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
Quality Control:
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time
c. Free replacement will provide once the failure confirmed caused by our product quality
About Us:
Our factory has been specialized in manufacturing locomotives and spare parts since 1980.
We have advanced technology and equipment.
Our technician has more than 25 year’s professional working experience.
Locomotives are exported throughout the world. Main market: Norway, Turkey, USA,Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
