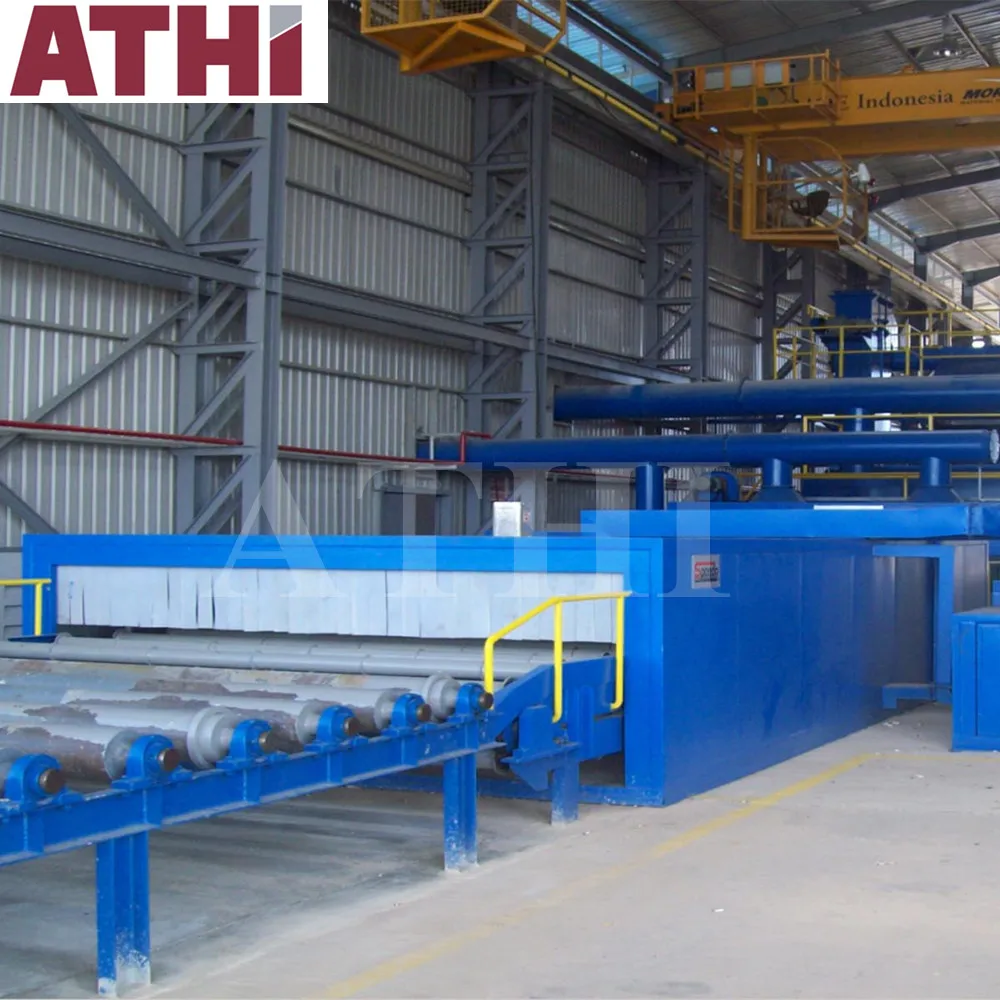

Несколько безвоздушный круглый стержень или бар роликовый конвейер типа Дробеструйная машина
- Category: Abrator >>>
- Supplier: Qingdao Antai Heavy Industry Machinery Co. Ltd.
Share on (1867749882):
Product Overview
Description
Structural Steel Shot Blasting Machine:
shot blasting machine for h beam is designed and produced by adopting the advantages of similar products from both within the country and abroad. The rusting cleaning part (shot blasting) adopts high-efficient blast wheel and full shutter type shot sand separator. The sweeping machine adopts specially made high-strength nylon rolling brush and high-pressure ventilator. The preheating and drying part of shot blasting machine may adopt various heating methods. The paint spraying part adopts high-pressure airless spraying method. The complete set of equipment is controlled by PLC, and is the large-size complete equipment of international advanced.
QH69 shot blasting machine is mainly used for surface treatment (namely preheating, rust removal, paint spraying and drying) of steel plate and various structural sections, as well as for cleaning and strengthening of metal structural parts.
Shot blasting machine Technical Specification:
| Technical parameter of pass-through type shot blasting machine Q69 | |||||||||
| No. | Model Item | Q698 | Q6912 | Q6915 | Q6920 | Q6925 | Q6930 | Q6940 | |
| 1 | Width of workpiece | mm | 800 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 |
| 2 | Size of inlet opening | mm | 800* 1600 | 1200* 400 | 1500* 400 | 2000* 400 | 2500*800 | 3000*800 | 4000*400 |
| 3 | Length of workpiece | mm | 1200- 12000 | 1200- 6000 | 1200- 12000 | 1200- 12000 | 3000-12000 | 2400-12000 | 4500-18000 |
| 4 | Roller speed | m/min | 0.5-4 | 0.5-4 | 0.5-5 | 0.5-4 | 0.5-4.5 | 0.5-4 | 2-8 |
| 5 | Thickness of plate | mm | 3-60 | 3-60 | 1.5-60 | 3-60 | 3-60 | 3-110 | 4.5-110 |
| 6 | Abrasive flow rate | kg/min | 8*120 | 4*250 | 4*250 | 6*250 | 6*250 | 6*360 | 8*360 |
| 7 | Abrasive initial fill | kg | 4000 | 4000 | 4000 | 4500 | 4500 | 8000 | 11000 |
| 8 | Adjusting height of rolling brush | mm | 400 | 200 | 350 | 450 | 600 | 850 | 900 |
| 9 | Ventilation capacity | m3/h | 22000 | 17560 | 19000 | 19550 | 27758 | 28050 | 38000 |
| 10 | Total power of shot blast machine (no dust collector) | kw | 90 | 78.3 | 113.6 | 156.6 | 224.55 | 204.8 | 293.6 |
Notice :
According to your requirements,the most suitable machines will be designed for your workpieces please indicate the folloing details.
1.what kind of workpiece will you clean ?
2.The workpiece size,length ,width and height of maximum workpiece?
3.How many workpiecs do you want to clean per day ?
Based on this question,the detailed technical proposals will be sent to you for reference
Product Description

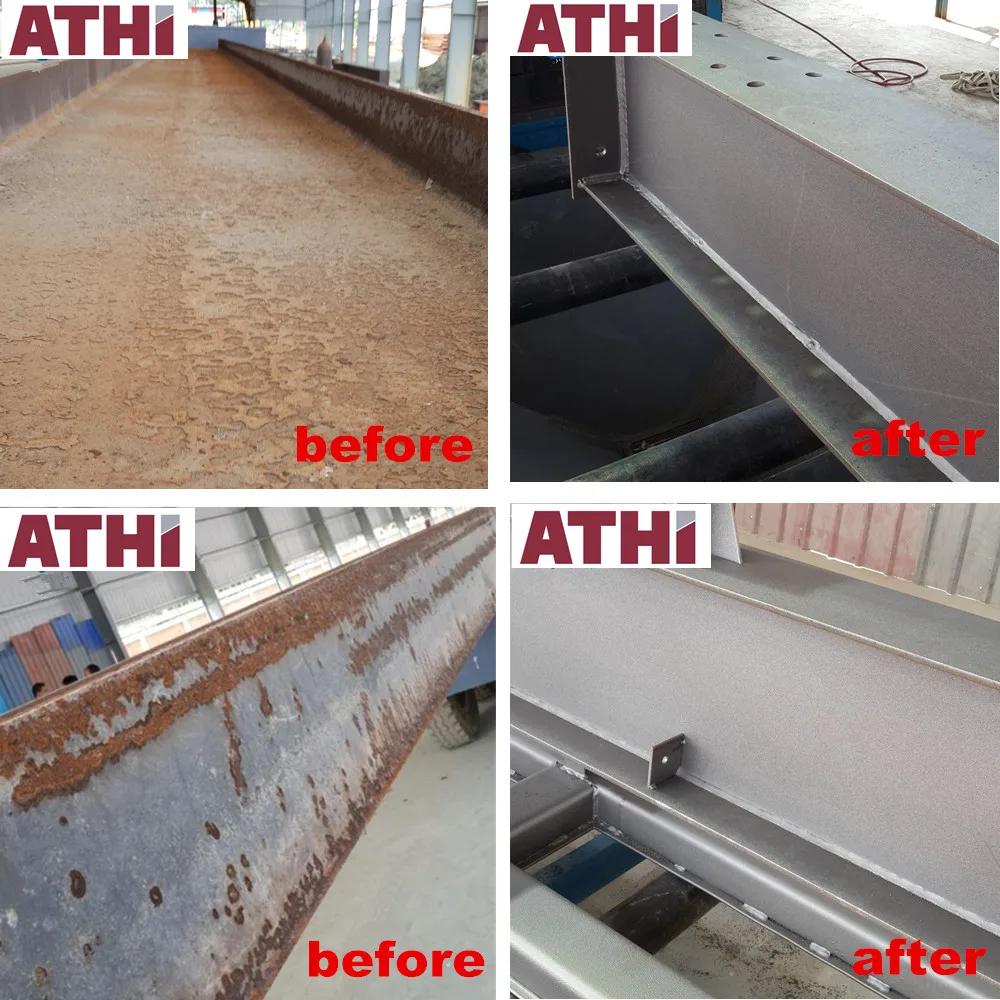

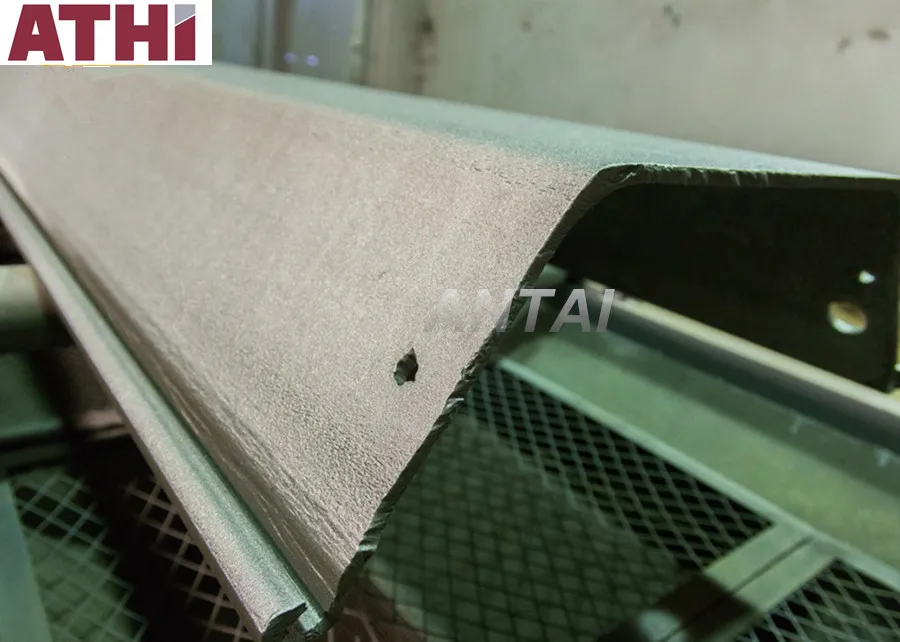

Shot blasting machine surface cleaning efficiency

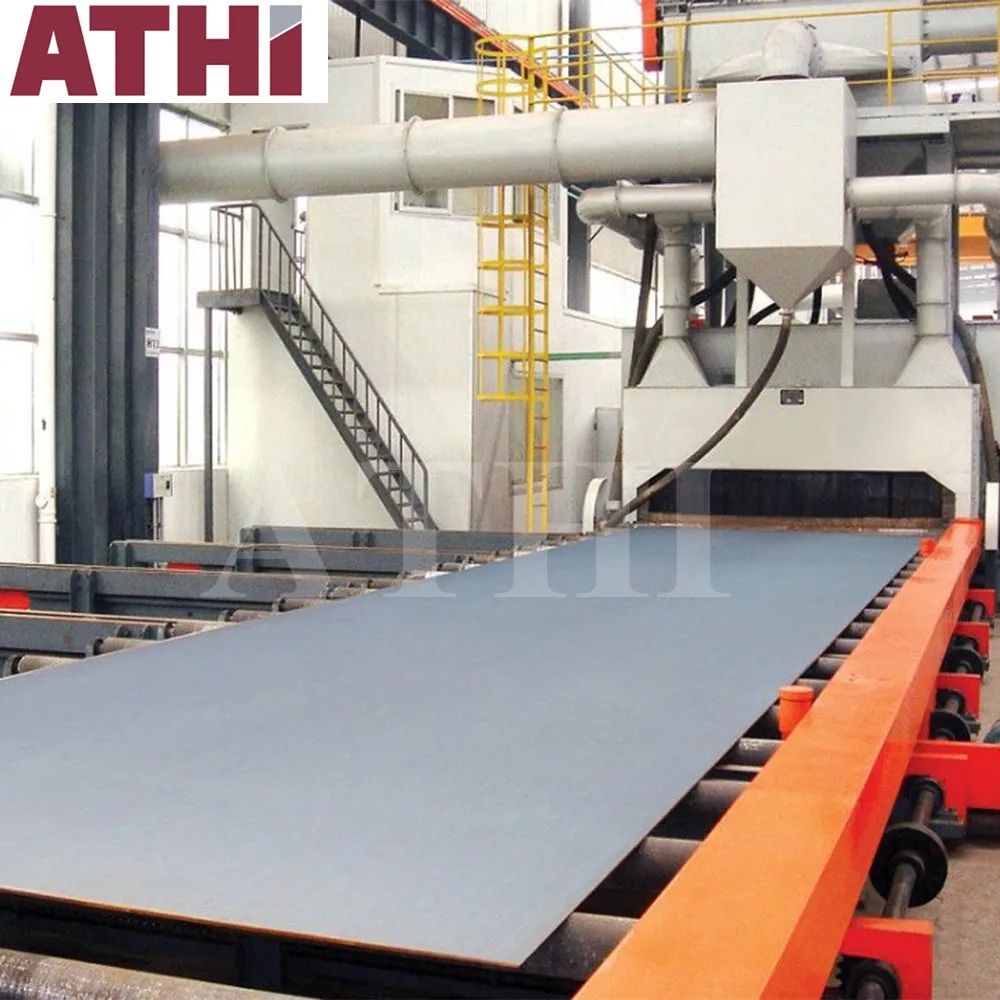

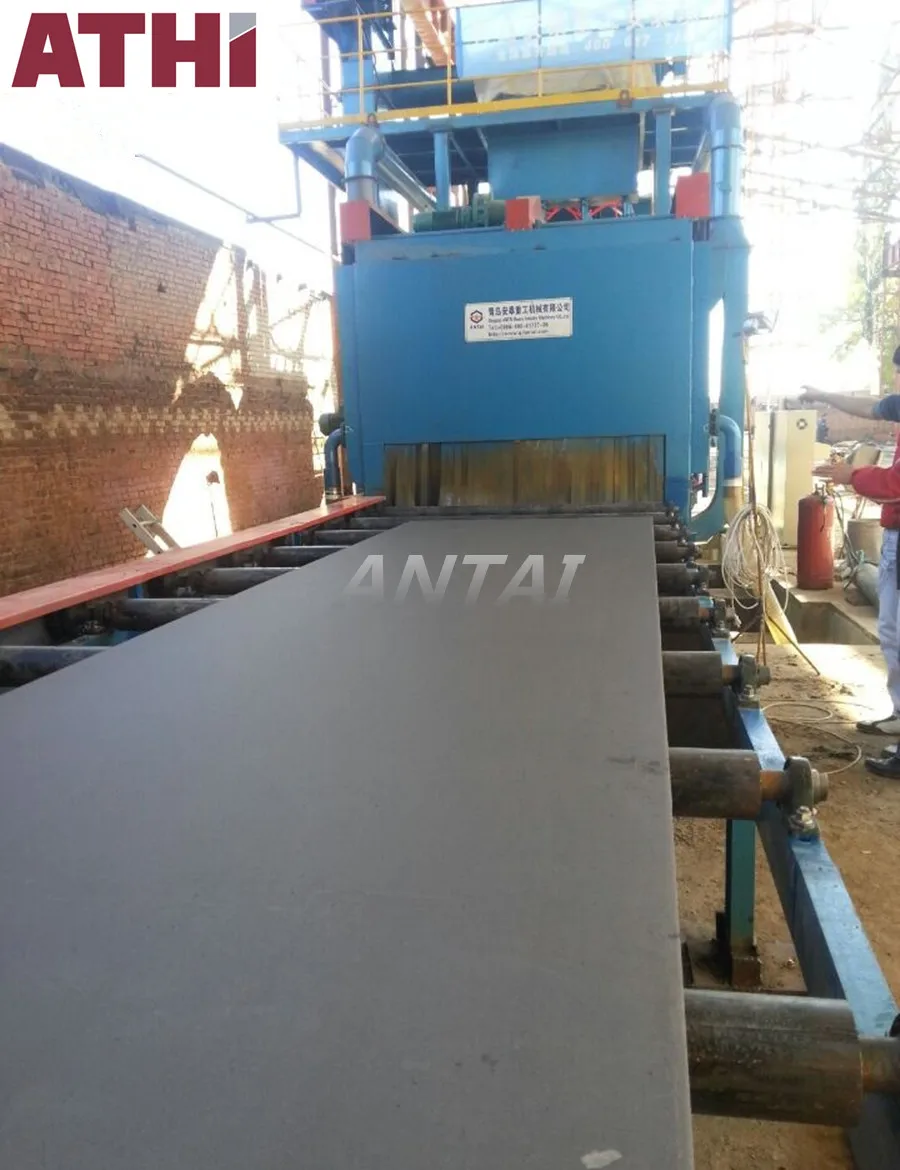

Steel plate surface cleaning shot blasting machine

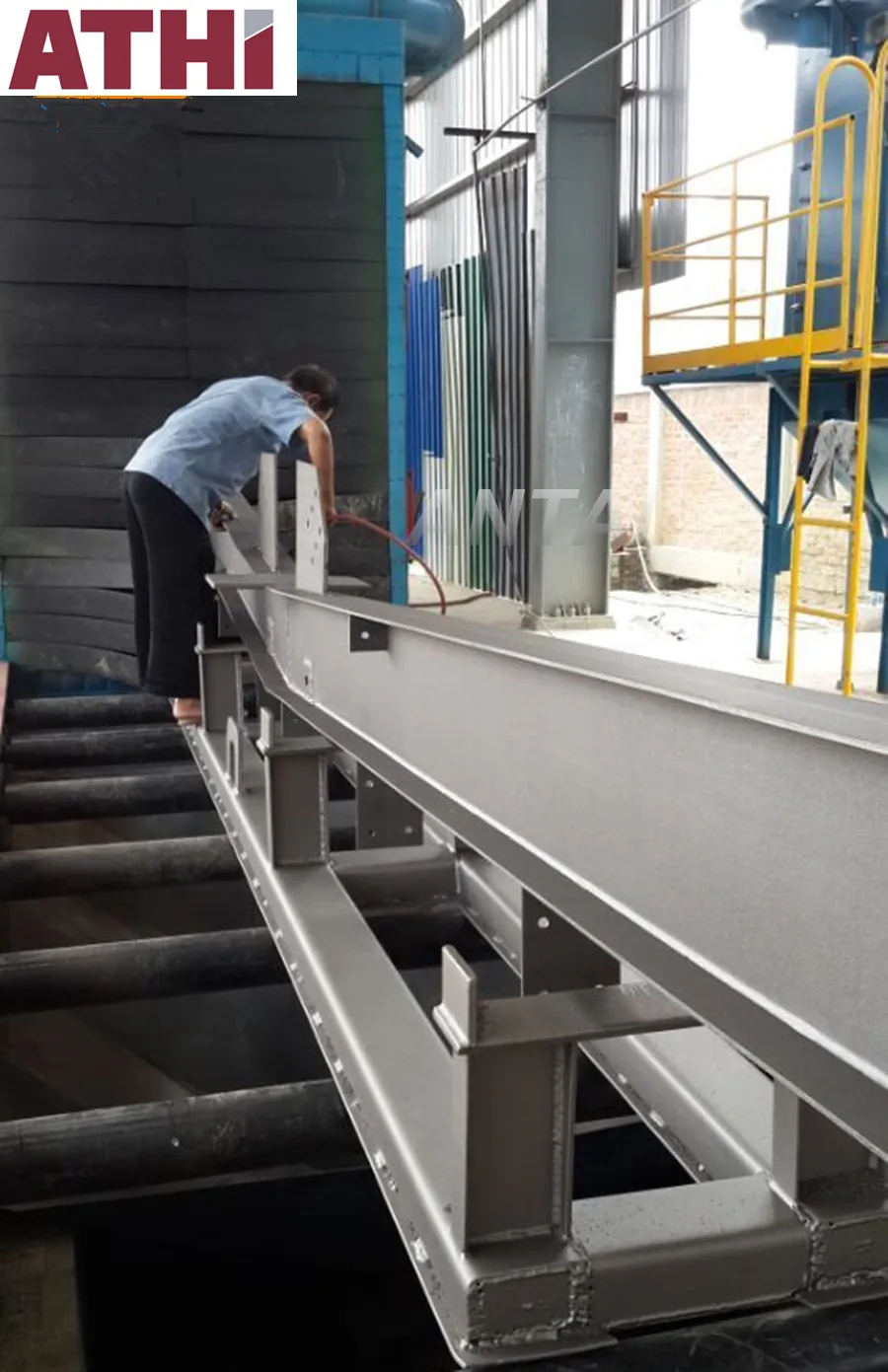

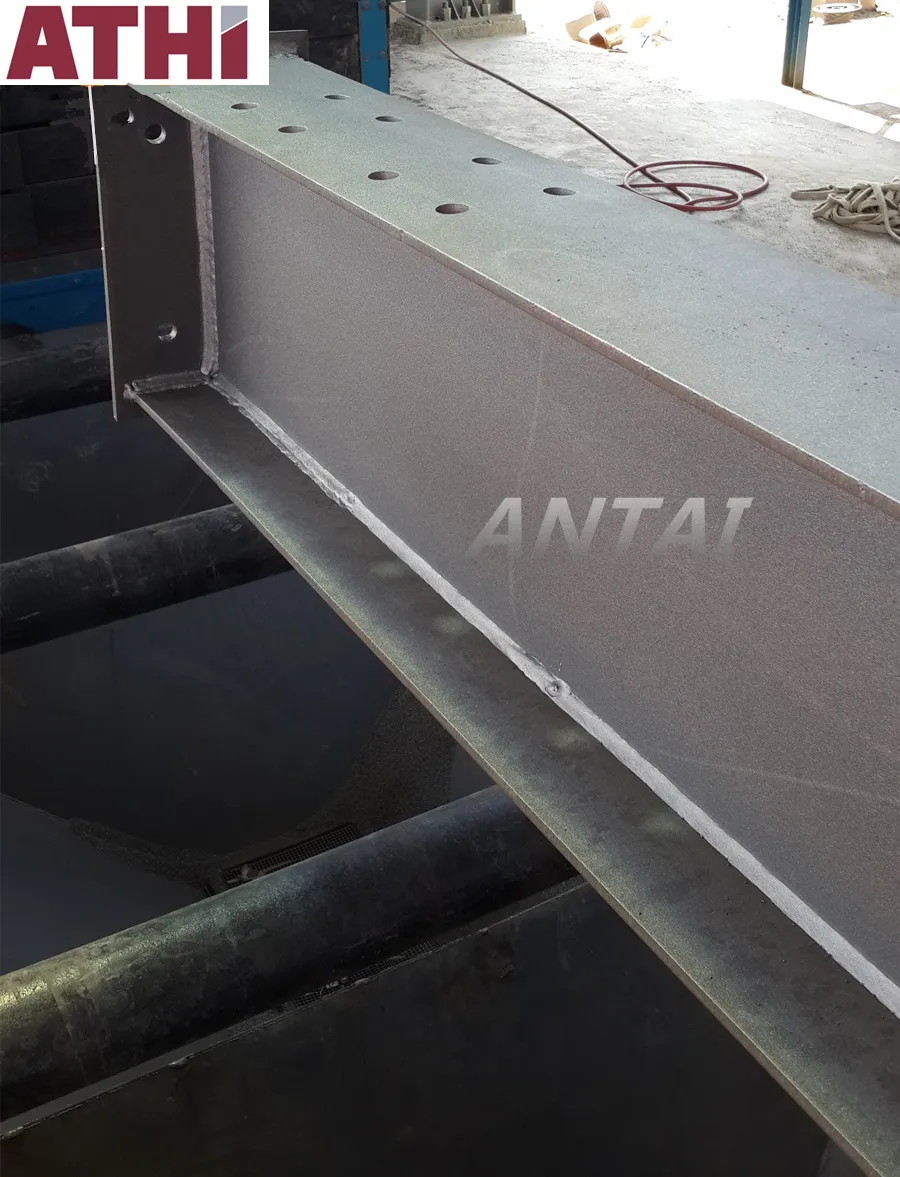

Structural steel or welding frame surface cleaning shot blasting machine H/I beam/profile steel surface cleaning shot blasting machine
C/channel beam/profile steel surface cleaning shot blasting machine

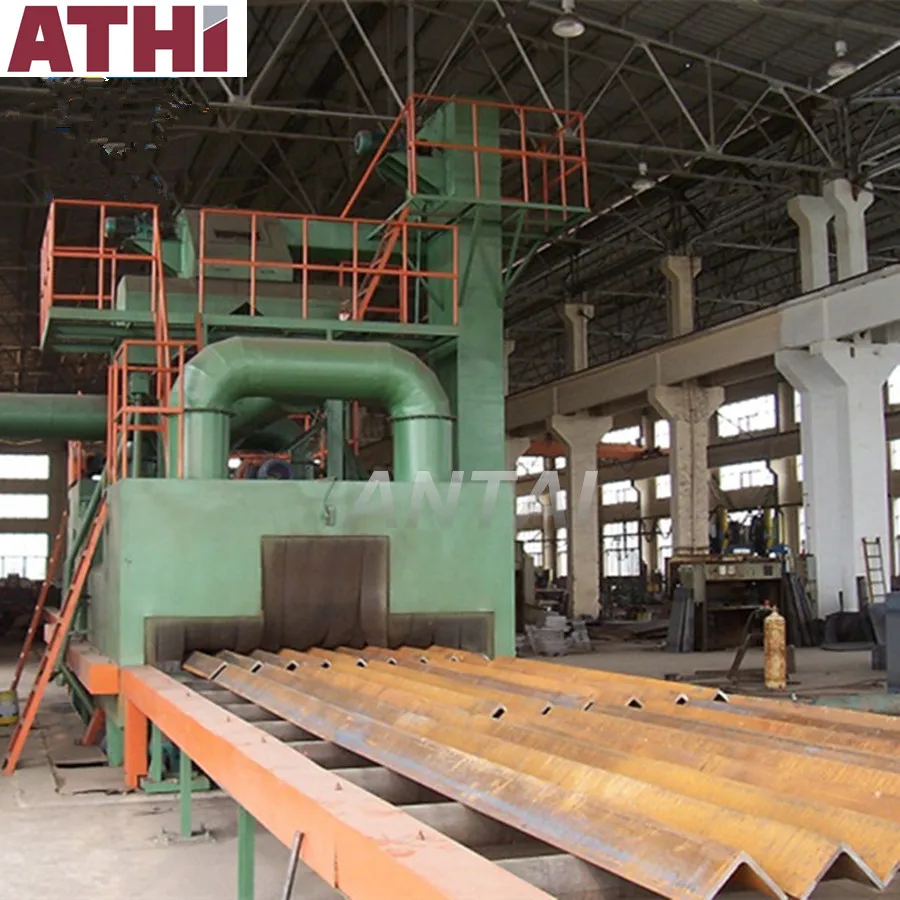

Angle beam/profile steel and other profile steel surface cleaning shot blasting machine

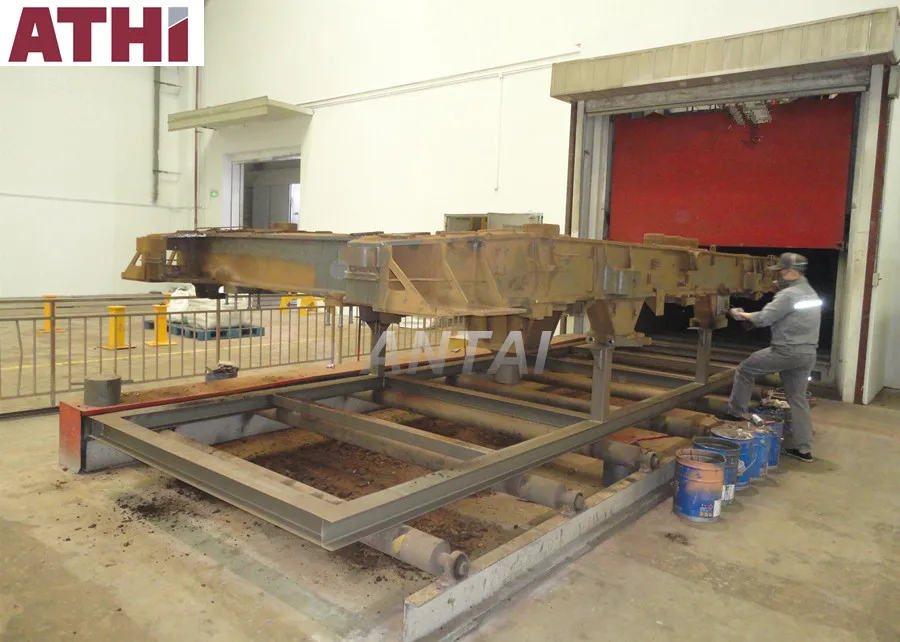

Bogie and big structural framing surface cleaning shot blasting machine

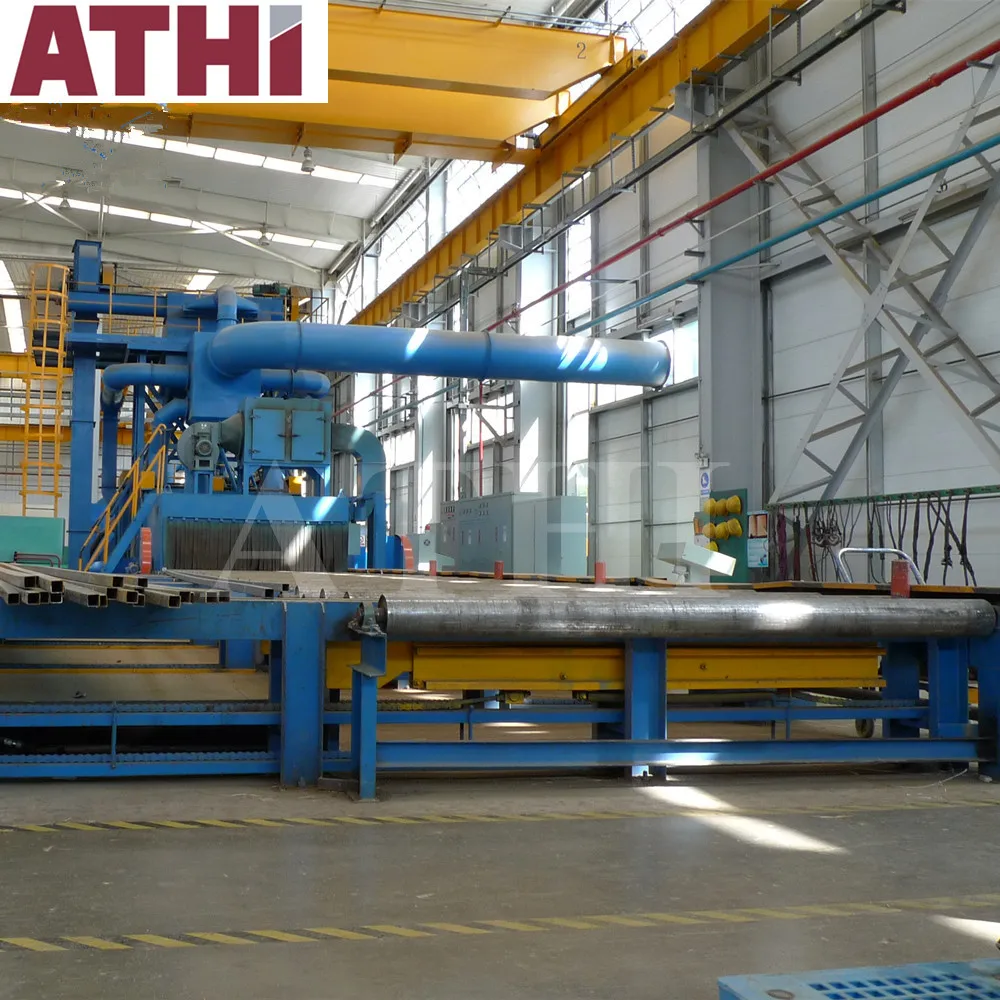

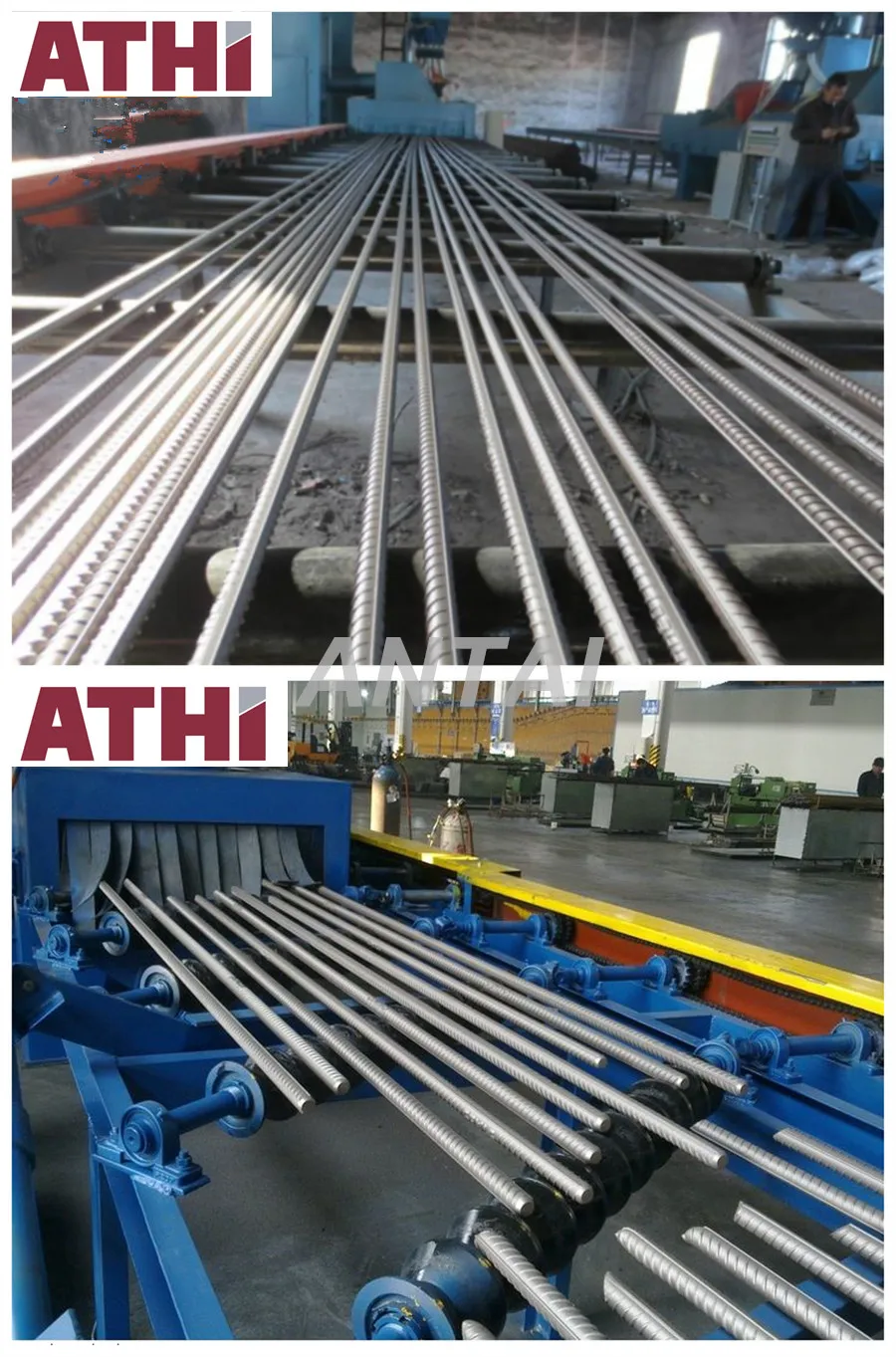

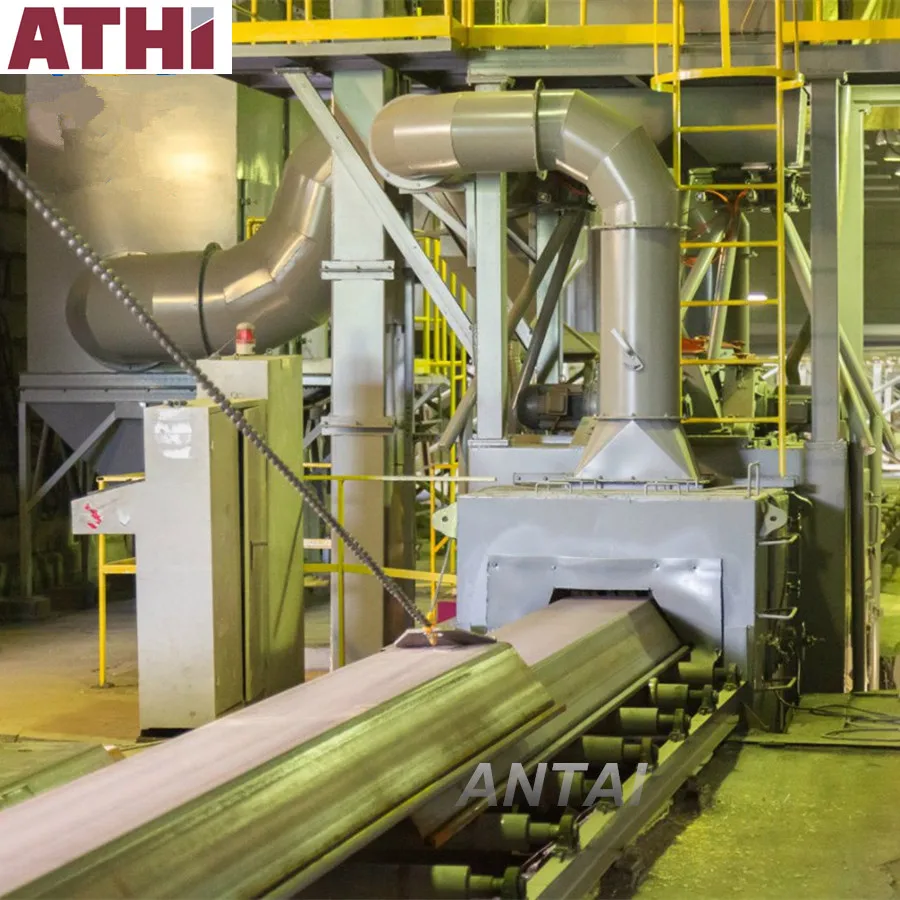

Deformed steel bar, D-bar, steel round bar, square bar, flat bar,steel pipe surface cleaning shot blasting machine
Our engineer installed the machine in Columbia

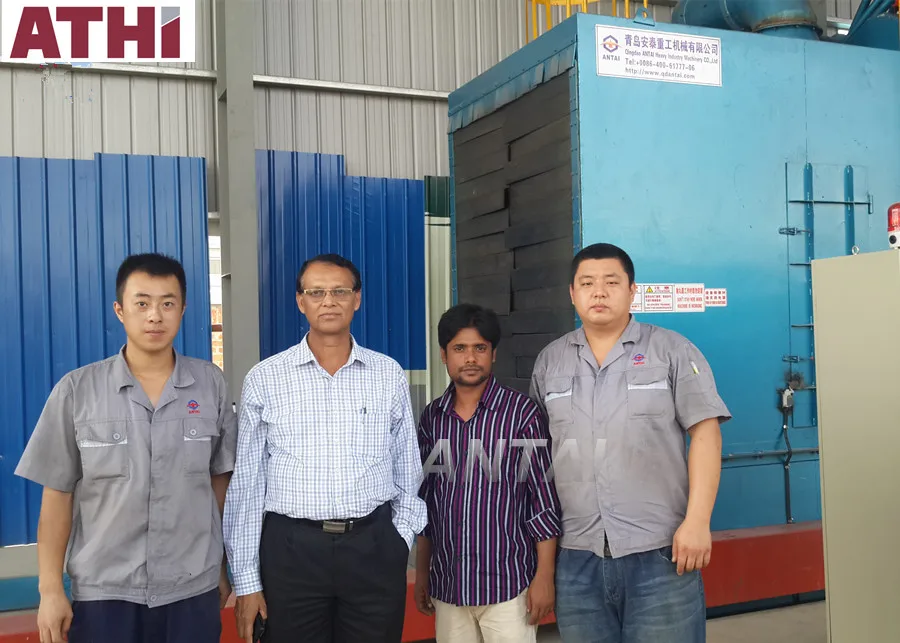

Our engineers installed the machine in Bangladesh
Our engineers installed the machine in Russia
Exported shot blasting machine to Australia
|
Company Information
FAQ
If the machine is not suitable for your workpiece, please tell us the following information:
1) What kind of workpiece will you clean?
2) The size of workpieces(length, width and height of maximum workpiece,Length, width and height of minimum workpiece?)
3) How many the weight of maximum and minimum workpiece?
4) Please tell us your requirement cleaning efficiency?
According to your infomation, the most suitable machines will be designed for your workpieces.
