5KW 10kw Hot sell 5 kw wind turbine for Pakistan use
5KW 10kw Hot sell 5 kw wind turbine for Pakistan use
5KW 10kw Hot sell 5 kw wind turbine for Pakistan use
5KW 10kw Hot sell 5 kw wind turbine for Pakistan use
5KW 10kw Hot sell 5 kw wind turbine for Pakistan use
5KW 10kw Hot sell 5 kw wind turbine for Pakistan use
5KW 10kw Hot sell 5 kw wind turbine for Pakistan use

5KW 10kw Hot sell 5 kw wind turbine for Pakistan use

Share on (1867872719):


Price:$5,700.00 - $5,869.00

Quantity:


Product Overview

Description

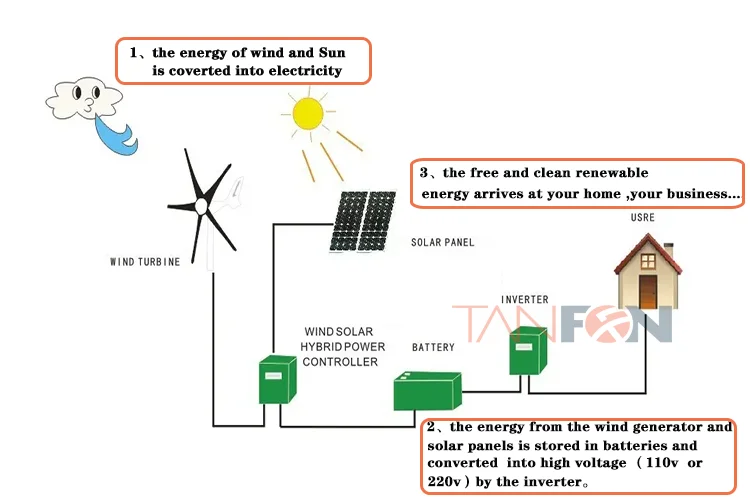

Wind turbine produce unstable three phase AC, solar panel produce unstable DC, and send to the CPU in the controller, the
controller have rectify functions, it will rectify the unstable AC and DC to stable DC, so the battery can save the electricity.
Through the off grid inverter to transfer the DC to AC, the battery can be send to the household equipments.




Wind Generator Features:
1. Small vibration and tiny friction, stable rotation in higher speed
2. Streamlined wind turbine body and blade outline design
3. Blades have 2 kinds, 300w-1kw for high-rigidity FRP materials and blades are dynamic-balanced
4. Noise level below 55dB around the wind turbine tower
5. State of the art, workmanship and beautiful appearance
6. Use magnetic saturation technology, with 20years designed life;
7. Select high quality bearing, free to maintenance;
8. Anti-twist device, generator can whirl in each direction
9. Anti strong wind, the blade protect itself automatically,
10. Applications for Household, Farm, Marine, Boat,Street Lights, Home, Opening Plaza lighting etc.
11. Supply matched controller/inverter(optional), make solar and wind energy system more stable.
12. At night or on rainy day, wind turbine generate wind power. On sunny day, solar panel generate solar power. On windy and sunny days, both solar and wind generate power.




2kw hybrid power system
product
Model
Quantity
Description
solar panel
380W
2pc
Size : 1950*992*40mm
Wind turbine
1000W
1pc
working wind speed 3.0-20m/s
Hybrid Inverter
2000W pure sine wave
1pc
DC:48v ; AC:110v or 220v single phase
Gel Battery
12V/150AH
4pc
Size:483*170*219mm
Hybrid Controller
Input 760W solar power+1000W wind power
1pc
DC 48V input ;MPPT intelligent control
Guy Cable Pole
6m Guy Cable Pole
1set
6m

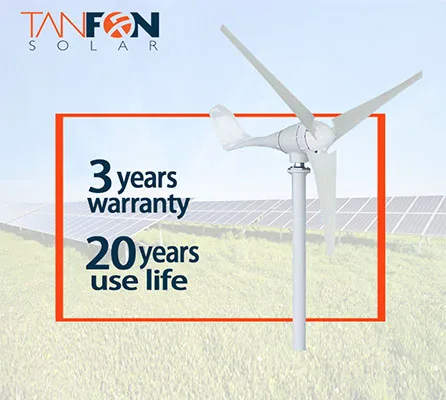

wind turbine
>3years warranty,20year use life
> Advantage: light weight, small volume
> Starting wind speed:3m/s
> Rated wind speed:10m/s
> Security wind speed:40m/s>Rated speed:310 r/m





solar panel
Max power :380w
Vmp:38.39V Voc:47.13V Imp 9.75A
Size : 1950*992*40mm
Glass:3.2mm Tem pered
25 years power output guarantee
2)PV bracket: Stainless steel;(ground or roof rack)






hybrid Inverter
> 4 years warranty(solar with IOT)
> With built-in charge controller
> Pure sine wave inverter
> Use copper transformer;
> Bypass function with AC charger;
> Output: 220V 380V 415V 50/60HZ

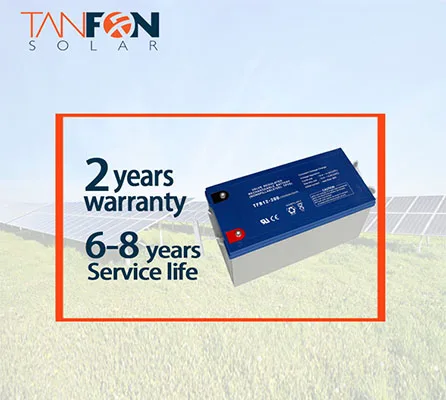

Battery
1.Free maintenance, service life 6-8 years
2.DOD 70% cycles 1500 times
3.The latest through-wall welding technology,more suitable for motor loads.

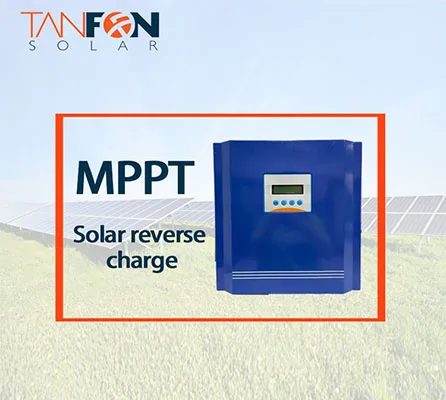

hybrid Controller
>DC 48V input ;MPPT intelligent control
>Protection Function: Solar reverse charge
>protection , Solar reverse connection protection,
>Battery-over-charge-protection
>Battery-reverse connection protection

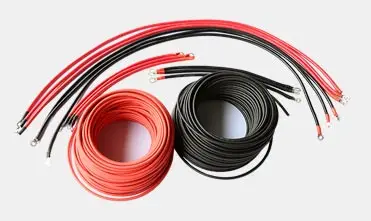

cables
1)3pc16mm2*35CM battery cable
4pcs 16mm2*2M battery connect cable
2)4mm2 PV cable 20M 6mm2 wind cable 50M
3)terminals and MC4 + 1P63A Battery switch
