Hot sales CX series of CX SD,CX LA,CXR SD,CXR LA thin hydraulic cylinder

Product Overview

Description

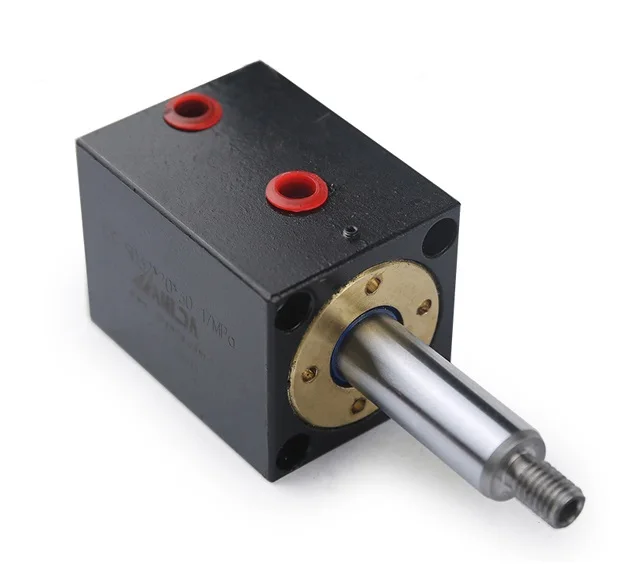

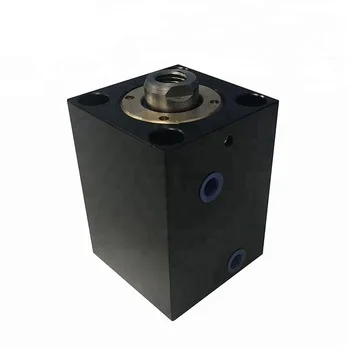

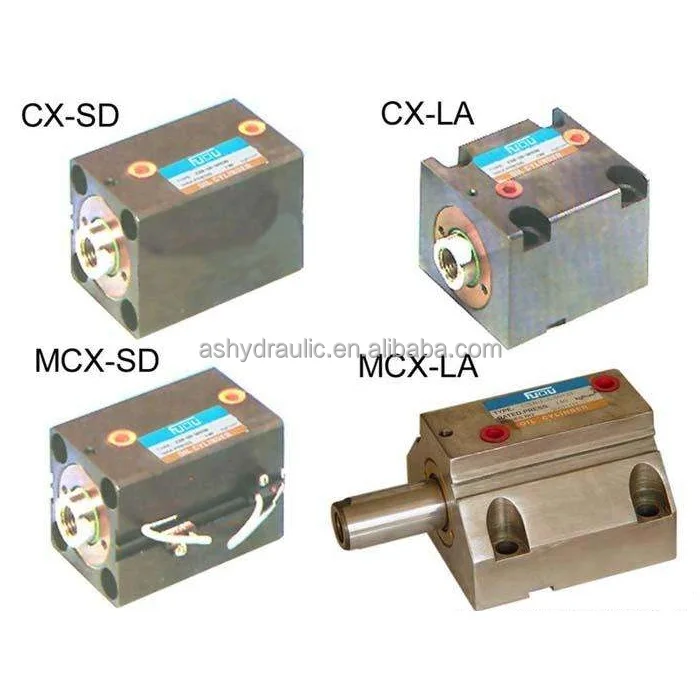

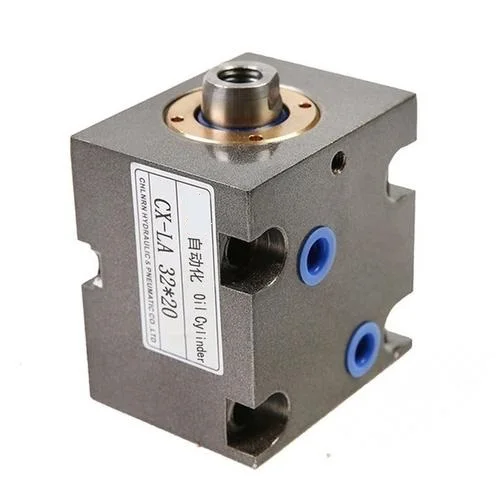

Hot sales CX series of CX-SD,CX-LA,CXR-SD,CXR-LA thin hydraulic cylinder

1.Save mounting space, it's length only half of other same types
2.Direct mounting,no need any parts

3. Working pressure:0.3-14Mpa, environmental temp. range:-10°c to 70°c

4.Mainly suitable for mold, precessing gauge or mechanical field having limitation for mounting space

5. Can customize, as per customer's drawing or sample

6. Very competitive price

7. 1 year of warranty

8. Short delivery time

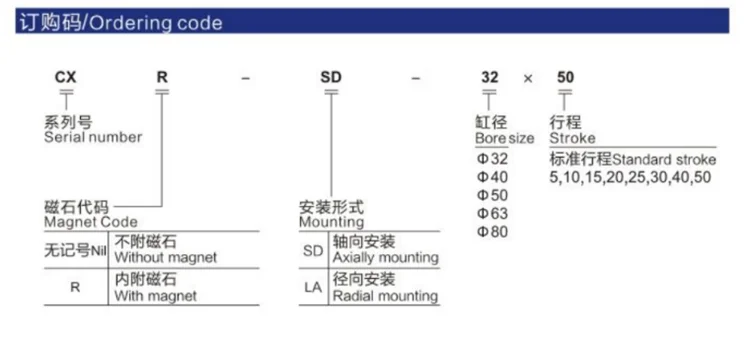

Some models for your reference:

CX-SD50*10	CX-SD50*20	CX-SD50*30	CX-SD50*40	CX-SD50*50	CX-SD80*150
CX-SD32x10	CX-SD40x10	CX-SD63x10	CX-SD80x10	CX-SD80X50	CX-SD100x10
CX-SD125x10	CX-LA32*10	CX-LA32*20	CX-LA32*30	CX-LA32*40	CX-LA32*50

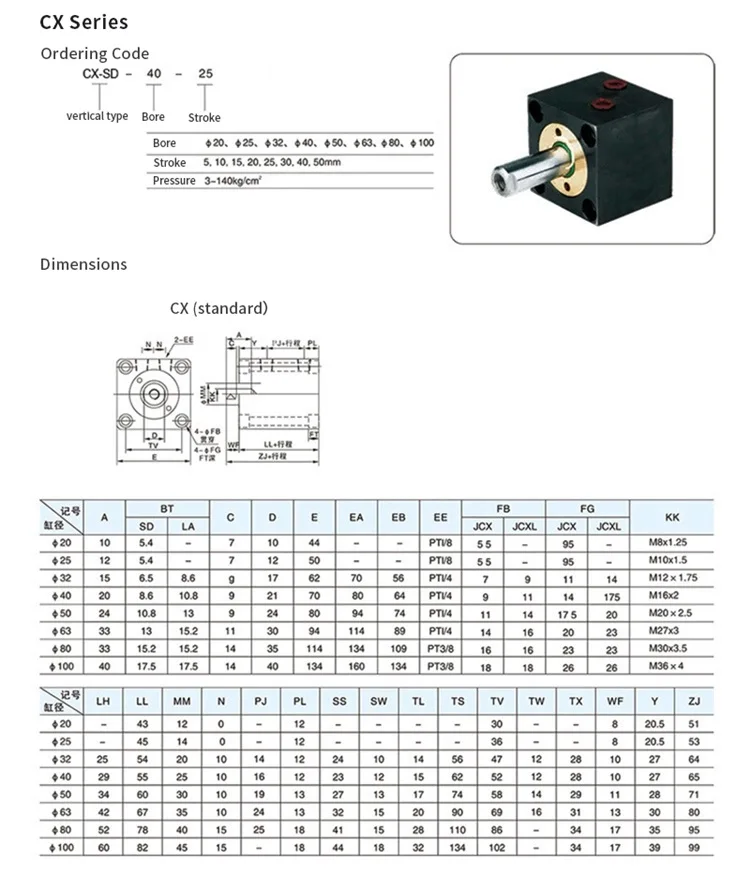

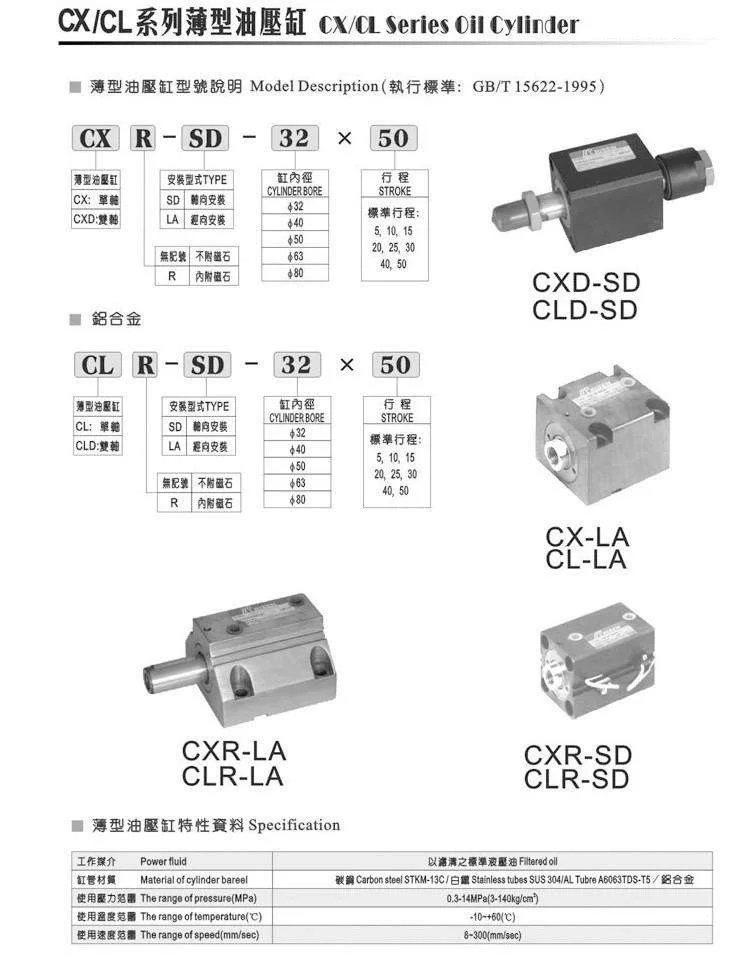

Technical Specifications:
