Light steel keel drywall galvanized metal stud and track

Product Overview

Description

Light steel keel drywall galvanized metal stud and track

PRODUCT DETAILS:

Application: stud and track are the frame materials for the drywall system , applied in all kinds of public buildings and resident buildings.



Features:

1, much easier and faster installation than the traditional brick walls, cost and time effective;

2, gypsum drywall system features excellent performance in sound-proof and anti-humidity;

3, fire-retardant function can save more life during fire emergency.



Materials: stud and track are made of galvanized steel coils, through slitting and cold roll forming. The product dimension is accurate.



Commodity	Spec.	Length	Package
	mm	m/pc	Pcs/bundle
STUD	40×34.5×0.40	3M	10
	40×34.5×0.45	3M	10
	40×34.5×0.50	3M	10
TRACK	42×25×0.40	3M	10
	42×25×0.45	3M	10
	42×25×0.50	3M	10
STUD	50×34.5×0.40	3M	10
	50×34.5×0.45	3M	10
	50×34.5×0.50	3M	10
TRACK	52×25×0.40	3M	10
	52×25×0.45	3M	10
	52×25×0.50	3M	10
STUD	70×34.5×0.45	3M	10
	70×34.5×0.50	3M	10
	70×34.5×0.60	3M	10
TRACK	72×25×0.45	3M	10
	72×25×0.50	3M	10
	72×25×0.60	3M	10
STUD	75×34.5×0.45	3M	10
	75×34.5×0.50	3M	10
	75×34.5×0.60	3M	10
	75×34.5×0.70	3M	10
TRACK	75×25×0.45	3M	10
	75×25×0.50	3M	10
	75×25×0.60	3M	10
	75×25×0.70	3M	10
STUD	100×35×32×0.50	3M	10
TRACK	100×25×0.50	3M	10
STUD	48×22×0.33	3M	20
STUD	41×22×0.3	3M	20
Length and thickness can be customized according to customer's request.

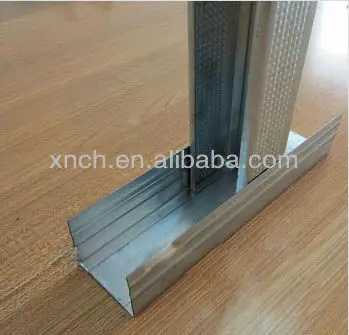

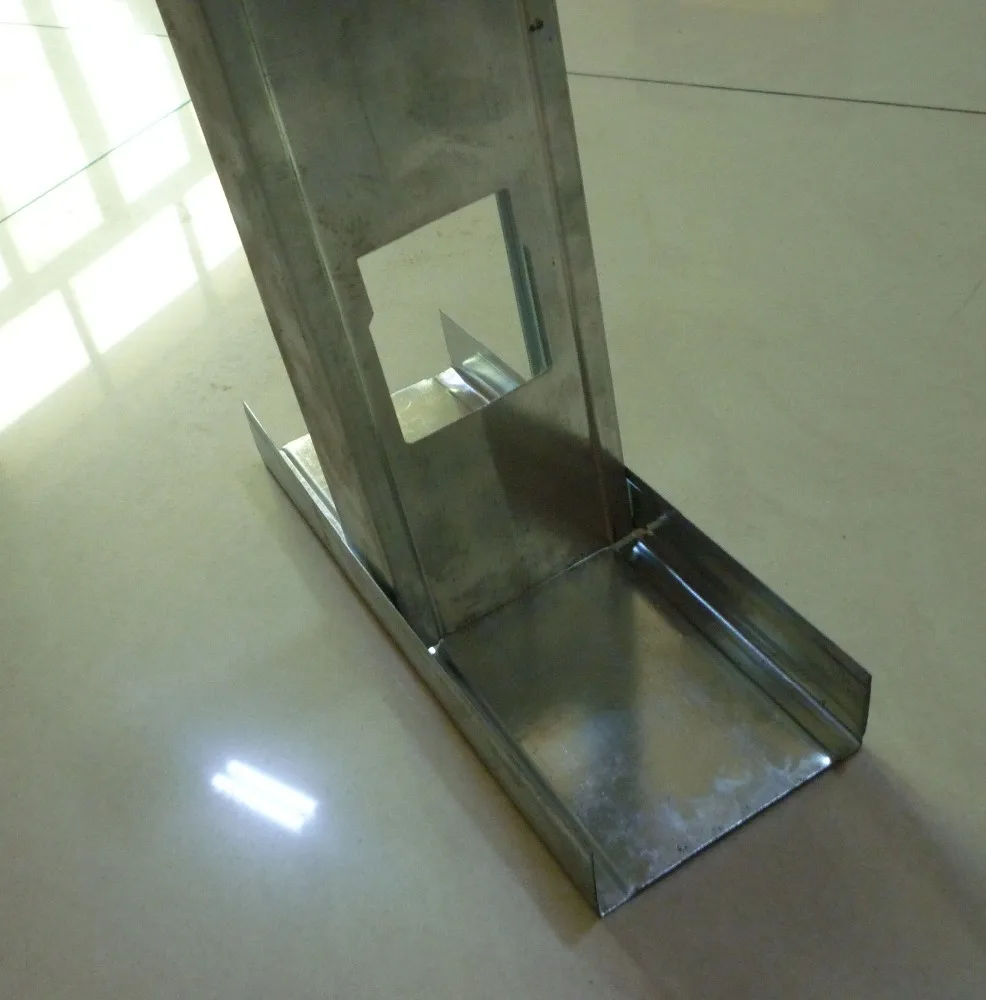

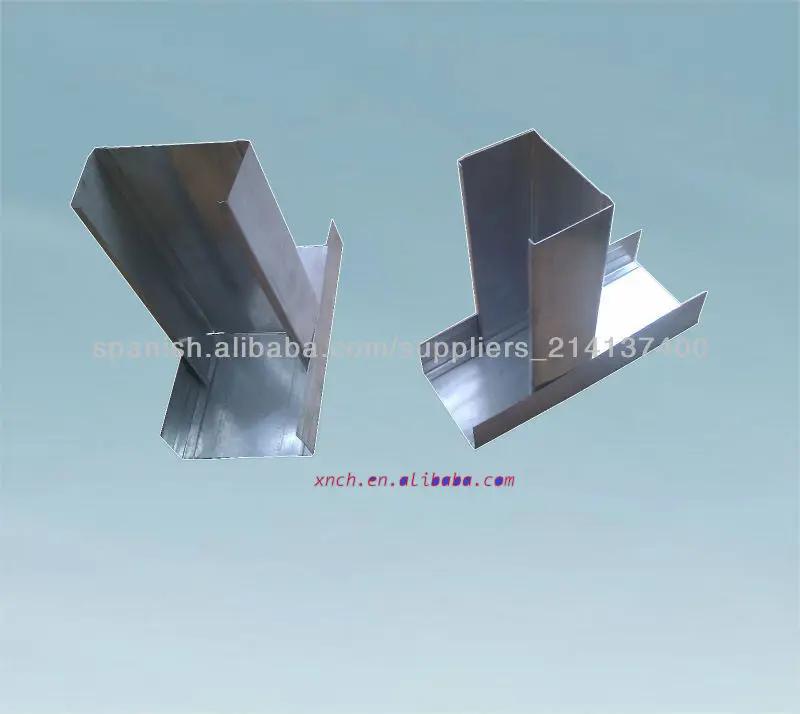

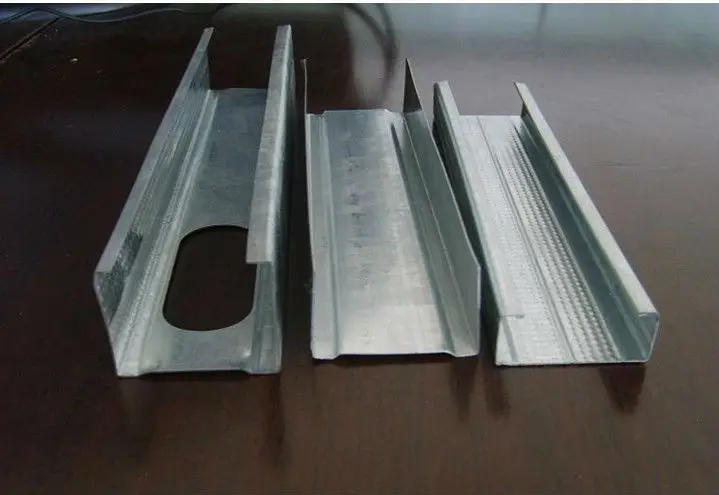

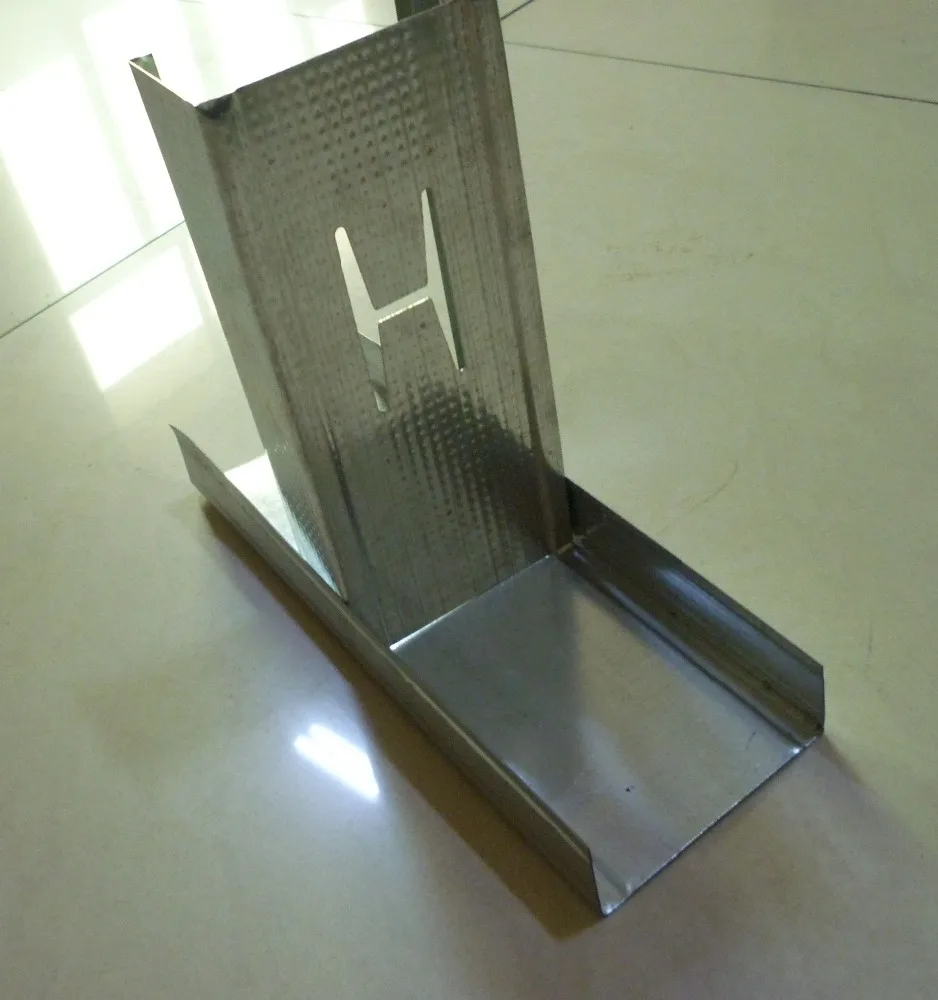

Photo of stud and track

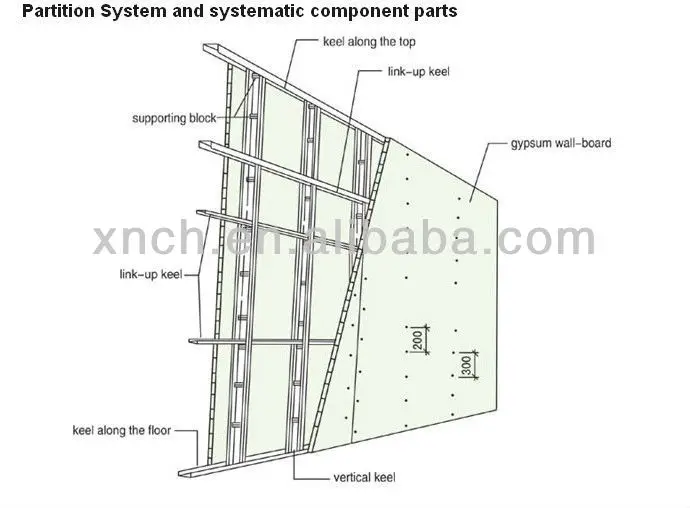

Drywall system







Workshop

ABOUT US

Wen'an Xinchang Building Materials Co.,Ltd. establish in 2004, we are professional manufacture galvanized steel keel, strict production process and conduct production and inspection according to the standard of GB1981-2001. It sells well both at home and abroad and enjoys a good fame.

Our plant works with everything  from the raw materials to the finished product, we can print you company logo on the product.

Please feel free to ask any questions you want.

gypsum drywall metal stud and track
