Product Overview

Description

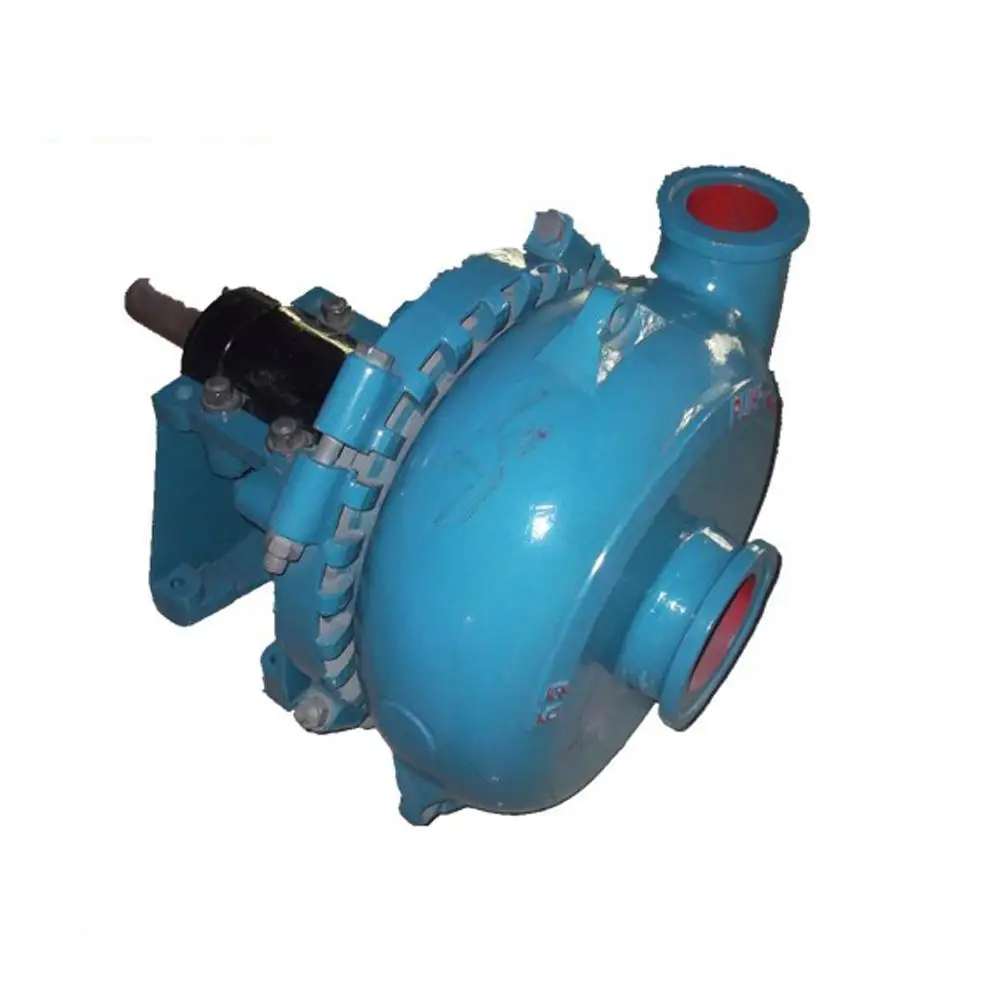

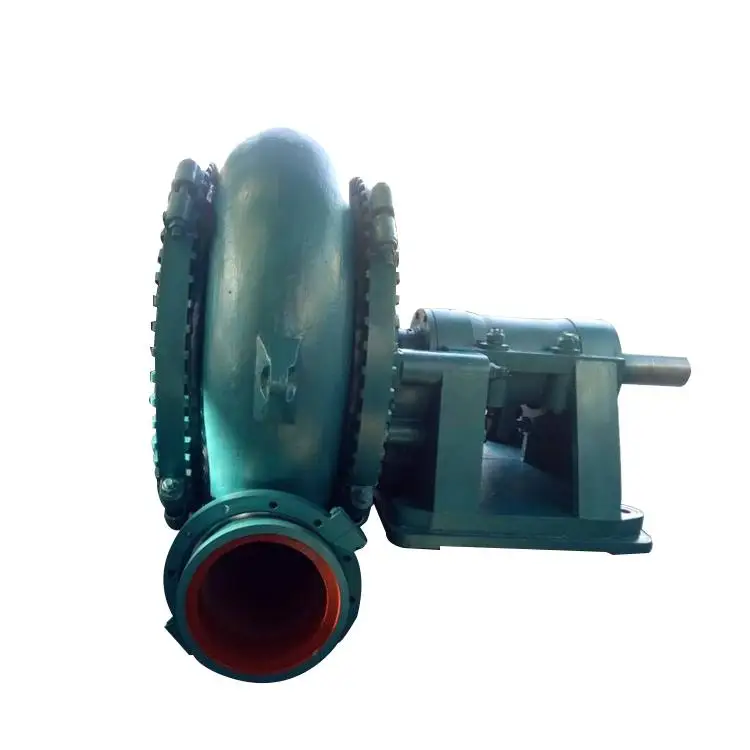

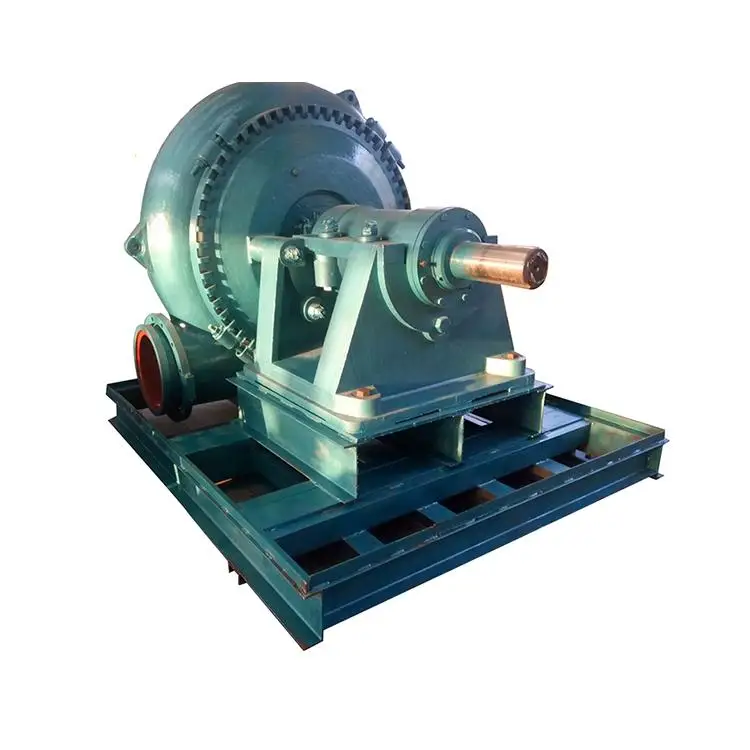

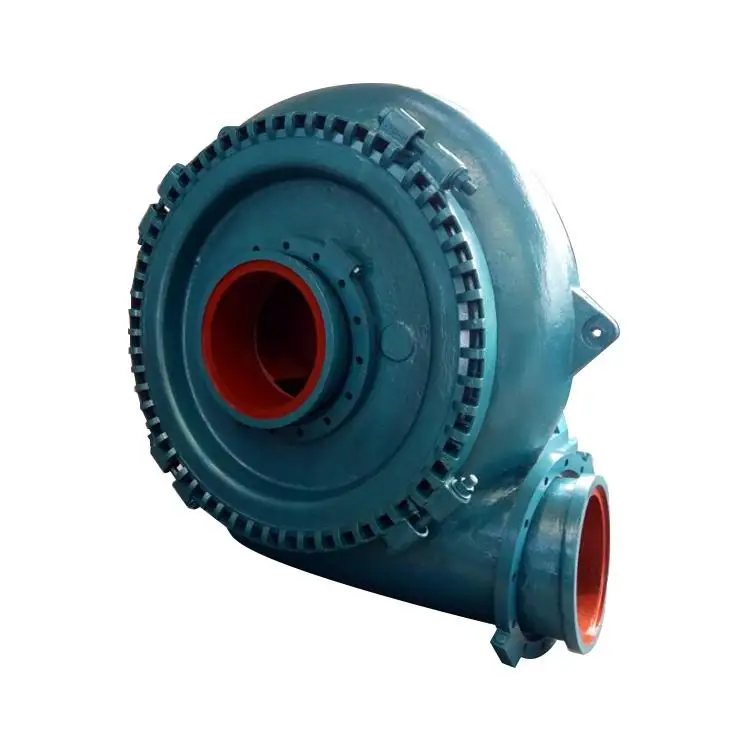

sand pump of barge for sale

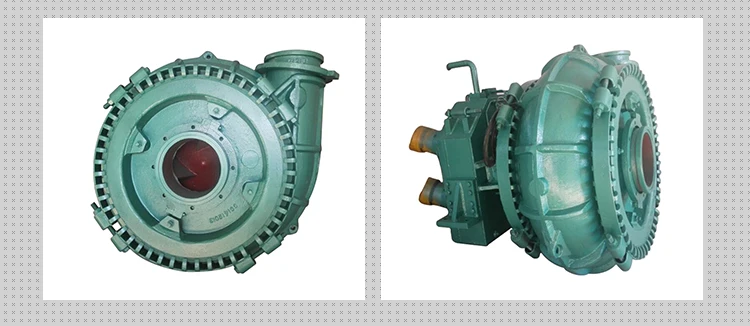

1. G(GH) pump is horizontal cantilevered single-casing centrifugal pump.

2. G type pump adopts clamp bands  clamping pump body and the cover of the pump

3. the discharge direction of pump can be oriented in any direction of 360.
4. The wet-parts are made of Ni-hard and high chromium  alloys.
5. Bearing components use cylindrical structure, easy to adjust the gap between the impeller and pump body.

     It can be removed in the way of the whole when maintenance.Bearing adopt oil lubrication.
6. Shaft seal: packing seal, expeller seal,mechanical seal







      14/12 G—— G

      14—— suction discharge diameter (inch)

      12—— discharge diameter (inch)

      G —— frame form

      G —— gravel pump



      Discharge size: 4 ~ 24 inches(100mm ~ 610mm)

      Flow capacity: up to 12600 m ³ /h(55440gpm)

      Head: up to 92 m(302 foot)

      Max allowable particle size: 380mm



Model	Outlet  Diameter    (mm)	Speed   (r/min)	Performance Parameter			Maximum   Power    (Kw)	Impeller    dia.    (mm)	Max   Partic Size(mm)
			Flow   (m3/h)	Head     (m)	Efficiency     (%)
6/4 D-G	100	600-1400	36-250	7-56	50	60	378	82
8/6 E-G	150	800-1400	180-540	12-52	60	120	378	127
10/8 F-G	200	500-1000	180-820	12-56	60	260	533	178
12/10 G-G	250	400-850	360-1200	12-60	65	600	667	220
14/12 T-G	300	300-700	700-2700	8-70	65	1200	864	241
6/8 F-GH	150	500-1100	520-900	18-80	70	260	610	140
10/8 S-GH	200	500-950	750-1300	20-75	70	560	686	180
12/10G-GH	250	350-700	1400-2700	10-60	70	600	915	210





1.Gravel pumps are designed for continuously handling the most difficult higher abrasive slurries

which contain too big solids to be pumped by a common pump.

2.Dredging, suck gravel in the dredger,  suck gravel in the course of rivers
3.Delivering slurries in mining, explosive sludge in metal smelting
4.Type GH pumps are of high-head ones

1. It uses modern CAD design method, and has excellent hydraulic performance, high efficiency, and low wear rate;
2. It has wide runner, good anti-clogging performance, and excellent cavitation performance;
3. It uses expeller and filler combined seal and mechanical seal, ensuring that the slurry doesn't leak;
4. The reliability design greatly improves mean time between failures (MTBF) of complete machine;
5. It uses thin oil lubrication metric bearing, and rationally sets lubrication and cooling system to ensure that the bearing operates at low temperature;
6. Flow passage components are made of special materials, so they have good wear resistance and corrosive resistance; after special processing, they are used for seawater dusting, and seawater and salt mist electrochemical corrosion conditions;
7. In allowable pressure range, it can be used in series in stages, and allowable maximum working pressure is 3.6Mpa.





We can offer and select pumps according to your requested Head of Delivery and Flow Rate.
For select a proper slurry pump,could you please tell us some information?
1. Discharge Head :____meters
2.Flow Rate/Capacity:__________m³/hour
3.Your local Power:___Voltage,____Hz
4.Slurry Specific Gravity :____
5.NPSH:__Meters
6.Max allowed particle:__mm
7.Do you need electric motor?
8.Drive Type_________
9.Do you have any other requests?
