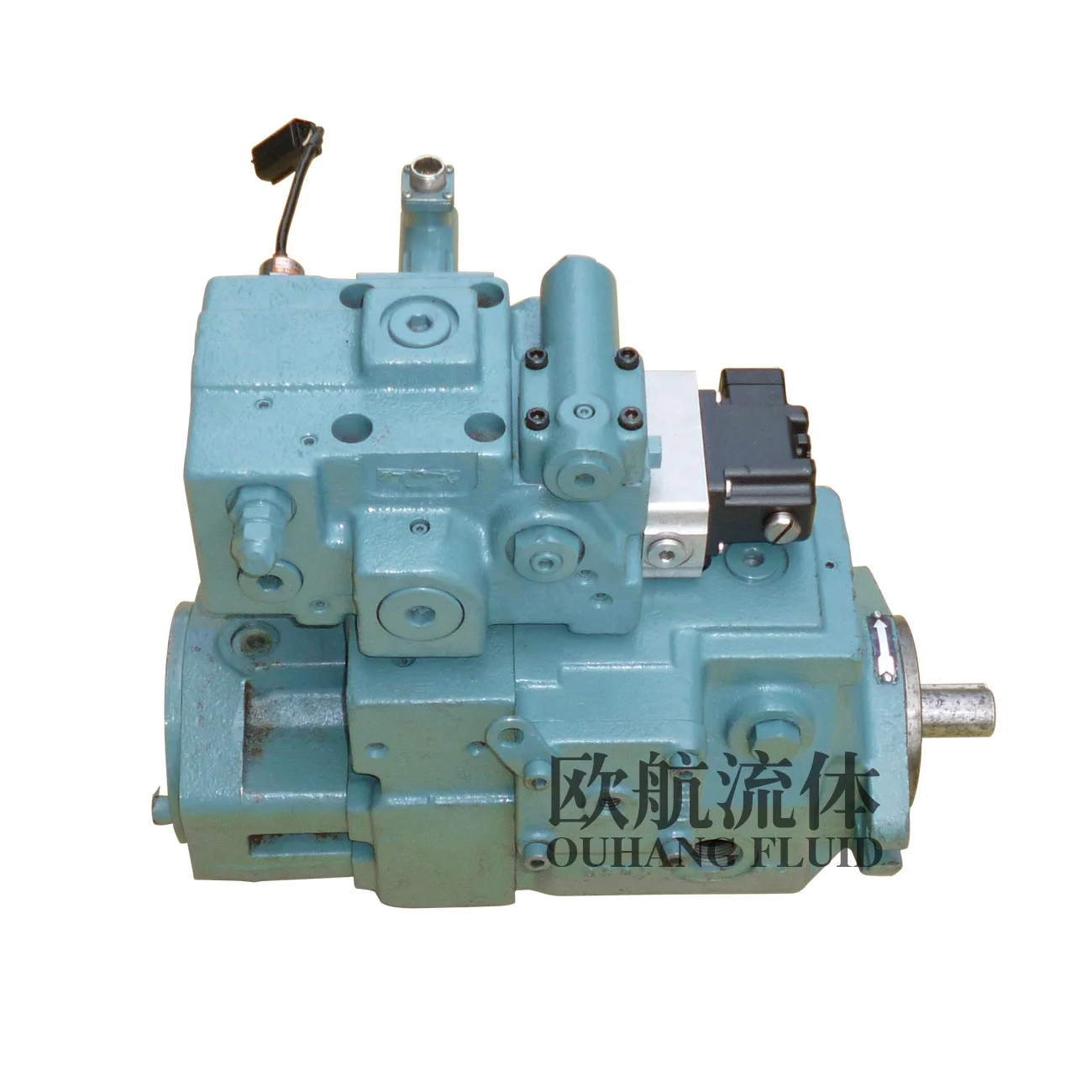

Original Japanese axial piston pump VZ50SAMS 30S04 or parts
- Category: >>>
- Supplier: Shenzhen Ou Hang Fluid Power Co. Ltd.
Share on (1869471887):
Product Overview
Description
Product Description
Features：
Long-term operation, low working noise, high efficiency, high density medium discharge
High-density medium discharge-due to the use of supporting swash plates, small size, light weight and high pressure have been achieved, thereby increasing the output power per unit weight.
Low working noise-While increasing the rigidity of the swash plate structure, the rack designed with the latest measurement and analysis technology greatly reduces the running noise.
High efficiency-The use of ball valve plates and appropriate oil pressure balance expands the operating conditions and produces high efficiency. Long-term operation-due to the use of excellent wear-resistant ball valve plate, enhanced anti-pollution characteristics.
Long-term operation, low working noise, high efficiency, high density medium discharge
High-density medium discharge-due to the use of supporting swash plates, small size, light weight and high pressure have been achieved, thereby increasing the output power per unit weight.
Low working noise-While increasing the rigidity of the swash plate structure, the rack designed with the latest measurement and analysis technology greatly reduces the running noise.
High efficiency-The use of ball valve plates and appropriate oil pressure balance expands the operating conditions and produces high efficiency. Long-term operation-due to the use of excellent wear-resistant ball valve plate, enhanced anti-pollution characteristics.
Technical Parameters
Basic model | Theoretical displacement | Working pressure | Allowable speed | Flow adjustment range | Weight (Control Method A) | ||
cm2/rev | MPa{kgt/cm2} | min | 1800min | Kg | |||
Max | Rated | ||||||
VZ50 | 50.2 | 28{280} | 25{250} | 500-1800 | 0-90 | 40 | |
VZ63 | 63.0 | 28{280} | 25{250} | 500-1800 | 0-113 | 47 | |
VZ80 | 79.6 | 28{280} | 25{250} | 500-1800 | 0-143 | 55 | |
VZ100 | 104.6 | 28{280} | 25{250} | 500-1800 | 0-188 | 75 | |
VZ130 | 135.9 | 21{210} | 17.5{175} | 500-1800 | 0-244 | 105 | |
