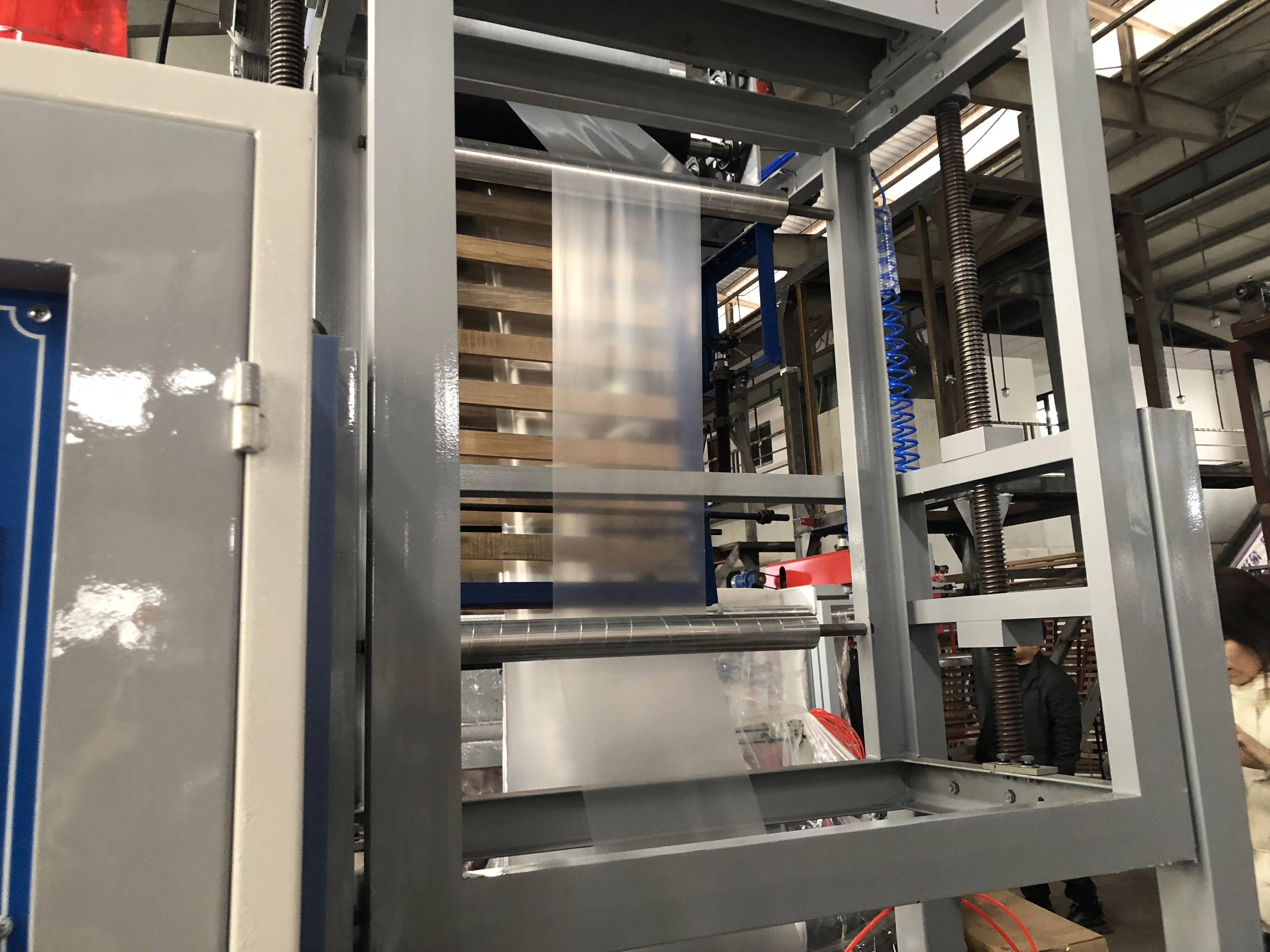

Mini Extruder Plastic Machine Mini PE Film Blowing Machine

Product Overview

Description

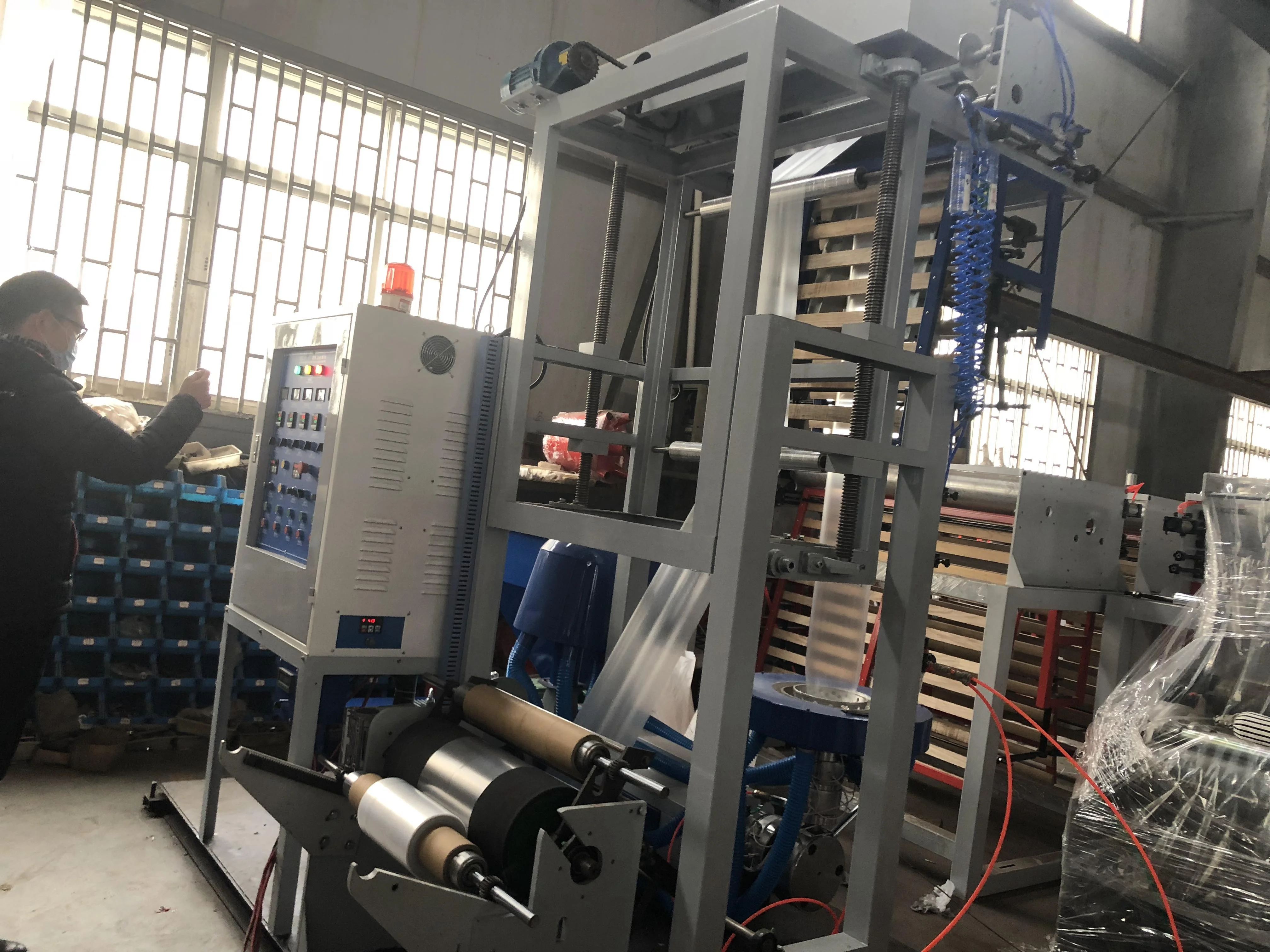

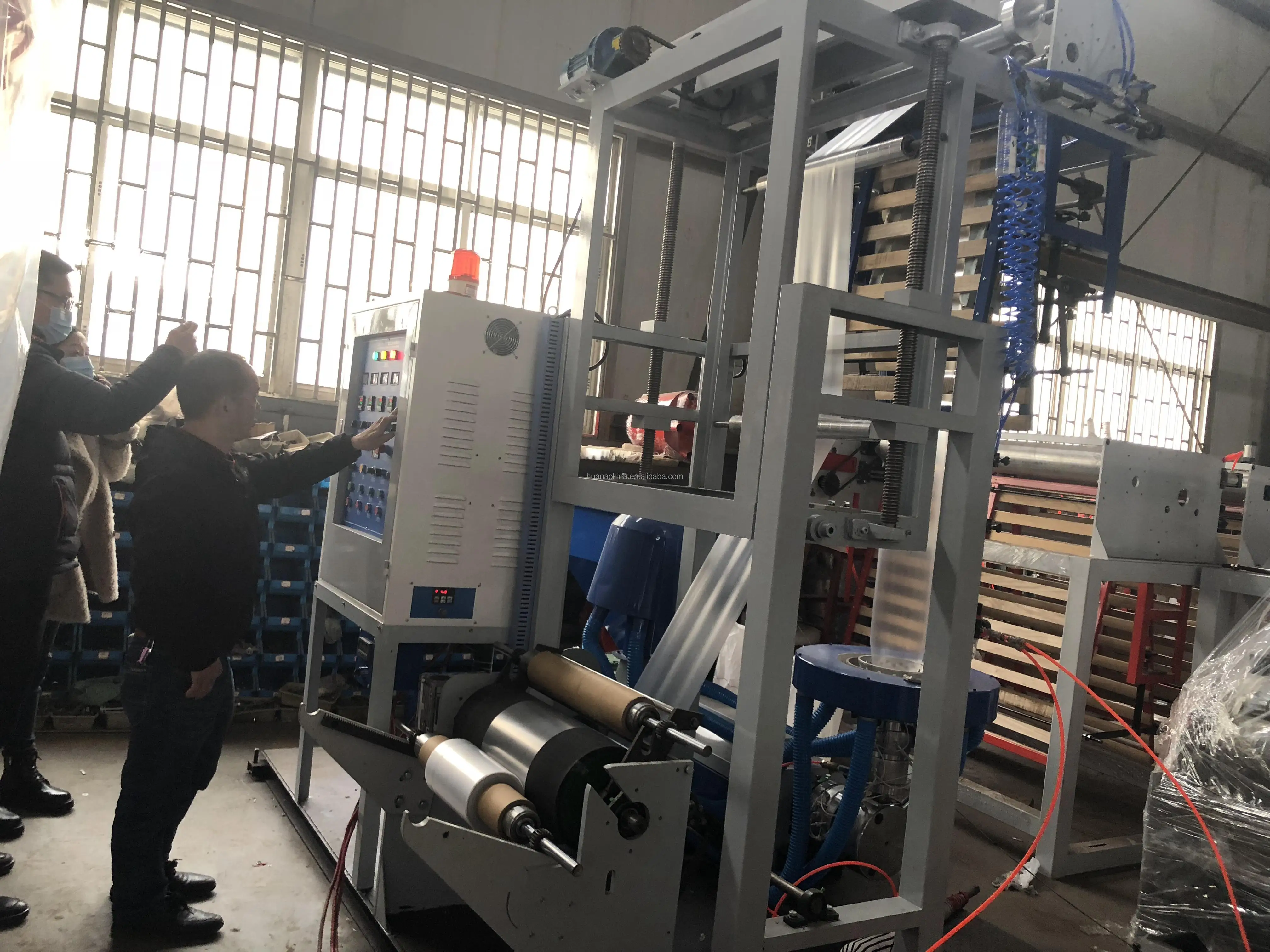

 SJ50-600Mini PE Film Blowing Machine

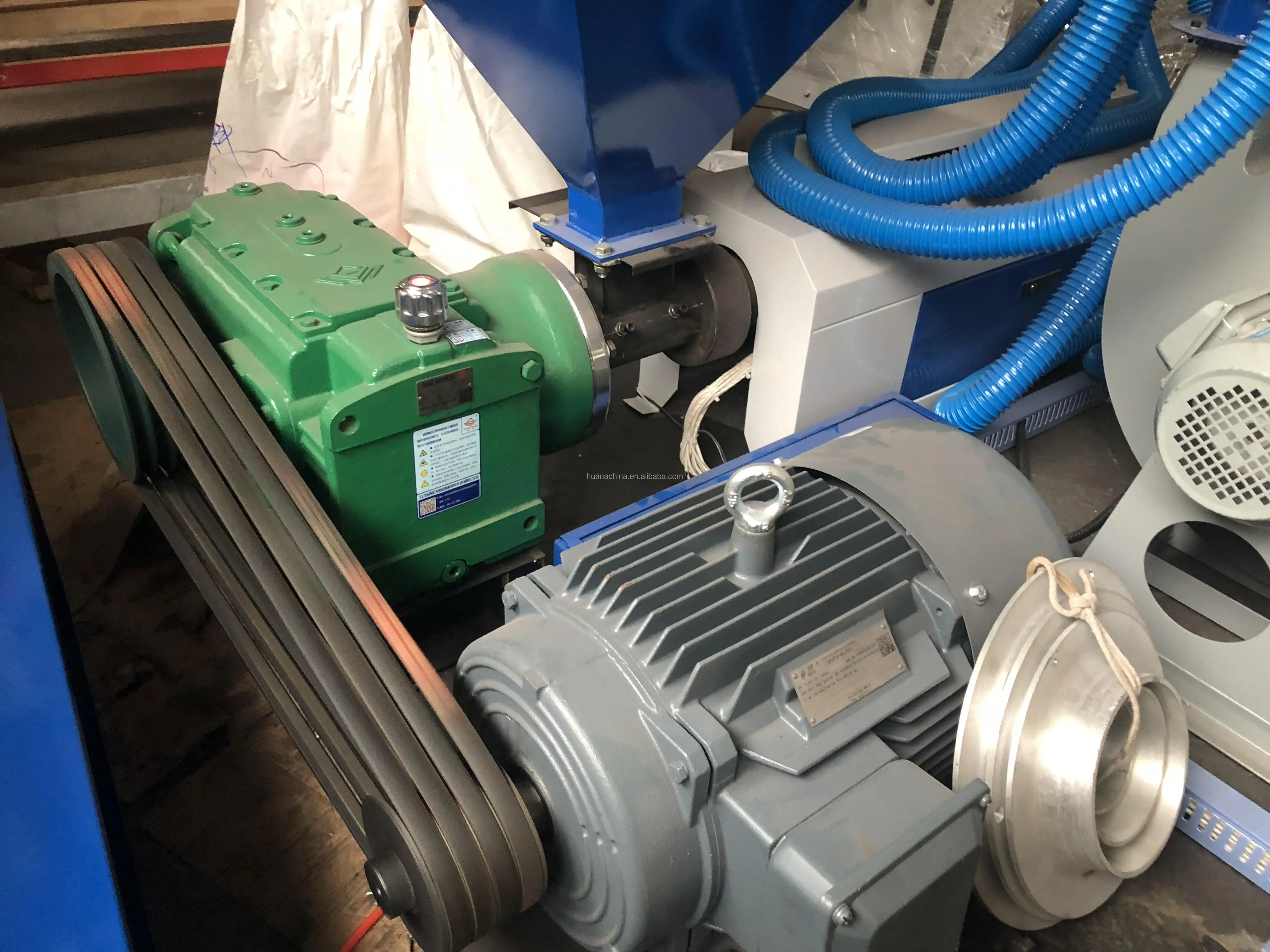

Its extruder,cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in precision way. Hence it is sound in hardness,durable in corrosion resistance.The specially-designed screw is of sound quality in plasticizing,which helps increase the production capacity,it is applied to blowing the plastic films like low density polytene(LDPE).High density polytene(HDPE) and linear low density polytene(LLDPE). It is widely applied to producing the packing bags for foodstuff clothing,rubbish bag and vest ones.





Feature:

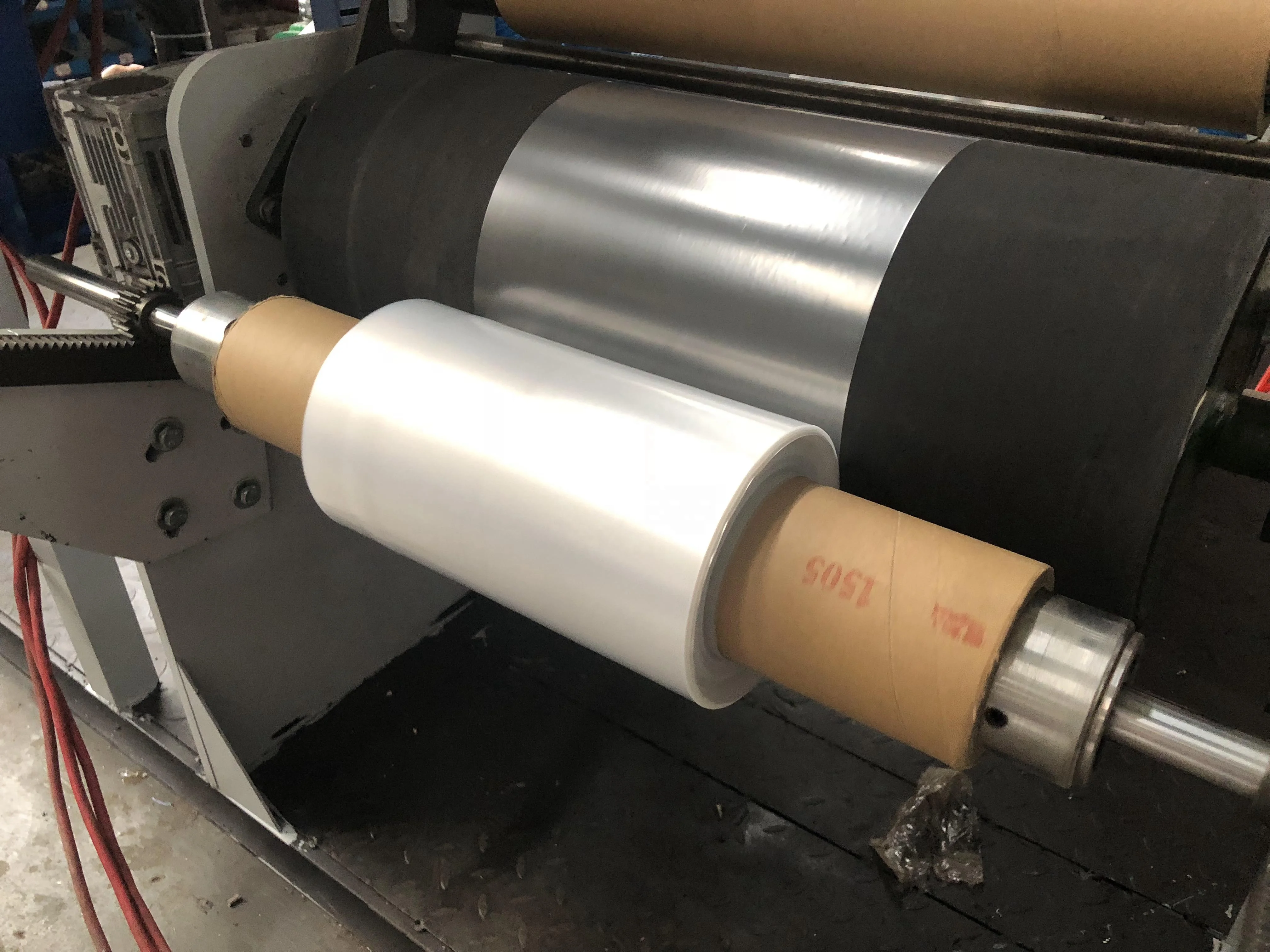

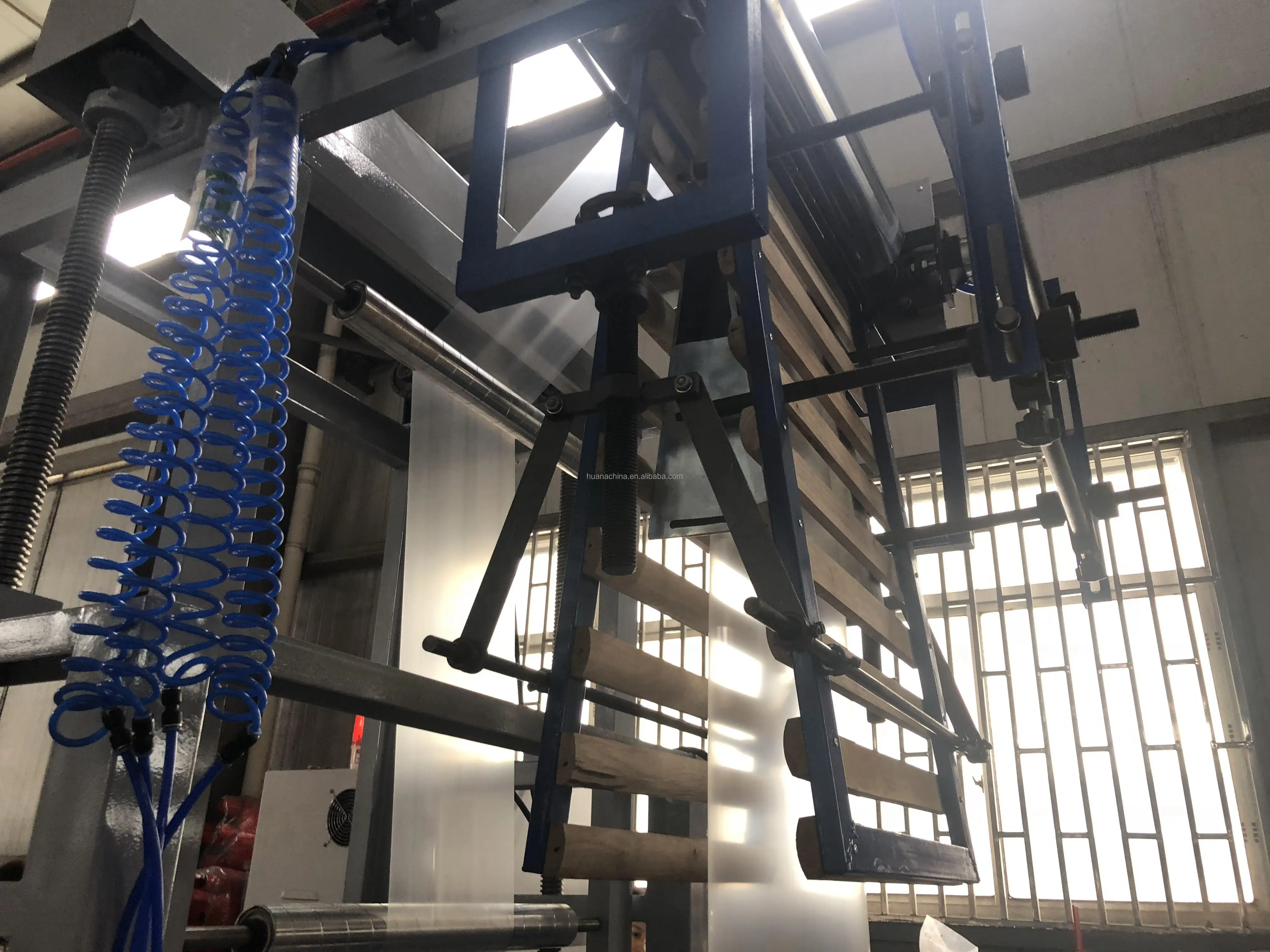

1).Whole machine is made of one set of traction main engine, double barrels and one die. Two barrels feed material, one die extrude the film and traction rolling device which can improve the color bar film outputs.



2).Screw and barrel are made of 38CrMoAl that have been nitrided and processed in a precision way. Good hardness, hight corrosion resistance and wear well.

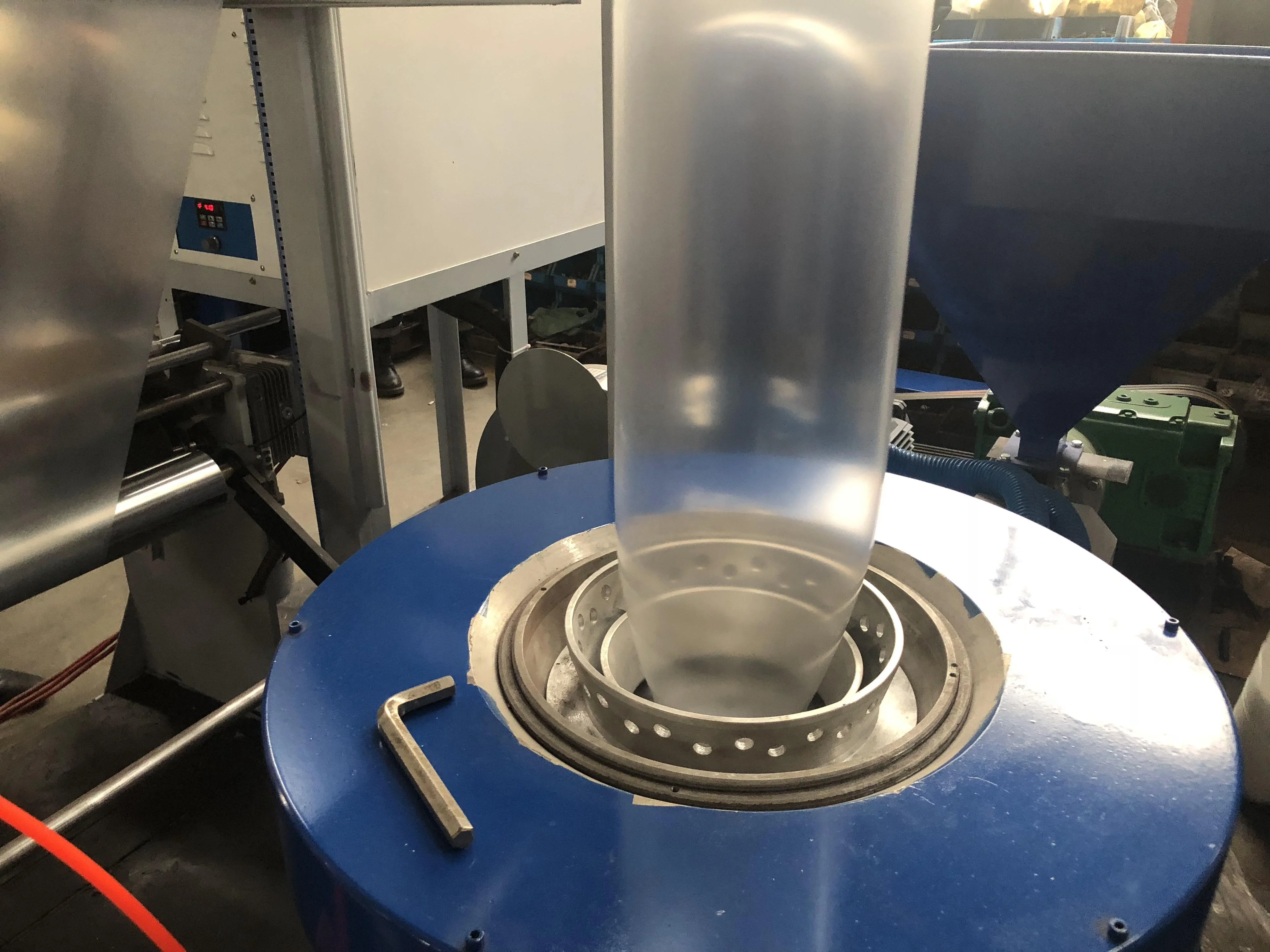

3).Die with hard chrome plating, spiral core shaft type. The melting charge extruded in equality, and the film blown with good fineness. Air cooling device is U maze with balance airflow





Main Technical Variables

Model	SJ45-500	SJ50-600
screw diameter	Φ45	Φ50
screw ratio L/D	28:1	28:1
screw speed	15-100r/min	15-100r/min
main motor power	7.5kw	11kw
extrusion output(single)	25kg/h	30kg/h
range of die	Φ50	Φ60
single-sided thickness of film	0.008-0.08mm	0.008-0.08mm
max folding width of film	400mm	500mm
electric total capacity	18kw	24kw
overall dimension	2400×2100×2800	2500×2150×2800
weight of machint	1.8T	2.2T
