Product Overview

Description

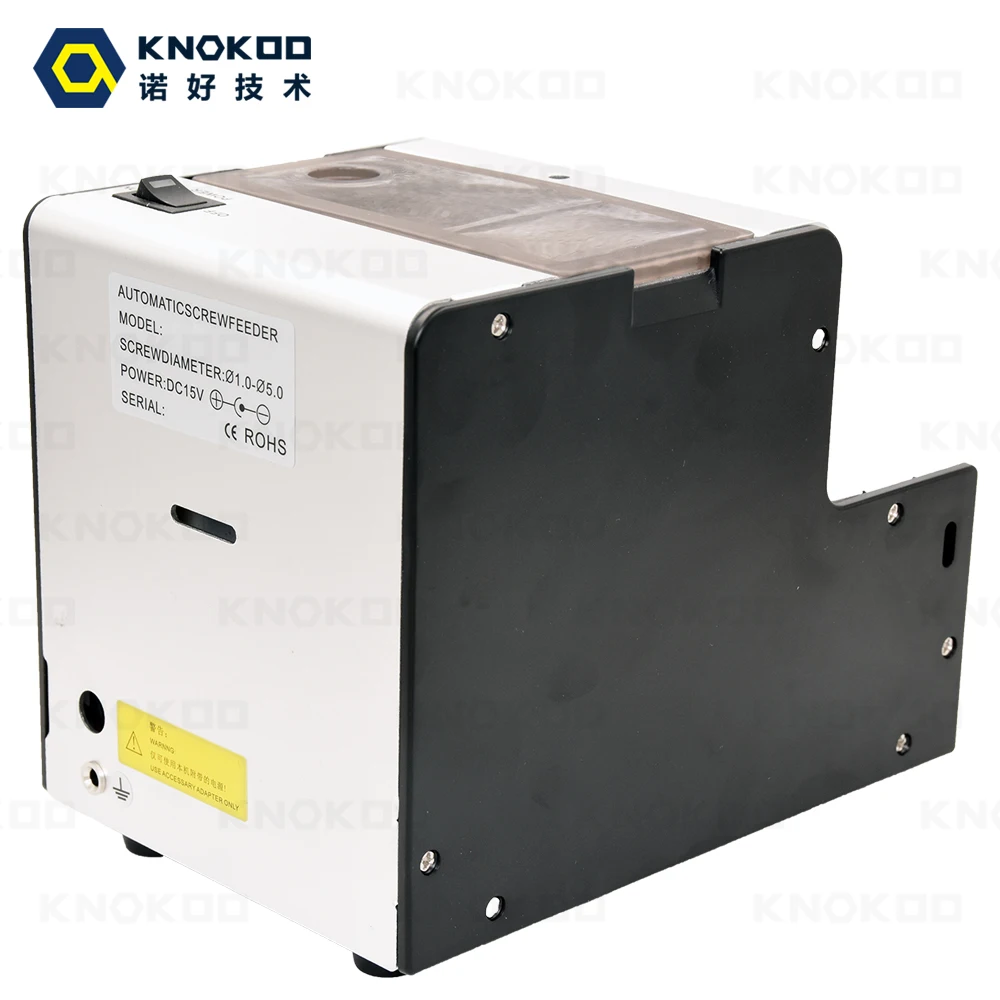

KNOKOO MKS-615 Automatic screw feeder with adjustable rail,M1-M5 rail

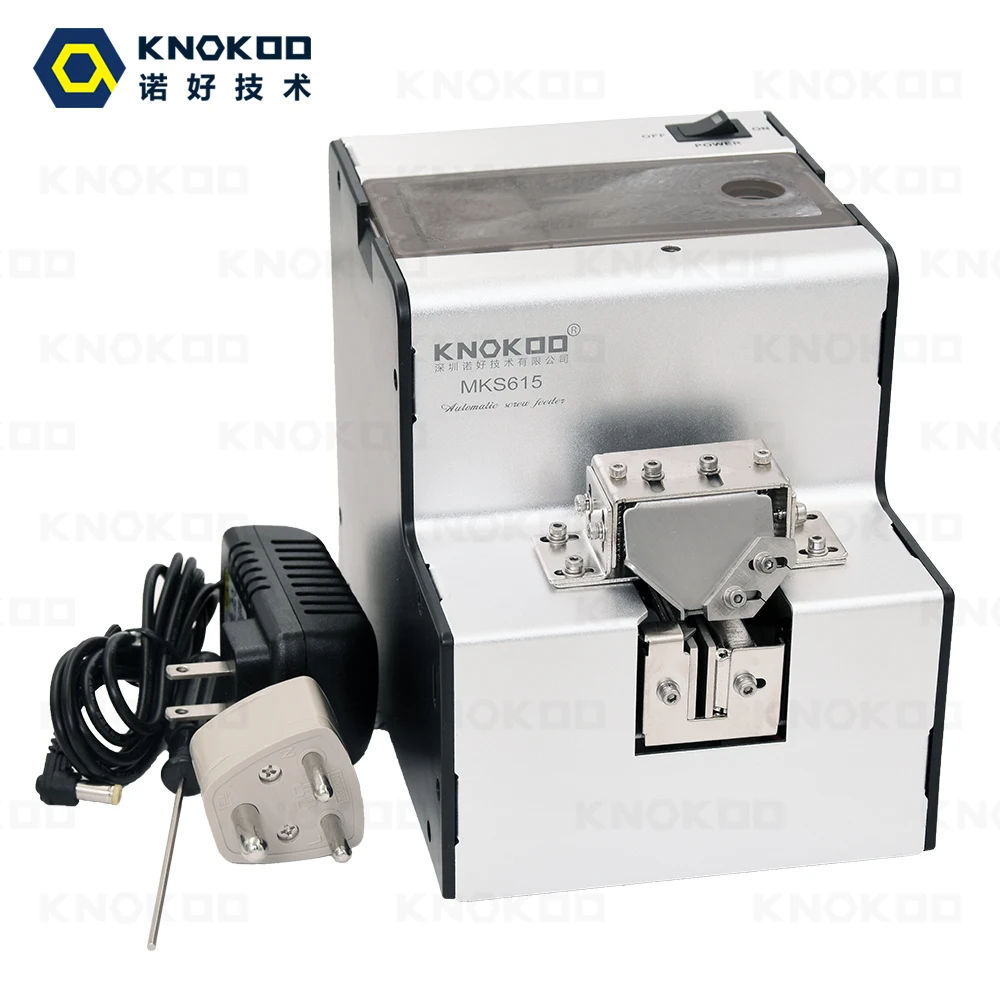

• MKS-615 Automatic Screw Feeder

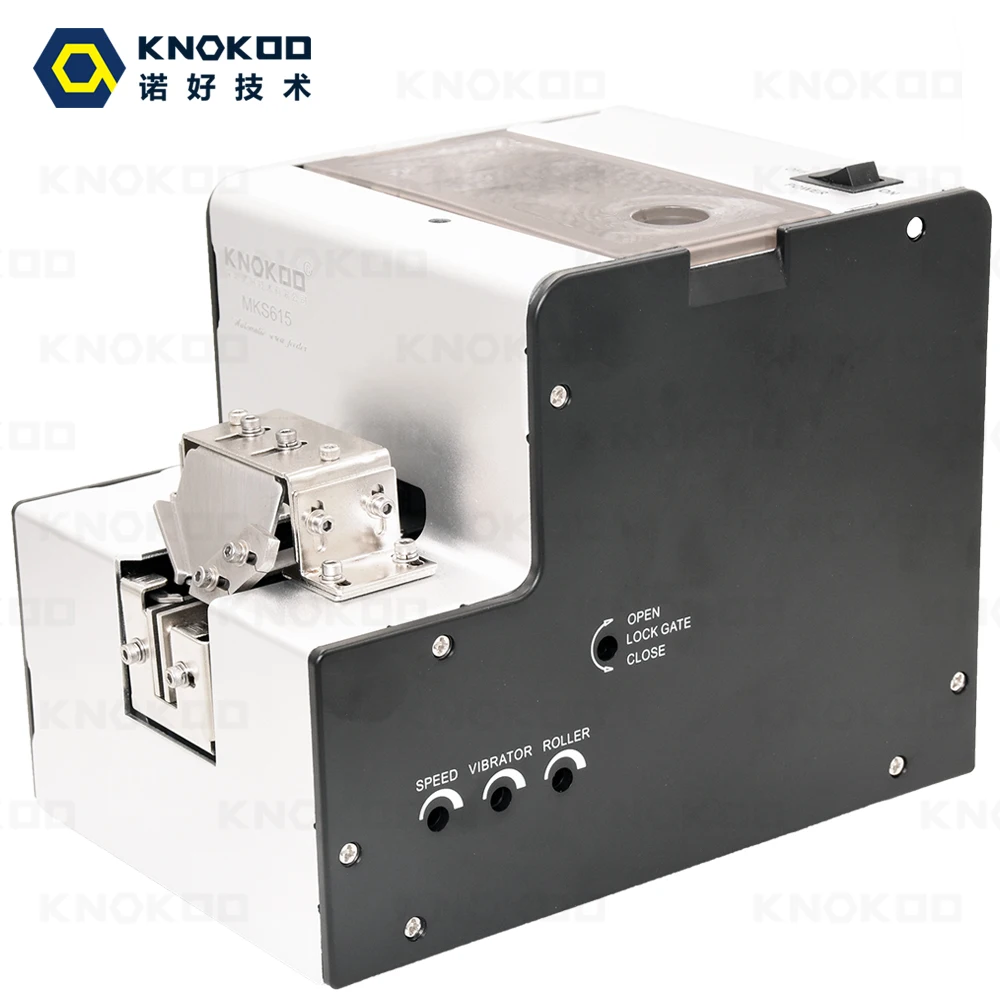

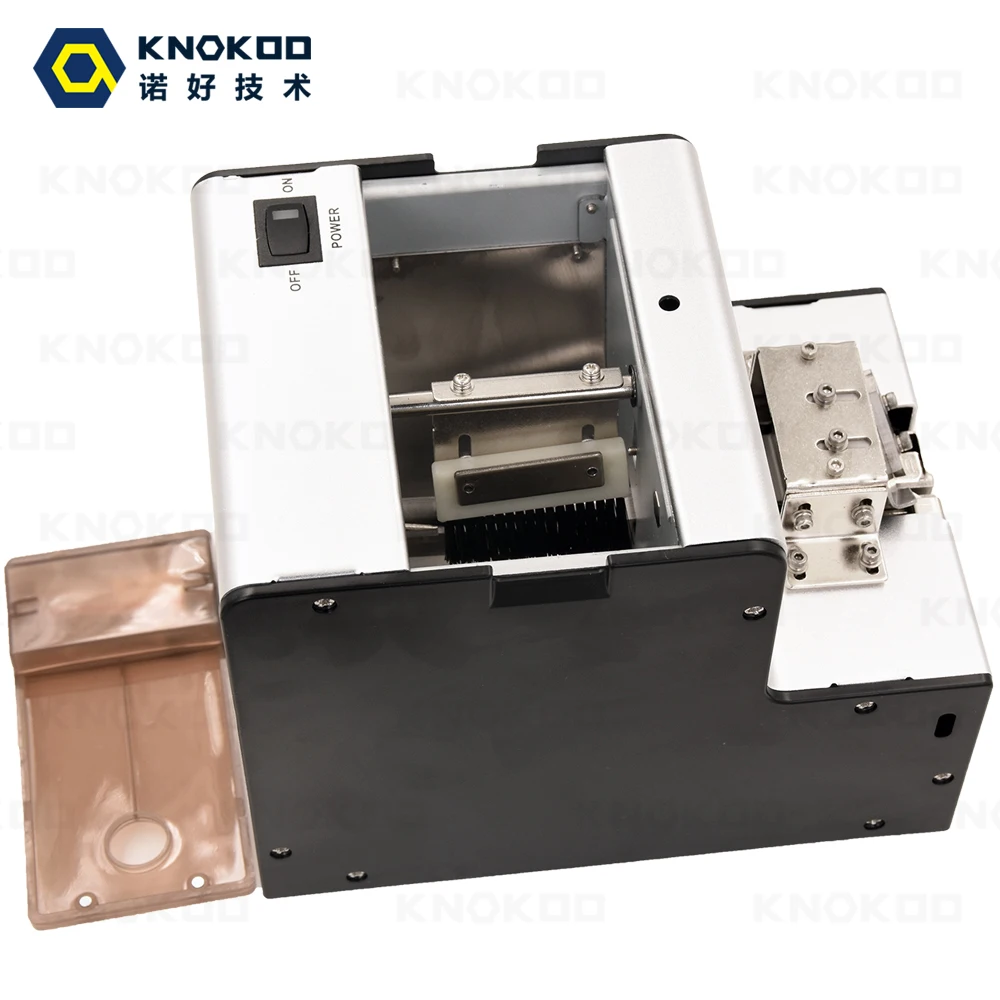

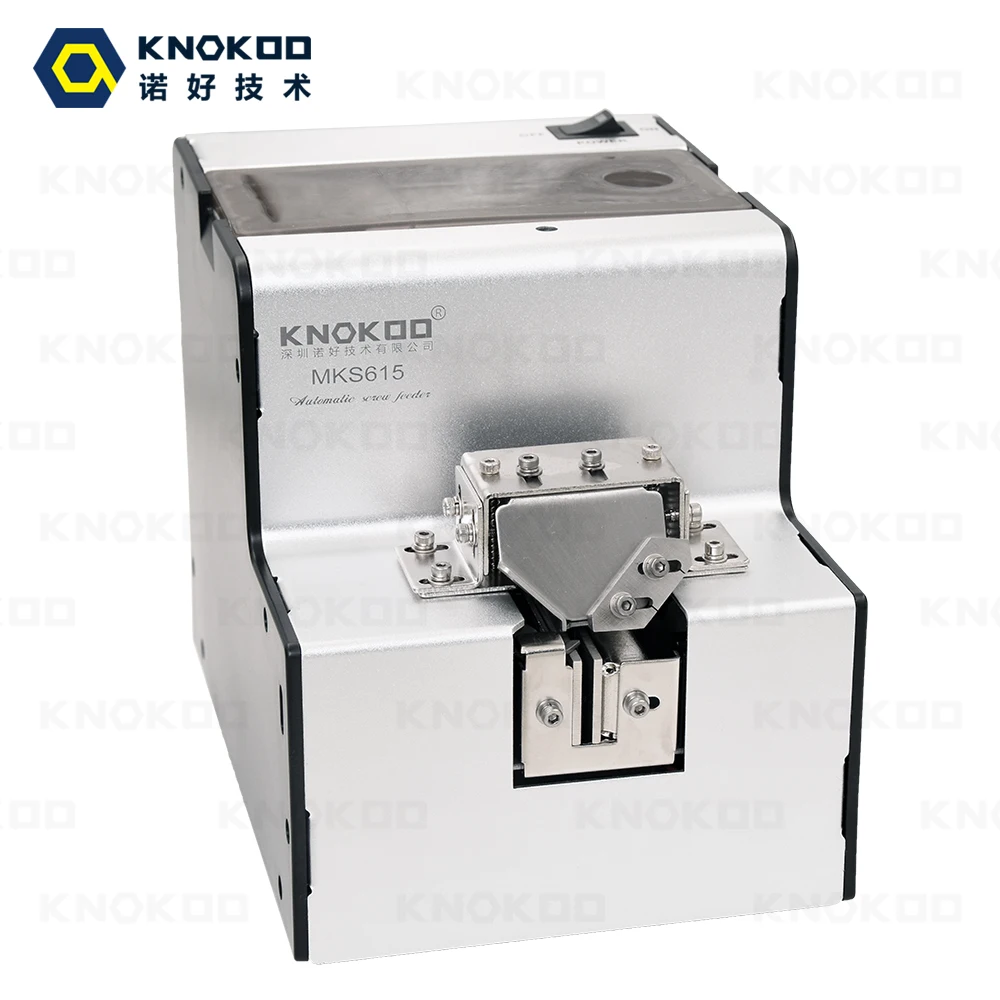

• Screw feeder with adjustable rail


• Screw feeder with M1-M5 rail



Parameters:

• Model No.:MKS-615


• Brand:KNOKOO


• Applied screw: various types of screws including screw with washer (max. length=20mm)


• Applied to M1.0~M5


• Feeding speed max. 60~90pcs per min., speed adjustable


• Feeding speed: 2pcs/sec input


• Product dimension:180mm*125mm*150mm(L*W*H)


• Voltage:110V-240V


• G.W 3.5kgs

Features:

• No need to change part, work 24 hours continuously


• No screw block phenomenon, quality reliable


• One machine can be applied to various size screw from M1.0~M5.0(1.0/1.2/1.4/1.7/2.0/2.3/2.6/3.0/3.5/4.0/5.0)


• Special screw like 1:1 short screw or screw with washer can be applied with


• Rail adjustment convenient, just need pull out the rail, freely adjust the rail width, very easy


• No screw block phenomenon, the screw is rotated in the roller, the screw out of the rail will enter into another rotating circle


• Freely adjust the working speed


• Adjust the vibration to change the speed, the screw will not vibrate at the outlet, which will not effect the working efficiency


• Alarm function: feeding and vibrating is controlled separately, freely set the ideal delay time. It will alarm once abnormal phenomenon occurred


• Operation is so easy as other normal screw feeder

Accessories:

• Operation manual,


• internal hexagonal wrench,


• DC power supply(input: 100~220V,output:DC12V)
