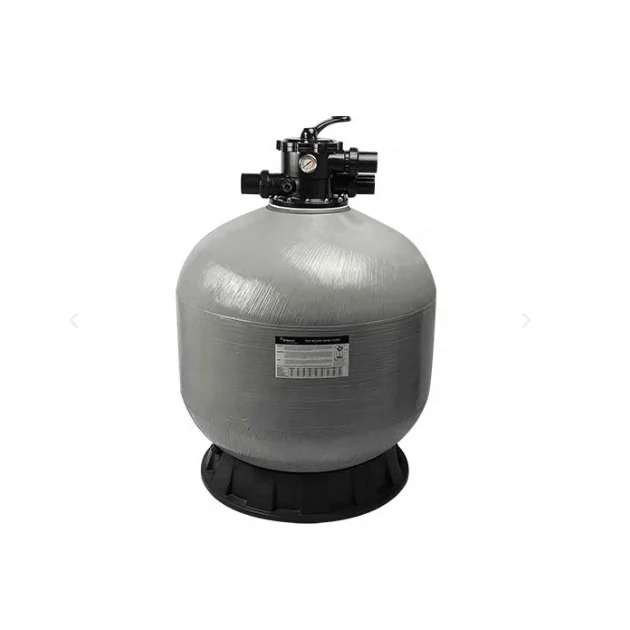

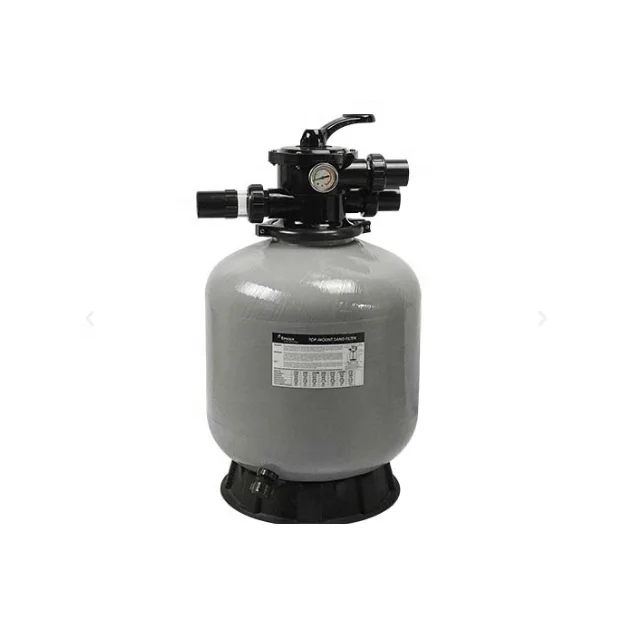

Bobbin Wound Fiberglass Top Mount Sand Filter
Bobbin Wound Fiberglass Top Mount Sand Filter
Bobbin Wound Fiberglass Top Mount Sand Filter
Bobbin Wound Fiberglass Top Mount Sand Filter

Bobbin Wound Fiberglass Top Mount Sand Filter

Share on (1869979435):


Price:$125.00 - $140.00

Quantity:


Product Overview

Description



Product Description





The bobbin-wound filter is manufactured by computerized fiberglass filament winding technology. This provides the mechanical strength of the filter tank and its ability to withstand pressure. V Series and S Series are manufactured by automatic bobbin winding technology from long-lasting and non-corrosive fiberglass and resin. The UV resistant composites allow the filter to resist extreme weather conditions for a long working life without corrosion.




V Series Filter is equipped with :

1. 6-way clamp/bolt style multiport valve (1.5”MPV01, 2”MPV02, 2.5MPV12)
2. universal standard of union connection
3. pressure gauge
4. lateral system



Specification

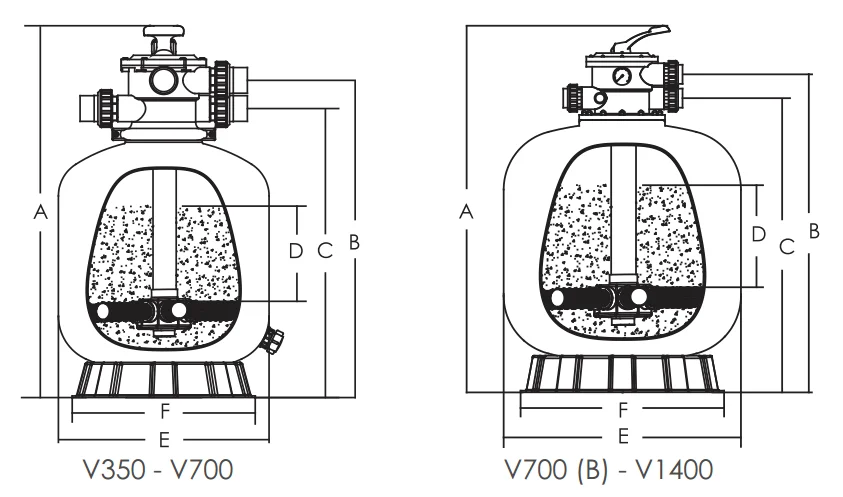

Dimensions:


Model
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
F (mm)
V350
726
619
550
160
355
298
V400
757
640
590
175
410
390
V450
814
698
638
210
455
390
V500
845
730
670
235
535
500
V650
950
835
775
300
635
500
V700
1020
905
845
330
710
500
V800
1200
1085
1002
425
800
780
V900
1300
1172
1090
480
900
780
V1000
1400
1340
1260
580
1000
780
V1200
1600
1550
1468
740
1200
1000
V1400
1845
1683
1586
750
1400
1000




Technical Information:



Model
Filter Area (m2)
Valve Connections
Max Flow Rate
Sand (kg)
V350
0.09
1.5” / 50mm
4.32 m3 /h
20
V400
0.13
1.5” / 50mm
6.48 m3 /h
35
V450
0.16
1.5” / 50mm
8.1 m3 /h
45
V500
0.22
1.5” / 50mm
11.1 m3 /h
85
V650
0.32
1.5” / 50mm
15.6 m3 /h
145
V700
0.4
1.5” / 50mm
19.5 m3 /h
210
V800
0.5
2.0” / 63mm
24.9 m3 /h
355
V900
0.64
2.0” / 63mm
31.2 m3 /h
470
V1000
0.79
2.0” / 63mm
39 m3 /h
620
V1200
1.13
2.0” / 63mm
51.6 m3 /h
860
V1400
1.54
2.0” / 63mm
69.3 m3 /h
1400
