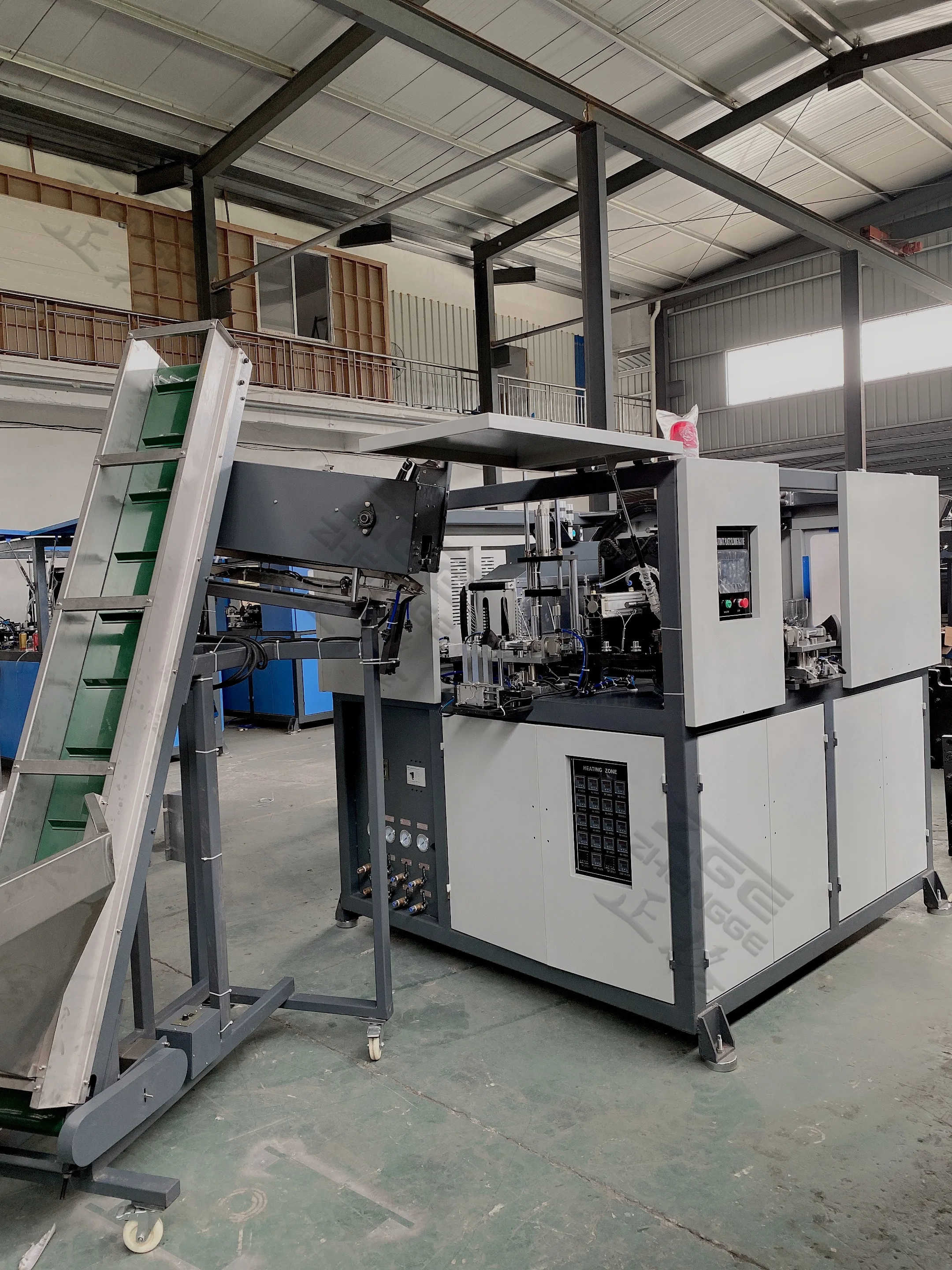

Full Automatic PET Plastic Water Bottle Making Machinery Blow Moulding Machine PET Bottle Blowing Machine Price
- Category: >>>
- Supplier: Taizhou Huangyan Zhengge Plastic Machinery Co. Ltd.
Share on (1870183225):
Product Overview
Description
Product Description

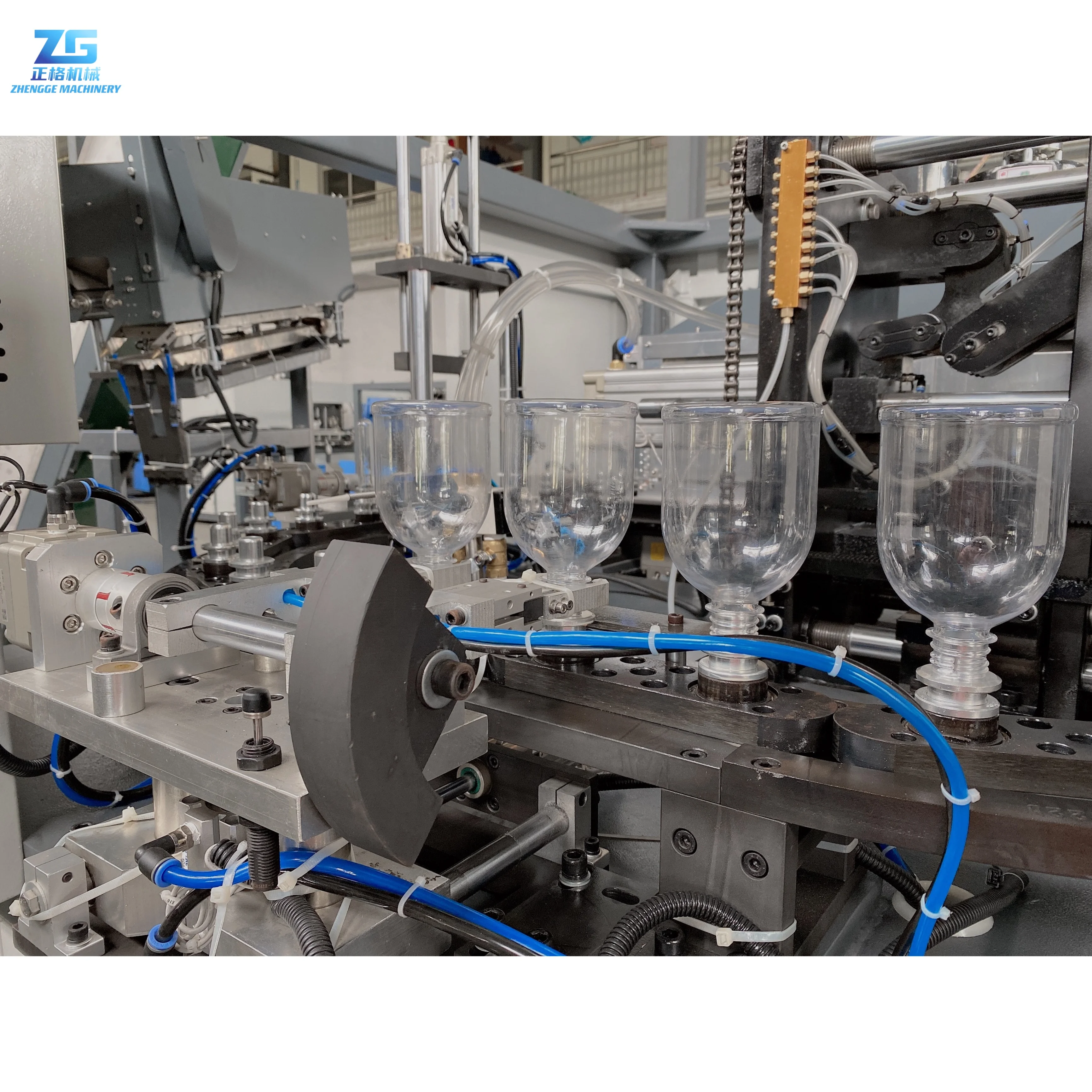

Water Bottle,Liquid Soap Bottle,Cosmetic Bottle,Medicine Bottle Full Automatic PET Plastic Bottle Making Machinery Blow Moulding Machine PET Bottle Blowing Machine Price
Model | ZG-2000 | ||
Theoretical output | 1800-2500pcs/h | ||
Max. bottle volume | 2L | ||
Max. neck diameter | 38mm | ||
Max. bottle diameter | 110mm | ||
Max. bottle height | 365mm | ||
Mold specifications | Cavity | 2 cavity | |
Mold thickness | 180mm-240mm | ||
Open stroke | 130mm | ||
Electrical system | Power voltage | 380v/3Phase/50HZ | |
Installation power | 20kw | ||
Actual power consumption | 15kw | ||
Air source | High pressure air compressor | 1.2m³/min 30Kg | |
Low pressure air compressor | 1.6m³/min 10Kg | ||
Cooling water | Recommend water chiller | 5HP | |
Blowing machine size | Length*width*height/weight | 1980*1650*2020mm/2000kg | |
Preform loader size | Length*width*height/weight | 1950*1350*2650 mm/550kg | |
1. Full automatic running with theoretical output capacity to 2000-2500 bottles per hour for 0.5L, using 2 cavity blow mold.
2. Suitable to produce 0.05 ~ 2.0L Standard neck PET bottle.
3. Easy to operate, all the work is automatic.
Control system 1. Adopt world famous brand PLC to control the machine. Easy to operate. 2. Built-in memory of the PLC saves all the sets of numbers required to produce different size bottles. | ||
Structure 1.This machine dopt slider plate structure. It is the most stable and durable structure. | ||
Heating system 1. Adopt infrared lamp. 2.Equip with 8 layer heating tunnel. Make sure fast heating. 3. Each layer of lamp controlled independently,suitable for different kinds of preform. 4. Adopt water cooling and air cooling system. | ||
Bottle conveyer system Taking out the finished bottle and connnect with filling line,make your production full automatic. | ||

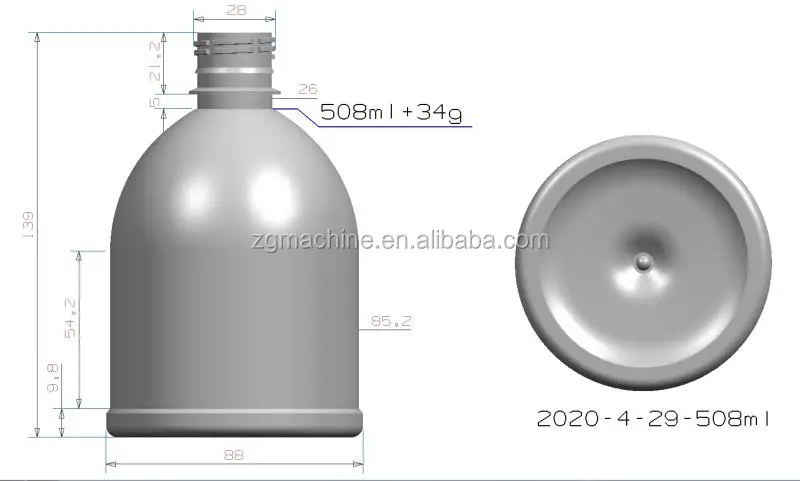

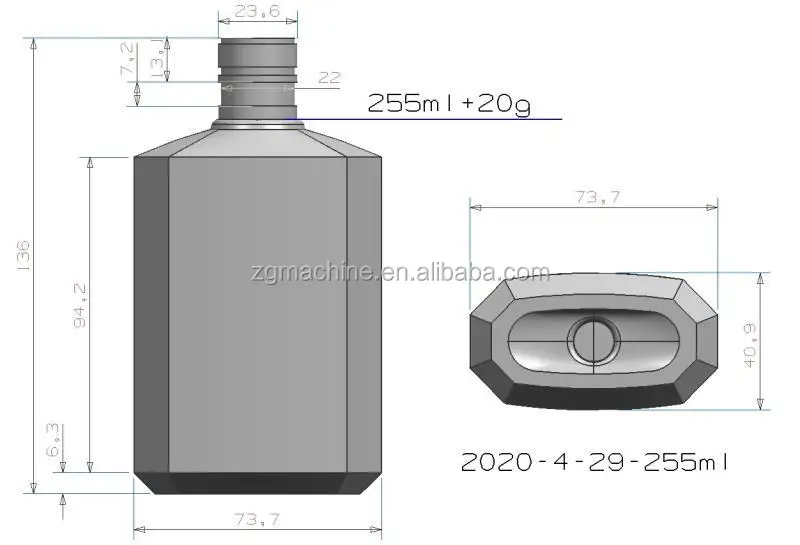

We offer free bottle design service.

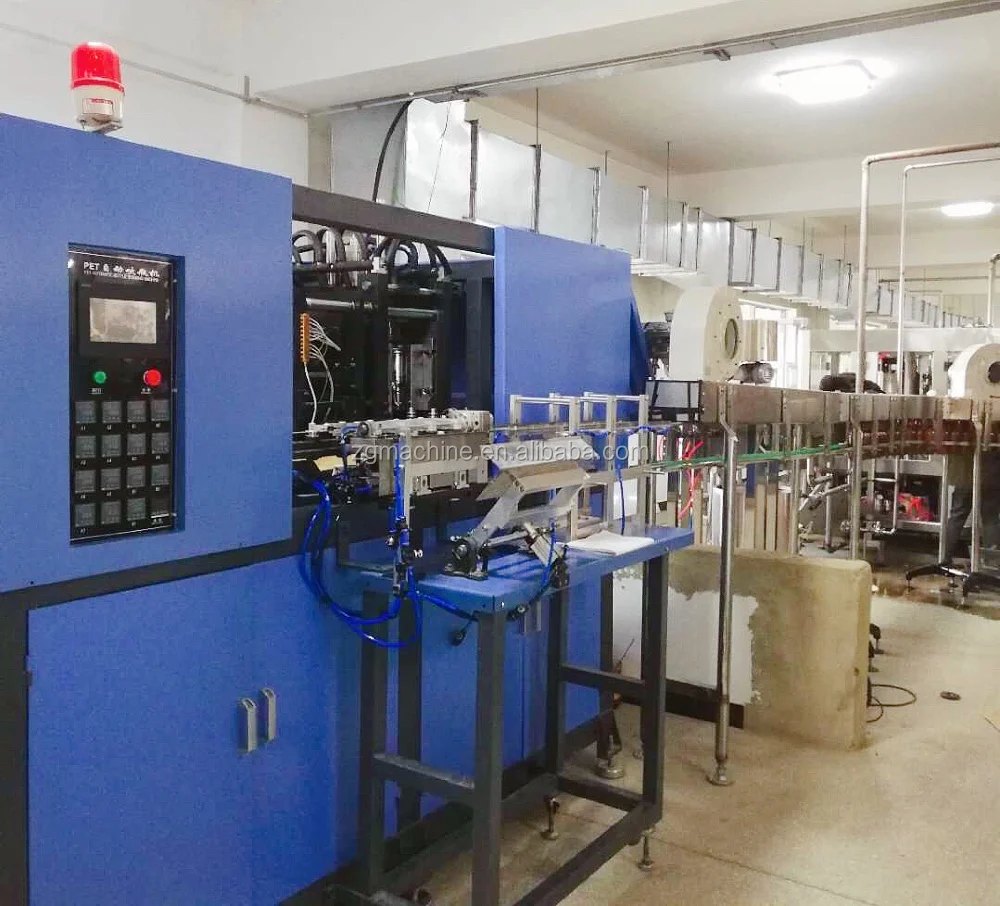

The Production Line Of Bottle (We supply the whole line solution)
Packing & Delivery

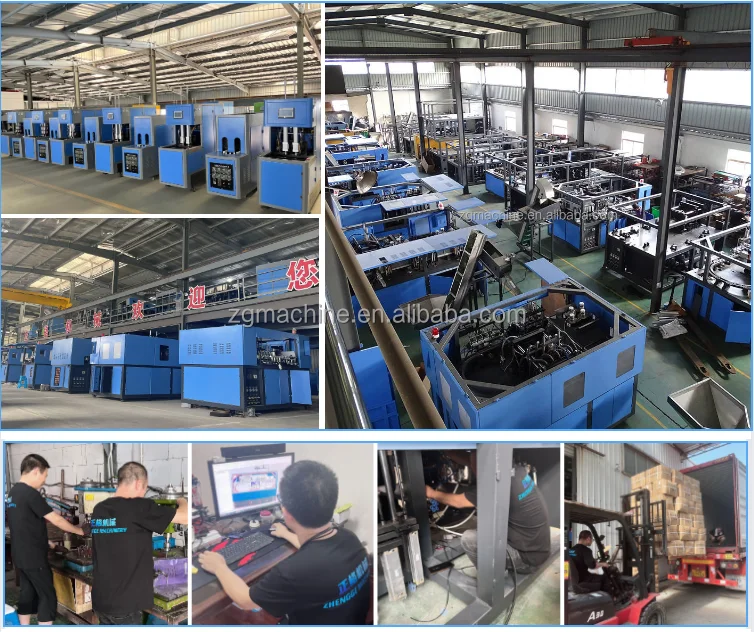

Our Company
TAIZHOU HUANGYAN ZHENGGEPLASTICS MACHINERY CO.,LTD.
Address:No.200-2 Wangxi Road,Taizhou Huangyan City,Zhejiang Province,China
With Customers
Our Service
Pre-Sales Service
* Welcome to view our Factory.
* 24 hours on line answer your question.
* Help client choose the suitable machine.
* Take video as client's request.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* We provide useful documents with machine.
* All spare parts are always available and free for your request in first year.
Any machines requirement just be free to tell us! We will provide the best service to you!
