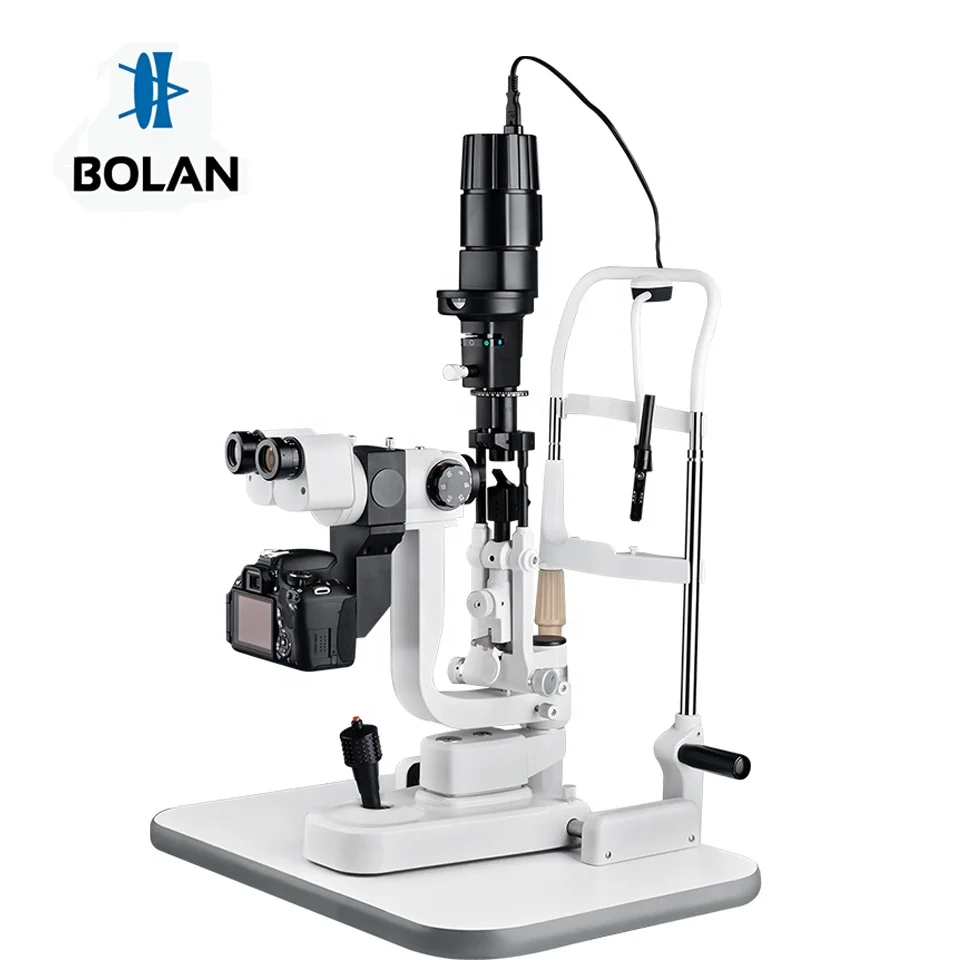

BOLAN Digital Slit lamp Microscope with imaging processing system BL 88D2 Made In China

Product Overview

Description



Slit Lamp BL-88D2



Feature



· Professional acquisition media

 The machine uses SLR camera as acquisition media, real-

 time dynamic display, the image is clear lifelike and it's very quick to image acquisition .

· Take pictures quickly

 With outer shooting device, just run through the lesion site and press the device, clear images captured

immediately.

· Powerful image processing functions

 Can be used to measure the length, area, Angle, gray, curvature, etc, and  also can mark lesions, add text

 on the pictures

· High-definition image

 The instrument can take as much as 18 million pixels photos, and provide the highest of 40 times

magnification to show the details in micros , meeting the stringent requirements of medical image,

 will show lesions more clearly.

· Have the auxiliary function for diagnosis

 Offers a variety of common eye disease diagnosis model of parameters Settings, improve the efficiency

of the diagnosis.

· Have medical records management and output

 Medical  report can be stored, management, and printed



Specification



Microscope	Microscope Type	Galilean stereoscopic microscope
	Magnification Selection	5 steps by drum rotation
	Eyepiece	12.5x
	Magnification Ratio  (Field of view )	6×(φ33mm),10×(φ22.5),16×(φ14mm),25×(φ8.8mm),40×(φ5.5mm)
	Pupillary Adjustment	50mm ~ 82mm
	Diopter Adjustment	+7D ~ -7D
Base	Side Shift	110mm
	Depth Shift	90mm
	Height Shift	30mm
Chin rest	Height Shift	80mm
	Fixation Target	Red LED
Illumination    System	Slit width	0 ~ 14mm continuous (at 14mm,slit becomes a circle)
	Slit height	1 ~ 14mm continuous
	Slit angle	0 ~ 1800 continuous
	Slit Inclination	0 0 ,50,150,200
	Diameter of Light Spot	14mm ,10mm,5mm ,3mm,2mm,1mm,0.2mm  ,1mm,    1-14mm continuous
	Filter	Heat absorption ,Grey ,Red-Free ,Cobalt Blue
	Illumination bulb	12V 50W halogen lamp
Power	Input voltage	110V/220V
	Frequency	50/60HZ
	Power consuption	68VA
Weight and size	Gross Weight	18kg
	Dimension	690mm(L)× 440mm(W)× 420mm(H)





Accessories :

1.Camera adaptor

2.camera splitter

3.Professional digital single lens reflexs camera

4.Bolan slit lamp processing microsoft system

5.Apple PC computer(for option)

6. High-definition ink-jet printer(for option )
