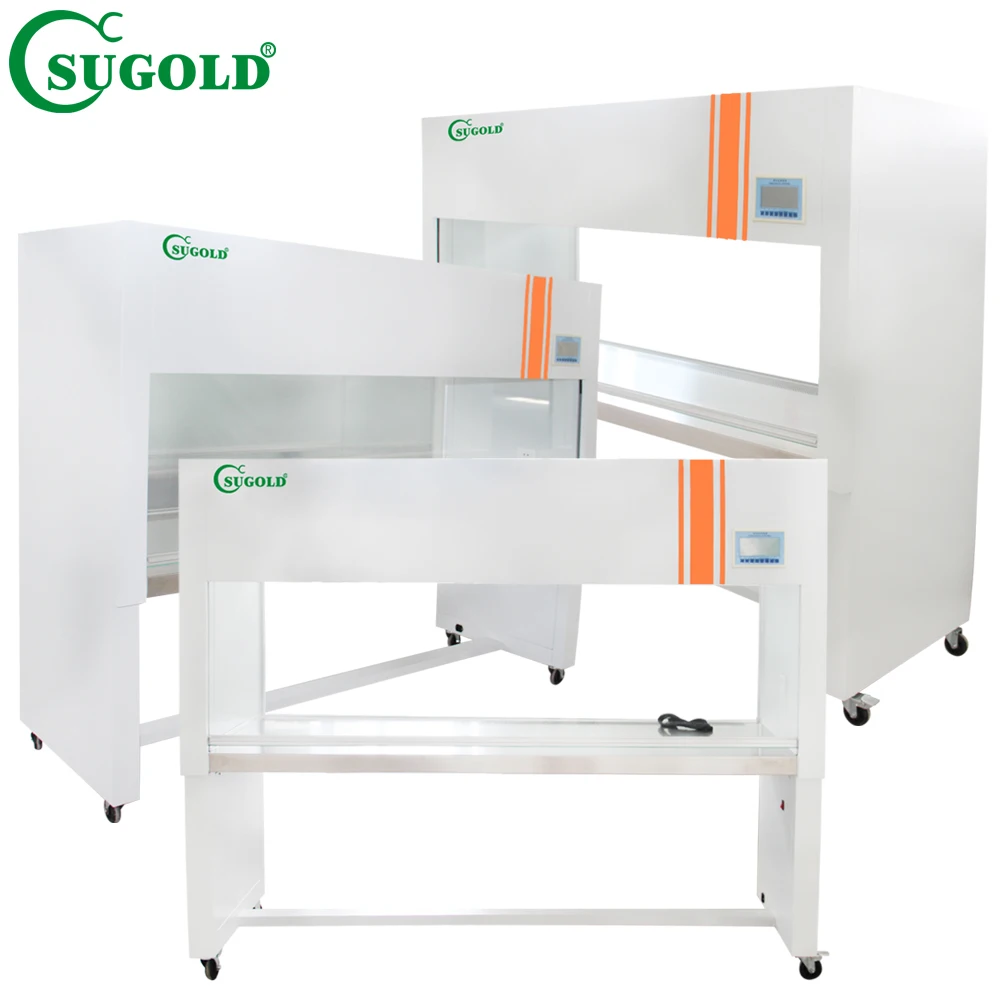

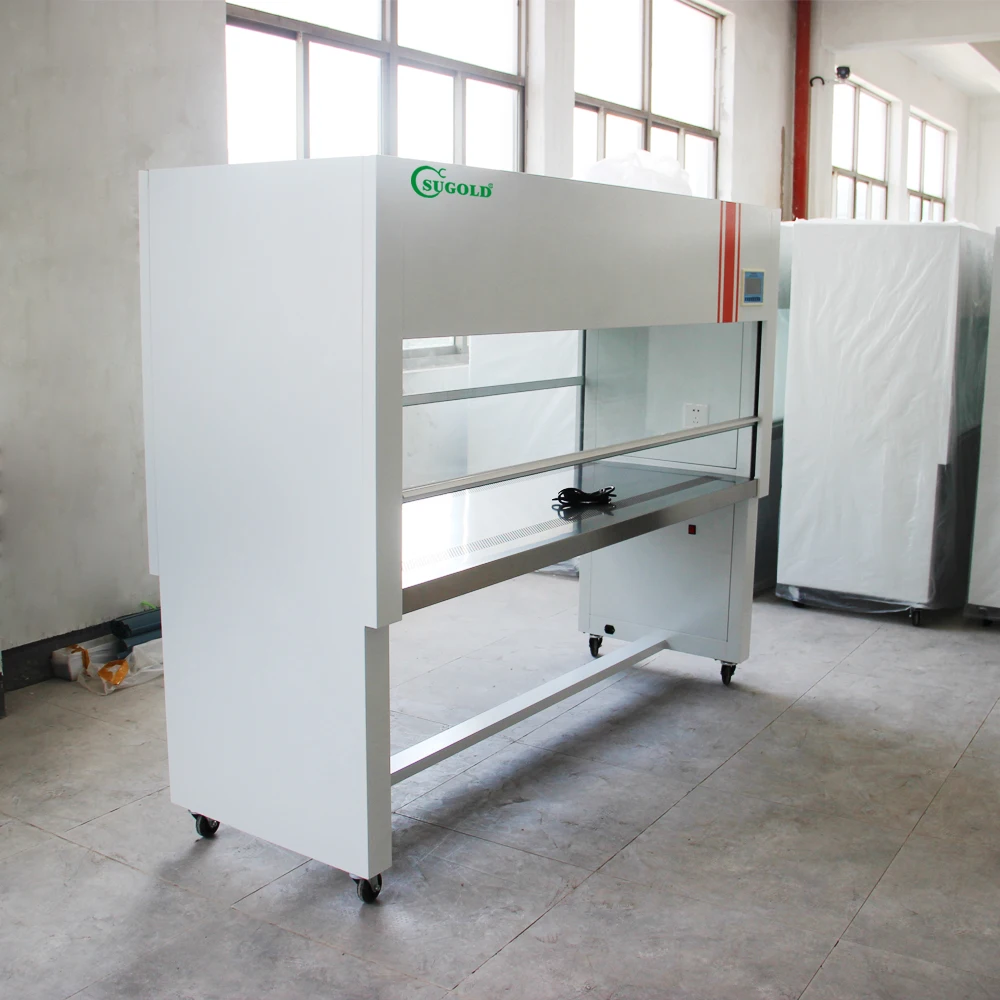

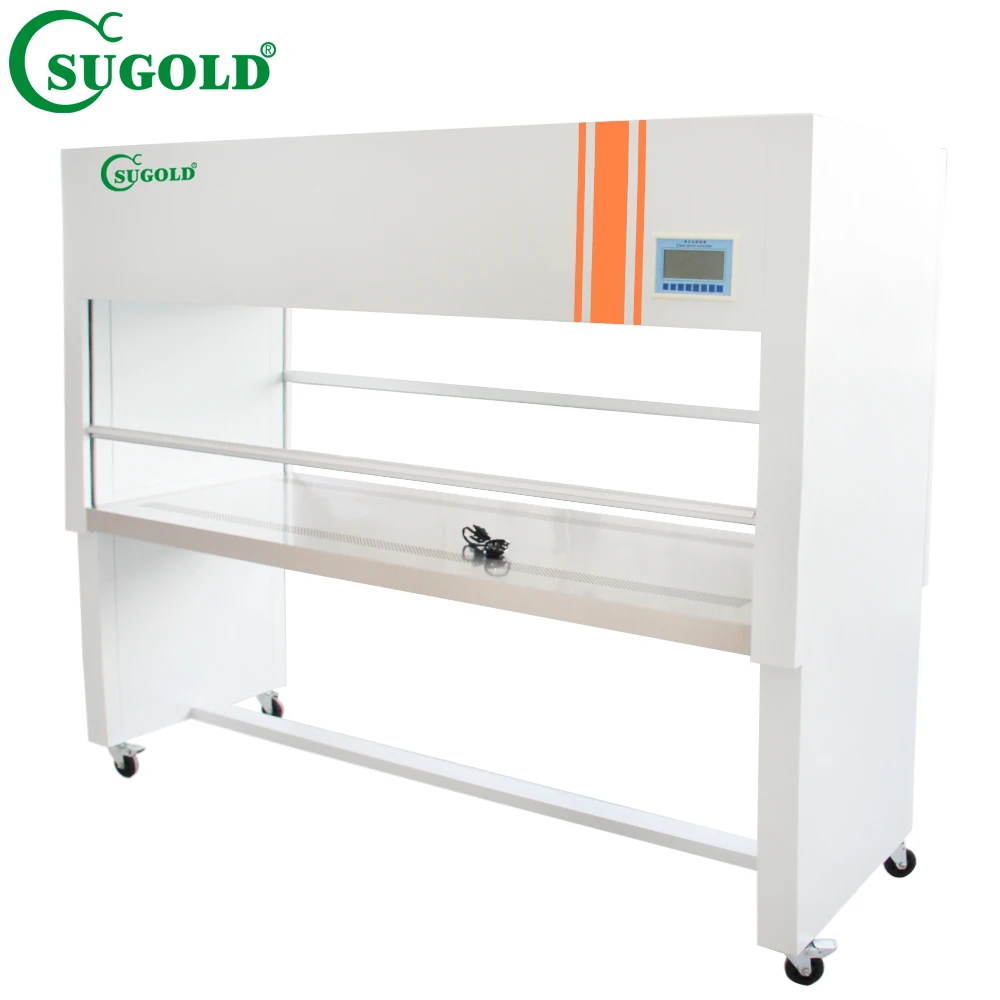

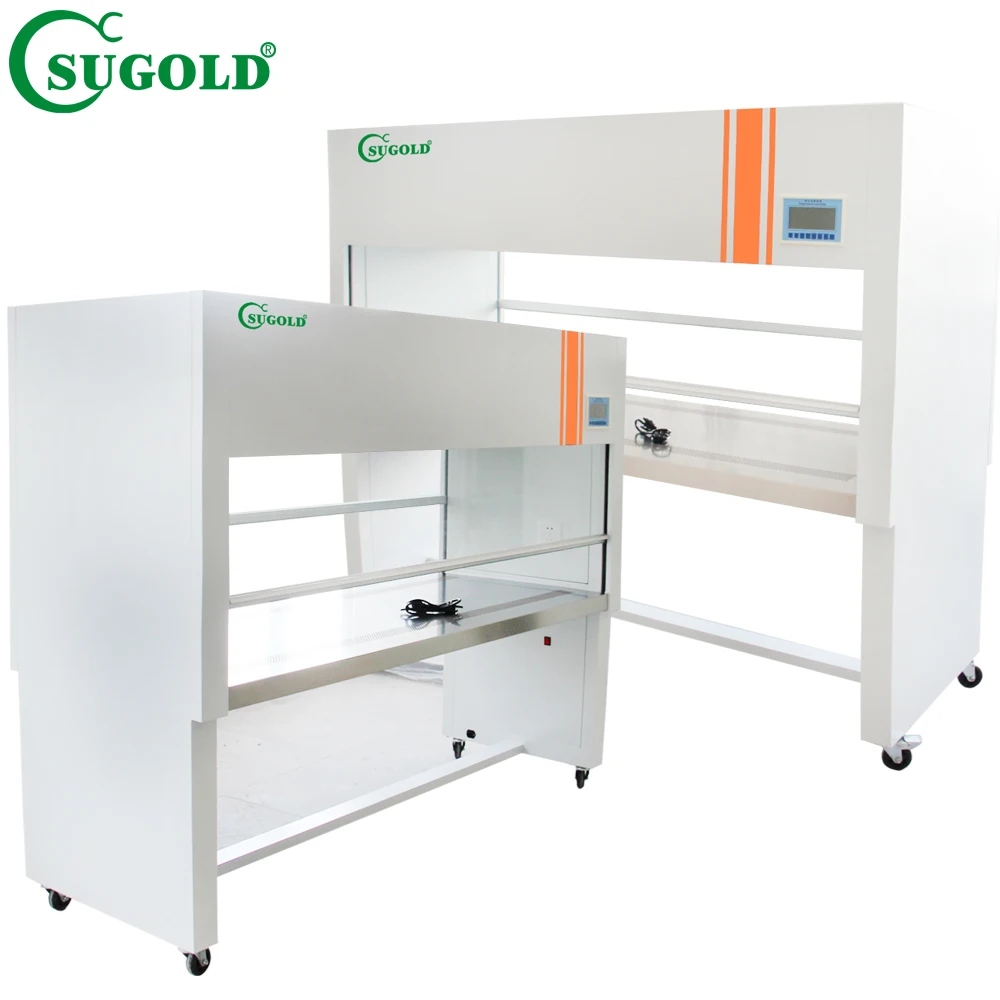

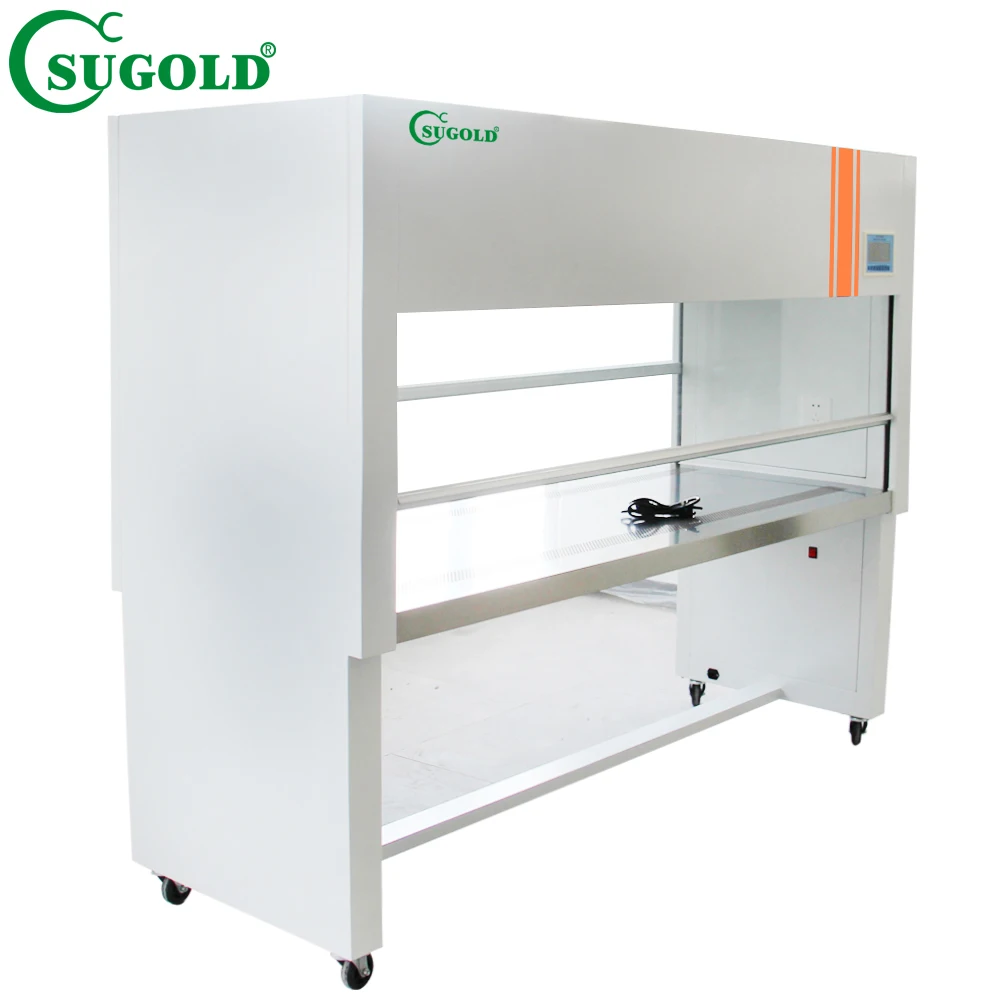

Class 100 Vertical Air Supply Double Sides Laminar Flow Cabinet
- Category: Air Cleaning Equipment >>>
- Supplier: Zhejiang Fuxia Medical Technology Co. Ltd.
Share on (1871251078):
Product Overview
Description
SW-CJ-3F Three-person double-side clean bench/vertical air supply laminar flow hood
Working Principle
First, the air is inhaled through the fan and then filtered by the HEPA filter through the static pressure box. After that the
filtered clean air is sent out in the state of vertical or horizontal air flow, so that the operation area continues to reach the
100-level cleanliness under the control of clean air and to ensure the production of environmental cleanliness requirements.
Application Range
The vertical flow clean bench is noisy than horizontal clean bench because its fan is installed at the top. The wind blowing
vertically so it is often used in medical engineering to ensure the operator’s health.
Vertical laminar flow clean bench is widely used in areas requiring partial cleaning, laboratories, biopharmaceuticals,
optoelectronics, microelectronics, hard disk manufacturing and other fields.
Characteristics
1. Adopt Arbitrary positioning sliding door system
2. The shell is made of cold-rolled steel plate with powder coating and worktop is stainless steel 304
3. Lighting and sterilization system safety interlock
4. Digital explicit liquid crystal control panel. Three stages wind speed(fast, medium and slow )
5. Vertical quasi-closed table, air curtain stroke of downdraft in the operation room, which can effectively prevent external gas
input to keep the operation area clean
6.Equipped with HEPA filter. With primary filter for preliminary filtration, which can effectively extend the life span of HEPA
filter
7. Three operational sides
First, the air is inhaled through the fan and then filtered by the HEPA filter through the static pressure box. After that the
filtered clean air is sent out in the state of vertical or horizontal air flow, so that the operation area continues to reach the
100-level cleanliness under the control of clean air and to ensure the production of environmental cleanliness requirements.
Application Range
The vertical flow clean bench is noisy than horizontal clean bench because its fan is installed at the top. The wind blowing
vertically so it is often used in medical engineering to ensure the operator’s health.
Vertical laminar flow clean bench is widely used in areas requiring partial cleaning, laboratories, biopharmaceuticals,
optoelectronics, microelectronics, hard disk manufacturing and other fields.
Characteristics
1. Adopt Arbitrary positioning sliding door system
2. The shell is made of cold-rolled steel plate with powder coating and worktop is stainless steel 304
3. Lighting and sterilization system safety interlock
4. Digital explicit liquid crystal control panel. Three stages wind speed(fast, medium and slow )
5. Vertical quasi-closed table, air curtain stroke of downdraft in the operation room, which can effectively prevent external gas
input to keep the operation area clean
6.Equipped with HEPA filter. With primary filter for preliminary filtration, which can effectively extend the life span of HEPA
filter
7. Three operational sides
Model | SW-CJ-3F |
Clean grade | Grade 100(209 E U.S. Federal) |
Number of bacteria | ≤0.5per utensil.hour(90mm utensil) |
Noise | ≤62dB |
Power | 220V/50HZ |
wind speed | 0.25-0.45m/s (slow,medium and fast 3 speeds) |
illumination | ≥300LX |
Working area dimension(W*D*H) | 1800*650*580mm |
Overall dimension(W*D*H) | 1960*720*1600mm |
HEPA filter size and quantity | 1785*555*50mm*1pc |
Fluorescent/UV lamp specifications and quantity | 50W*1PC / 50W*1PC |
Operator | 3 persons |
