rubber tyre remolding machine, tyre vulcanizing machine

Product Overview

Description

1.Product Name:

   Tyre Plate Vulcanizer

Tyre vulcanizing machine

   Rubber Molding press

   Hydraulic Molding Machine

   Hydraulic Press

   Compression Press

   Plate Vulcanizing Machine

2.Main Usages:

  (1)It is mainly used for vulcanizing all kinds of rubber and plastic model products and non-model products.

  (2)Applicable line:Rubber sheet,rubber tire,Oil Seal,O Ring,Gasket,Engine Mountings,Hardware Rubber,Molded rubber parts and etc.

(3)Working Principle:

  1. Being a column struture and downward pressing type(from down to up).

The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure,the heating plate opens by the self-weight of the heating plate, platform and plunger.

 2.This engine base is combined together with the cylinder and base frame,which

is made of ductile iron to increase the cylinder intensity and

abrad ability,The cylinder is fitted with the sealing washer  made of the oil-resisting rubber for the sealing purpose.



3.By moving the operational handle of the control value to the two different positions,the heating plate can open and close.

4. It uses the electric pipe for heating,thus makes the workshop clean with easy

and reliable operation.

(4) Advantages :

*Big unit area pressure to guarantee quality of products. We also can provide

*push- pull mode device according to technique request of rubber products to

decease labor strength. We can also provide the hand control and electric control,

*PLC control as customers request.

 ♣ we can also design the best machine for you as long as you tell us the specifications you need.

Type	XLB-D/Q 400X400X2(3)	XLB-D/Q 300X300X2(3)	XLB-D/Q 300X300X2D
Nominal Mounding Power(MN)	0.5	0.25	0.20
Plate Size(mm)	400x400	300x300	300x300
Working Layer Number	2(3)	2(3)	2
Piston Stoke(mm)	250	250	200
Plate Pressure(Mpa)	3.1	3.1	3.1
Main moter Power(KW)	2.2	2.2	1.5
Plate Chearanle(mm)	125(75)	125(75)	125(75)
Overall Size (L xWx H)	1550x750x1500mm	1200x500x1100mm	1200x500x1100mm
Weight(Kg)	1300(1400)	1100	800

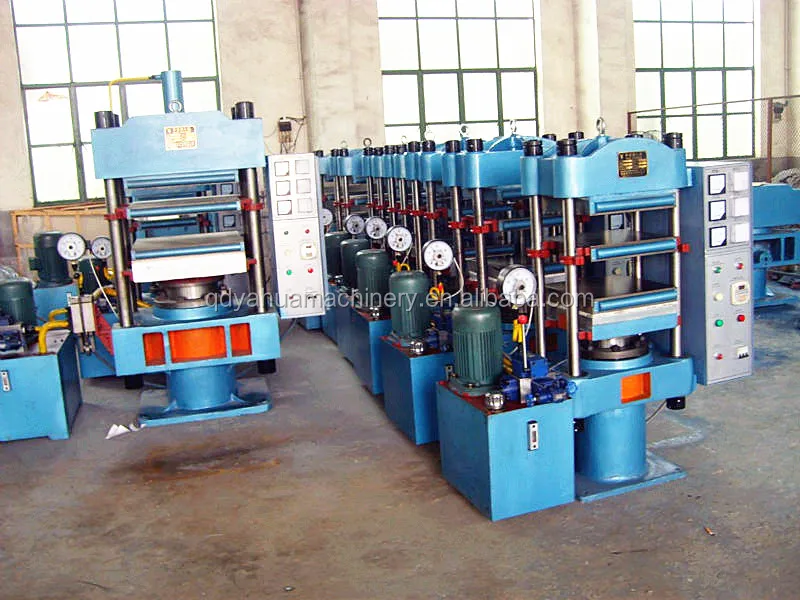

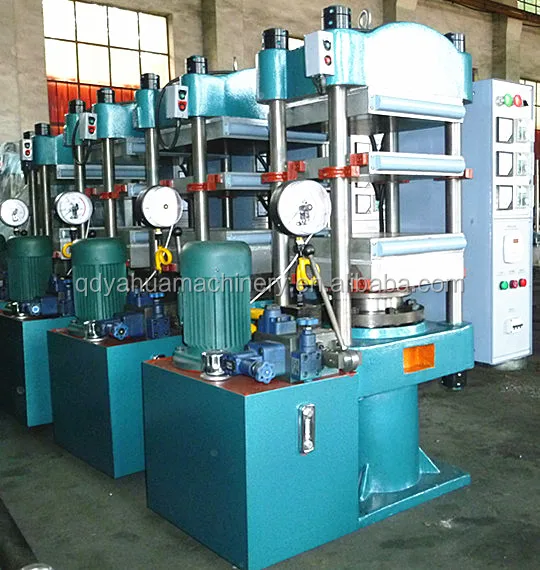

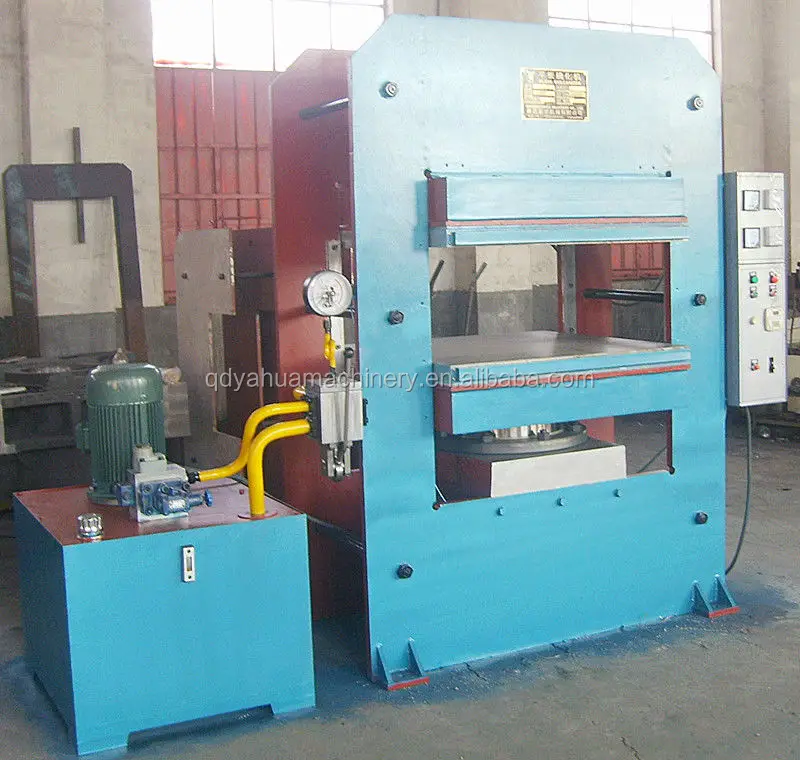

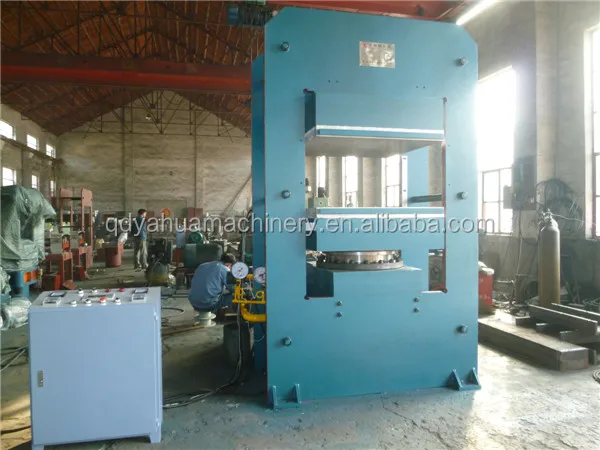

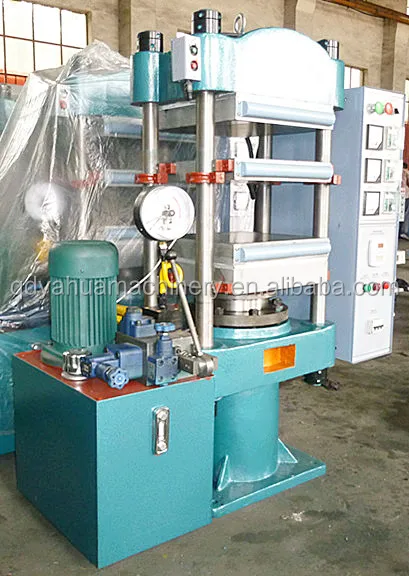

 (4)Products image:(column type+frame type)
