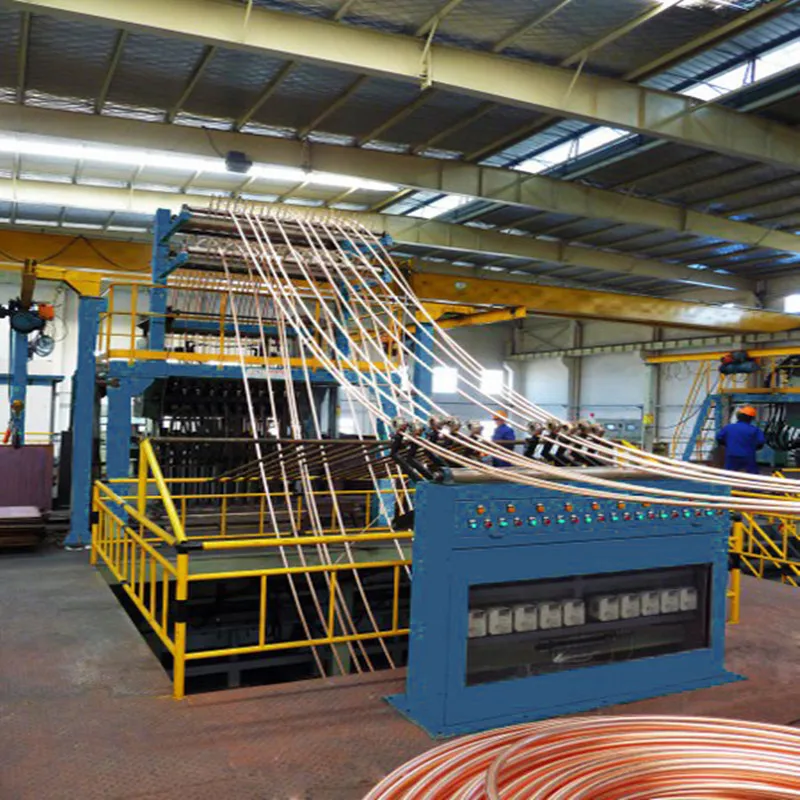

Oxygen Free 8mm 10mm 12mm 14mm 17mm 20mm Upward Continuous Casting Machine Copper Rod up casting machine in shanghai

Product Overview

Description

Oxygen-Free 8mm 10mm 12mm 14mm 17mm 20mm Upward Continuous Casting Machine Copper Rod up-casting machine in shanghai



Usage

The born and development of  Upward Oxygen-Free Copper Rod Production Line that break the traditional copper and copper alloy producing way shorten the copper processing time. The traditional process is divided three steps of melting and casting, heating process and cooling process. Currently, heating process is being constantly replaced while the deep processing way with high-precision tensile machine and continuous extruder has been worldwide accepted as the main method of producing pure copper wire, brass wire and low alloys (Ag-Cu, Mg-Cu etc).



Main Composed Parts

a) Three-combined furnace

b) Continuous casting machine

c) Rack of directive wheels

d) Speed controller

e) Two-stroke coiler

f) Cooling system

g) Temperature test system

h) Cathode charging system

i ) Electric control system









Final Copper Rod Technical Standard



1 Density 8.9kg/dm3 2 Tensile strength >170N/mm2 3 Elongation >35% 4 Electrical conductivity no less than 100%IACS (2mm dia soft wire) 5 Oxygen content ≤ 10ppm







Models of Upward  Upward Oxygen-free Copper Rod Continuous Casting Machine



No. Type Strand Qty Product Size(dia) Output (T/Y) 1 F6-Q3-8/20 6 8-20 3000 2 F8-Q4-8/20 8 8-20 4000 3 F10-Q5-8/20 10 8-20 5000 4 F12-Q6-8/20 12 8-20 6000 5 F16-Q12-8/20 16 8-20 12000
