Colorful Fire Hose 2.5inch with fire coupling(storz machino john morris american type)

Product Overview

Description

Oil Resistance Colorful Fire Hose 2.5inch with fire coupling(storz machino john morris american type)

Rubber Coated Non-percolating Layflat Hose (BS6391: 2009, type 3)

Outer coat: synthetic rubber

Middle: polyester fiber woven jacket

Inner lining: synthetic rubber

Color: red, black, yellow

Property: waterproof, quick drying, abrasion resistance, sea water corrosion resistance

Applied range: fire fighting, shipping, mining, water transmission



Size		Max Working Pressure			Testing Pressure			Bursting Pressure			Max Length
INCH	MM	MPa	BAR	PSI	MPa	BAR	PSI	MPa	BAR	PSI	FEET	M
3/4	19	2.5	25	360	3.75	37.5	550	7.5	75	1088	100	30.5
1	25	2.5	25	360	3.75	37.5	550	7.5	75	1088	100	30.5
1-1/2	40	2.5	25	360	3.75	37.5	550	7.5	75	1088	100	30.5
2	50	2.5	25	360	3.75	37.5	550	7.5	75	1088	100	30.5
2-1/2	65	2.0	20	300	3.0	30	435	6.0	60	870	100	30.5
3	80	2.0	20	300	3.0	30	435	6.0	60	870	100	30.5
4	100	1.3	13	200	2.0	20	290	3.9	39	566	100	30.5
5	125	1.0	10	150	1.5	15	220	3.0	30	435	100	30.5
6	150	1.0	10	150	1.5	15	220	3.0	30	435	100	30.5





Regarding Fire Hose , Our main scope is rubber lined fire hose,PVC lined fire hose,PU lined fire hose,EPDM lined fire hose,double jacket fire hose,colorful fire hose,etc.Also some of our fire hose have approved CCS and EN certification.

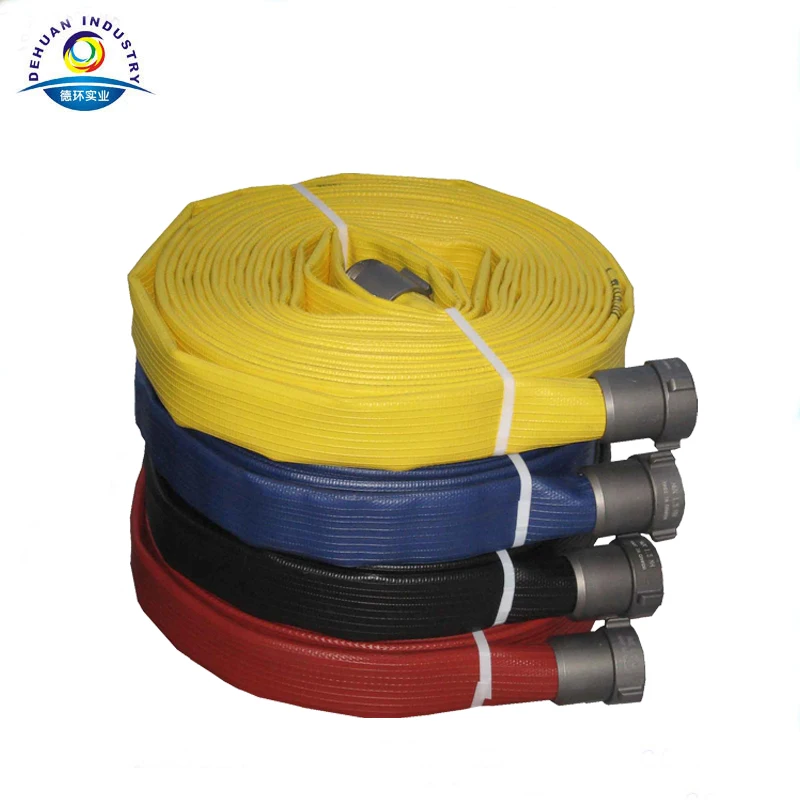

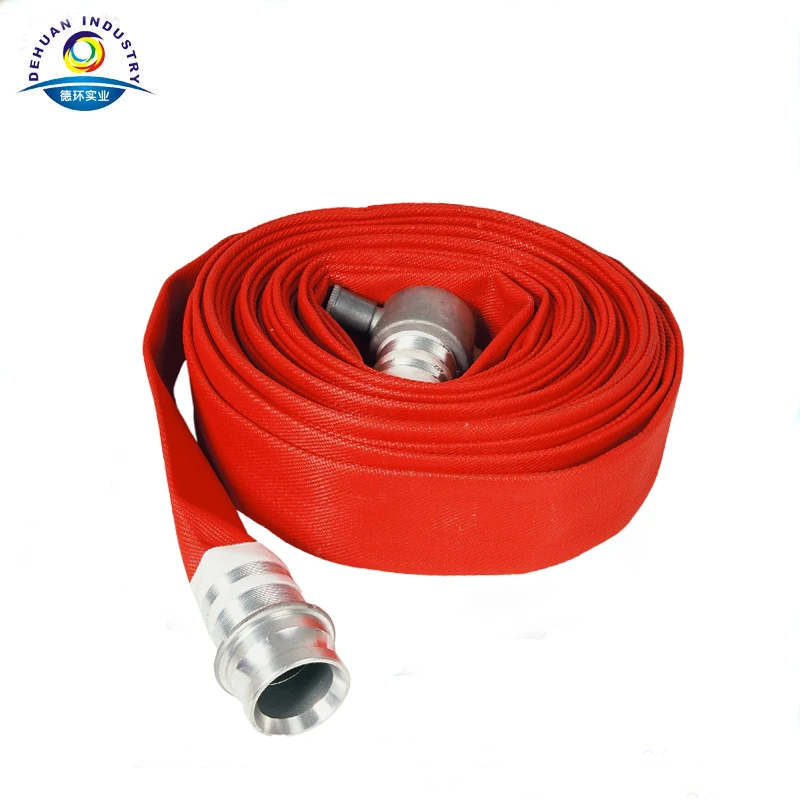

Fire Hose details picture as follows:

 Fire Hose Factory Picture :

Welcome to customized our Fire Hose ,we try our best to satisfy with price,quality and service for you.
