small scale waste oil refinery plant/ oil recycling purifier/ oil distillation machine

Product Overview

Description

small scale waste oil refinery plant/ oil recycling purifier/ oil distillation machine



This technology utilized catalyzing treatment during chemical processing. Our company developed a kind of composite catalyst, through catalyzing, the harmful substances are selectively processed, for example, polymerization, shielding, passivation effect and discharged as residues, so as to remove the unstable factors of the waste lubricating oil, make it became qualified lubricating base oil.
This technology is different from the traditional distillation process with sulfuric acid,it is also different from the current hydrogenation technology. The process of this technology is: Catalyzing treatment of waste lube oil (including gasoline engine oil,diesel engine oil ect. almost all sorts of recyclable waste oil), and then distill to new lube base oil. The oil will not mean to oxidate and change color, no odour. The residues can be used as fuel, it will not make secondary pollution. This technology is high automatic, the operation is simple, no complicate operation control, easy to learn and understand, low labour intensity, 1-2 persons are enough and no special requirement. .

1.suitable to all sorts of used lube oil

2. high efficiency( the capacity is 1,000liters to 30,000Liters per day )

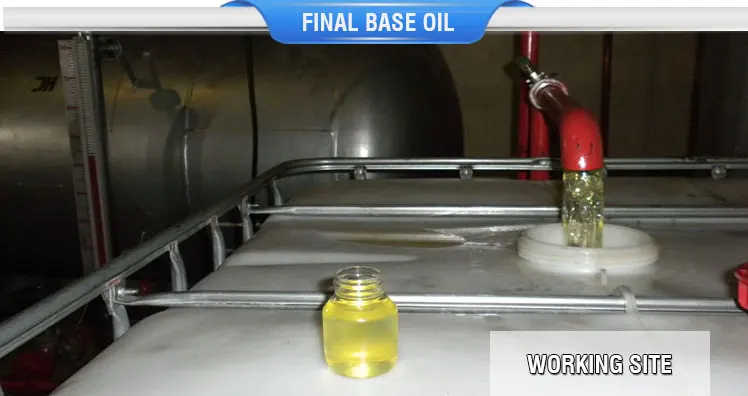

3.distill black engine oil to yellow base oil
4.high recovery rate( more than 85%)

5. evironmental( no harmful gas, no harmful water exhausted,

6. 1~2 persons with no special skills are enough to control the plant

7. High degree of automation.

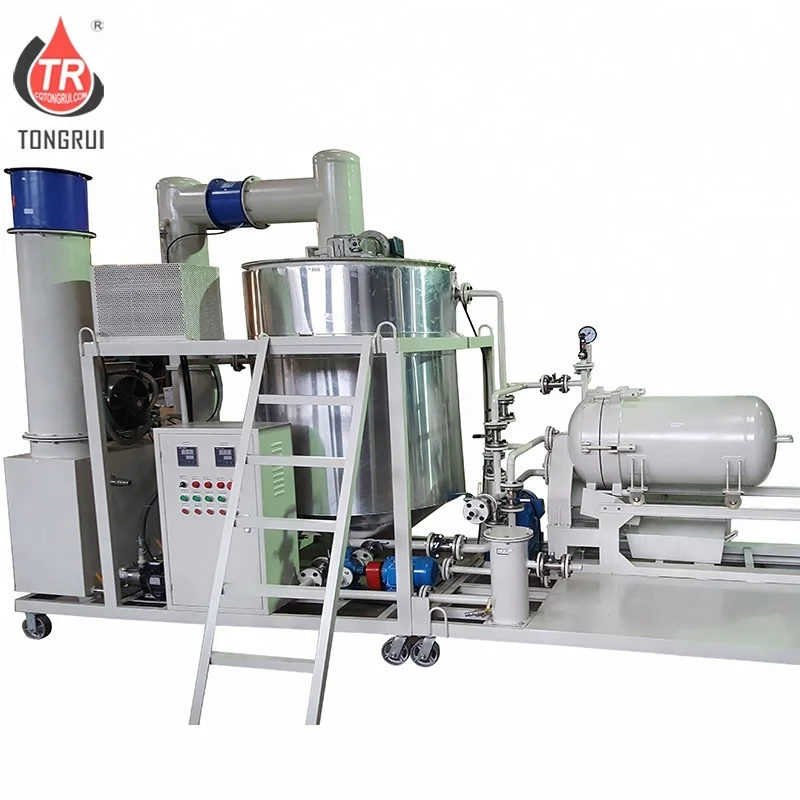

Low Cost Engine Oil Recycling Machine



Model	oil refinery distillation machine for black engine oil
Capacity	1,000Liters per day to 30,000Lites per day
Priciple	pysical-chemical reaction
Recovery rate	about 80%-85%
Working Temperation	300-320Degree
Chemical	Catalyst with percentage 2%-5%



I.Working principle

DIR used oil purifier ( DIR  used oil vacuum distillation plant): Used oil is mixed with catalyst in chemical treatment tank, then it is sent to distillation kettle to circulate and be heated. With the temperature increasing in the distillation plant, the used oil is distilled out  into different parts and through three stages, it is cooled  to change into liquid. After that, they’re respectively stored in water , gasoline/diesel, light lube oil, heavy lube oil receivers. The unreduced gas will be sent to the furnace of boiler to burn and be disposed in order to ensure “zero “discharge of  harmful gas. While the oil residue can be utilized as fuel to avoid pollution from it.
