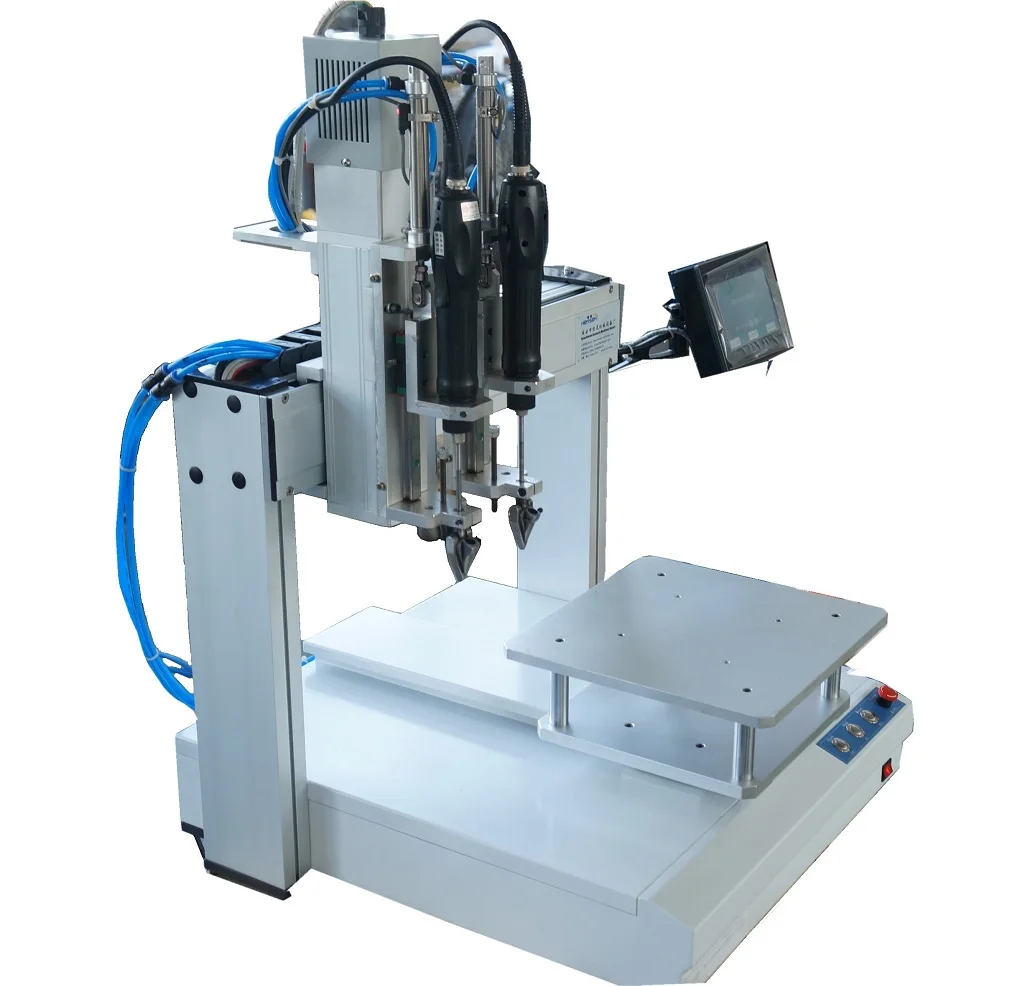

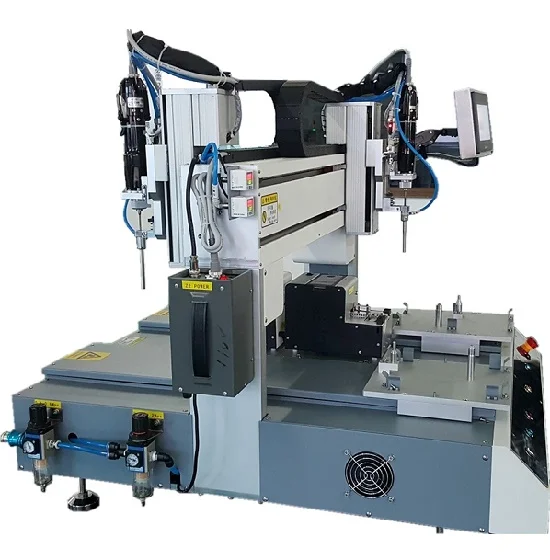

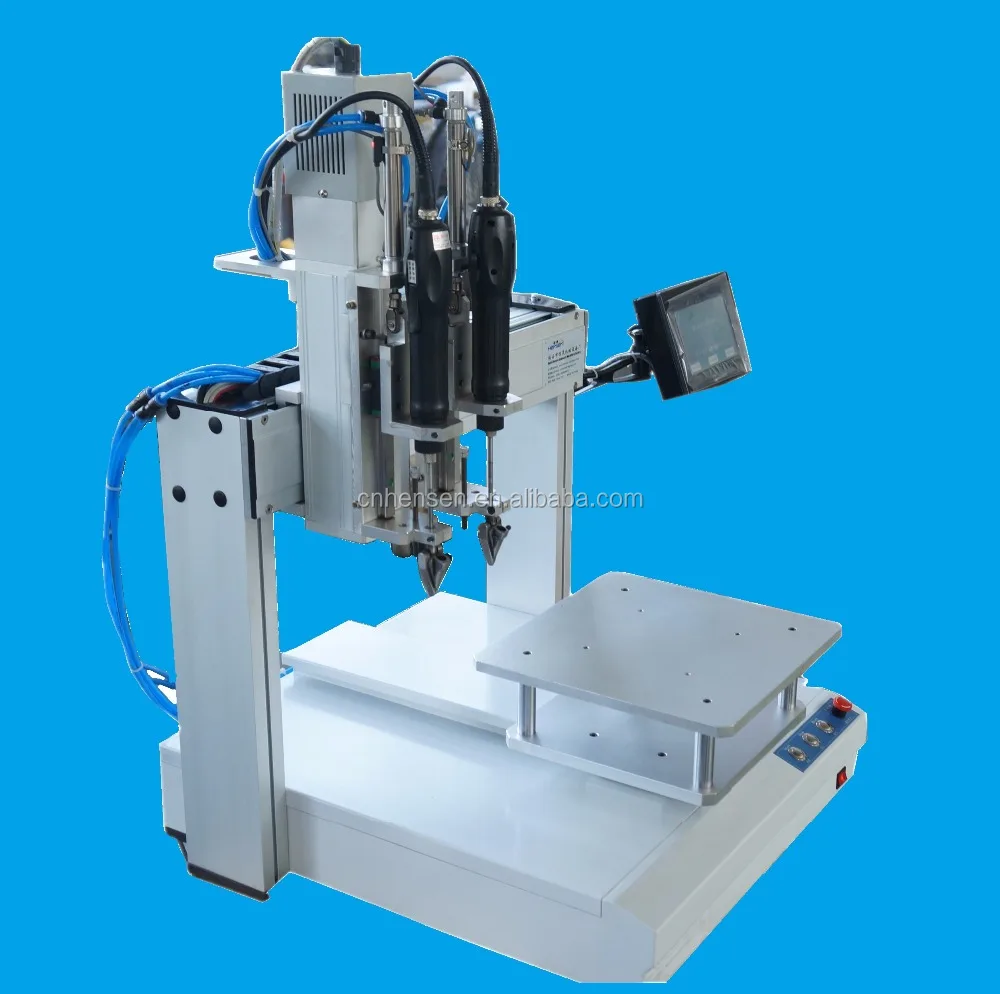

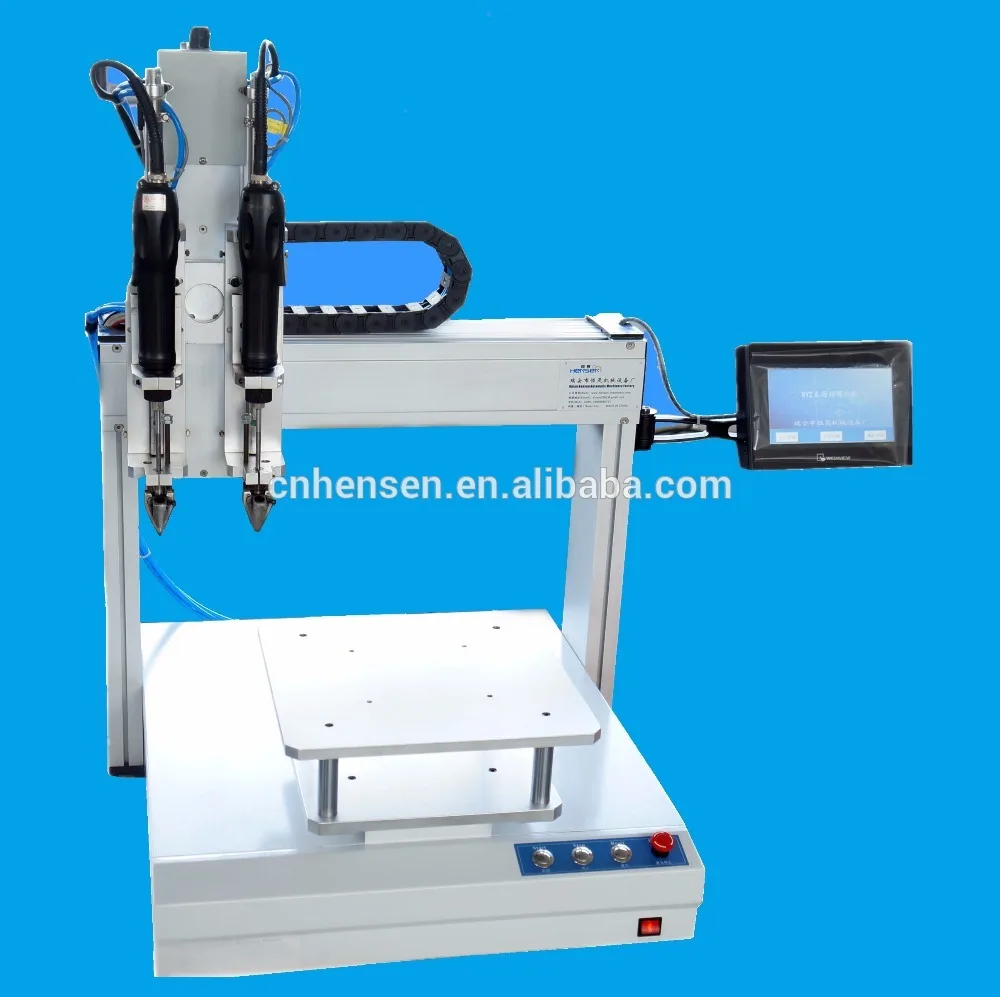

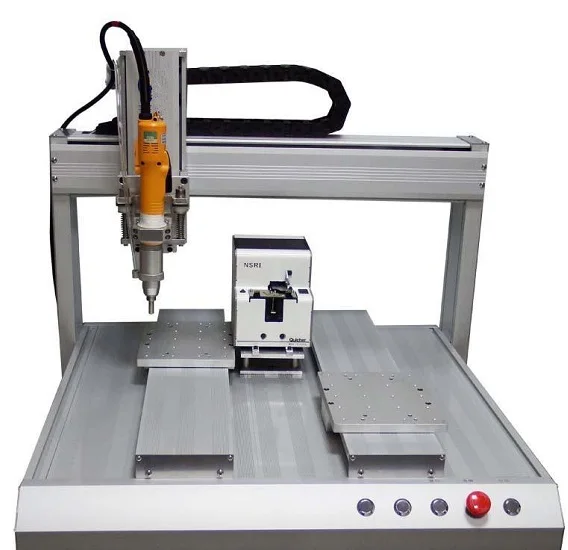

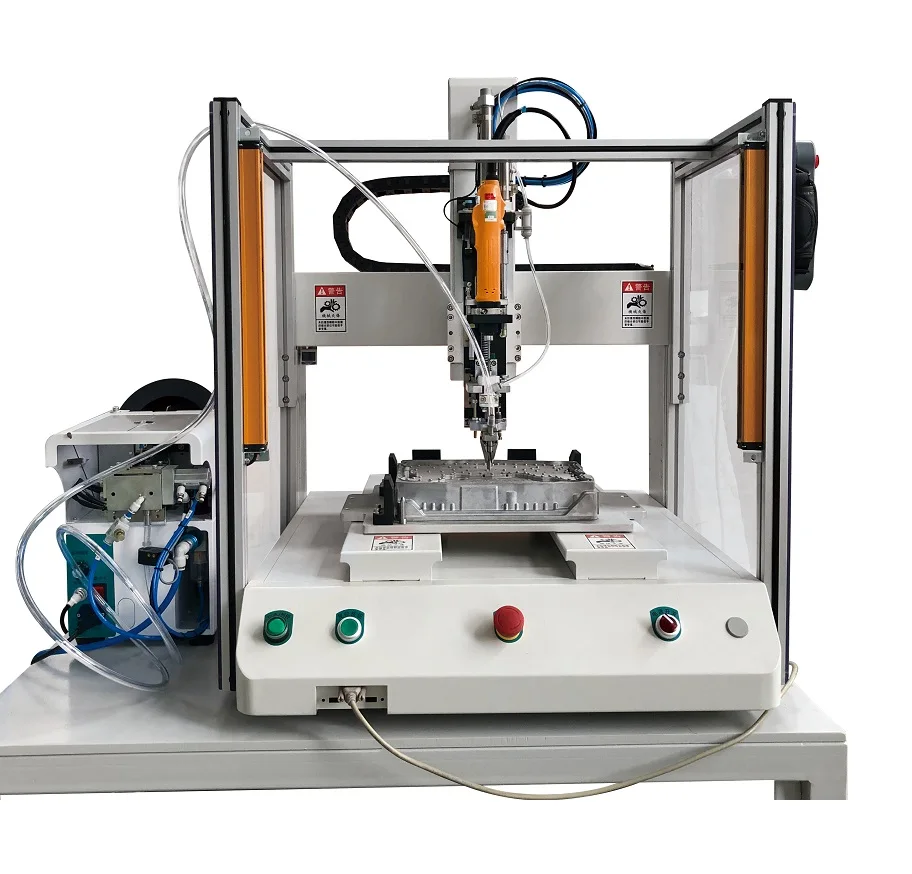

XYZ Automatic Robotic Screwdriver Machine Wooden Handle Electrical Worktable Customizable OEM Support Case Packaging Included

Product Overview

Description

XYZ desktop screw driving machine HS-XYZ-02

Automatic XYZ desktop worktable robotic screwdriver machine



I. Description

1. One machine can reduce 30% human power, you can reduce two screwing workers.
2. In the touch screen to set coordinate and the screw quantity , can be applied to a variety type of products . If the screw on the product specification is basically the same , you only need to replace the fixtures , the entire process is completed in less than 10 minutes .
3. monitor the quality of the equipment installing the screw , in the event of bad screwing qualtity will alarm and display the type of defective products .
4. Automatic clutch after the screwdriver reach the torque, ensure that each lock     screws Vice torque control ± 10%.
5. humane touch -screen operation and ease of operation , external technical parameters and manual test function can be directly adjusted by technicians.
6. The machine are small, save production line pace, easy moving.

II. technical parameter:

Applicable screw	Screw thread	M1.0-M8.0mm
	Screw shape	Mechanical or self tapping
	Screw head shape	Cross, Y shape, Hexagon, Pentagon, Triangle and so on
Equipment parameter	Power supply	AC220V  50HZ   800W
	Air supply	0.4Mpa
	Dimension	850*820* 900mm (L*W *H)/ customization
	Effective stroke	500*300* 100mm (X*Y *Z)/ customization
	Weight	90kgs
Control instructions	Operation mode	PLC+ Touch screen
	Programs enter	Coordinates directly enter
	Drive mode	4axis precision stepper dirves
	Program storage	100 group, 100/pack
	Communication port	USB
Speed and precision	Positioning accuracy	X,Y,Z ±0.02mm
	Speed	500mm/1sec
Screw feed	Feeding method	blowing/suction type(customized )
	Screw quantity	According to screwing requirement
Screwdriver	Kilews	Optional according to customer requirement
	Z axis screwdriver	Optional, generally no more than 2
Applicable range	X,Y Range	400mm(customized )
	Z screwing range	According to customer requirement
	Station	single/multi-station (customized)
Detection	Project	Slip, leak, miss and alarm

III. scope of application:

For different types of screws,  screw length should be longer than 1.3 times the screw head diameter. Screw length is not more than 40MM,screw with gasket is ok. The range of suitable products: digital, electronics, small appliances, LED, mobile phones, Tablet PCs, small precision electronic products and so on
