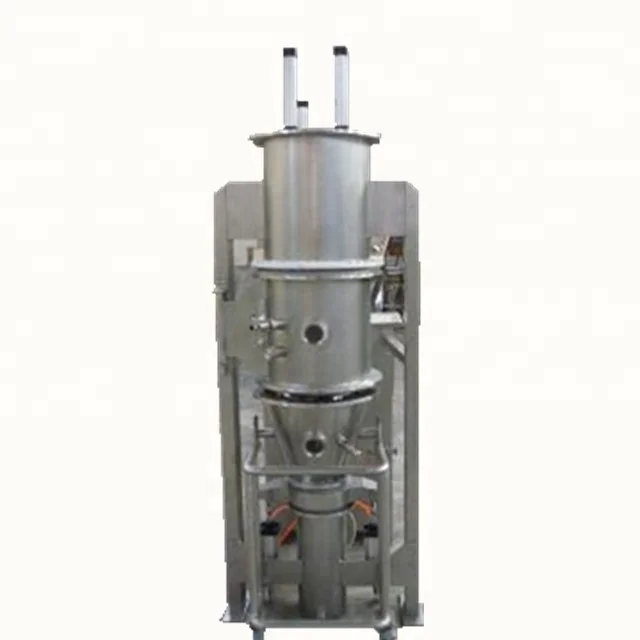

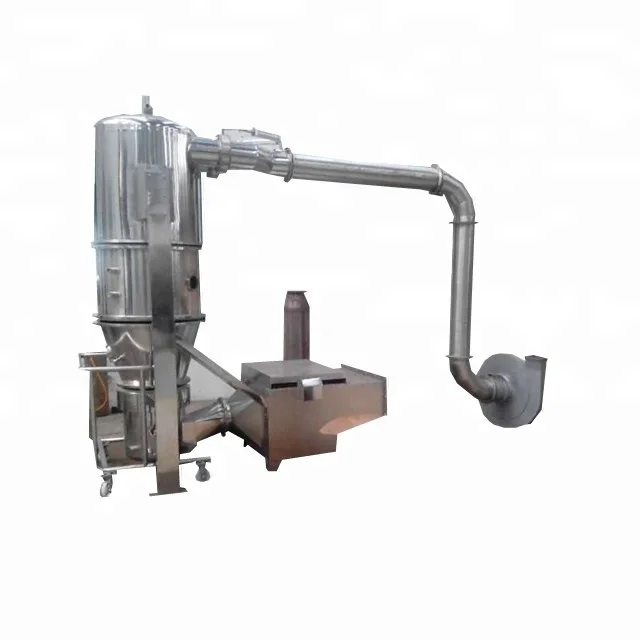

coffee powder mixing granulator FL 15

Product Overview

Description

Principle
The powder granule the container (fluidization bed) appears the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive solvent is fogged and sprayed into the container. It makes the some particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated and the adhesive is solidification. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.





Applications
Pharmaceutical industry: tablet, capsule, low sugar or no sugar granule of Chinese medicine.
Foodstuff: cocoa, coffee, milk powder, juice of granulate, flavoring and so on.
Other industries: peticide, feed chemical fertilizer, pigment, dyestuff and so on.
Pharmaceutical industry: tablet
Features
Because of powder Granulating, the flow property is improved and the dust is reduced;
Because of powder Granulating, its solving property is improved;
The mixing, Granulating and drying can be completed in one step inside the machine;
The operation of equipment is safe because the anti static filtering cloth is adopted;
The operation personnel can not be damaged if explosion take place because there is releasing hole;
The equipment has no dead corner. Therefore the loading and unloading are quick and light and clean. It can meet the requirements of GMP





Technical Parameter



item		unit	type
			3	5	15	30	60	120	200	300	500
container	volume	L	12	22	45	100	220	420	670	1000	1500
	diameter	mm	300	400	550	700	1000	1200	1400	1600	1800
capacity	min	kg	1.5	4	10	15	30	80	100	150	250
	max	kg	4.5	6	20	45	90	160	300	450	750
fan	air volume	m3/h	1000	1200	1400	1800	3000	4500	6000	7000	8000
	pressure	mmH2O	375	375	480	480	950	950	950	950	950
	power	kw	3	4	5.5	7.5	11	18.5	22	30	45
steam consumption		kg/h	15	23	42	70	141	211	282	366	451
compressed air expenditure		m3/min	0.9	0.9	0.9	0.9	1.0	1.0	1.1	1.5	1.5
weight of the main body		kg	500	700	900	1000	1100	1300	1500	1800	2000
steam pressure		Mpa	0.3-0.6
temperature		C	adjustable at the range of room temperature to 120°C
working time		min	45-90 (decided in accordance with the properties of raw materials)
collect rate		%	≥99
noise		dB(A)	≤75dB(A) (When installation, main machine is separated from fan.)
overall dimensions		m	1.0 *0.6 *2.1	1.2 *0.7 *2.1	1.25 *0.9 *2.5	1.6* 1.1* 2.5	1.85* 1.4 *3	2.2 *1.65 *3.3	2.34 *1.7 *3.8	2.8 *2.0 *40	3 *2.25 *4.4
