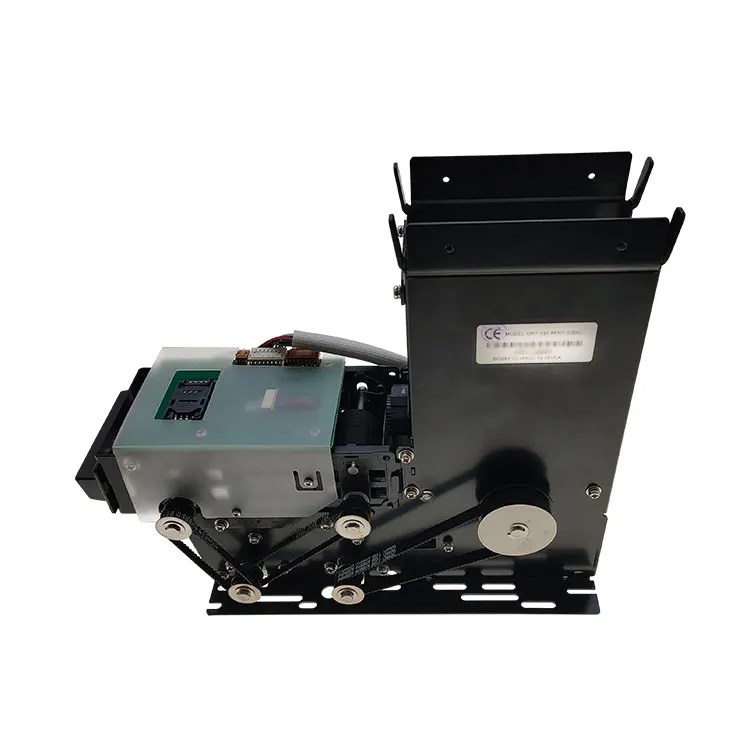

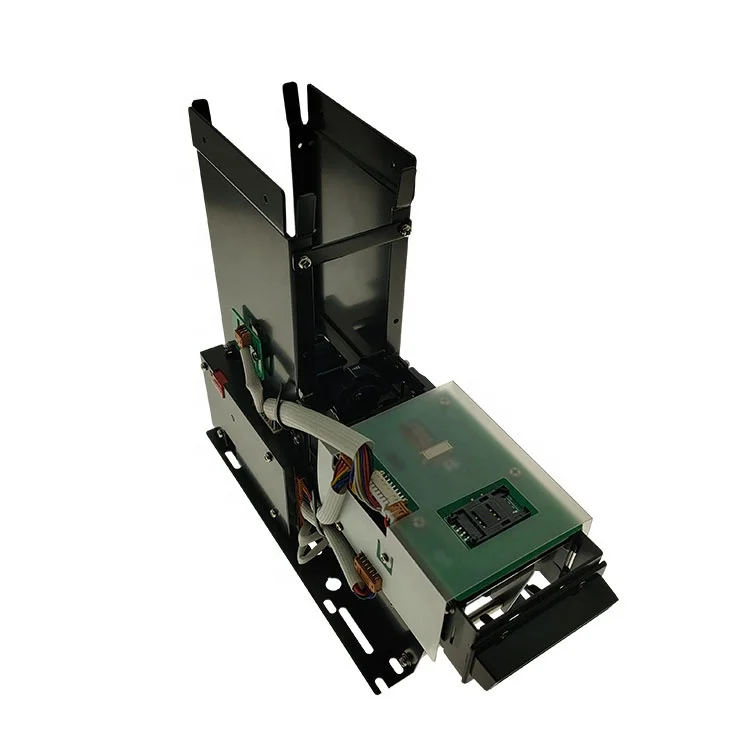

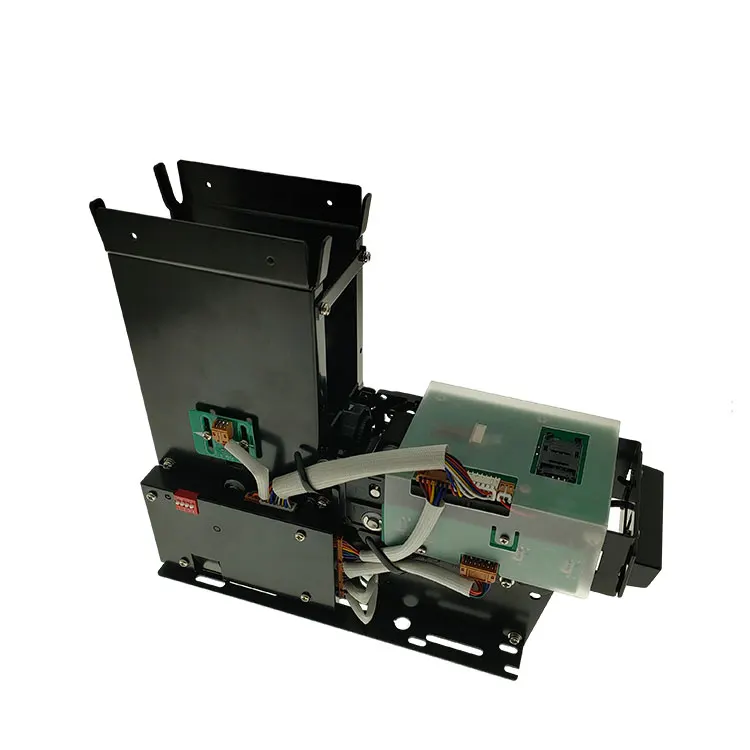

IC/RFID card reader and writer CRT 591M

Product Overview

Description



Product Features:

• IC/RF  read/write • With cards pre-empty and empty detection • Internal card receiving function with a card box or receiving channel • Rs-232, support multi-unit communication • Flexible adjustment of card thickness • Support serial port and PC/SC in card reading &writing mode • The most compact issuing machine with IC/RF card reading & writing

Specification:



IC card standard	Conform with ISO 7816 Support AT24C01,24C02,24C256,SLE4442,SLE4428,CPU T=0/T=1
Card type	Serial port supports IC/RF card read & write; PC/SC supports CPU card read & write
RF card standard	ISO14443-3(Mifare one: S50,S70,UL etc)  ISO14443-4 (TYPE A CPU: mifare plus,mifare desfire etc) ISO14443-3 TYPE B
Card dimension	Length:85.47 ~ 85.90 mm Width:53.92 ~ 54.18 mm Thickness:0.4 mm--1.2 mm (standard 0.8 mm) (embossing card)
PC/SC card reading	ISO7816 standard CPU card T=0/T=1
Dispensing speed rate	about 14.8cm/s
Loading quantity	Removable stacker 150pcs (0.76mm thickness cards) Error card bin 25pcs ± 4pcs (0.76mm thickness cards)

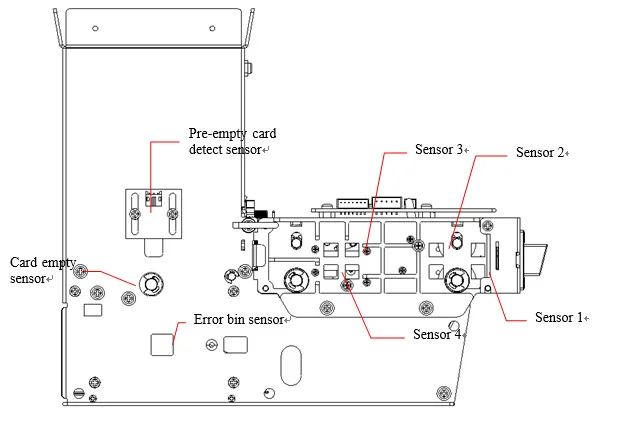

Pre-empty detection	7 ~ 50pcs ± 2pcs (Factory standard Ex-work 25pcs)
Life time	IC contact and carrier:500,000 cycles Transportation :1000,000 cycles
MTBF	> 100,000 hours(Only electronic components)
Communication interface	Multi-unit RS-232
Power	DC 24V ± 5%
Current consumption	Static 0.4A   Peak 2.0A(Normal 600mA)
Temperature	Operation :-10 ~ 60°C/0 ~ 90% RH(Non condensing) Storage :-25 ~ 80°C/0 ~ 95% RH(Non condensing)
Weight	About 2.0 kg
