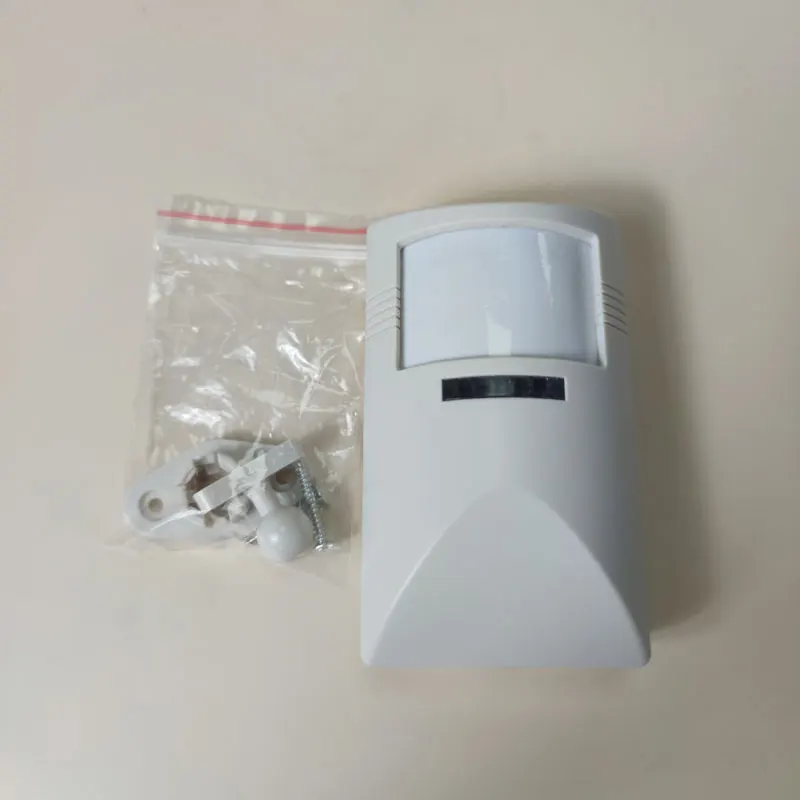

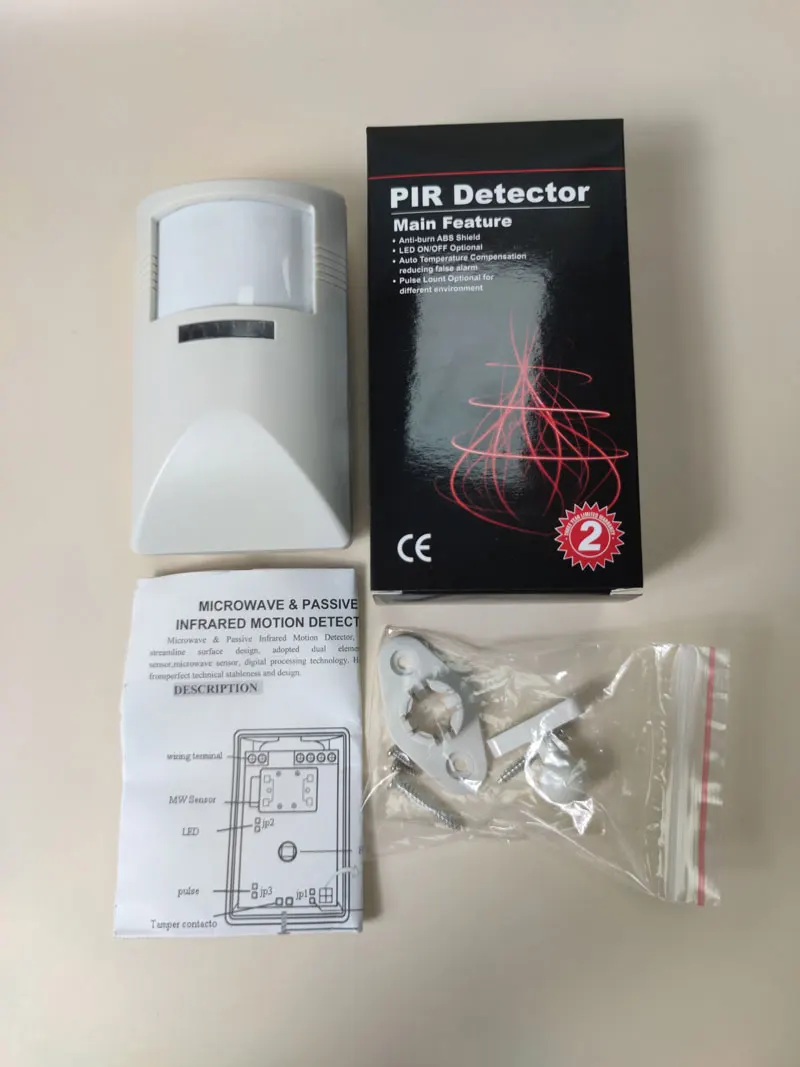

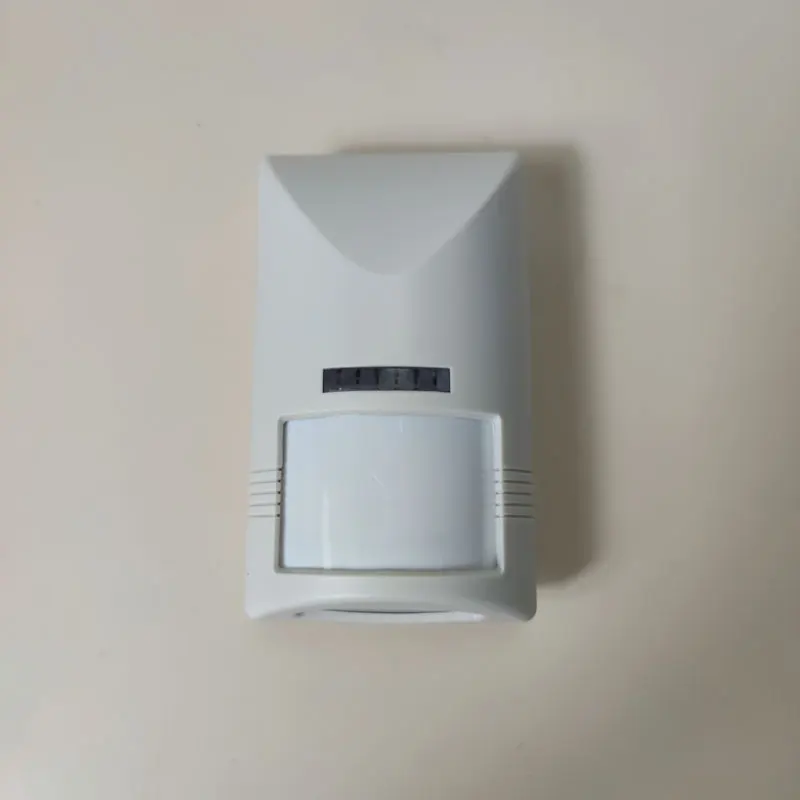

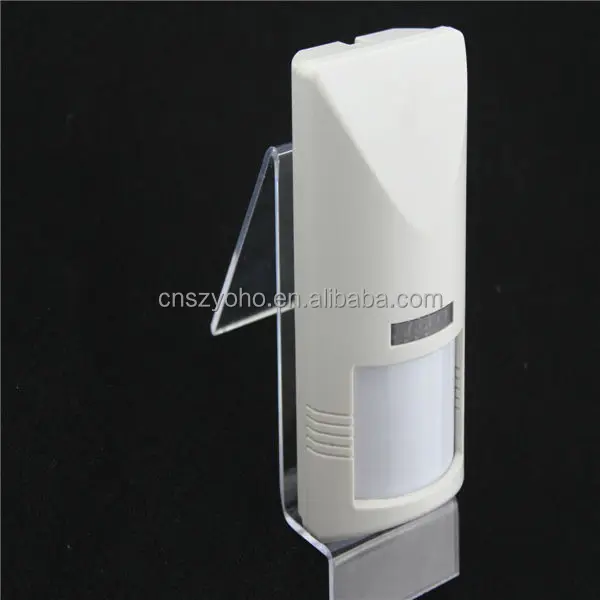

Cheap price system alarm sensor wide angle PIR sensor 12V wired intruder PIR motion detector from factory

Product Overview

Description



YH-380 Cheap price system alarm sensor wide angle PIR sensor 12V wired intruder PIR motion detector from factory
 for home security alarm system;
wide angle 110 degree detecting, 8~12m detecting distance;



Technical Parameter:

The production is a wired PIR  detector.  It adopts advanced technology in signal processing, and provides an excellent detection ability. When an intruder enter into the detecting area, an infrared heating signal, received by the Fresnel lens, would be sent out and focused on the infrared sensor, it would output an accurate alarm signal.



model	YH-380 PIR detector
detectig method	dual PIR
detecting distance	8~12m
detecting angle	110 °
installation	1.8~2.4m height(on wall or corner mounted)
working voltage	12V (9-16V DC)
working current	8mA~25mA
working environment	-20°C~+50°C
anti-EMI	>20V/M(20MHz-1000MHz)
tamper-proof	NC
anti-light interference	>9000LUX
dimension	110*65*35mm
pet immunity	Yes(18kgs)
alarm output	NC
guarantee	one year, lifetime service



INSTALLATION

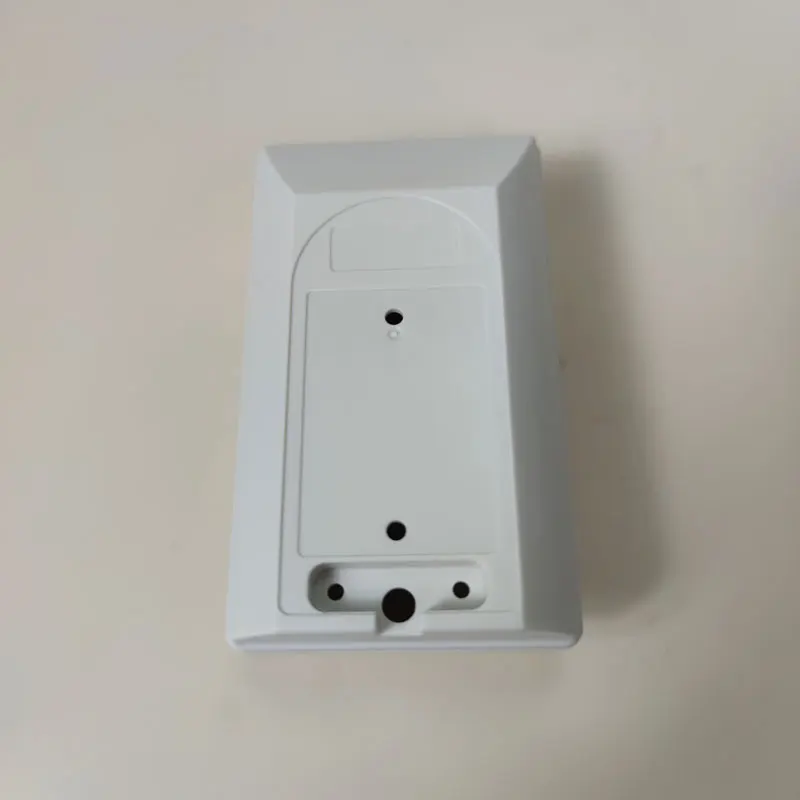

Choosing the suitable position, setting the bracket with screws, then insert the detector. The recommended height is about 2.2m. And the angle between the detector and the wall is 6~12º. Avoid installing the detector close to the following sources of interference: reflecting surfaces, direct air flow form vents, fans, windows, sources of steam, oil vapor, infrared light sources and objects causing temperature changes such as heaters, refrigerators and ovens.



USAGE

Fitting the front cover onto the base after wiring according to the manual. After power on, the detector will enter self-checking status and the LED will be on. 60 seconds after the LED is off, the detector will enter working status. If somebody is moving in the range of the detecting coverage, the LED will be on. By adjusting the installation angle of the detector to achieve the best sensitivity. “LED ON” jumper controls that the LED is ON or OFF when the detector is working.
