High quality Cost effective rubber track forte 90hp 4wd mahindra mini crawler tractor new price
- Category: >>>
- Supplier: Taian Taishan Guotai Tractor Manufacturing Co. Ltd.
Share on (1875507590):
Product Overview
Description

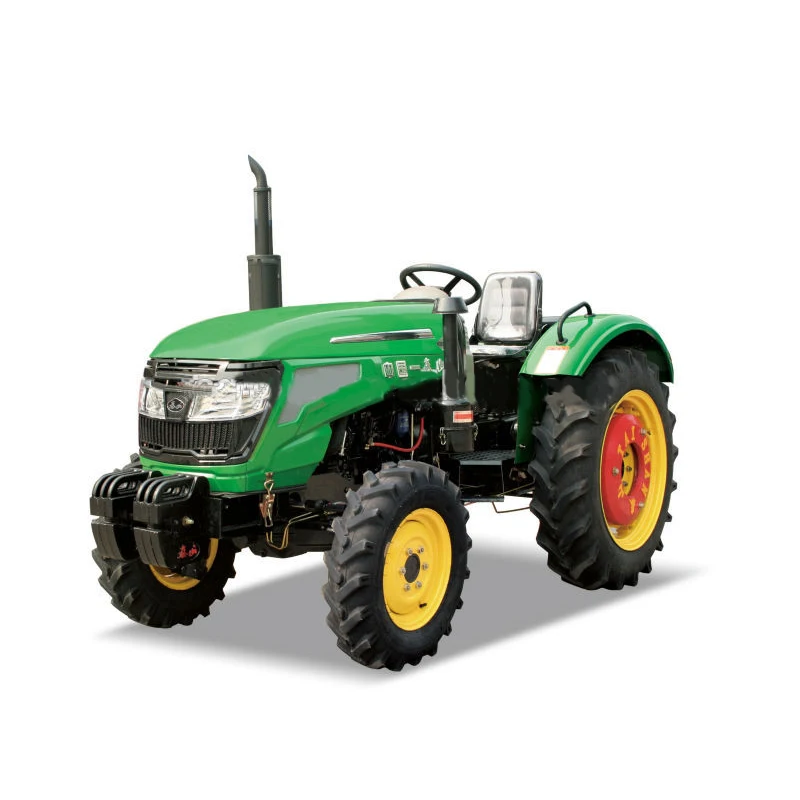

Taishan farm tractor mini agriculture machinery equipment wheel tractor
Tractor Parameters

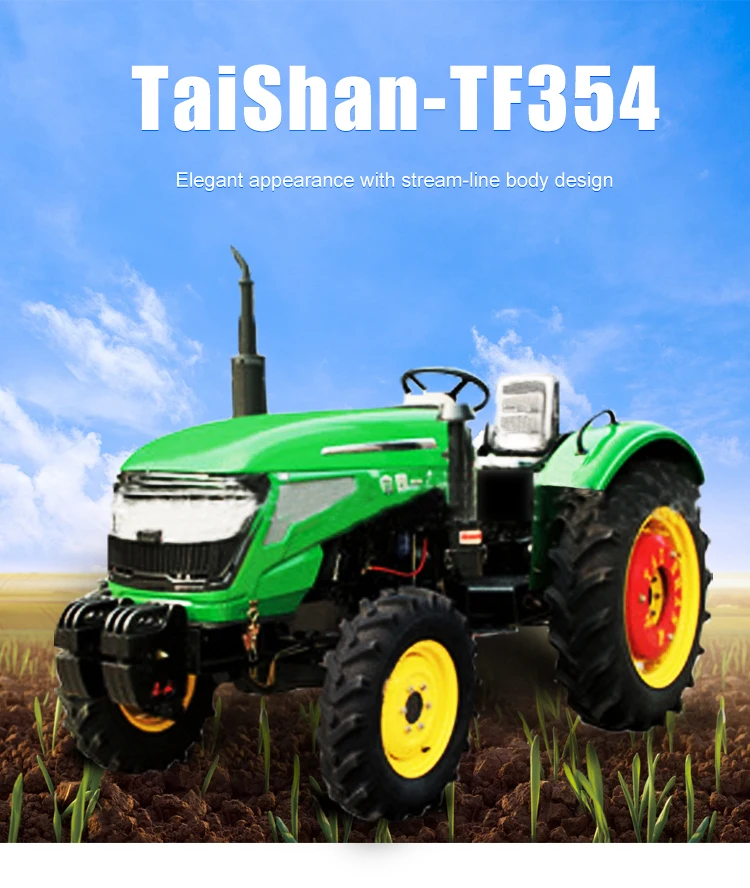

| Model | TF354 | |
Drive Type | 4WD | ||
Overall Dimensions L×W×H (mm): | 3460X1480X2100 | ||
Wheel Track (mm) | Front | 1100,1200,1300,1400 | |
Rear | 1170,1270,1370 | ||
Wheel Base (mm) | 1900 | ||
Ground Clearance (mm) | Under Front Axle | 395 | |
Under Rear Axle | 395 | ||
Rated Traction Force (kn) | 6.87/7.86 | ||
Construction Mass (kg) | 1643 | ||
Min. Turning Radius (m) | 3.6/3.3 | ||
Theoretical Speed (km/h) | Forward | 1.75-32.2 | |
Reverse | 2.3-11.9 | ||
Engine Specification
| Model | Changchai485 | |
Type | 4-cylinder, Upright inline cylinder, radiator cooling, 4-storke cycle, | ||
Rated Power (kW/hp) | 26.5/35 | ||
Rated Speed (rpm) | 2400 | ||
Bore × Stroke (mm) | 85X95 | ||
Total Displacement (L) | 2.156 | ||
Engine for Options | Model | none | |
Drive System
| Clutch | single-action , dry constant meshing | |
Gear Box | 2×(4+1) sliding gear shift | ||
Main Drive | One Pair of Spiral Bevel Gears | ||
Differential | Bevel Gear | ||
Differential Lock | Sliding pin, foot operated | ||
Final Transmissions | Gear transmission | ||
Traveling Mechanism
| Tire | Front | 650-16/750-16 |
Rear | 11.2-24/11.2-28 | ||
Steering Gear | Hydraulic power steering | ||
Brake | drum brake | ||
Working Device
| Hydraulic System | Lifting Capacity at 610 mm Behind Lift Point (Kn) | 6.9/7.4 |
3-Point Suspension | Category: I | ||
P.T.O. Shaft | Rotating Speed (rpm) | 540/730 | |
Spline Size | 8-Ø35 or 6-Ø35 Rectangular Spline | ||
