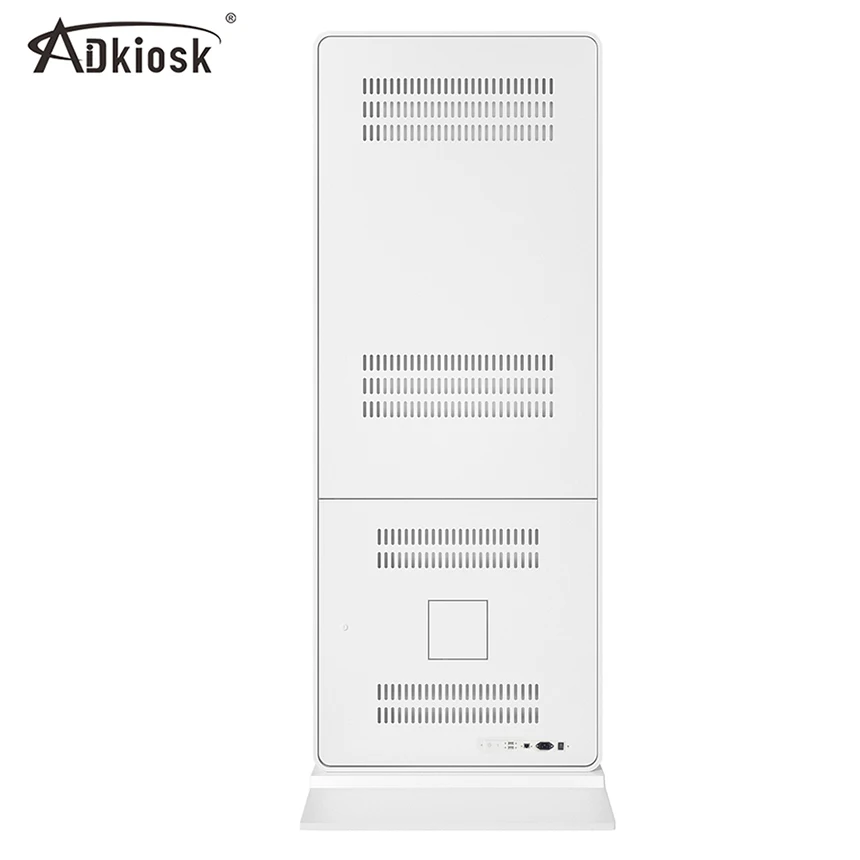

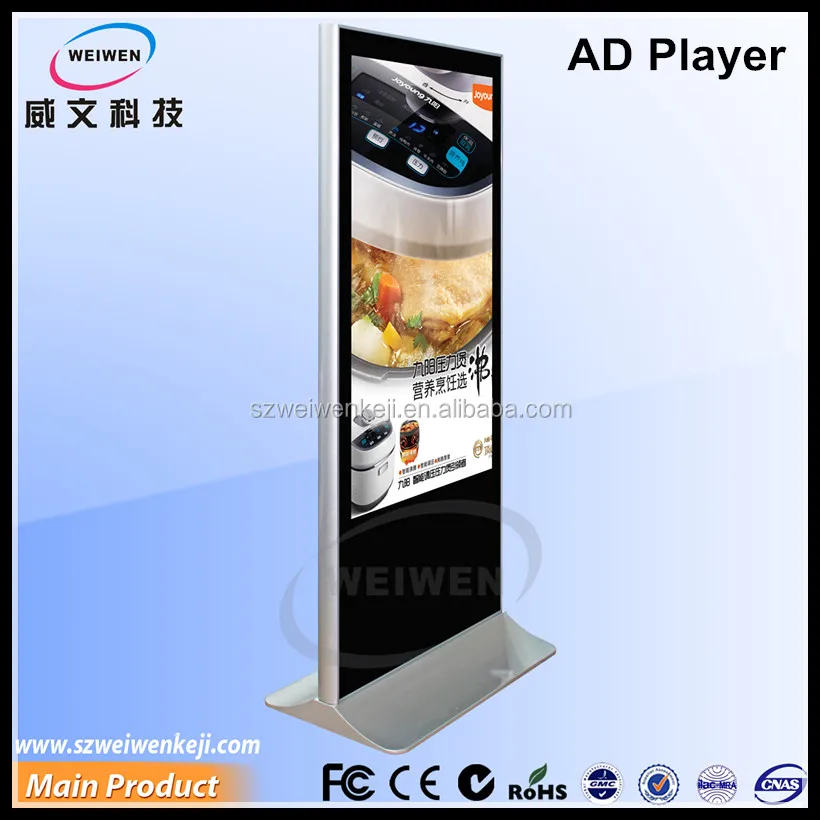

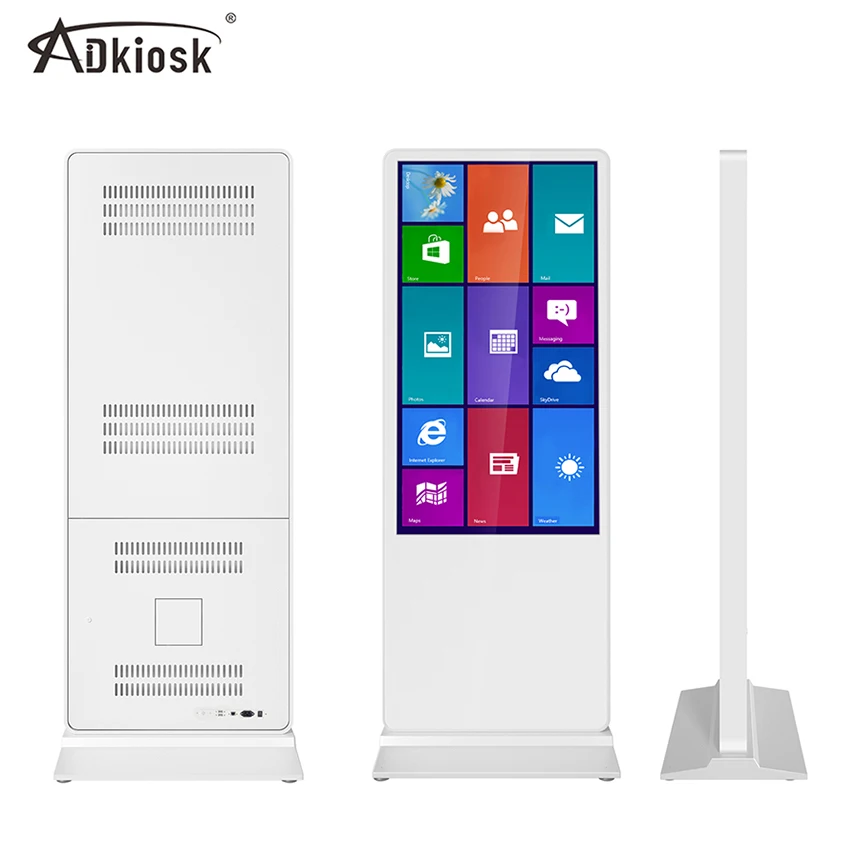

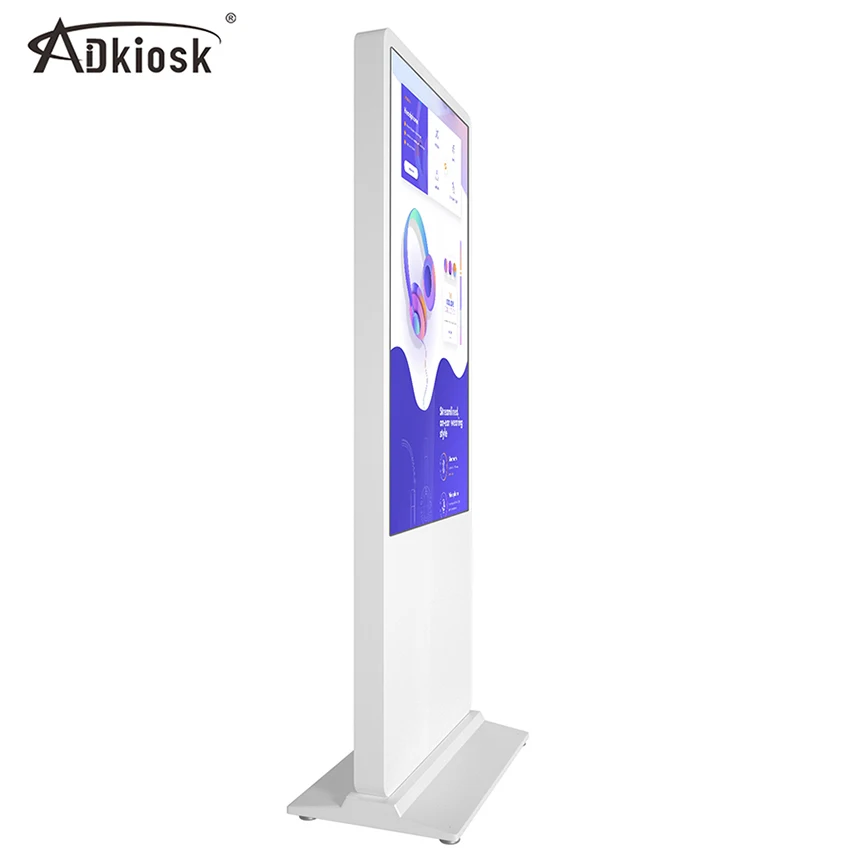

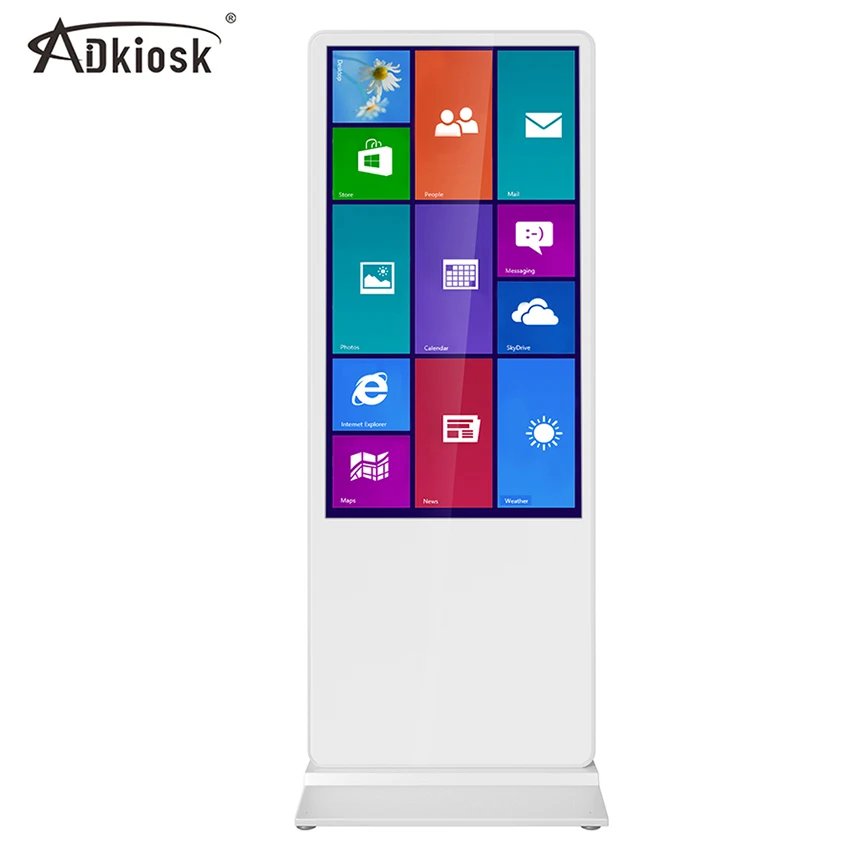

indoor 46inch with Samsung lcd panel network equipment for advertising under android operating system

Product Overview

Description





indoor 46inch with Samsung lcd panel network equipment for advertising under android operating system Specification:



Panel Specification
Model Number	WW-SN-4614
Panel Size	46inch
Display area	1018.08* 572.67MM
Brand	with Samsung/Auo A grade new panel
Resolution	1920*1080
Display Color	16.7M
Pixel Pitch	0.4835(H)*0.4835(V)mm
Brightness	360cd/m*2
Back Light	LED
Aspect ratio	16:09
Response time	6.5MS
Contrast	4000:1
View angle	178°/178°(H/V)
Life time	>60,000 hours
Video Specification
Resolution	Max 1080P HD
Video Format	RM/RMVB, MKV, TS, FLV, AVI, VOB, MOV, WMV, MP4 etc
Audio Format	MP3, WMA, APE, Flac etc
Picture Format	JPG, BMP, GIF etc
Input Function
Multi touch(Infrared/Resistance/Capacitive)	Support
Remote control	Support
USB Mouse/Keyboard	Support

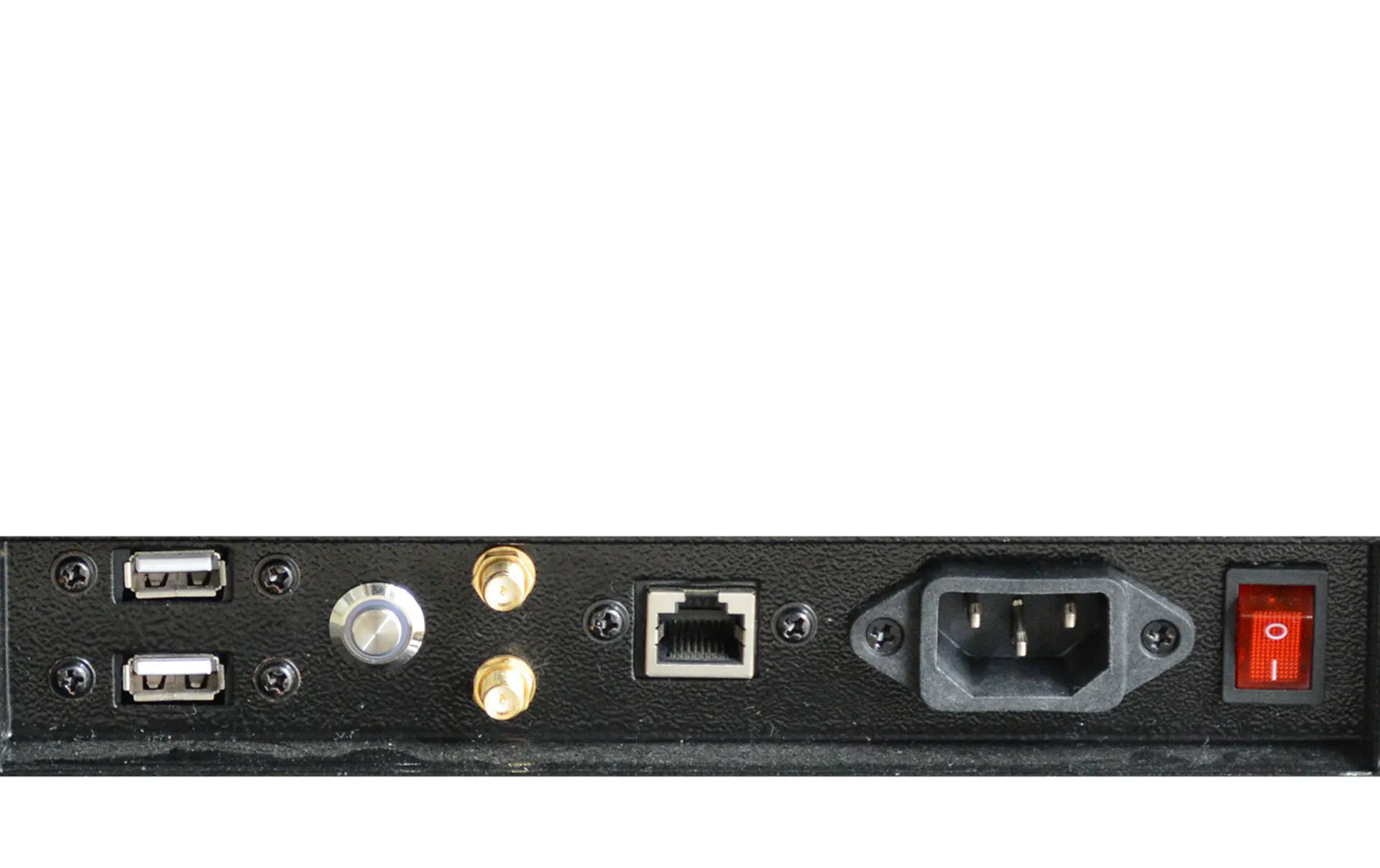

Output Function
Horizontal/Vertical Showing Mode	Support
1080P HD Dot to Dot oIutput	Support
LVDS/HDMI/VGA/AV	Support
Advantages
Time Switch	Turn on/off automatically
Rolled Text	Showing on the bottom of the panel
Calendar	Support
Weather	Support
Logo	Support
Splicing Screen	Support Video/photos/rolled text/weather/Calendar/logo showing in the same screen at the same time
Android Board Specification
Processer	Cortex-A8 1.5GHZ
Mainboard	Allwinner A20
RAM	1GB
Flash Memory	4GB
HDMI	1
USB	1
Network	Ethernet RJ45, 10M/100M
Audio	built-in HD audio 8(Realtek ALC888) audio system
Operating System	Android 4.2 System
WiFi model	Support 802.11N Home using Version
OSD Language
Menu Language	Chinese, English, Spanish, Russian, German, French, Arabic, etc.
Environment
Working Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Working Humidity	20%-80%
Storage humidity	5%~95%
Power
Power Supply	DC +12V
Maximum power consumption	4.5W
Standby power consumption	1W

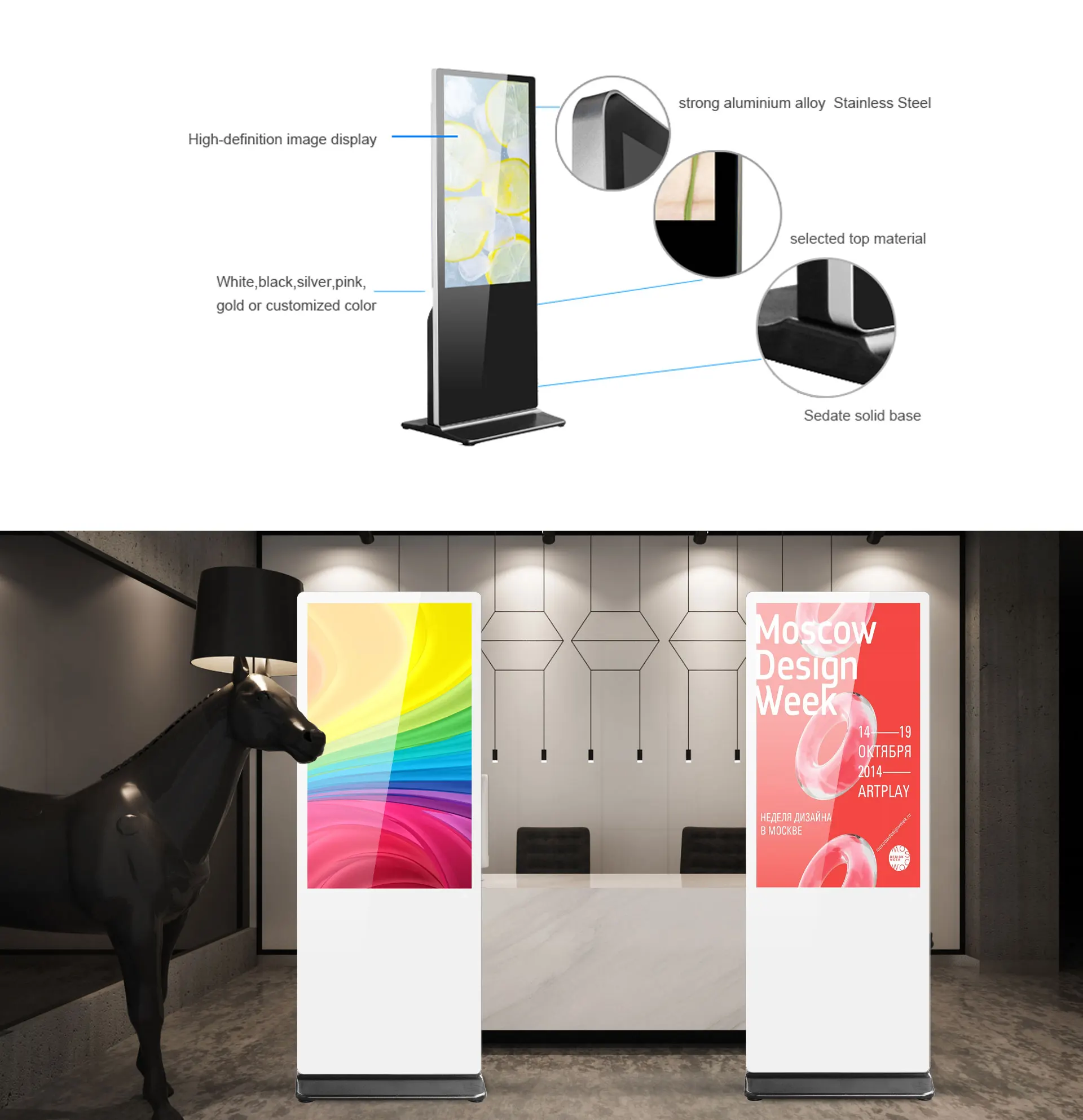

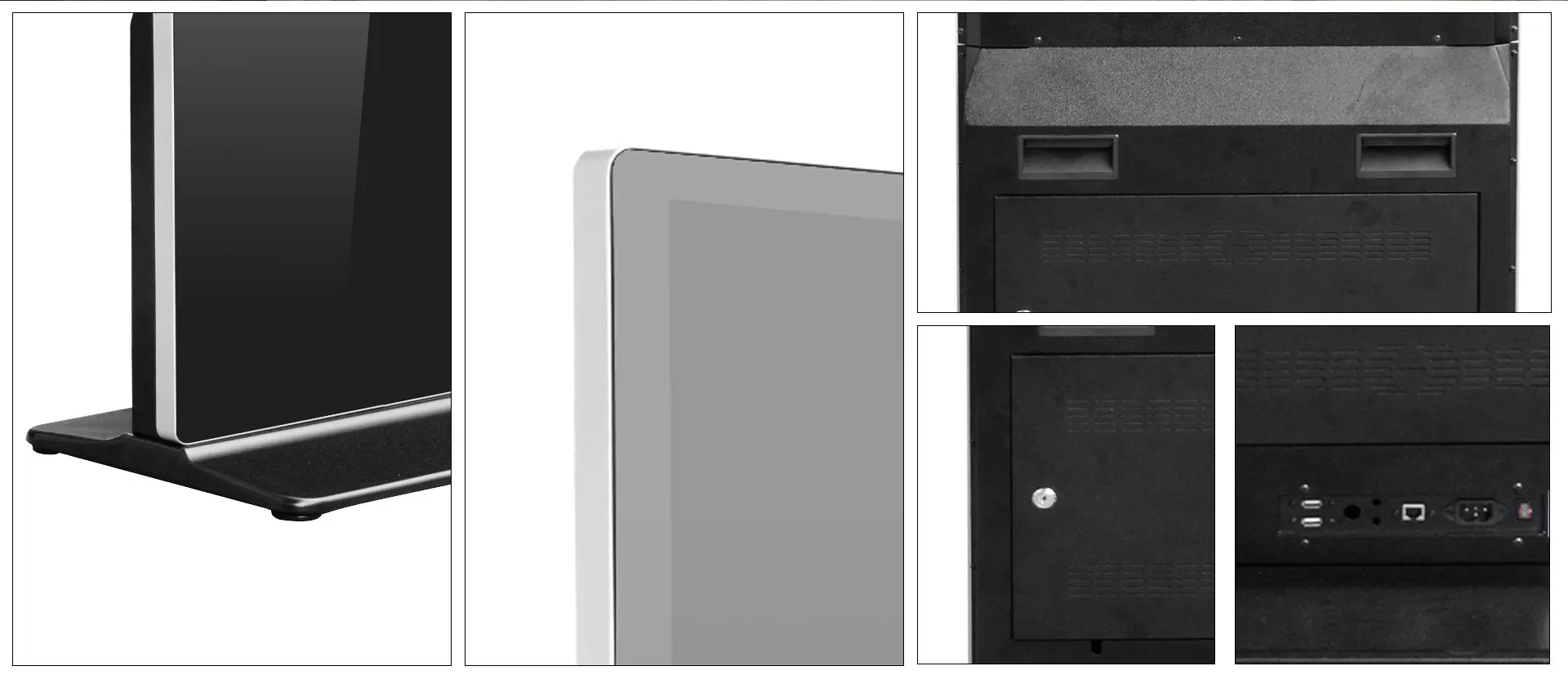

Appearance
Dimension	1850(H)mm*640(W)mm*90(D)mm
NetWeight	70kgs/pcs

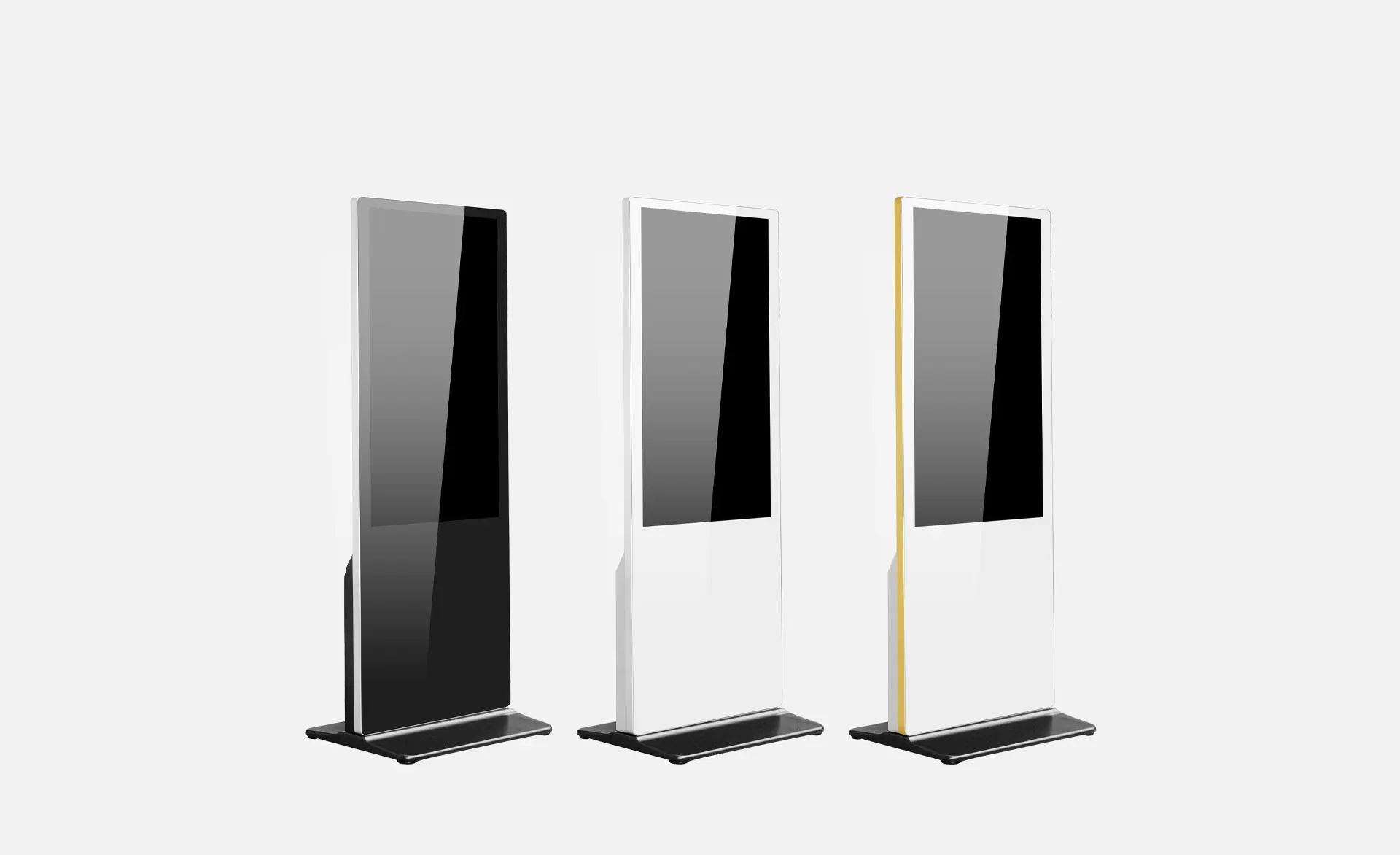

Color	White, Black, Silver, Golden, Customize based on Pantone number
Material	Cold Rolled Steel, Aluminum, Stainless Steel
Installation	Floor standing or mounted on the Floor
Certificcates	CE/FCC/ROHS/C-TICK/BV/SASO
Accessories	CD, Screws, Keys, Power Cable, Warranty Card, User Manual
Package
Package Step	Foam+Carton box+Wooden box
Package Dimension	215*28*105cm/pcs/wooden box;                            215*49*105cm/2pcs/wooden box
Gross Weight	110kgs/pcs/wooden box;                                                  180kgs/2pcs/wooden box

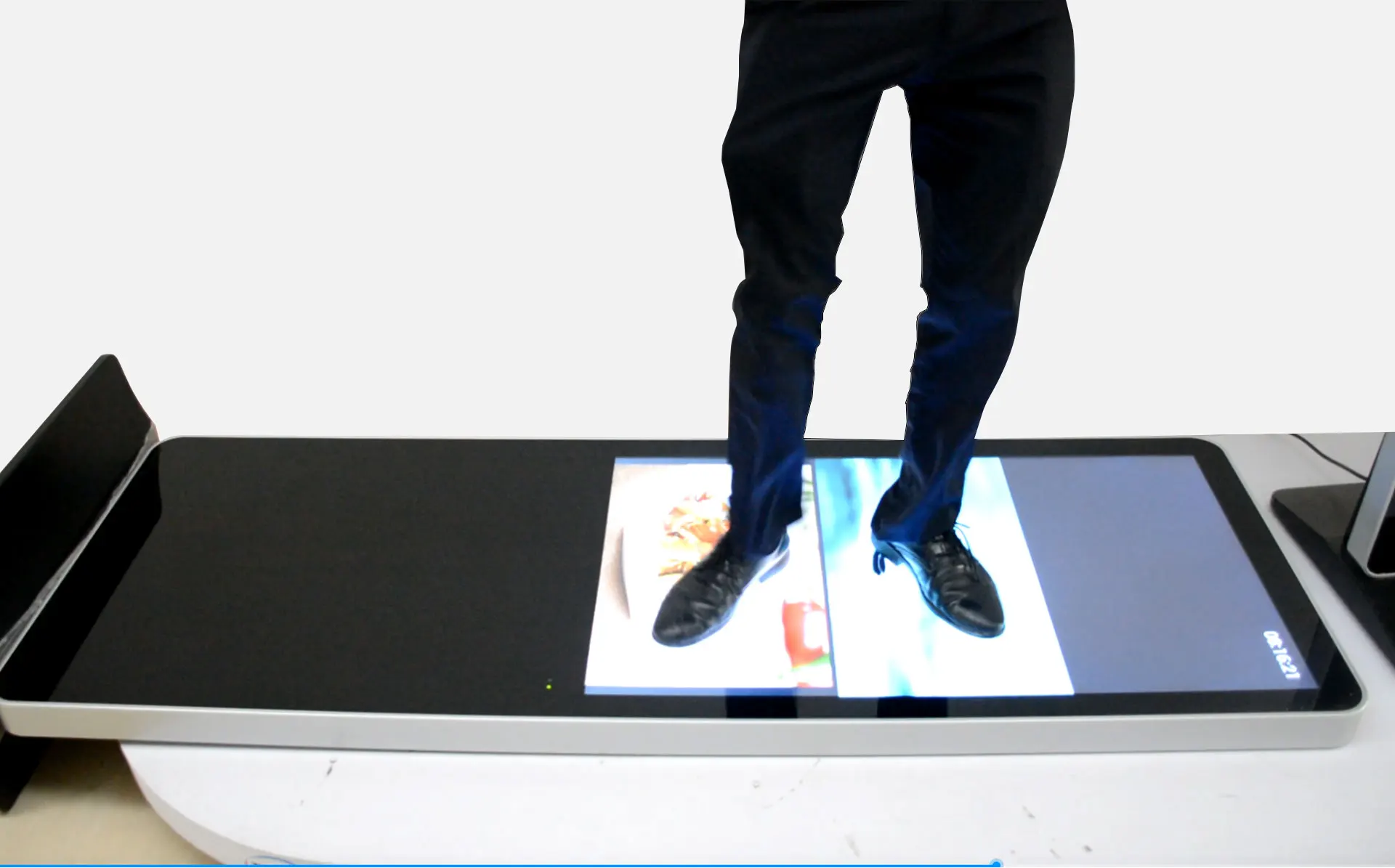

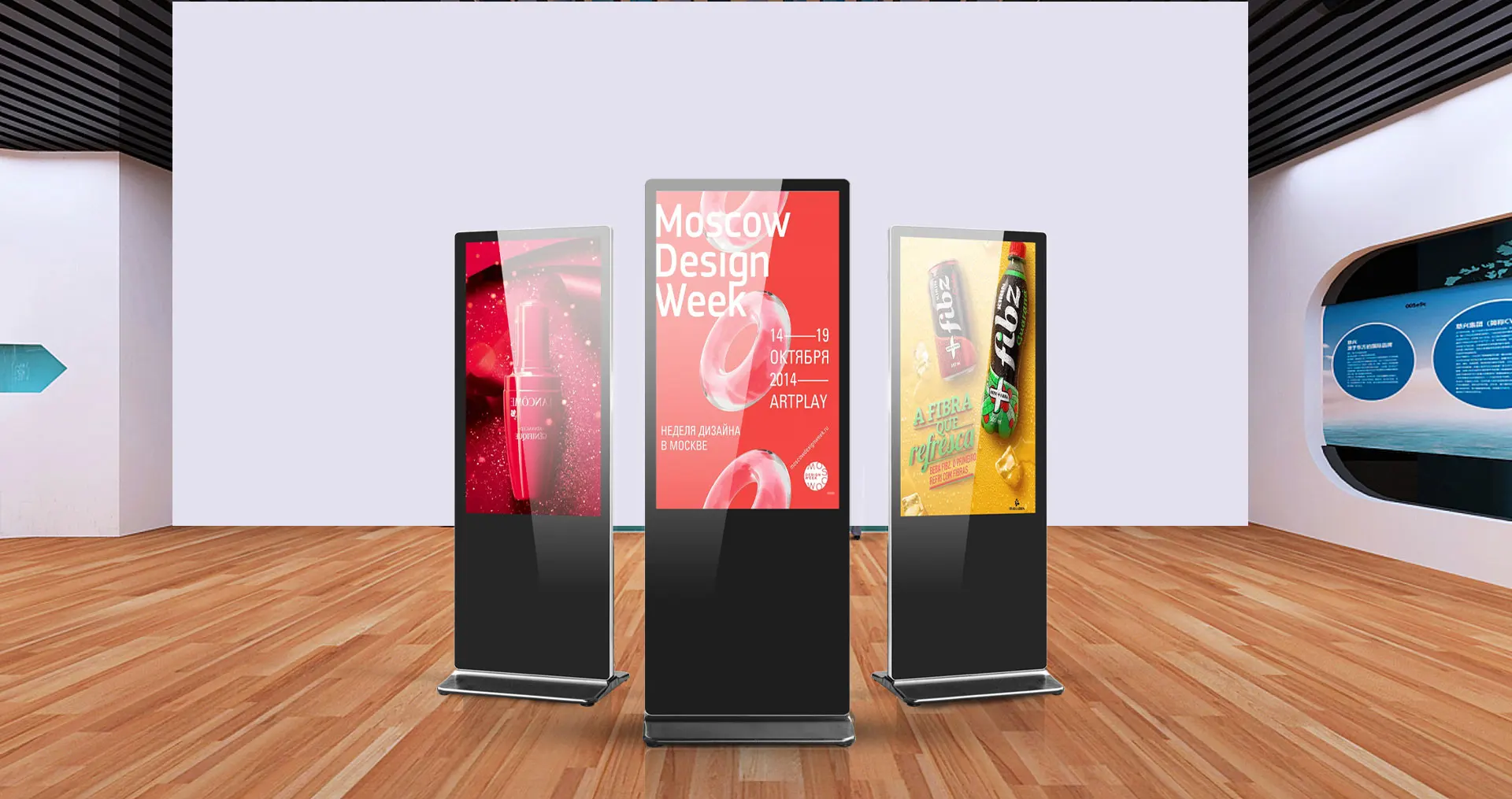

Application





Company Photos





Shipping Method & Delievery Time & Payment Term & Warranty



Shipping Method
By Express(DHL/UPS/FEDEX)	3~5days, door to door
By Air	5~7days, to the Airport Only
By Sea	5~30days, to the Seaport Only, depend to the Country
EXW Factory	All cost bared by client
FOB Shenzhen	Arrange the goods to the ship, after that all cost bared by client
Delievery Time
Regular Sample	7~15days once receive deposit
Customize Sample	30~35days once receive deposit
Quantity Order	15~20days once receive deposit
Payment Term
Western Union	30% in advance with order, 70% before shipment
T/T	30% in advance with order, 70% before shipment
L/C	30% in advance with order, 70% before shipment
Warranty Time: ONE year since Client Receive the Good
Under Warranty	Seller will Bare the problems if cause by unartificial
Out of Warranty	Buyer will Bare the problems, Seller will support help if needed
