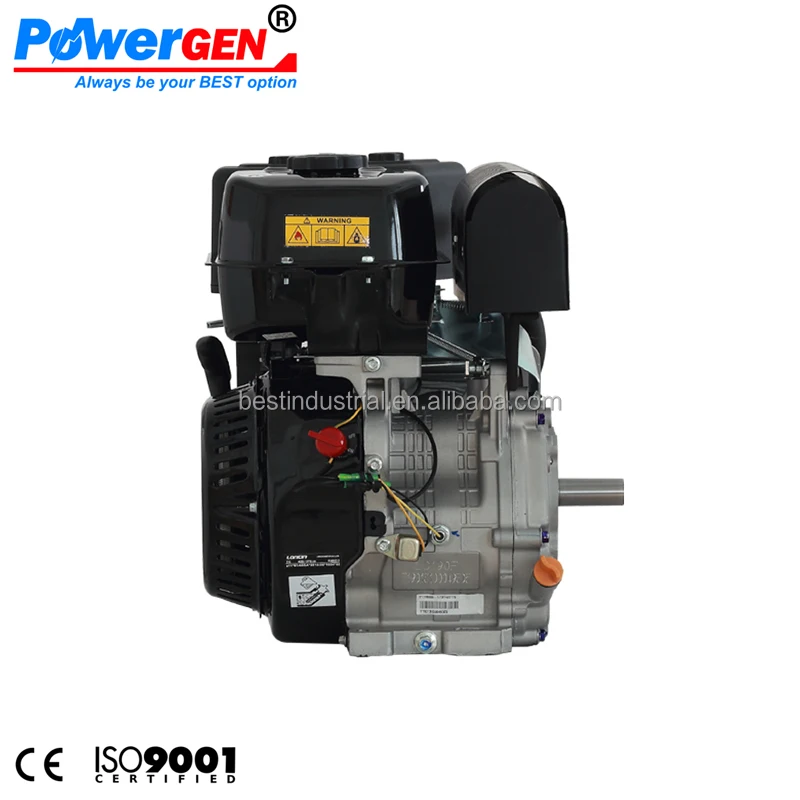

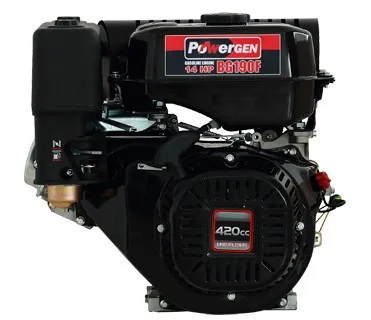

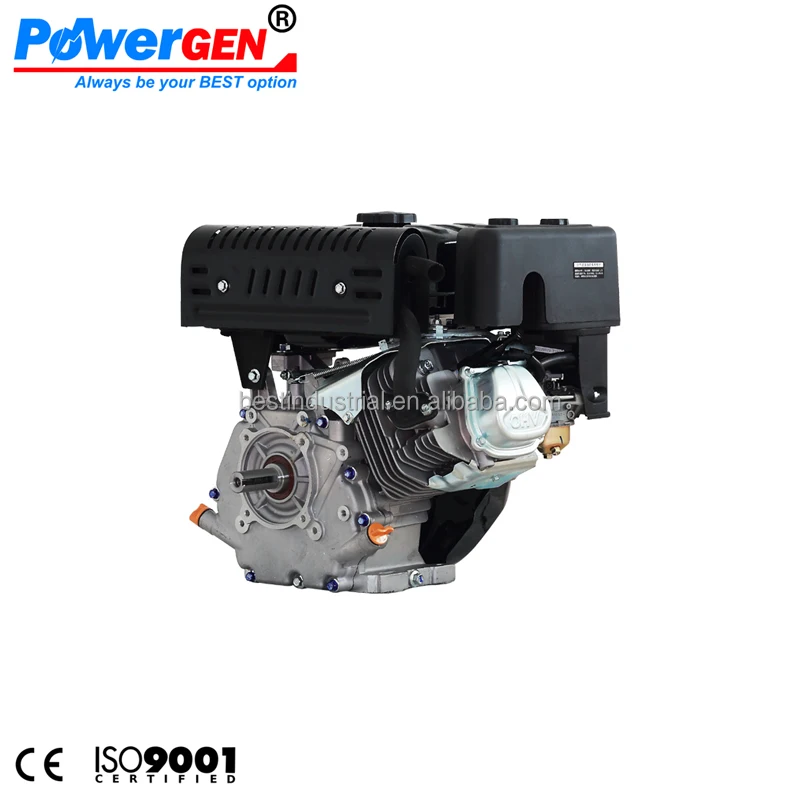

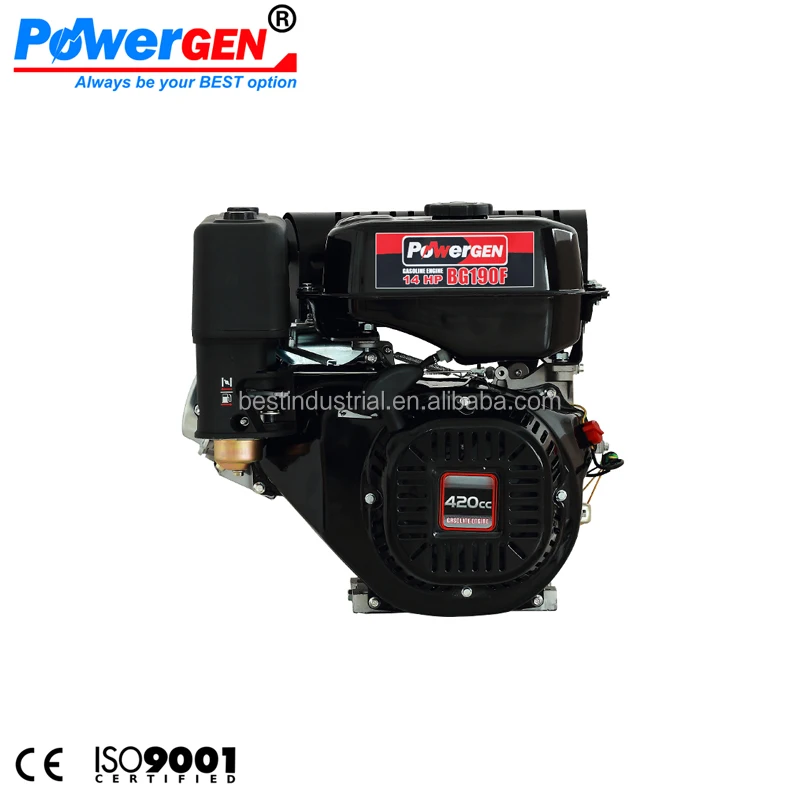

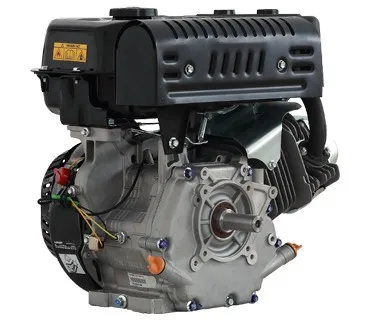

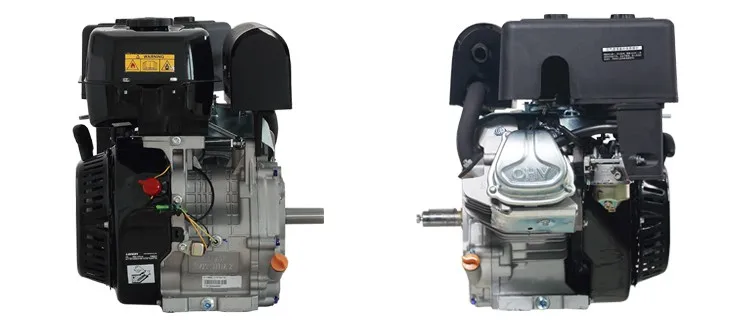

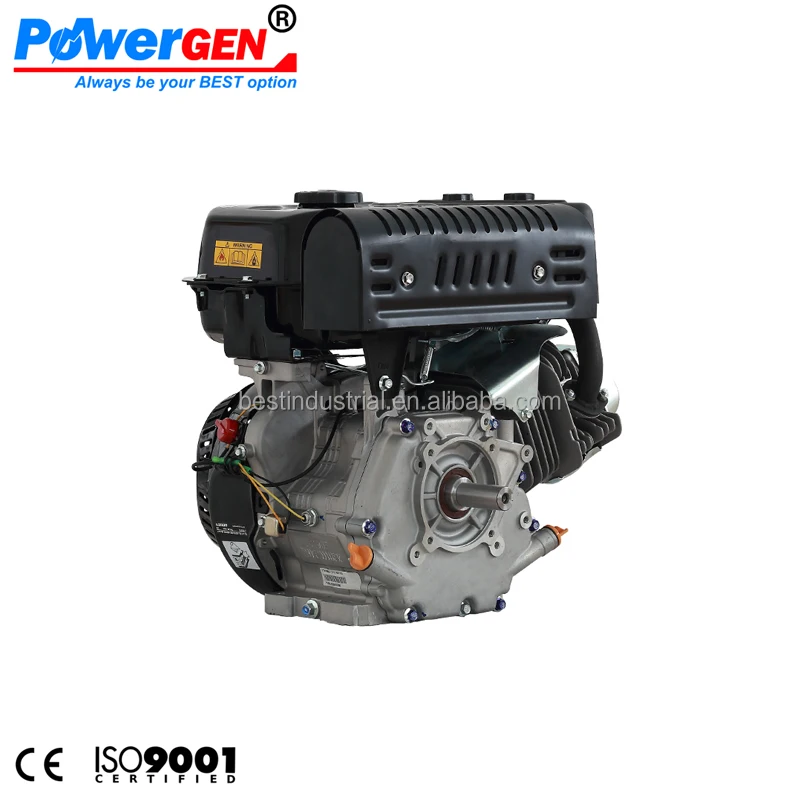

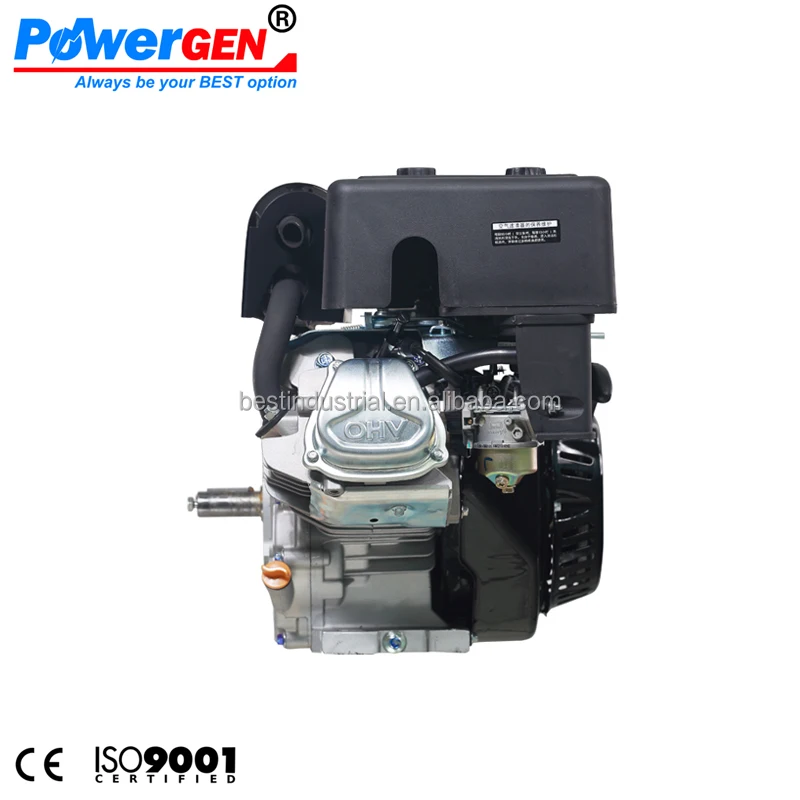

Hot Sale!!! POWERGEN Single Cylinder OHV 4 Stroke Air Cooled Gasoline Engine 14HP

Share on (1876745094):


Price:

Quantity:


Product Overview

Description


Product Description
\t
Specifications of Gasoline Engine 14HP
\t
Model No.
\t
BG190F
\t
Engine Type
\t
  Single cylinder,4stroke, forced cooling ,OHV25°inclined
\t
Bore x Stroke (mm)
\t
90x66
\t
Displacement (cc)
\t
420
\t
Compression Ratio
\t
8.5:1
\t
Peak Power (HP/RPM)
\t
14/3600
\t
PTO shaft rotation
\t
Anti-clockwise(from PTO side)
\t
Net torque
\t
26.5N.m/2500rpm
\t
Idle speed
\t
1400±150r/min
\t
Ignition system
\t
Transistorized magneto ignition
\t
Starting System
\t
Recoil start/Electic-start
\t
Lubrication system
\t
Splash
\t
Governor system
\t
Centrifugal mass type
\t
Air cleaner
\t
Semi-dry, dual element
\t
Carburetor
\t
Butterfly
\t
Oil capacity (L)
\t
1.1
\t
Fuel tank capcity
\t
6.0
\t
Dimensions (LxWxH)mm
\t
440 x 405 x 435
\t
Net weight (Kgs)
\t
Recoil Start only: 31;  with Electric Starter: 33
Features

*Design of overhead valve (OHV): the engine operation temperature is low. It has strong power, efficient performance of suction and exhaust, and OHV structure greatly increasing combustion efficiency.

*Low vibration: the professional balanced design with low center of gravity allows the engine running smoothly.

* Perfect compatibility: light weight and exquisite product as a result of improved design of silencer, starter, air filter and fuel tank, which is more convenient for users to carry power equipment.

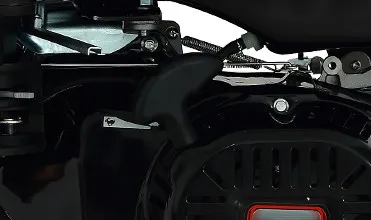

EASY START


Recoil starter is employed, which has proper resistance and enables an easy start for female.

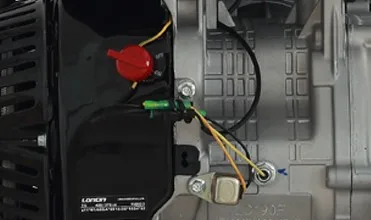

LOW OIL LEVEL SHUT DOWN

Prevent the engine from running under low oil level and can give more protection to the engine.

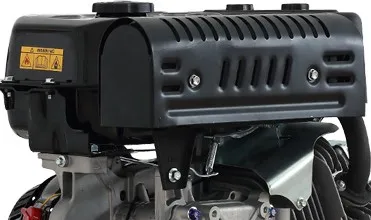

EXCELLENT DESIGN

The unique long silencer expands heat radiating area and minimizes noises pollution to the environment. The long fuel tank provides larger capacity and longer endurance.

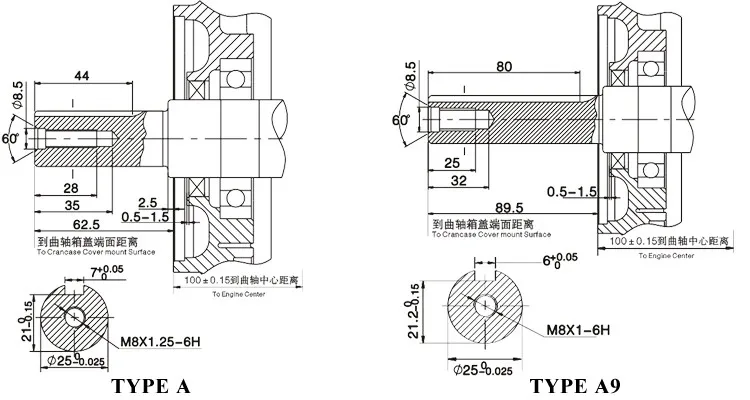

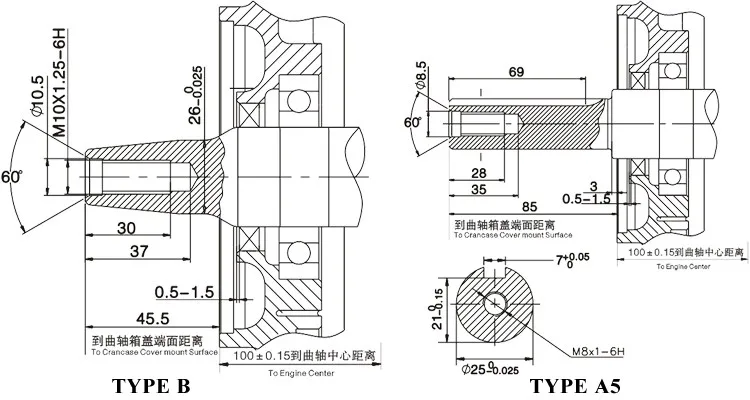

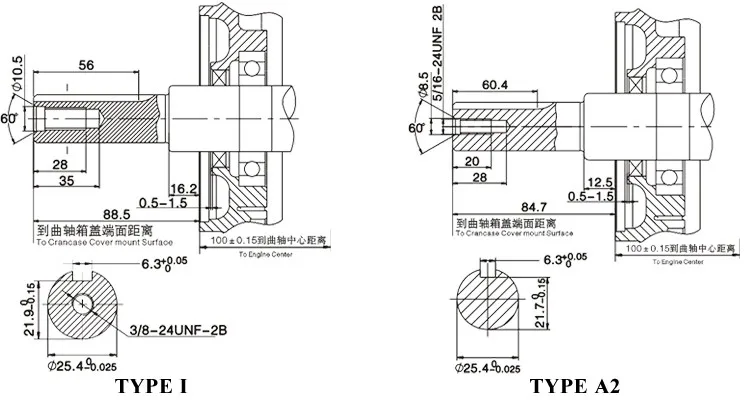

PTO Shaft & Curve
Packing
\t
Packaging
\t
Size (mm)
\t
500 (L) * 450 (W) * 480 (H)
\t
Gross Weight
\t
34Kg (Recoil Start)
\t



Packaging
Details
\t


1) Inner Packaging: Polybag & Foam
2) Outer Packaging: Carton
3) Wrapping tape
Assembly Line
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
