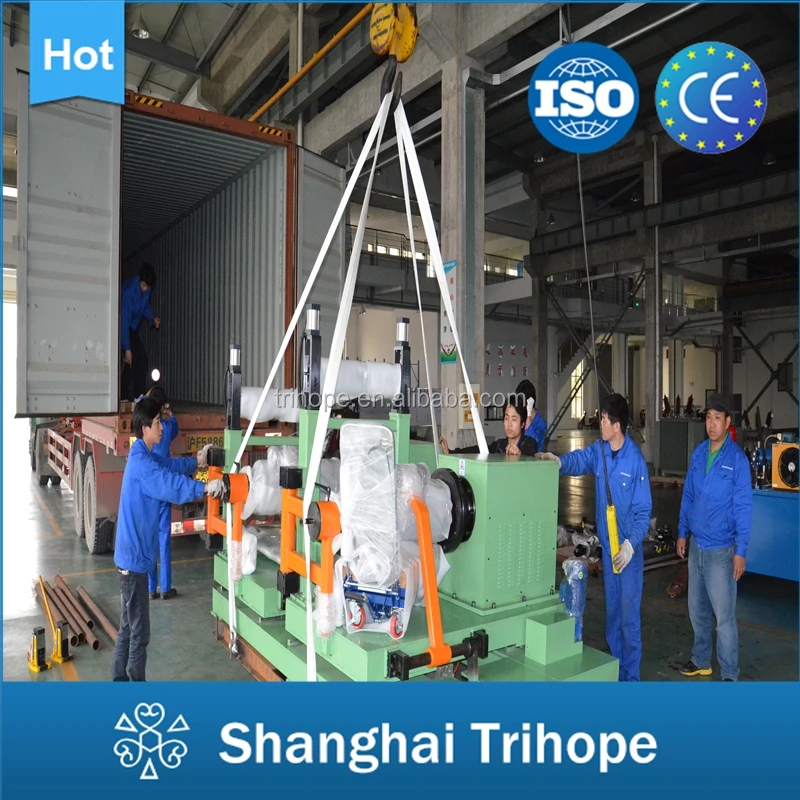

Transformer Making Equipment Coil Winding Machine
- Category: >>>
- Supplier: Shanghai Trihope International Co. Ltd.
Share on (1876979587):
Product Overview
Description
PRODUCT INTRODUCTION
Transformer making equipment coil winding machine price
1.General Description
1)LV Foil coil is the completed thing on the combined winding machine with the copper or aluminum foil strips of the various different thickness as the conductor,and the strips insulation material as layer insulation.
2)HV coil use round wire or rectangle wire as conductor to be winded.The coil can be round, ellipse and rectangle.
3)PLC control which is highly automatic, various different configurations, ensure the axial compactness and radial firmness. Various configurations provide the support for producing qualified electrical coils. It is essential machine to manufacture the electrical products.
2.Main technical parameter
| S.N | ITEM | SPECIFICATION |
| 1 | Coil range | |
| 1.1 | Axial length | Max:300 mm |
| 1.2 | External diameter(mm)(not include wires) | Φ350 |
| 1.3 | ( Min ) mmInner diameter(min) | No limited |
| 1.4 | Coil type | Round, ellipse, rectangle |
| 2 | Coil material | |
| 2.1 | Aluminum foil | width≤600mm,thickness : aluminum foil(0.3-1.2mm)x2layer Coil inside diameter:Φ300,Coil outside diameter≤Φ800 |
| 3 | Conduct foil decoiling device | |
| 3.1 | Width of the decoiler | 350mm |
| 3.2 | Diameter range of the decoiler | Φ290--φ310 |
| 3.3 | Load the decoiler(max) | 300 KG |
| 3.4 | Pull force | Max:1000N.M(Stepless adjustable) |
| 3.5 | Tension working expressure | 0~0.6 Mpa |
| 3.6 | Centering way(deviation Recertify) | Electric control, inching |
| 3.7 | Decoil press force | Pneumatic press unit |
| 4 | Winding device | |
| 4.1 | Revolving speed | 0~200rpm |
| 4.2 | ( Max )Working torque(max) | ≥ 1000 N.M(10kgMechanical damping tension≤10kg) |
| 4.3 | Power Main Moter | 5.5 KW |
| 4.4 | Speed regulation | Frequency stepless speed regulation |
| 5 | Layer insulation decoiler device (Main expanding fore when back up ) | |
| 5.1 | Installation axle of Layer insulation | |
| 5.2 | outer diameter of insulation Layer coil | ≤φ400 mm |
| 5.3 | Inner diameter of insulation Layer coil | Φ76 mm |
| 5.4 | Width of Layer insulation coil | Max:300mm |
| 5.5 | Decoiling way | Mechanic clamping |
| 5.6 | Damping force | ≤50 N.M |
| 6 | Deviatin Rectifying device | |
| 6.1 | Counterdeviating method | Adjusted by hand |
| 6.2 | Counterdeviating precision | As operator |
| 7 | HV auto alignment device | Adopting ac servo motor system |
| 7.1 | Alignment method | Automatic alignment, limit Winding pitch 0.01mm |
| 7.2 | Suitable wire | Round wire:Φ0.3mm-Φ3.3mm,Rectangle wire: Max 3×7mm |
| 8 | Electrical system | PLC auto control |
| 8.1 | Count digits | (0.0--9999.9)5 digits(0.0-9999.9)(Count precision:0.1 turn) |
| 8.2 | Basic function | Step input, revisable, power off memory |
| 8.3 | Work interface | Color touch panel (Chinese and English) |
| 8.4 | Total power | 8KW |
3.Main parts Suppliers
| Item | Supplier |
| Touch screen | Mitsubishi |
| HP frequency converter | Mitsubishi |
| PLC | Mitsubishi |
| Low voltage Electric part | Schneider |
| Main motor for winding | ABB |
| Pneumatic part | E.MC |
| Linear guide rail | TBI |
| Ball screw | TBI |
