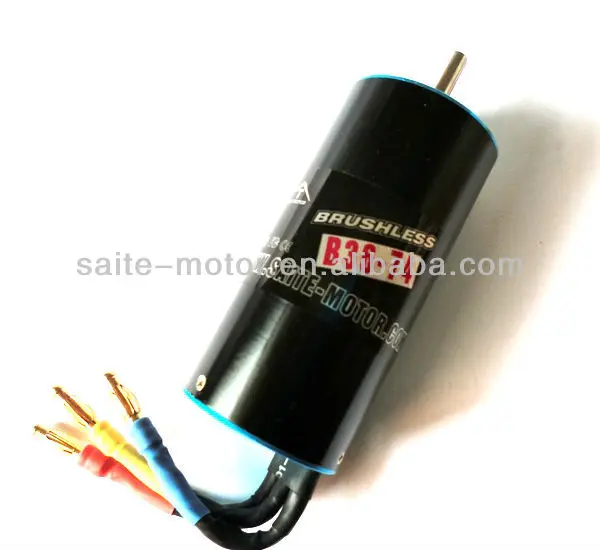

ST3674/4P high power rc brushless motor for 1/8 electric rc car off road

Product Overview

Description

ST3674/4P high power rc brushless motor for 1/8 electric rc car off road

Features:

1.Manual Winding

2.Imported bearing

3.Imported stator core

4.High temperature copper wire

Application: rc car, rc boat, jet plane



Motor Specification:

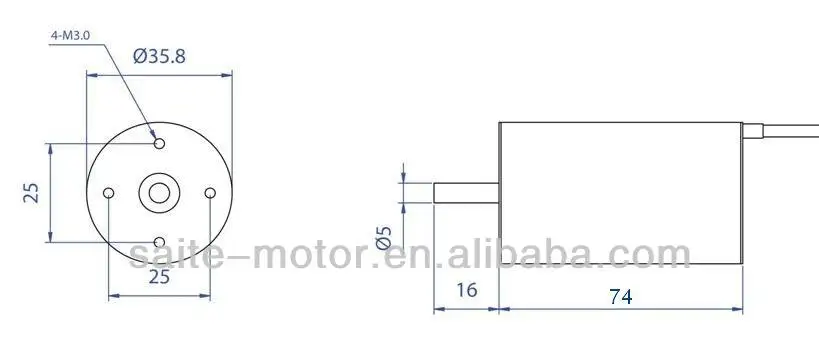

Model	Max Amps		Max Power	KV(RPM/Volt)	Resistance	No-load Curren(7.4V)	Diameter×Length(mm)	Shaft Diameter (mm)	Weight
ST3674/4P	135A		2400W	3270KV	0.0033	4.5A	Φ36.0×74	Φ5.0	315g
	110A		2400W	2650KV	0.006	3.1A	Φ36.0×74	Φ5.0	315g
	90A		2400W	2200KV	0.0066	2.7A	Φ36.0×74	Φ5.0	315g
	78A		2400W	1900KV	0.0104	2.2A	Φ36.0, ×74	Φ5.0	315g
	72A		2400W	1700KV	0.009	2.3A	Φ36.0×74	Φ5.0	315g
	70A		2400W	1650KV	0.0115	1.8A	Φ36.0×74	Φ5.0	315g
	60A		2400W	1470KV	0.0164	1.4A	Φ36.0×74	Φ5.0	315g
	58A		2400W	1400KV	0.0153	1.8A	Φ36.0×74	Φ5.0	315g
	56A		2400W	1300KV	0.0175	1.6A	Φ36.0×74	Φ5.0	315g
	50A		2400W	1200KV	0.0235	1.1A	Φ36.0×74	Φ5.0	315g
	50A		2400W	1180KV	0.0181	1.4A	Φ36.0×74	Φ5.0	315g
	48A		2400W	1100KV	0.0252	1.2A	Φ36.0×74	Φ5.0	315g
	42A		2400W	1000KV	0.029	1.1A	Φ36.0×74	Φ5.0	315g
	36A		2400W	860KV	0.0334	0.8A	Φ36.0×74	Φ5.0	315g











Package Contents:

1 * ST3674/4P high power rc brushless motor for 1/8 electric rc car off road
