Product Overview
Description

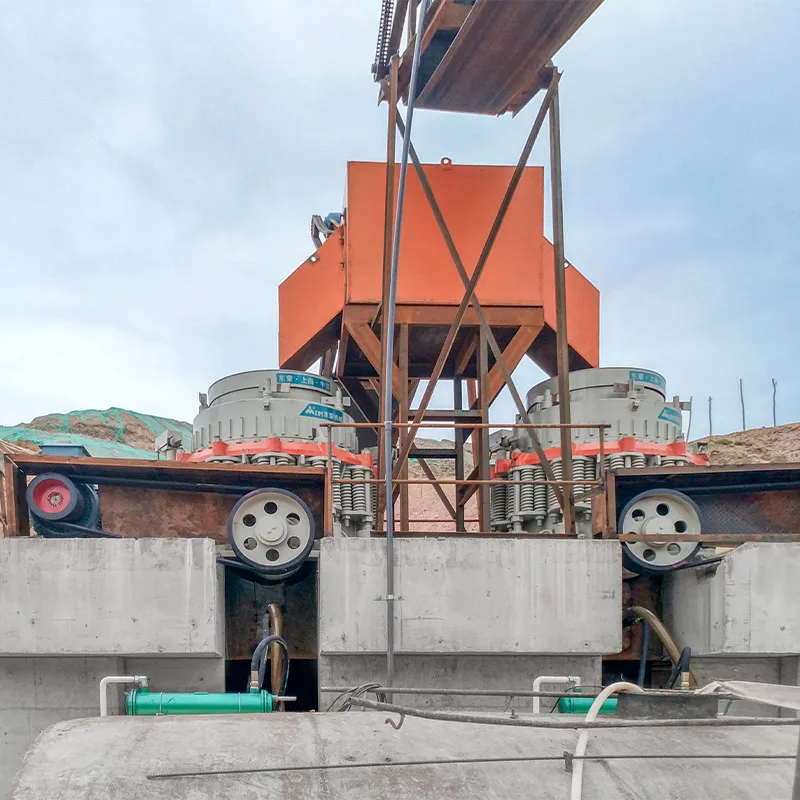

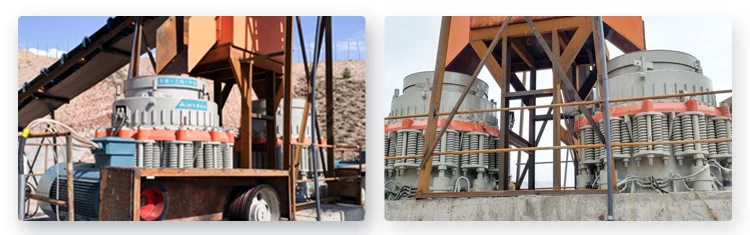

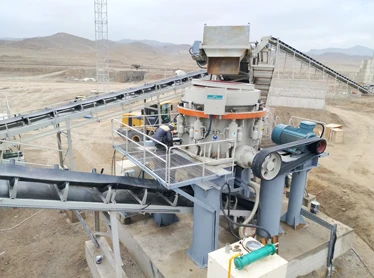

Cone Crusher
Main Technical Parameters:
| Model | Chamber | Max.feed size(mm) | Min discharge opening(mm) | Motor power (kw) | Capacity(th) | Weight |

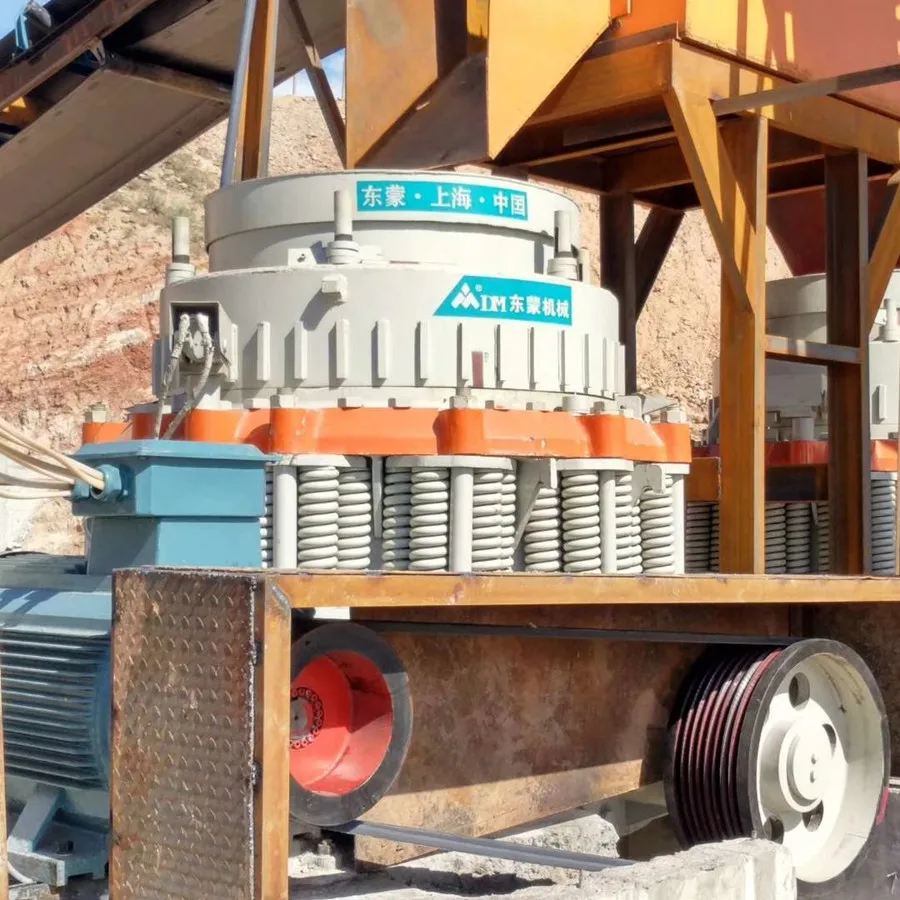

| DMC1000 | C/M/F/EF | 160/115/80/50 | 13/10/8/6 | 110 | 50-235 | 10.8/10.51 |
| DMC1160 | C/M/F/EF | 180/130/90/60 | 13/10/10/6 | 132 | 60-260 | 15.5 |
| DMC1300 | C/M/F/EF | 200/150/102/70 | 16/13/10/8 | 200 | 88-390 | 22.3 |
| DMC1380 | C/M/F/EF | 215/160/115/76 | 19/16/13/8 | 220 | 11-440 | 26.3 |
| DMC1650 | C/M/F/EF | 235/175/130/90 | 22/19/13/10 | 250 | 148-580 | 36.5 |
| DMC1950 | C/M/F/EF | 350/203/140/95 | 22/16/13/10 | 280-315 | 180-725 | 44.3 |

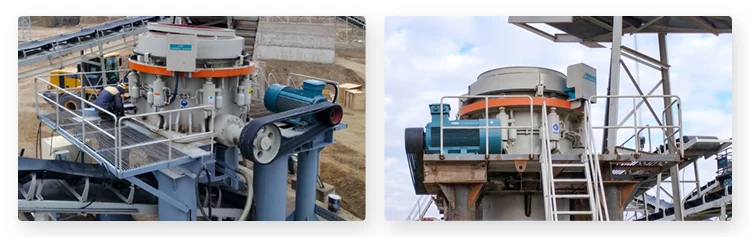

| DHP200 | C/M/F | 185/125/95 | 22-38/16-32/13-26 | 160 | 95-225 | 10.9 |
| DHP300 | EC/C/M/F | 230/211/150/107 | 26-51/22-45/16-38/13-32 | 220 | 110-400 | 17.8 |
| DHP400 | EC/C/M/F | 300/250/200/120 | 32-51/26-51/22-45/16-38 | 315 | 237-570 | 25 |
| DHP500 | EC/C/M/F | 335/280/210/133 | 32-51/26-51/22-45/16-38 | 400 | 370-884 | 34.1 |
Main Products
Main Products We Offer:
1.Vibrating feeder, two types of ZSW and GZD to meet user’s different processing capacity;
2.First crushing: Jaw crusher, or Impact crusher, or cone crusher depends on your materials;
3.Secondary crushing: impact crusher, cone crusher(spring type, spring and hydraulic type, hydraulic type) or VSI crusher;
4.Vibrating screen, YK series, linear series, DF series;
5.Belt conveyor, stationary type, or mobile type;
6.Steel structures, such as feed-in and discharge hoppers, stairways, guardrails, maintenance board, steel channel, etc;
7.Electric control cabinet.
2.First crushing: Jaw crusher, or Impact crusher, or cone crusher depends on your materials;
3.Secondary crushing: impact crusher, cone crusher(spring type, spring and hydraulic type, hydraulic type) or VSI crusher;
4.Vibrating screen, YK series, linear series, DF series;
5.Belt conveyor, stationary type, or mobile type;
6.Steel structures, such as feed-in and discharge hoppers, stairways, guardrails, maintenance board, steel channel, etc;
7.Electric control cabinet.
Related Products
Solutions
Solutions:
1.For Hard Stone:
Quartzite,basalt,Granite, quartz porphyry, siliceous schist, quartzite, sandstone, Conglomerate, iron
ore,Marble, dolomite, and pyrite,et:
| Raw material | Capacity(t/h) | Feeder | Primary crushing | Secondary crushing | Screen |
| Stone/Granite | 50-80 | ZSW3800*960 | DC75(500*750) | DMC1000 | 3YK1548 |
| Stone/Granite | 80-120 | ZSW3800*960 | DC90(600*900) | DMC1160 | 3YK1854 |
| Stone/Granite | 120-200 | ZSW4900*1100 | DC106(750*1060) | DMC1300 | 3YK2160 |
| Stone/Granite | 200-300 | ZSW4900*1100 | PEW4836(900*1200) | DMC1650 | 3YK2460 |
| Stone/Granite | 300-400 | ZSW6000*1300 | PEW4840(1000*1200) | 2*DMC1300 | 2*3YK2460 |
| Stone/Granite | 400-500 | ZSW6000*1300 | PEW6048(1200*1500) | 2*DMC1650 | 2*3YK2460 |
2.For Soft Stone and Medium hard stone:
Limestone, chalk, gypsum, gypsum, anthracite,broken sandstone and rocky soil,etc:
| Raw material | Capacity(t/h) | Feeder | Primary crushing | Secondary crushing | Screen |
| Stone/limestone | 50-80 | ZSW3800*960 | DC75(500*750) | PF1210 | 3YK1548 |
| Stone/limestone | 80-120 | ZSW3800*960 | DC90(600*900) | PF1214 | 3YK1854 |
| Stone/limestone | 120-200 | ZSW4900*1100 | DC106(750*1060) | 2*PF1214 | 3YK2160 |
| Stone/limestone | 200-300 | ZSW4900*1100 | PEW4840(1000*1200) | 2*PF1315 | 3YK2460 |
| Stone/limestone | 300-400 | ZSW6000*1300 | PEW4840(1000*1200) | 2*PF1315 | 2*3YK2460 |
| Stone/limestone | 400-500 | ZSW6000*1300 | PEW6048(1200*1500) | 2*PF1315+2*PF1315 | 2*3YK2460 |
Note: this form is only for reference and can be customized according to customer needs.

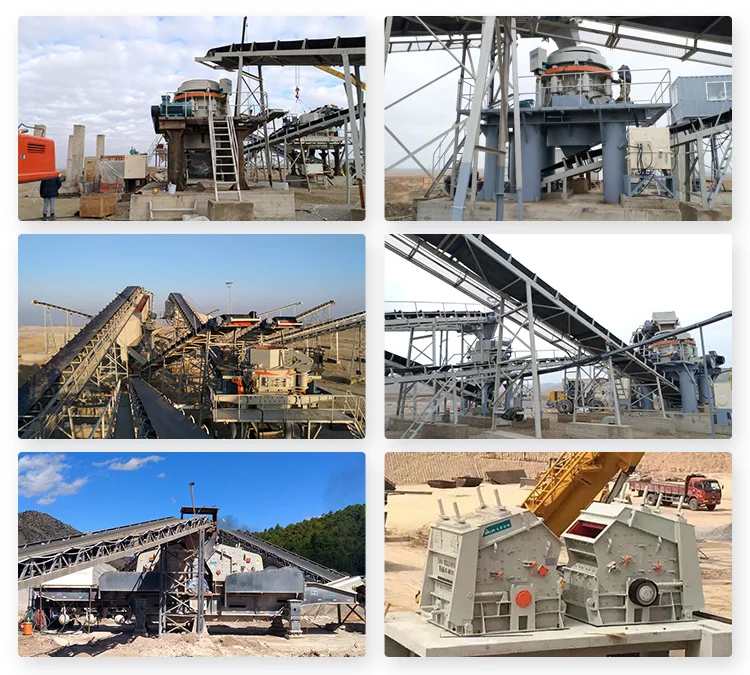

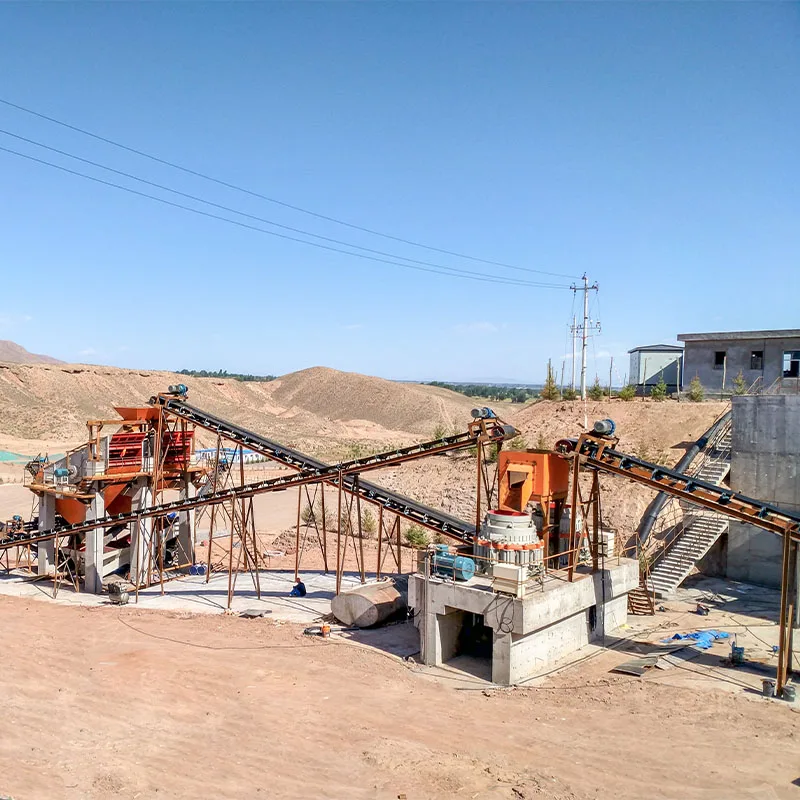

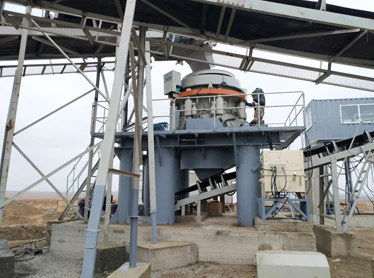

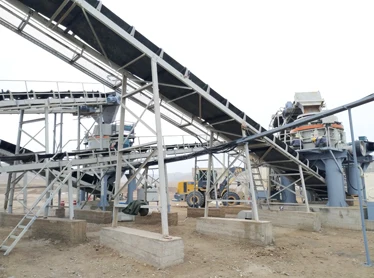

Crusher Line Case
Our Service
1) Pre-sale service:
1) Inquiry and consulting support.
2) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.
3) View our Factory. Field trips to sell products.
2) Medium-sales service:
Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export.
3) After-sales service:
1) On-site Service: We sent engineer to the scene to guide installation, debugging and training operators.
2) On-line Service: We also support remote service (parts delivery, troubleshooting, online guidance)

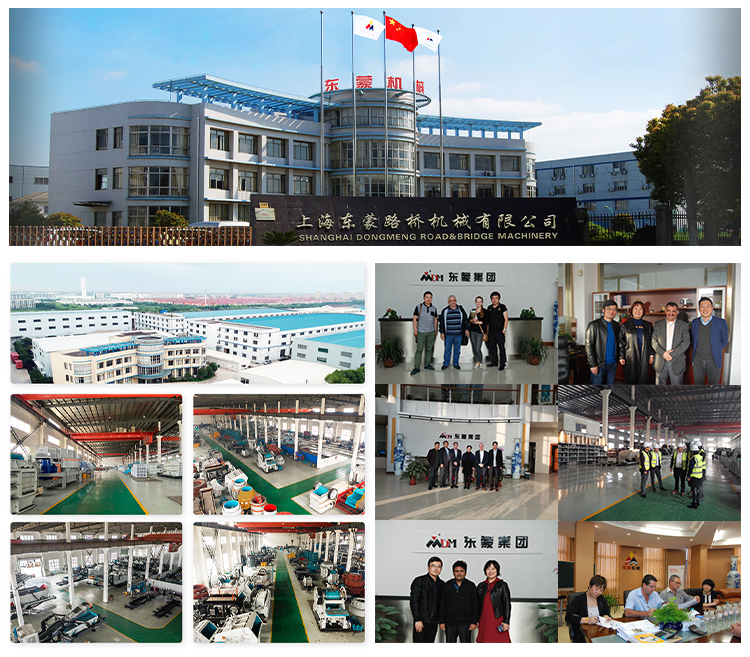

Company Information
Shanghai Dongmeng Road&Bridge Machinery Co., Ltd. is a high technology company specializing in R&D and manufacturing large crusher, screen and crawler mobile crushing and screening
plants for more than ten years.We have more than 200 employees, 30 technical staff, with factory area of more than 20,000 square meters.
plants for more than ten years.We have more than 200 employees, 30 technical staff, with factory area of more than 20,000 square meters.
Q1:Installation?
Answer:At the client’s request, DongMeng can provide installation Technicians to supervise and assist in the assembly and commissioning of the equipment. Travel and accommodation costs.
Q2:Payment?
Answer:30% by TT as deposit on signing the contract, 70% by as final payment of balance after the client’s satisfactory inspection of the equipment prior to the goods leaving the DongMeng factory.
Q3:What about Warranty? what will we do if the machine is broken down?
Answer:The warranty period for all of DongMeng’s structural and mechanical equipment is one year. The warranty period for all electric motors is half one year. Wear parts are not covered by warranty unless the component part is found to be flawed.
Q4:What should we need to do for if we want to get a best quotation?
Answer:Hi, if you want us recommend a suitable type for you ,please let us know as follows:
1).the capacity (tons per hour )?
2).output size?
3).Max.Input Size?
4).stone type?
Q5:What could you help me to do for the business?
Answer:Many thanks for your trust , we can provide you with proposal chart for complete production lines ,
spot inspection and operator traning according to your demands and the conditions of applied spot , we can help you
choose the right equipments ,drilling rig ,loader ,trucks ,excavators and so on .
Q6:What's your After sales Service?
Answer:All equipment manufactured by DongMeng is of the highest standard and very rarely have our clients experienced any mechanical problems. Should any problems occur, our team of Engineers and Technicians will respond within12 hours of notice by the client.
Q7:Delivery time?
Answer:Standard delivery time for stationary crusher plant is 30 days from receipt of deposit,the mobile crusher plant is 45 days.
Answer:At the client’s request, DongMeng can provide installation Technicians to supervise and assist in the assembly and commissioning of the equipment. Travel and accommodation costs.
Q2:Payment?
Answer:30% by TT as deposit on signing the contract, 70% by as final payment of balance after the client’s satisfactory inspection of the equipment prior to the goods leaving the DongMeng factory.
Q3:What about Warranty? what will we do if the machine is broken down?
Answer:The warranty period for all of DongMeng’s structural and mechanical equipment is one year. The warranty period for all electric motors is half one year. Wear parts are not covered by warranty unless the component part is found to be flawed.
Q4:What should we need to do for if we want to get a best quotation?
Answer:Hi, if you want us recommend a suitable type for you ,please let us know as follows:
1).the capacity (tons per hour )?
2).output size?
3).Max.Input Size?
4).stone type?
Q5:What could you help me to do for the business?
Answer:Many thanks for your trust , we can provide you with proposal chart for complete production lines ,
spot inspection and operator traning according to your demands and the conditions of applied spot , we can help you
choose the right equipments ,drilling rig ,loader ,trucks ,excavators and so on .
Q6:What's your After sales Service?
Answer:All equipment manufactured by DongMeng is of the highest standard and very rarely have our clients experienced any mechanical problems. Should any problems occur, our team of Engineers and Technicians will respond within12 hours of notice by the client.
Q7:Delivery time?
Answer:Standard delivery time for stationary crusher plant is 30 days from receipt of deposit,the mobile crusher plant is 45 days.
