WEICHAI DEUTZ 150hp Marine diesel engine with price

Product Overview

Description





1. WEICHAI DEUTZ 150hp Marine diesel engine

DEUTZ 226B series motor boat  is a modified model, which is developed, according to Germany DEUTZ national standards and ship regulations, through making improvement on the combustion system, intake an exhaust system, cooling system, PTO system and engine monitoring system on the basis of assimilating foreign advanced technology. This model boasts wide power and speed range, small size and weight, impact structure, reliable operation, advanced economic and technical targets as well as convenient installation. It is mainly used as the main engine or the auxiliary engine of the ship.









Product Specifications for  150hp Marine diesel engine

                                   DEUTZ MOTOR BOAT(with gearbox)





below is an example of DEUTZ motor boat  performances curves

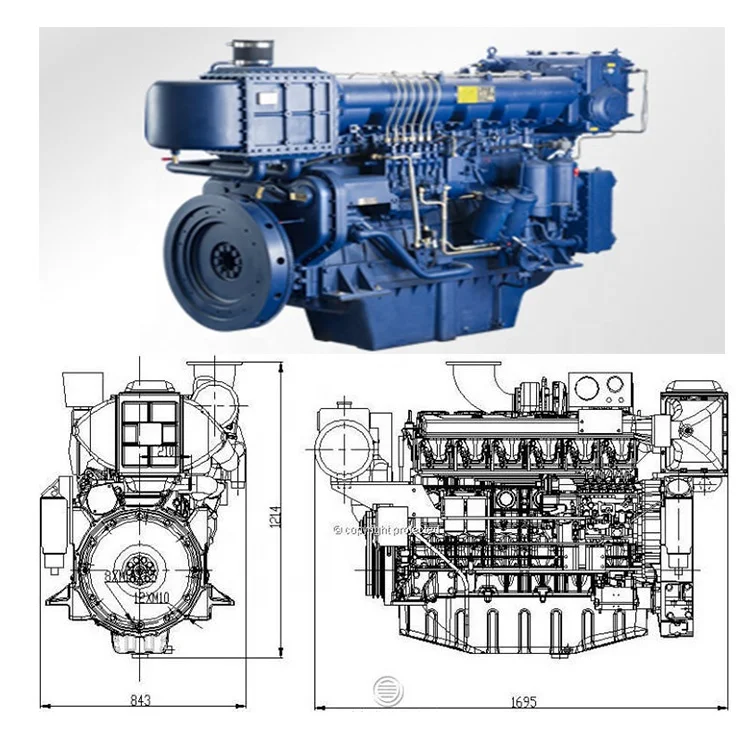

example of WEICHAI DEUTZ MOTOR BOAT

Marine Diesel Engine		82HP/60KW
Marine Diesel Engine	Model	WP4C82-15(WEICHAI brand)
	Rated output(kW/hp)	60/82
	Rated speed (rpm)	1500
	Type	Water cooled, inline, 4-stroke, direct injection,turbocharged
	cylinder number	4
	Bore×Stroke(mm)	105×130
	Fuel consumption(g/kW.h)	≤195
	Oil/fuel consumption(g/kW.h)	≤0.8
	Stable governing rate(%)	≤10(mechanical)
	Starting method	Electronic starting
	Cooling method	Water cooling
	Idle speed(r/min)	650+/-30
	Smoke(Rb)	≤1.2
	Displacement(L)	4.5
	(dB(A)) Noise	≤105
	Lubricating method	Forced lubricating
	Emission	IMO TIER II
	Crankshaft rotation direction	counter clockwise(face to flywheel end)
	Overall size L*W*H (mm)	1058x820x1061(for reference)
	Net  weight (kg)	600





We can supply all kinds of DEUTZ WEICHAI marine deisel engine as per customers' requirements.  Just Tell me what you want!



Packging:  plywood case or as per customers' requirements

Delivery time:30 days(once the 30% deposit is received)



Warranty Policy



i) The alternator are driven by DEUTZ WEICHAI diesel engine, which have the global maintenance service.
ii) There are so many authorized service stations where you can get maintenance service and spare parts.
iii) The warranty is 1500 running hours or 1 year (whichever comes first).



EXHIBITION OF OUR DEUTZ MARINE ENGINE





  If you want to know more about our DEUTZ BOAT MOTOR ,Please contact me derictly,and i will do my best to make satisfication .
