Product Overview

Description

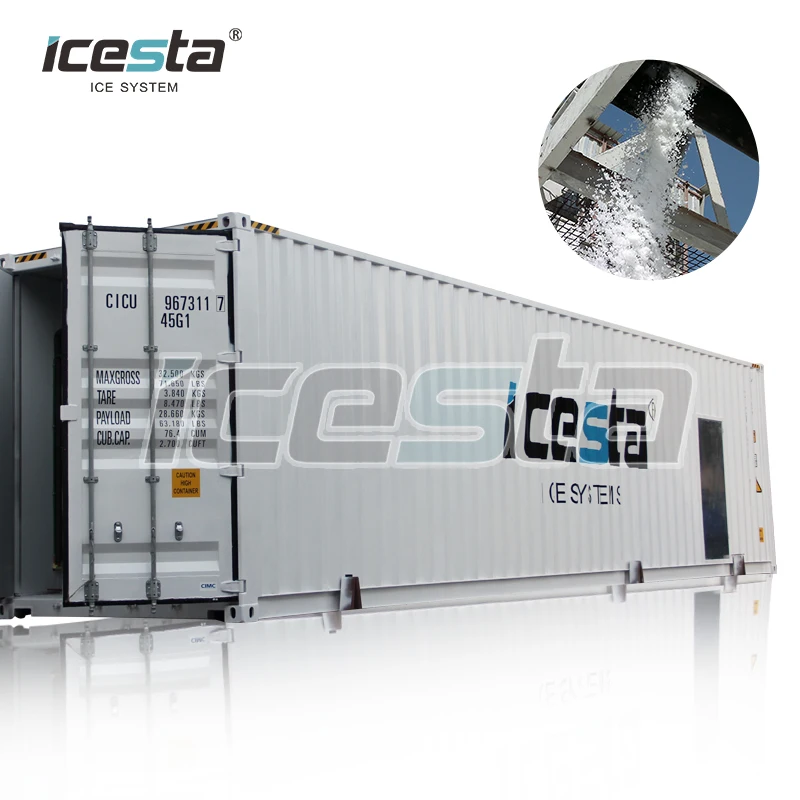

ICESTA Ice Systems concrete cooling ice plant Middle East Selling well products

ICESTA Ice Systems concrete cooling ice plant Middle East Selling well products



Model		IFCT-20T	IFCT-30T	IFCT-40T	IFCT-50T	IFCT-60T	IFCT-80T
Daily output(T/24hrs)		20	30	40	50	60	80
Cooling capacity(KW)		118	200	236	320	354	472
(Container type)		20'	40'	40'	40'	40"	40'
Dimension (mm)	L	6100	12200	12200	12200	12200	12200
	W	2440	2440	2440	2440	2440	2440
	H	2590	2590	2590	2590	2590	2590

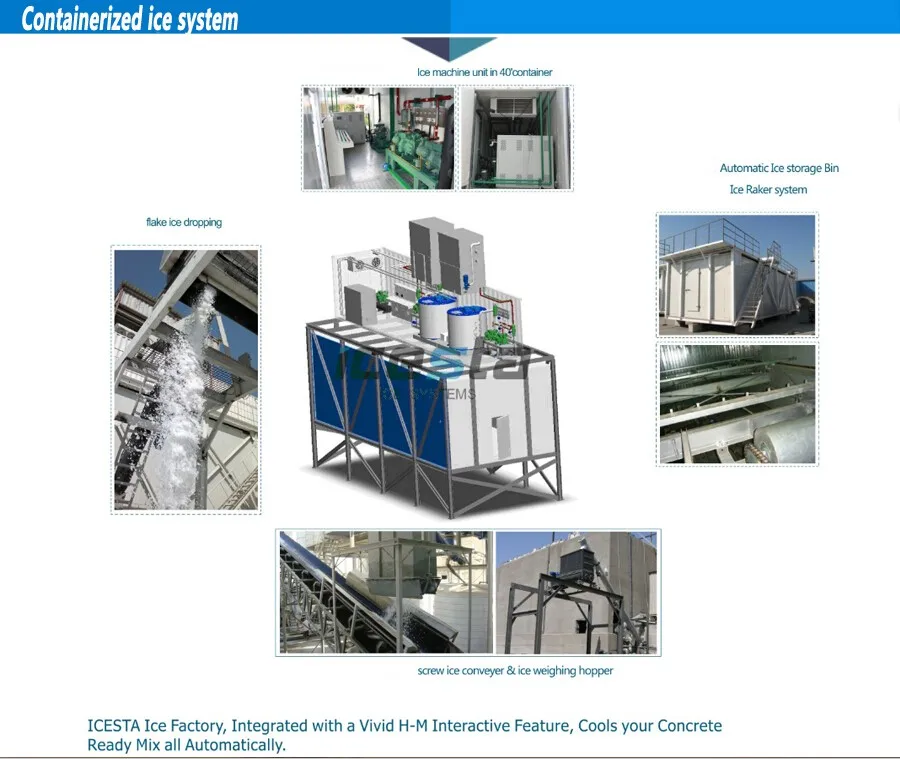

ICESTA Concrete Cooling Systems Ice Plant includes following:

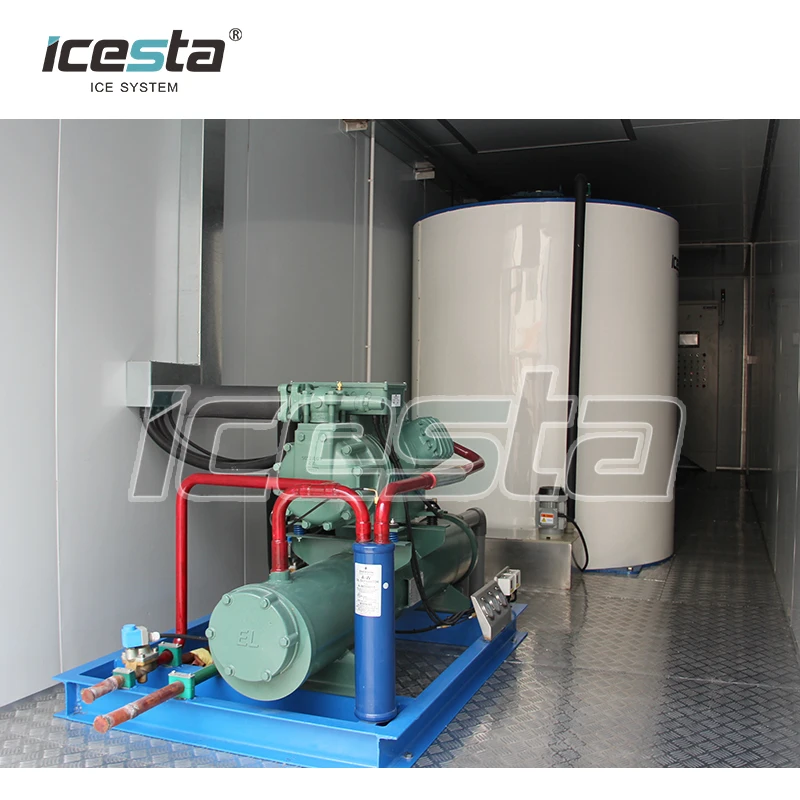

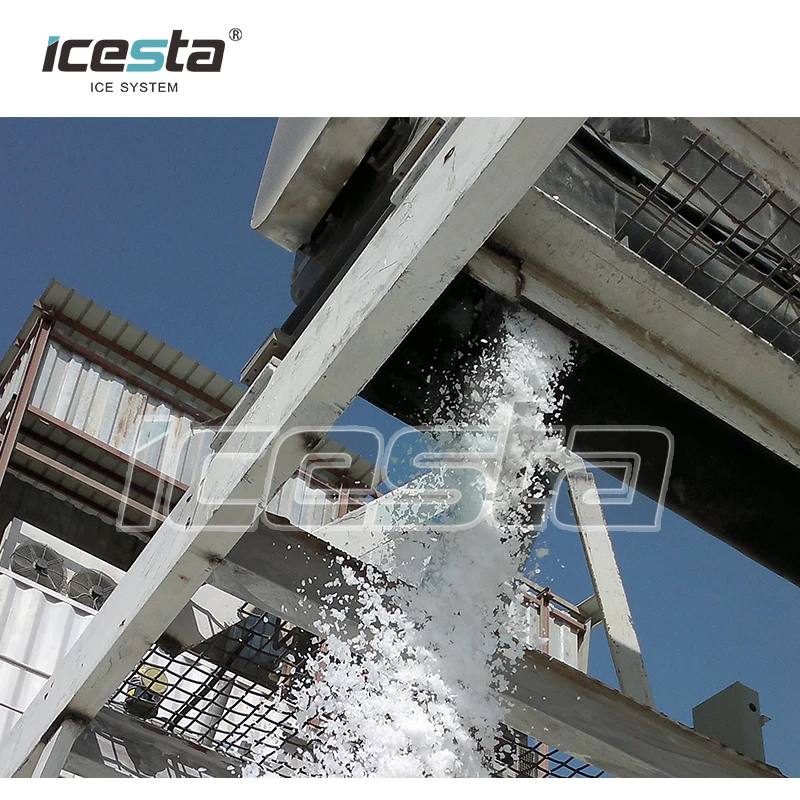

*Flake ice machine
*Ice machine touch screens
*Ice Rake hoist assembly
*Discharge screw ice conveyor and pneumatic delivering system
*Ice weighing system
*Automatic ice storage bin

Patented ICESTA ice machine control system gives operators the following experiences:
Vivid images for easy operation
Smart displaying for easy diagnoising
Detailed instructions for easy touble-shooting
Humane parameter setting for convenient system minor adjustment
Intelligent and high definition screen for easy observation
Ice storing and delivering system
Intelligent ICESTA ice storing and delivering control system stores, delivers and loads ice all automatically:

Infrared sensor detects ice level inside ice storing bin and automates ice raker system
SICK detectors help adjust ice delivering speed and avoid ice jamming
Omron limit switches help automate ice loading and delivering
Smart displaying of failure records gives instructions as to how to troubleshoot and reset the current failure.

ICESTA Ice Systems concrete cooling ice plant Middle East Selling well product
Rake Hoist assembly
ICESTA rake hoist system is composed by reducer with monitor, chain wheels, chains, bearings, steel rope wheels, supporting mechanism. The chains are driven by the chain wheels that are moved by the reducer with monitor, and the moving chains will in the turn move the steel rope wheels, with whose friction, the steel ropes are to move the ice rake mechanism up and down.

ICESTA Ice Systems concrete cooling ice plant Middle East Selling well product

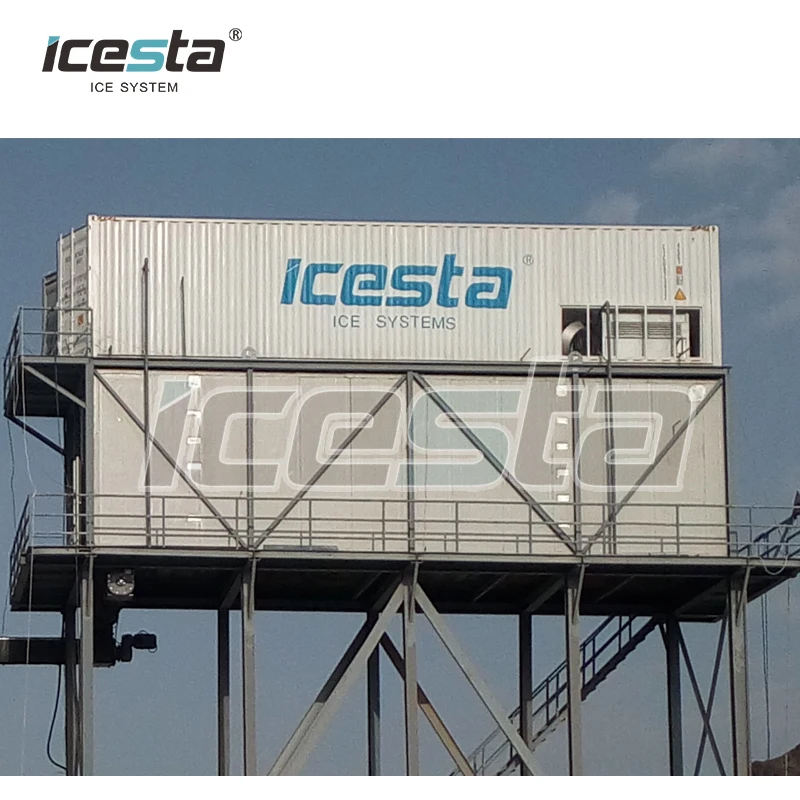

IRaker Style Automatic Ice Storing System

a) Dual Insulation design for cold air to circulate freely;

b)Air cooler installed on the top inside the storage bin, keeps the inner temp at -10 degrees;

c)Ice raker inside loosens and pushes the ice hill to the oullet point of the ice storage bin;

d)There is an induction mechanism for ice level detection, which helps keep the ice raker over the ice hill at all times.
