TEENKING CNC Machinery CO., LTD was established in 2004, specializing in manufacturing high efficiency CNC cutting machines. TeenKing Waterjet is commonly used to cut steel, metal, marble, stone and glass, etc. By becoming the preferred choice of the high end customers at home and abroad, we are dedicated in producing quality products with our know how and innovations, in order to give good service and fulfill our customers’ requirements. By making our customers as our partners, we work together to achieve their needs, maximum economical benefits and produce easy to use machines.

With the development and enlargement of the company, we strive for perfection through our motto “Innovations, Practice, Diligence”. We insist on “better quality and service” to serve our customer’s needs. We appreciate your opinions and feedbacks which will help us improve and be closer to perfection. We are making “Teen King” a worldwide brand and at the same time satisfy all our customer needs.

Product decription

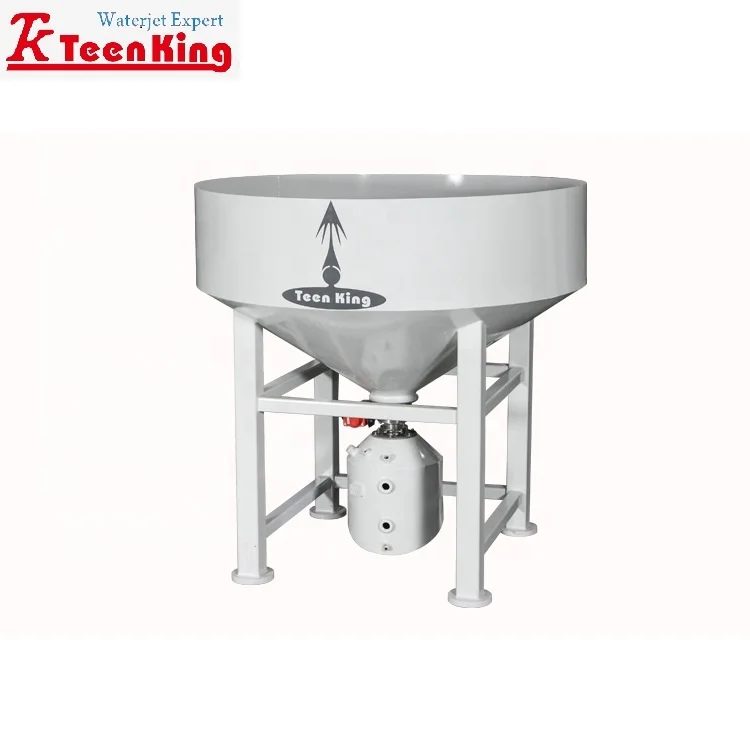

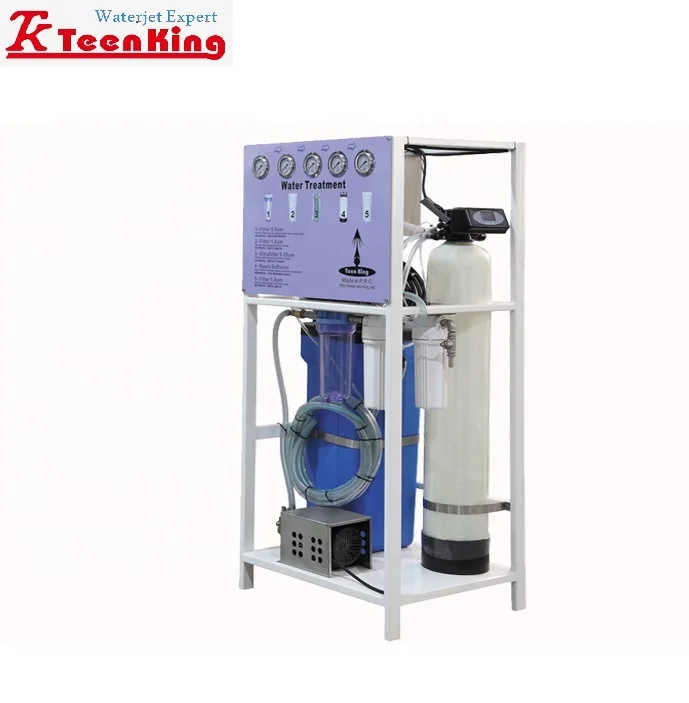

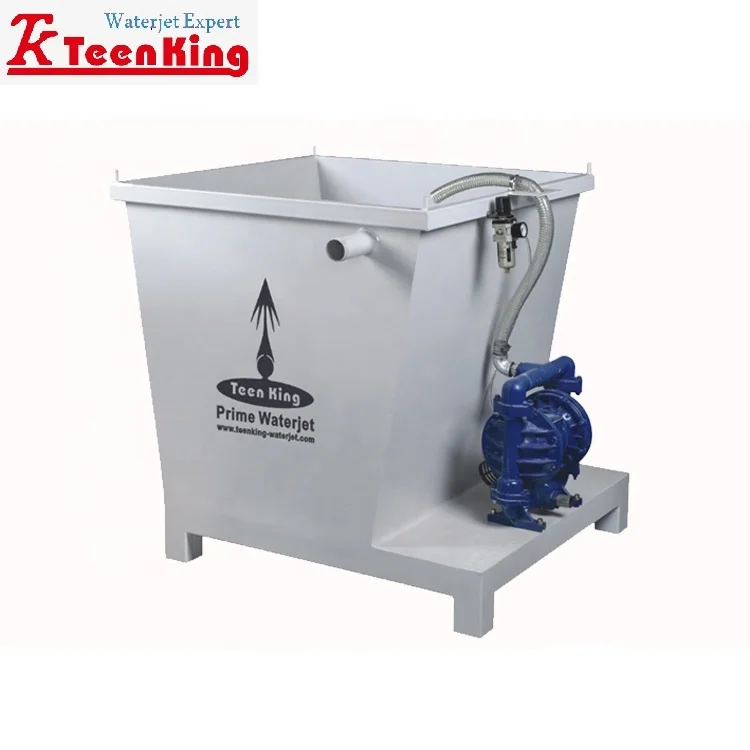

A full set of abrasive waterjet cutting machine includes work table, CNC controller, High pressure system with cooling system, Auto abrasive feeder, Water treatment and Sludge Removal System, etc.

Waterjet can cut almost every thing, including: stainless steel, hard tool steel, mild steel, aluminium, brass, bronze, titanium, tungsten steel, zirconia, glass, plexiglass, rubber, ceramic,marble, granite, etc.

Teenking 5 Axis Waterjet

3D head

It is a 5-axis motion. With 2 rotating axis, 3D waterjet can cut at fixed or varying angle on 2D or 3D worksheet surface.

Teenking 3D waterjet is most popularly applied in extensive processing industries, handling all kinds of complicated cutting cases easily, such as vertical cut, tiltling cut and cut on 3D part surface, etc. With dynamic compensation, 3D head offsets the natural taper of jet to ensure the exact cutting effect and high accuracy.

Main function

a) Dynamic vertical cut compensating,

b) Beveling cut within ±60º (extendable to ±90º)

c) Cut with varying angle (within ±60º) on 2D and 3D part surface (extendable to ±90º)

Why Teenking 3D waterjet?

a) Prime Patented Design with excellent sealing, expending service life of cutting head

b) Harmonic drive inside (no backlash), decreasing maintenance cost in future

c) Infinite C axis rotation, avoiding travel limit in processing

d) Water/dust proof: lp64, ensure good working state of cutting head

Teenking 3D is the best choice for all your verious cutting!

DY tilting head

DY head can cut at a fixed tilting angle on the

planeof worksheet, following internal or external contourline. It can also cut at varying angles,

max tilting upto +/-7 degree with extremely high accuracy.Especially suitable for high-precision metal processingand high-end ceramic or stone parquet, etc.

Main functions

a) Compensated vertical cutting

b) Tilting cutting within +/-8 degree

DYB beveling head

DYB head can cut at a fixed tilting angle on the plane of worksheet, following internal or external contour line. It can also cut at varying angles, max tilting up to +/-14 degree. It’s mainly applied in ceramic and stone parquet cutting. The head can tilt +/-15 degree, cutting sharp corner without arc. Cutting bottom is minimized to leave space for parquet glue, and surface is seamless. It’s the best choice for parquet cutting, cutting with full speed but to keep perfect workpiece surface.

Main functions

a) Dynamic vertical cut compensating

b) Tilting cut within +/-15 degree

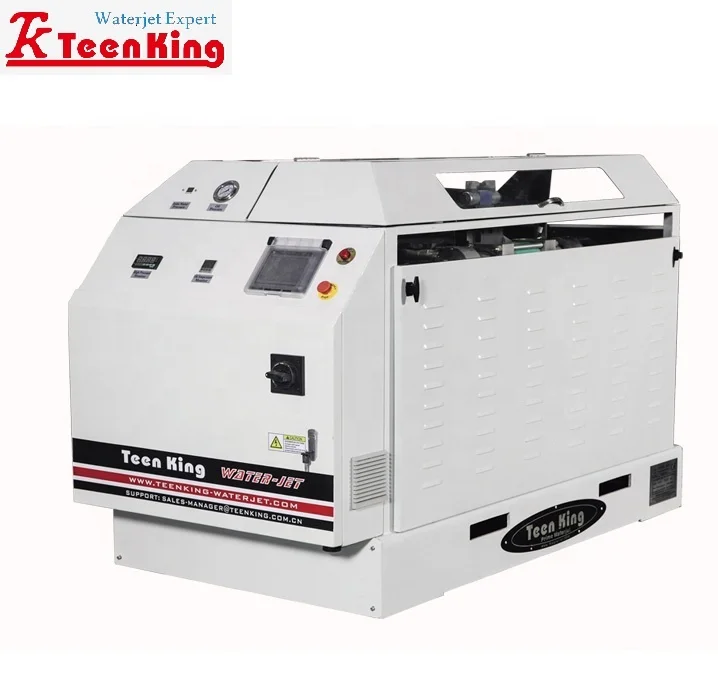

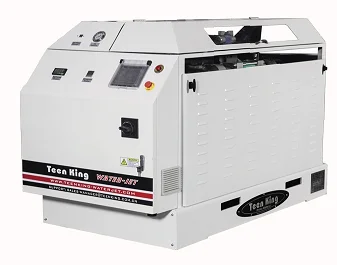

Teenking High Pressure System
	Intensifier OHP from Taiwan (Most stable Flow type intensifier)
	Accumulator Accustream from USA
	Main motor German Siemens Motor
Model	TK-Trump50 / TK-Trump100
Drive system	Motor
Pressure system	Intensifier
Max. cutting pressure	420MPa/60000psi
Continuous working pressure	350-380MPa/50000-55000psi
Max. flow rate	3.6L/min / 7.0L/min
Nonimal power	37KW/50HP 75KW/100HP
Power Supply	380V/50Hz, 3 Phases
1. Imported original intensifier and accumulator assembly are specially adapted to ensure system stability and service life.
2. With effective fan-oil cooling system, oil temperature is strictly control to not over 60 degrees Celsius, guaranteeing life of sealing elements.
3. Various Instruments monitor data of temperature, pressure and running.
4. Auto dual pressure (low/high range 70~380MPa) pressure control system enables automatic low/high pressure switching when cutting, decreasing damages to work pieces.

Teenking Work Table

Gantry type	Cantilever type

Available cutting area (mm) (For more size, please contact us freely.)
1500x3000	2000x3000	2000x4000	3000x6000
Max speed in X,Y axis		20m/min
Max speed in Z axis		3m/min
Tolerance square (100x100mm)		+/-0.02mm
Tolerance circle (dia 100mm)		+/-0.08mm
Position in X,Y axis		≤+/-0.05mm per 300mm
Reposition tolerance		≤+/-0.02mm/ full range

HIWIN liner guide, ABBA ball screw / Auto central lubrication / Unique sealing / Laser checkout equipment

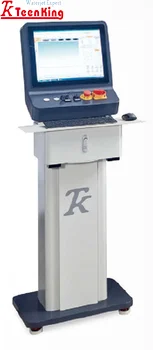

Teenking Controller
	1. 19" touch screen sets you free from keyboard and mouse when control machine.
	2. Built-in Teenking material database, simply choose material and thickness, machine will automatically finish the remaining work and give you ideal part.
	3. Teenking CNC control card, support absolute value encoder servo system.
	4. Japan Yaskawa absolute value encoder servo motor supports power-break resume, making no more back to reference possible!
	5. Italian ECS control system and German Baumüller absolute value encoder servo system as optional units!
