Gypsum board ceiling drywall channel for suspension ceiling

Product Overview

Description

Gypsum board ceiling drywall channel for suspension ceiling



MAIN DATE

1. application : internal building gypsum board ceiling system

2. raw material: galvanized light steel coil, Q195

3. surface treatment: zinc coat,  zinc content:60-140g/sq.m

4. technology: fill with dot, ribbed,

5. size: 38*10mm, 68*35*22mm, 60*27mm, 28*27mm, 25*25mm, thickness: 0.4-1.0mm

6. standard: GB,JIS ,ASTM

7. package: 12/20/25/50 pcs per bundle



SPECIFICATION

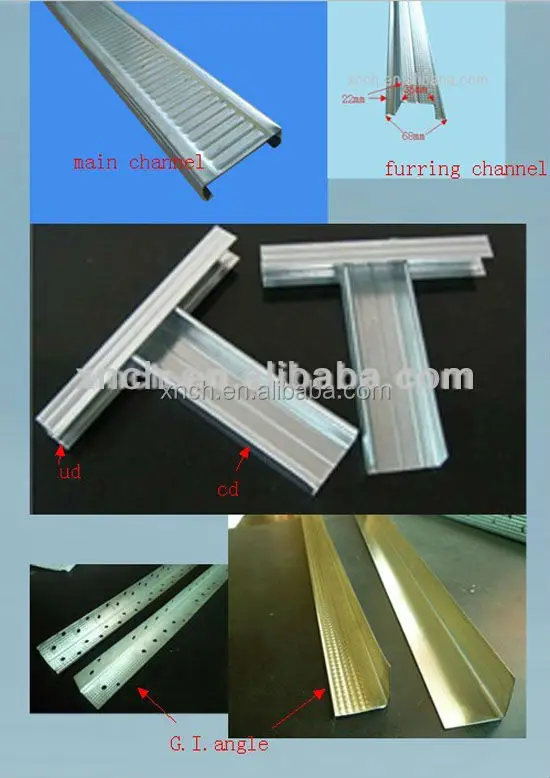

commodity	spec. (mm)	thickness (mm)	length (mm)	package (pcs/bundle
main channel	38*10	0.45-1.0	customized	20
furring channel	68*35*22	0.4-0.8	customized	25
cd	60*27	0.35-0.8	customized	12
ud	27*28	0.35-0.8	customized	20
angle	25*25	0.35-0.8	customized	50
