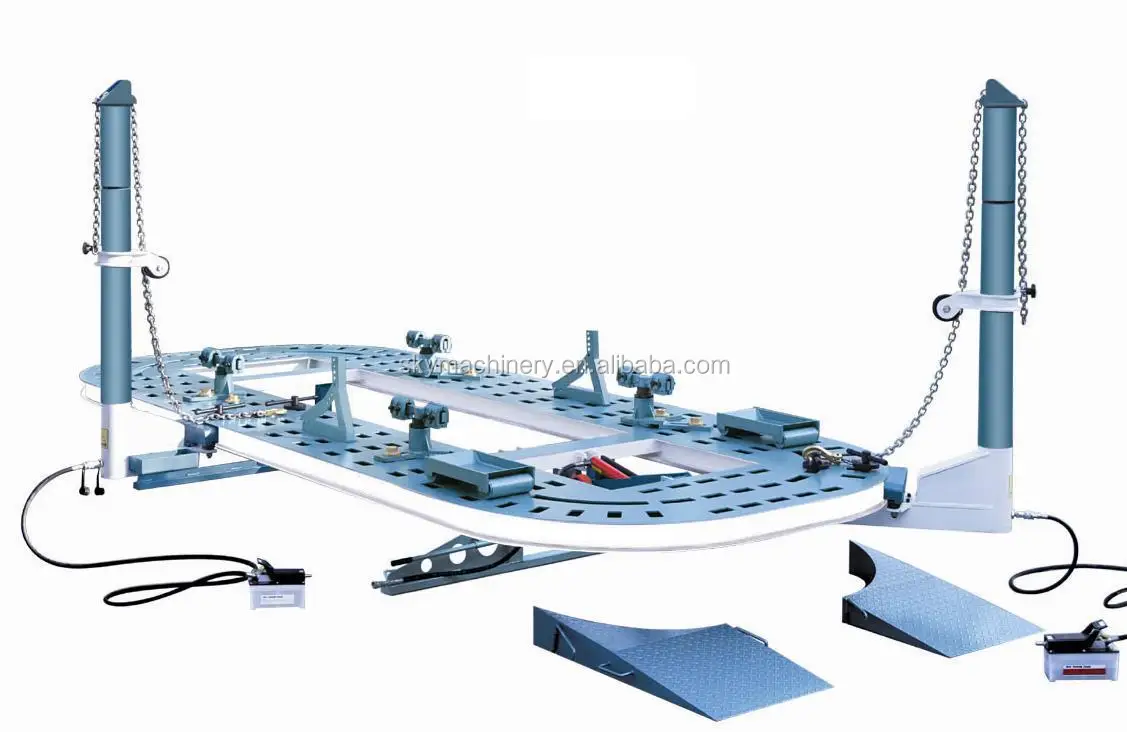

FS2 hydraulic tower/garage/chassis straightening/auto pulling bench /frame machine

Product Overview

Description

 FS2 hydraulic tower/garage/chassis straightening/auto pulling bench



FS2



FS2	-17	-18	-19
Deck Length (Feet/Meter)	17'/5.2m	18'/5.5m	19'/5.8m
Deck Width (Feet/Meter)	6'7/2.0m	6'7/2.0m	7/2.1m
Net Weight (LB/KG)	5732LB/2600KG	5952LB/2700KG	6173LB/2800KG

Technical Data:
Working Platform Height: 22"/560 mm
Hydraulic System MWP: 70 MPa
Tower Hydraulic Cylinder Max. Lifting Force: 95 KN
Tower Pulling Range: 360
Inlet Air Pressure: 0.8 MPa
Max. Lifting Weight: 3500 KG
Features:
1. The platform is made of Manganese plate.
2. The hydraulic towers can be moved freely alongside the platform and turn 360 as operating. The hydraulic cylinders work vertically, resulting in maximum force and most powerful effectiveness.
3. High quality chains and plate tools are used flexibly and conveniently with long life. The entire series of tool accessories enable to do any misshape correction work.
4. Hydraulic system with good design has powerful driving force, long life and low failure rate.
5. Portable measuring system is easier for workers.
6. Major clamps fix the auto quickly, firmly and accurately.
7. Top-quality welding with high strength and good-looking.
