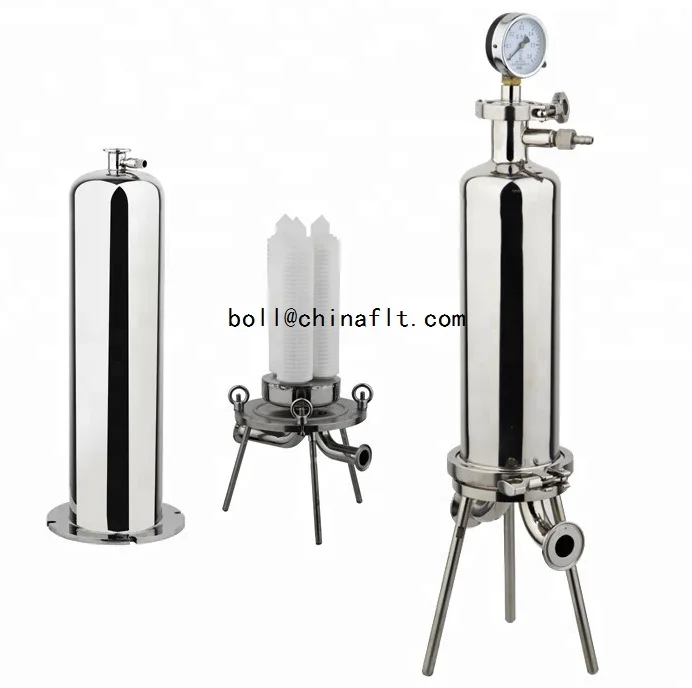

30 inches 316L Stainless Steel Liquid cartridge Filter Housing for wine
- Category: >>>
- Supplier: Wenzhou Flowtam Co. Ltd.
Share on (1881374074):
Product Overview
Description
Products Description
Stainless Steel Filter Housing made of SUS316L or SUS304, and take filter cartridge as its element. The stainless steel filter housing can be used for filtration of liquid, gas and 0.1um above particles and bacteria, with high removal rating and flow rate.
It possess properties of lower absorption, no medium shedding, no leakage, acid and alkali Resistance, and corrosion resistance.
In addition, it is easy to wash and function as back flush, and is ideal filtration equipment for the industry of biology and
, beer and beverage, textile, power plant, chemical, and water treatment etc.Flow:0.3-30T/H
0.1-500 micron
made of stainless steel SUS304 or AISI316L
This filter can be applied for most particles so it is broadly for precision filter and sterilization.
1. the filter cylinder is 1core,3core,5core,7core,9core,11core,13core,15core
2. the length of folding filter core is 10,20,30,40
3. the material of the filter core is PTF,Pplysulfone,nylon,pp,acetyl cellulose
4. the diameter of the filter hole is 0.1μm,0.22μm,0.45μm,1μm,3μm,5μm,10μm,30μm,60μm,and it is selective as hydrophilic (suitable
for gas) and hydrophilic (suitable for liquid) according to your requirement.
It possess properties of lower absorption, no medium shedding, no leakage, acid and alkali Resistance, and corrosion resistance.
In addition, it is easy to wash and function as back flush, and is ideal filtration equipment for the industry of biology and
, beer and beverage, textile, power plant, chemical, and water treatment etc.Flow:0.3-30T/H
0.1-500 micron
made of stainless steel SUS304 or AISI316L
This filter can be applied for most particles so it is broadly for precision filter and sterilization.
1. the filter cylinder is 1core,3core,5core,7core,9core,11core,13core,15core
2. the length of folding filter core is 10,20,30,40
3. the material of the filter core is PTF,Pplysulfone,nylon,pp,acetyl cellulose
4. the diameter of the filter hole is 0.1μm,0.22μm,0.45μm,1μm,3μm,5μm,10μm,30μm,60μm,and it is selective as hydrophilic (suitable
for gas) and hydrophilic (suitable for liquid) according to your requirement.
Function:
This equipment is used to filter various solids or colloids in the liquids such as tfruit juice,sirup,milk and beverages etc.
This equipment is used to filter various solids or colloids in the liquids such as tfruit juice,sirup,milk and beverages etc.
Product Paramenters
Model | Flow (m3/h) | Filter Element | ||
Quantity | Length | |||
GL1-10 | 0.3-0.5 | 1 | 10" | |
GL1-20 | 0.5-1 | 1 | 20" | |
GL1-30 | 1-1.5 | 1 | 30" | |
GL3-10 | 1-1.5 | 3 | 10" | |
GL3-20 | 1.5-3 | 3 | 20" | |
GL3-30 | 2.5-4.5 | 3 | 30" | |
GL5-10 | 1.5-2.5 | 5 | 10" | |
GL5-20 | 3-5 | 5 | 20" | |
GL5-30 | 4.5-7.5 | 5 | 30" | |
GL7-20 | 5-7 | 7 | 20" | |
GL7-30 | 6-10 | 7 | 30" | |
GL7-40 | 8-14 | 7 | 40" | |
GL9-20 | 6-8 | 9 | 20" | |
GL9-30 | 8-12 | 9 | 30“ | |
GL9-40 | 12-15 | 9 | 40” | |
GL13-30 | 15-20 | 13 | 30“ | |
GL13-40 | 18-25 | 13 | 40" | |
GL15-30 | 18-25 | 15 | 30" | |
GL15-40 | 20-30 | 15 | 40" | |
Contact Information

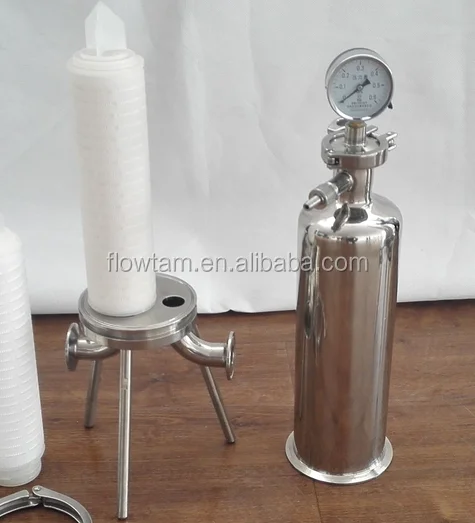

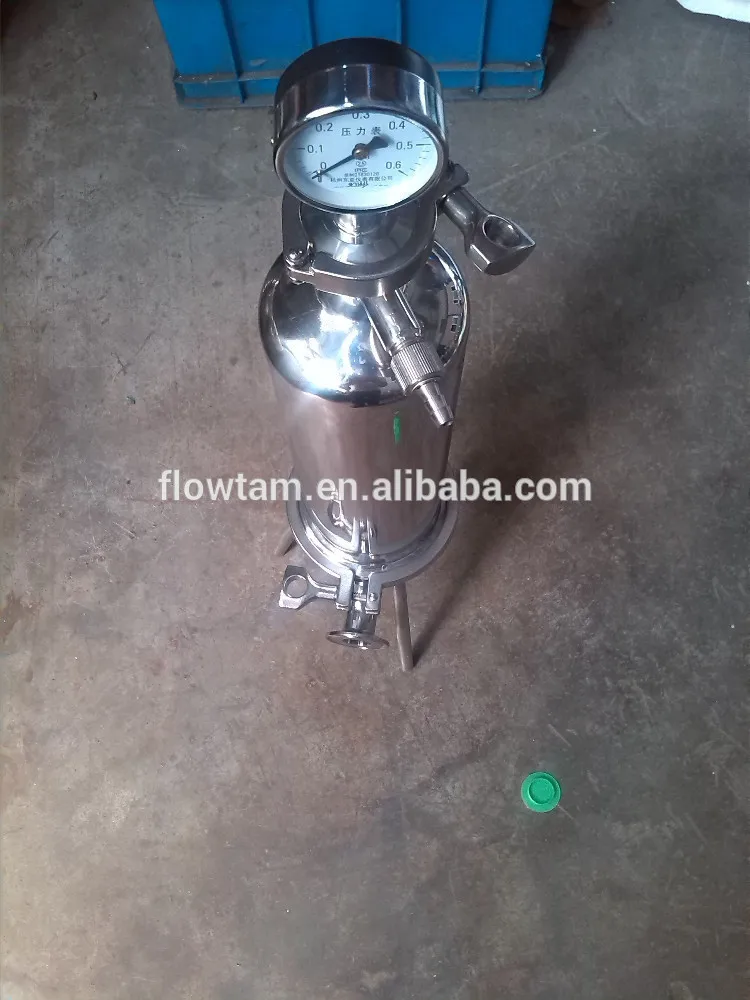

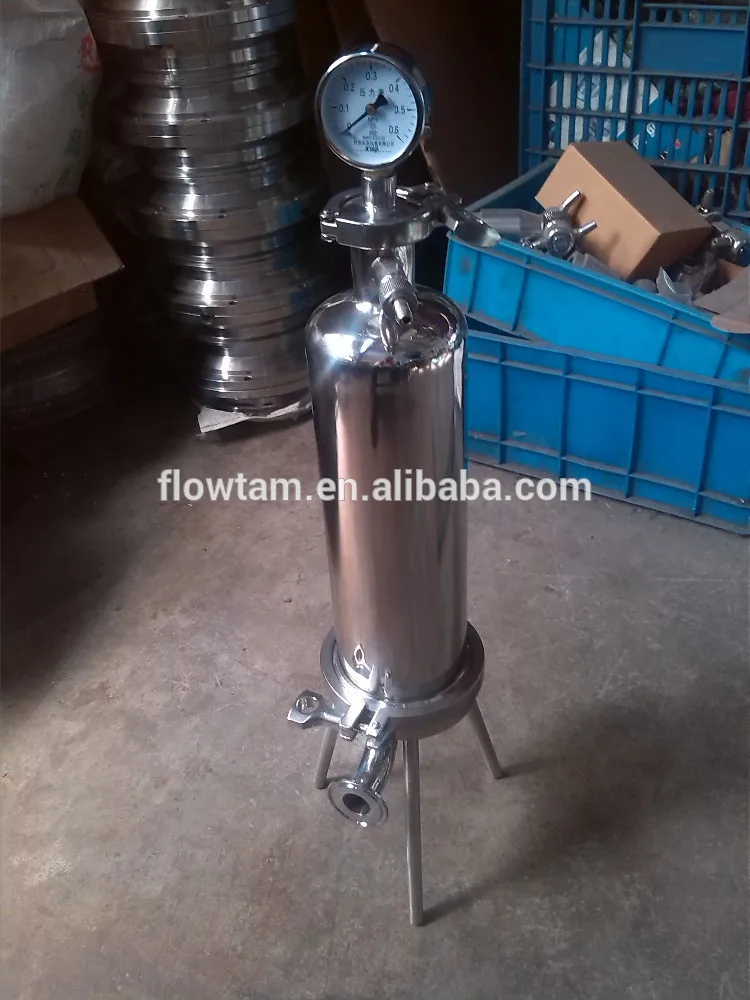

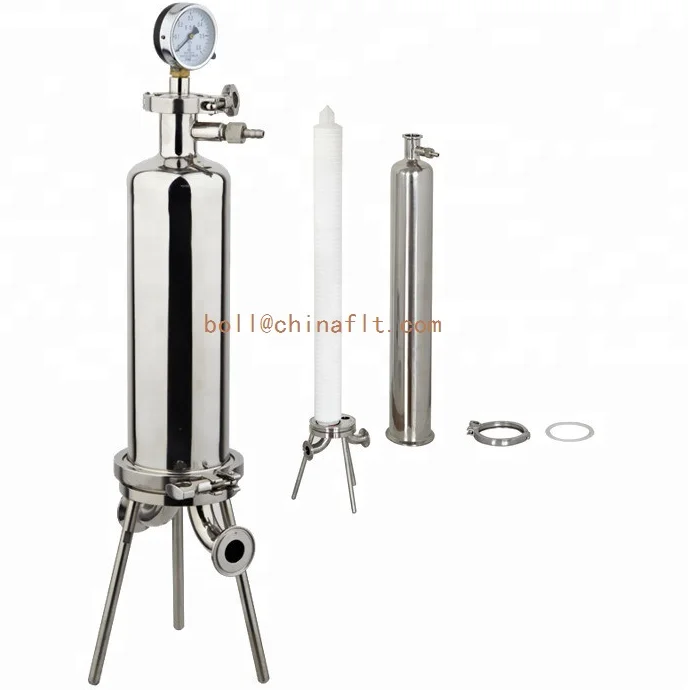

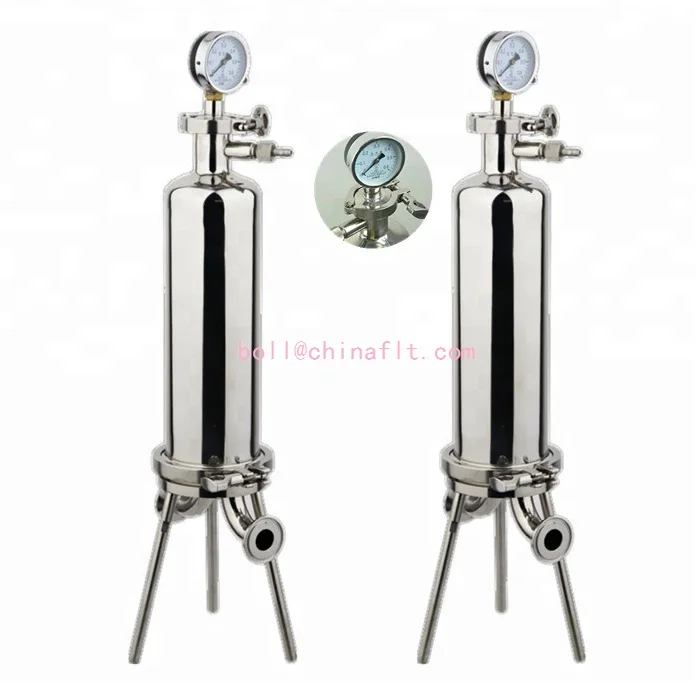

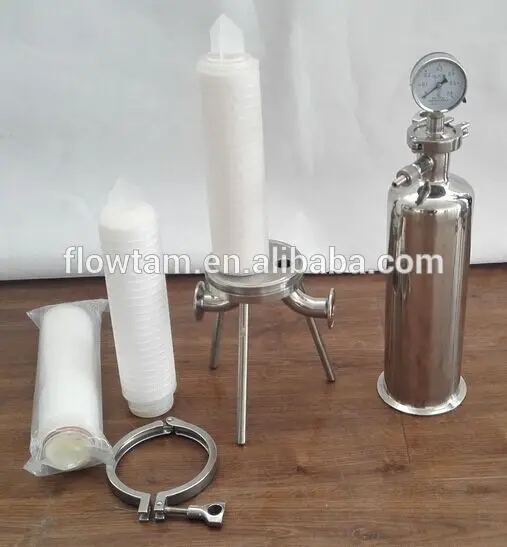

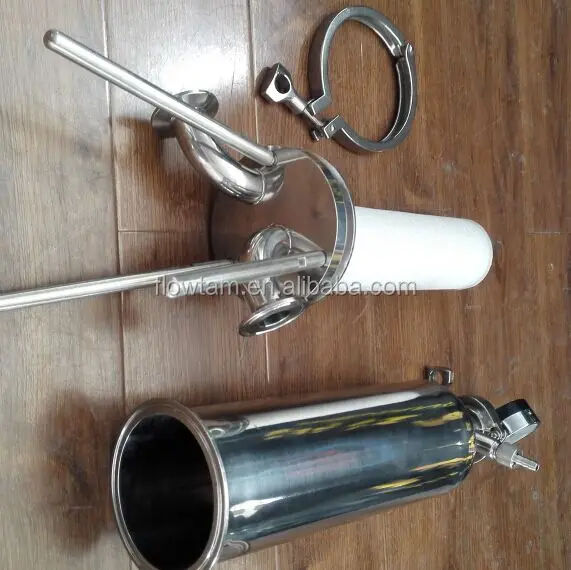

Product photos
Our Company
Wenzhou Flowtam Light Industry Machinery Co.,Ltd established in 1995,Located in BinHai Industrial Zone. Wenzhou City.
Our main products including colloid mills,Stainless Steel Tank, high shear mixer, Sanitary pumps etc.
Meanwhile we also accept customized stainless steel parts and components for all industries.
BLS products could applied in food, beverage, pharmacy, chemical, cosmetics industries etc
We now exports our goods to United States, Australia, Newzealand and Japan etc.
Our Office
FAQ
1.can you accept custom made ?yes ,we have professonal engineer and skillful workers for custom made product
2.what is your major products?
high shear mixer,sanitary transfer pump ,stainless steel tank ,colloid mill,jacketed kettle magnetic mixer,powder liquid mixer,dry
powder mixer,mixing tanks etc
3.how to shipment the goods ?
We will packing the goods by standard export package ,before shipment ,we will test it to make sure running well
4.what is your warranty ?
For no made problem,warranty 1 year and technology support all the life.
5.how is the payment term?
normally we do T/T payment 50% advance,the balance 50% before shipment
6.what is your contact information
email:boll@chinaflt.com whatsapp:0086-18969753176
