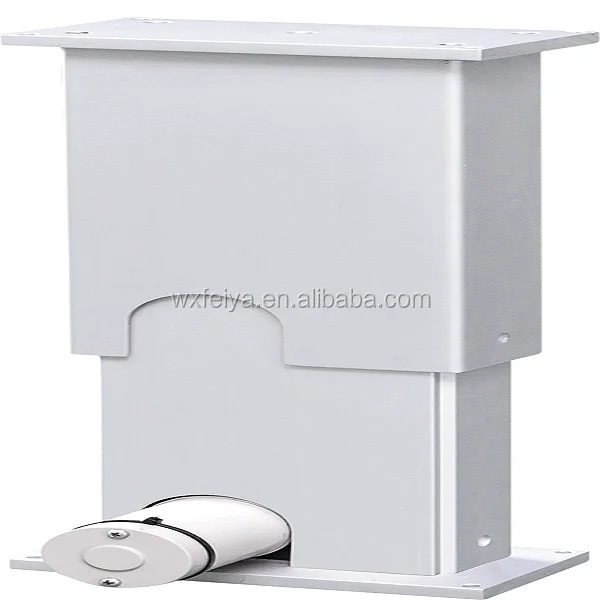

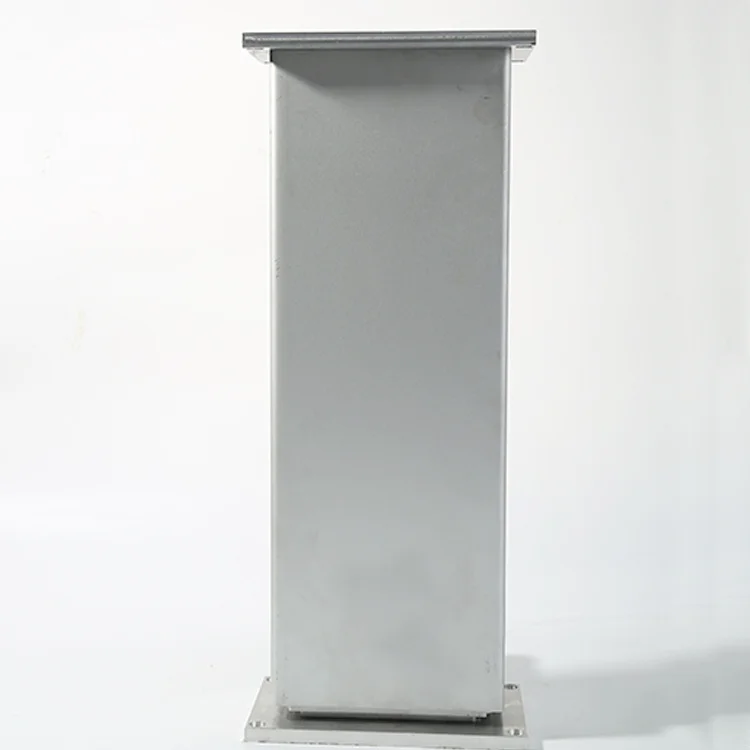

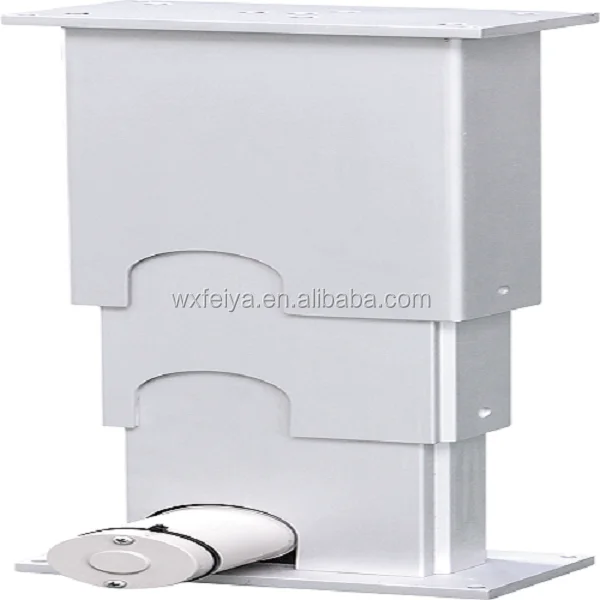

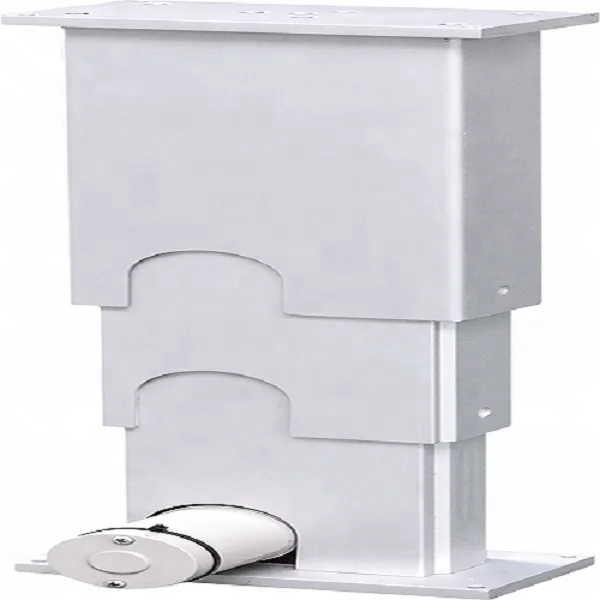

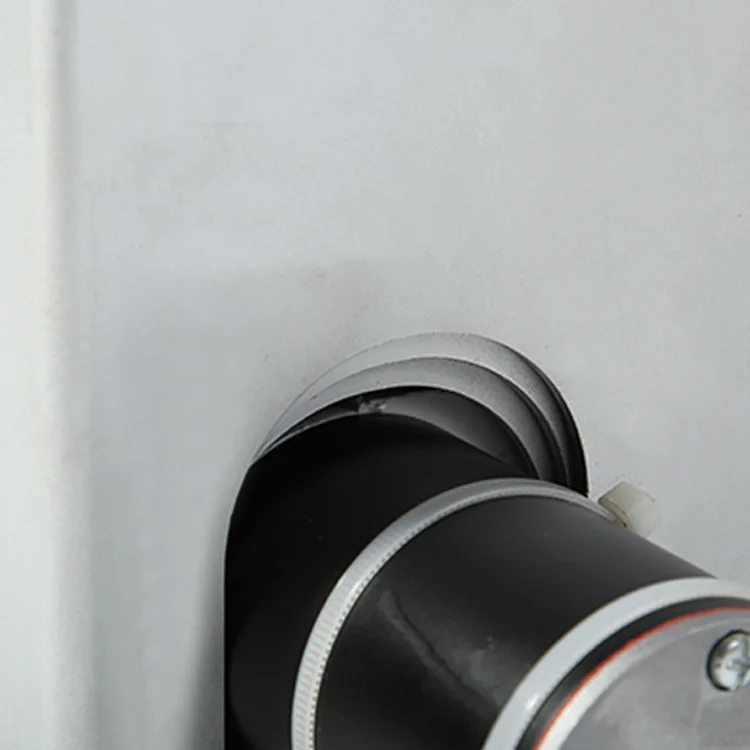

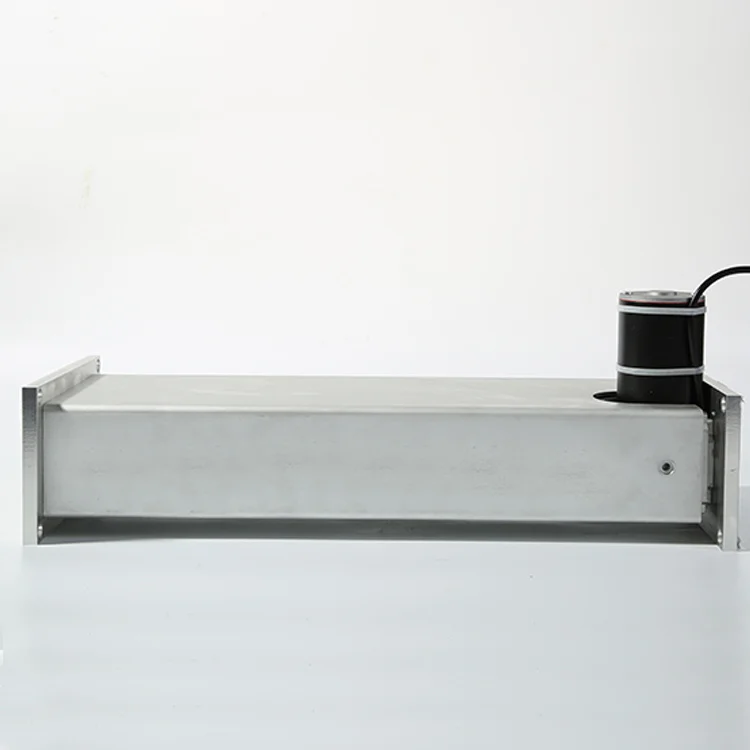

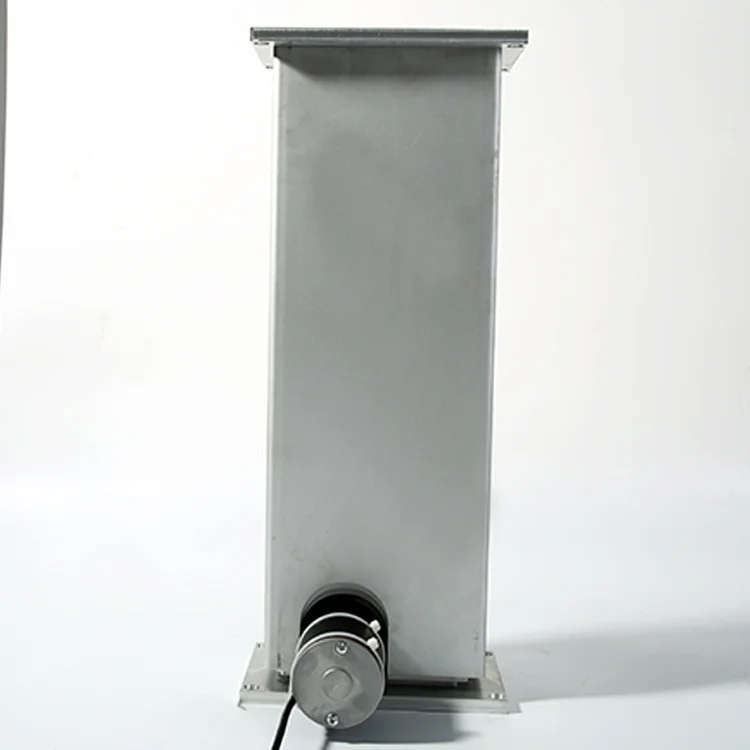

electric lifting column for table lift FY018 or FY018B
- Category: Other Furniture Parts >>>
- Supplier: Wuxi Jdr Automation Equipment Co. Ltd.
Share on (1881548675):
Product Overview
Description
Product Description
| THE LIFTING COLUMN | CUSTOMIZED |

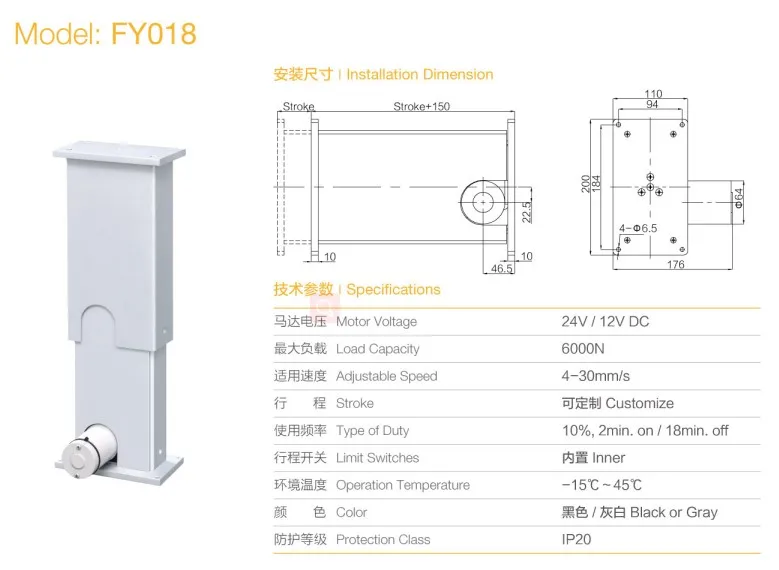

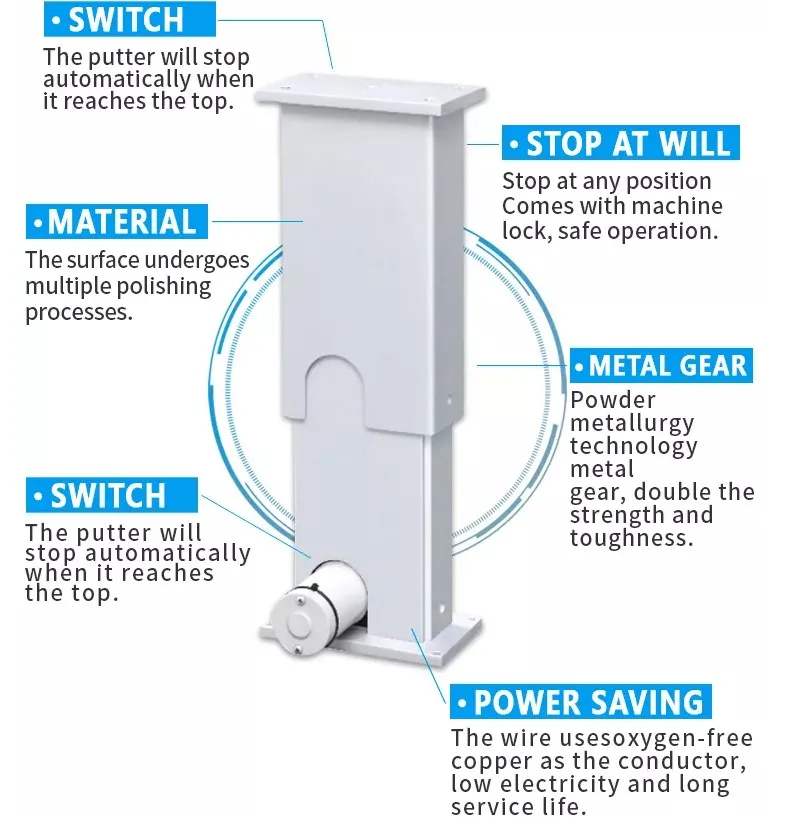

FY018-C Lifting Column for Desk,Table
Features:
1) Offers a wide range of lifting and lower workbench, office, furniture, with big stroke, small retracted length, move steady
2) Can realize synchronized movement with control bx
3) Input Voltage : DC24V

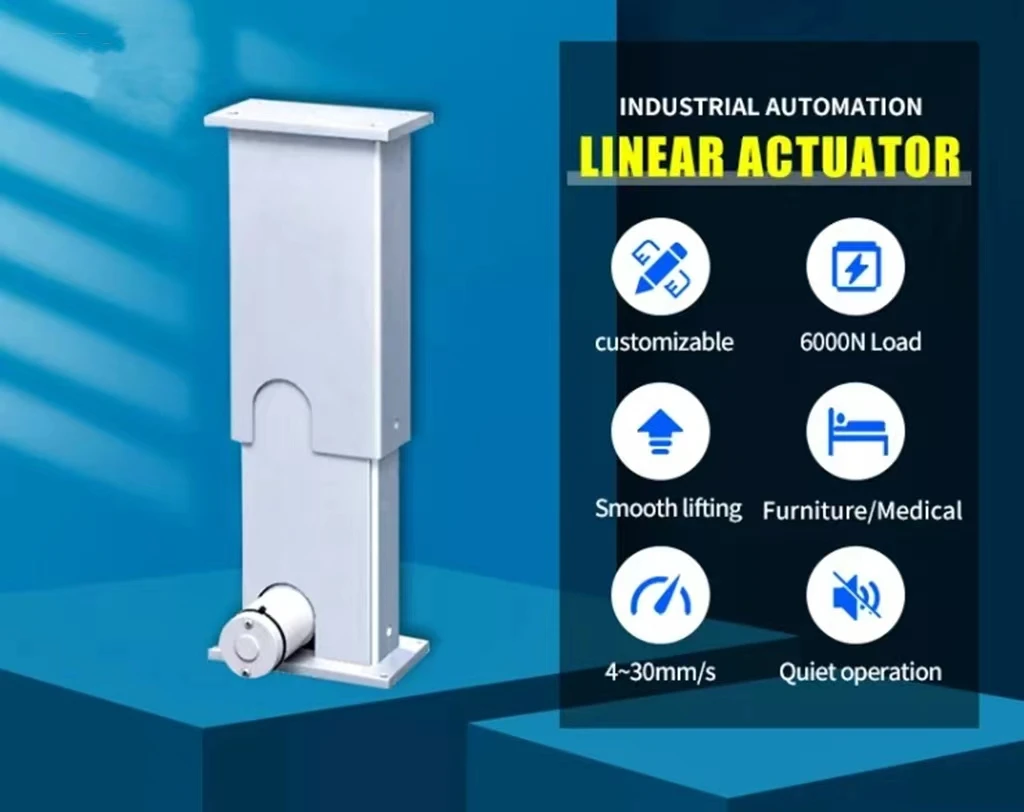

4) Load capacity:up to 6000N
5) Speed: 4-30mm/s

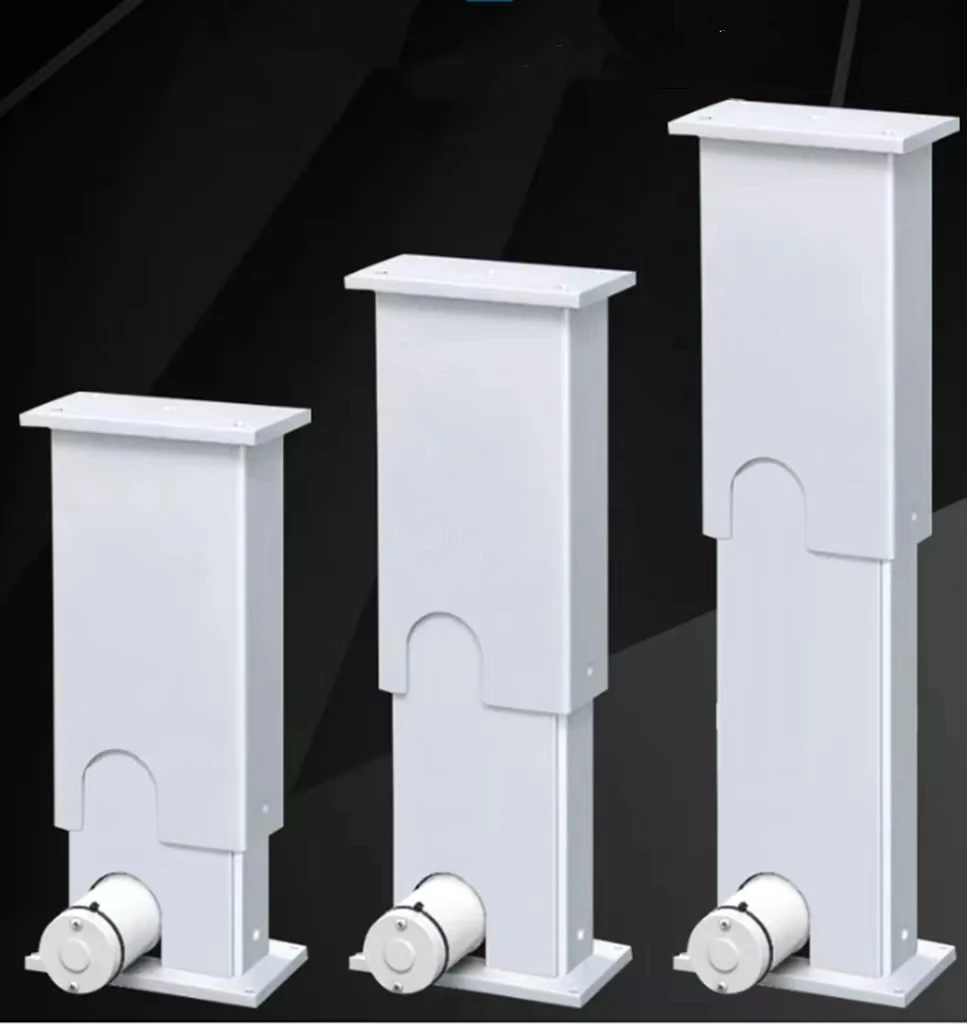

6) Standard stroke: 100-1000mm (option)
7) Min. install dimensions: stroke /(n-1)+200n mm ( option )

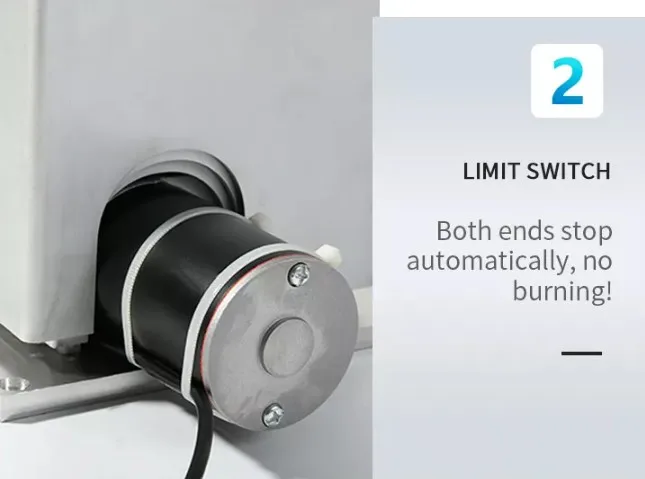

8) Limit switches: built-in
9) Type of duty: 10% , 2 minuts-on ,18 minutes-off
10) Operation temperature: -26 - 65°C
11) IP degree: IP20
| The max load | 6000N |
| The speed | Customized |

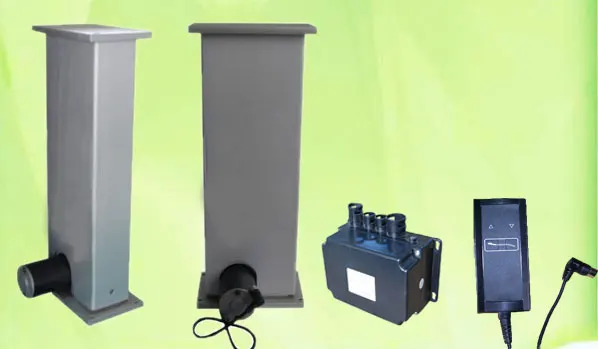

Match with the control box and handset using
Company Information
Packaging & Shipping
Our Services
Specification of OurElectric linear actuator:
Max. Thrust: 3000N,4000N, 6000N, 8000N
Voltage:24VDC or 12VDC, Motor Drive
Standard stroke: 100 / 150 / 200 / 250 / 300 / 350 / 400 mm, special stroke areavailable according to customer' requirement.
Duty cycle:10%
Ambient temperature -26°C to +65°C
Standard protection class:IP 43
Built-in integral limit switch, not adjustable after leaving factory

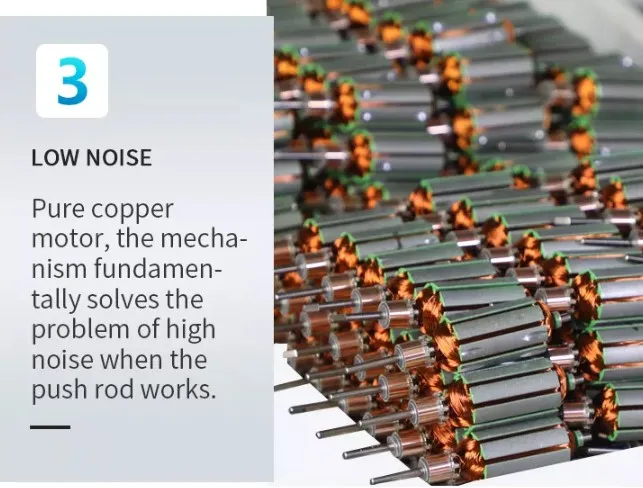

Low noise design, dB<48(A); The inspection method is in accordance with DS/EN ISO3746 while linear actuator is unloaded.
Overload protection
CE Certificated
Availability in Black, White and Gray housing
Quality Guarantee
We provide 1 year warranty for JDR Linear Actuators.
We provide spare parts free or replace a new one on condition that there is any breakdown with convincing evidence.
Maintenance service
No matter what brands of your linear actuators, no matter where your linear actuators are from, full way service and technical Support could be supplied by JDR.

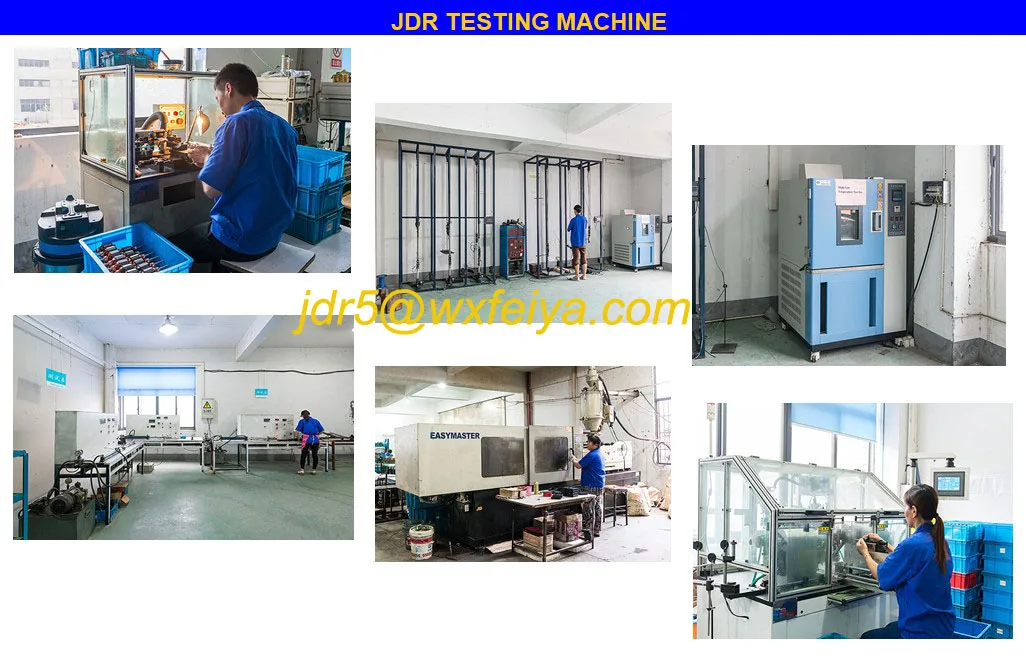

JDR QC Team
JDR QC team consists of more than 10 professional people to ensure 100% products high quality.
Contact Us
We highly appreciate your any enquiry by email, by fax or by Instant message.
We will reply your email or fax within 18 hours.
Please feel free to call us at any time if there is any question.
Transportation
All available shipping ways could be applied, by courier, by air or by sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you before the goods arrive.
We have a wide range of Linear Actuator and Linear Motor for worldwide customer.
